Product Description: Recessed USB Type-C Module - Breadboard Connector - Adafruit 6050

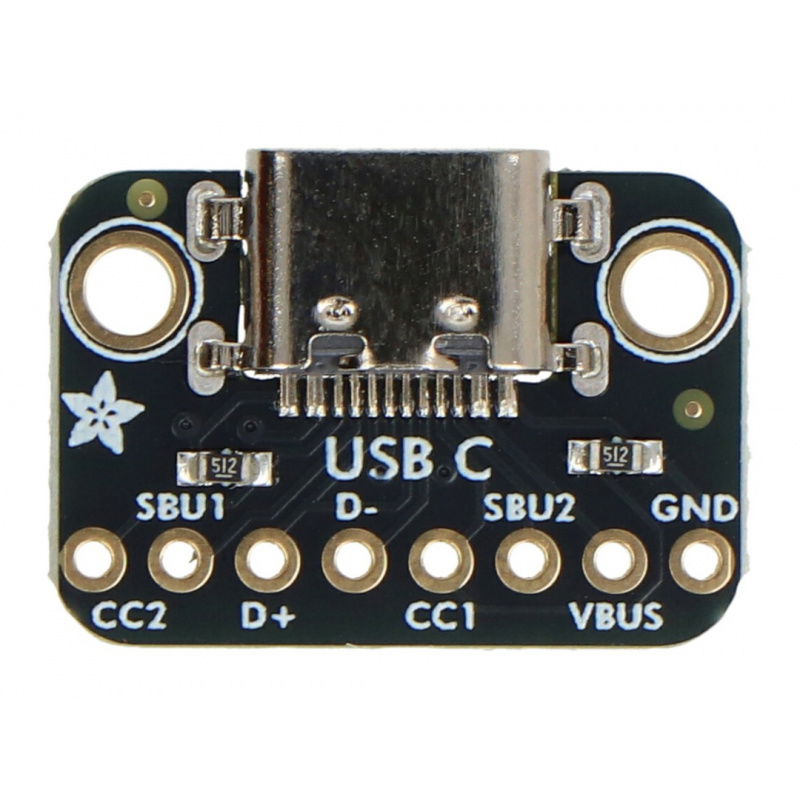

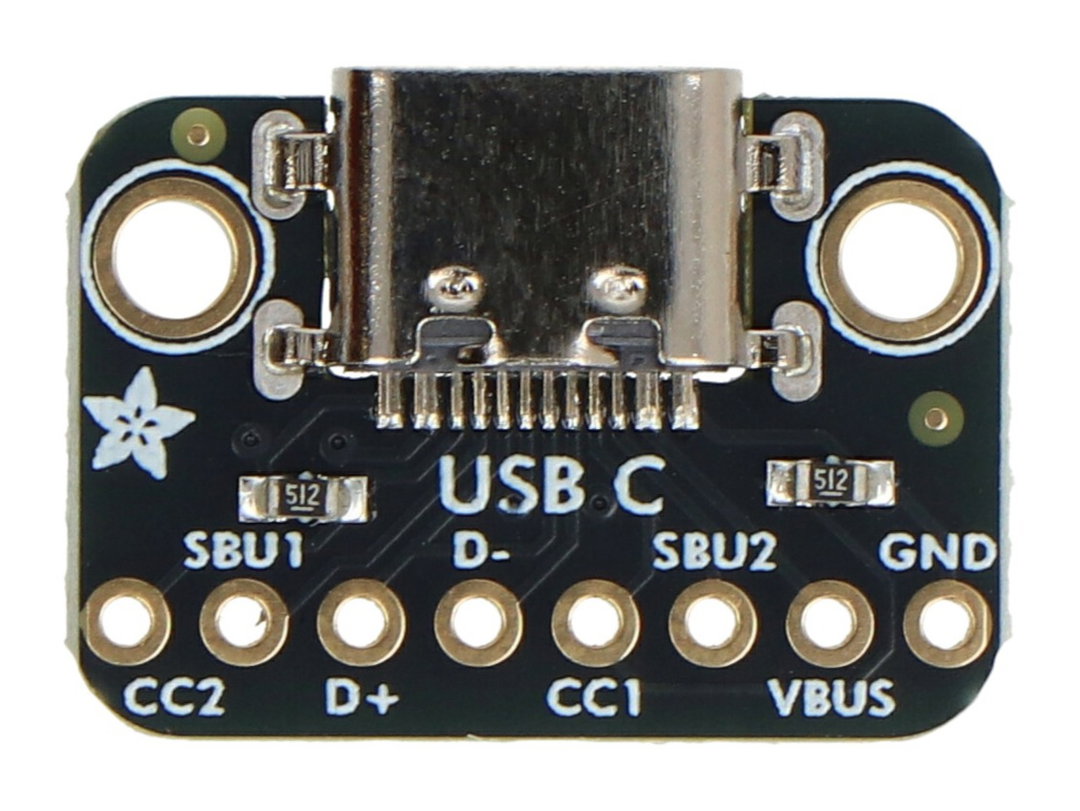

The module was designed for modern, slim electronics projects where minimal thickness is key. The board features all the essential USB Type-C pins and a resistor configuration that mimics the classic USB 2.0 downstream standard. Two 5.1kΩ resistors on the CC pins signal the source port to supply 5V and up to 1.5A (the maximum available power depends on the connected device). In typical applications, VBUS is connected to the 5V input , GND to ground, and D+ and D- to the corresponding data signals. The CC and SBU pins can be monitored to determine cable polarity or sideband data transfer, although they can be left unconnected. The module's compact size and minimalist design make it ideal for projects requiring limited space.

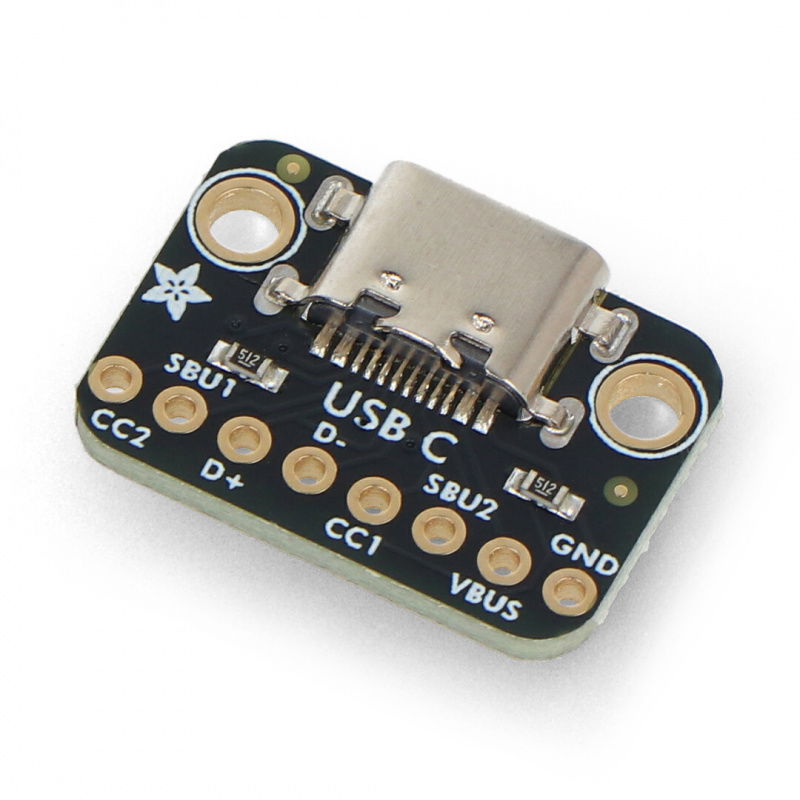

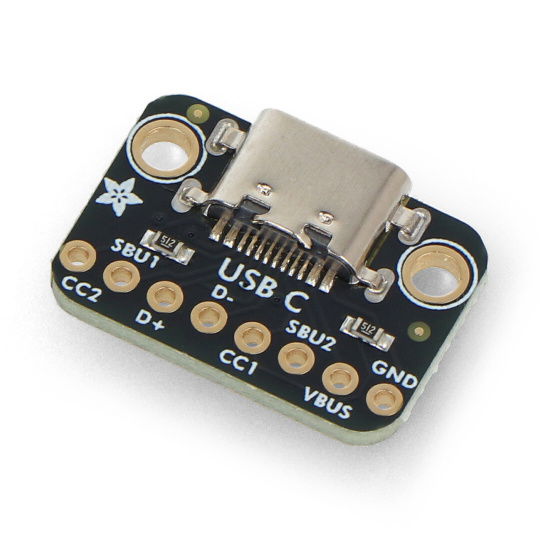

Recessed USB Type-C Module - Breadboard Connector - Adafruit 6050.
The module was designed with modern, slim electronic projects in mind, where minimal thickness of the circuit is important.Special features
- Connector type: USB Type-C in a lowered profile (Sunken), which allows for installation in thin and compact electronic designs while maintaining the full functionality of the standard USB Type-C
- Compact dimensions: the module measures 20.4 x 14.7 x 3.3 mm, making it ideal for miniature systems and projects where every millimeter of space counts
- Lightweight design: weighs only 1g, which minimizes the load on the board and does not affect the stability of the assembly
- Maximum current: Supports up to 1.5A at 5V, which is enough to power most standard USB devices and ensures safe power transmission
- Resistor Configuration: The resistor arrangement on the CC pins mimics classic USB 2.0 connections, ensuring compatibility with most USB devices and ports
Practical applications
- USB Type-C Integration in Space-Constrained Designs
- Prototyping electronic circuits with a reversible USB Type-C connector
- Power and data transmission in small electronic devices
- Quickly connect and replace USB Type-C connectors in experimental systems
Technical specifications of the module
- Connector type: USB Type-C, Sunken
- Supply voltage: 5 V
- Compatibility: USB 2.0 standard
- Maximum current: up to 1.5 A (depending on power source)
- Dimensions: 20.4 x 14.7 x 3.3 mm
- Weight: 1g
Contents of the set

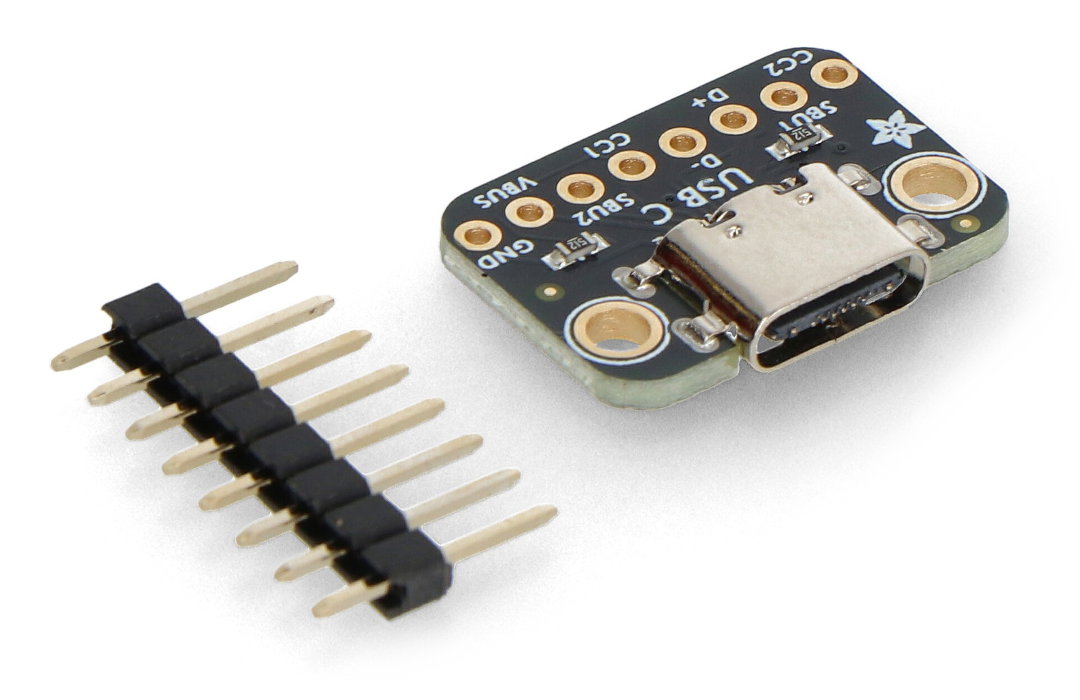

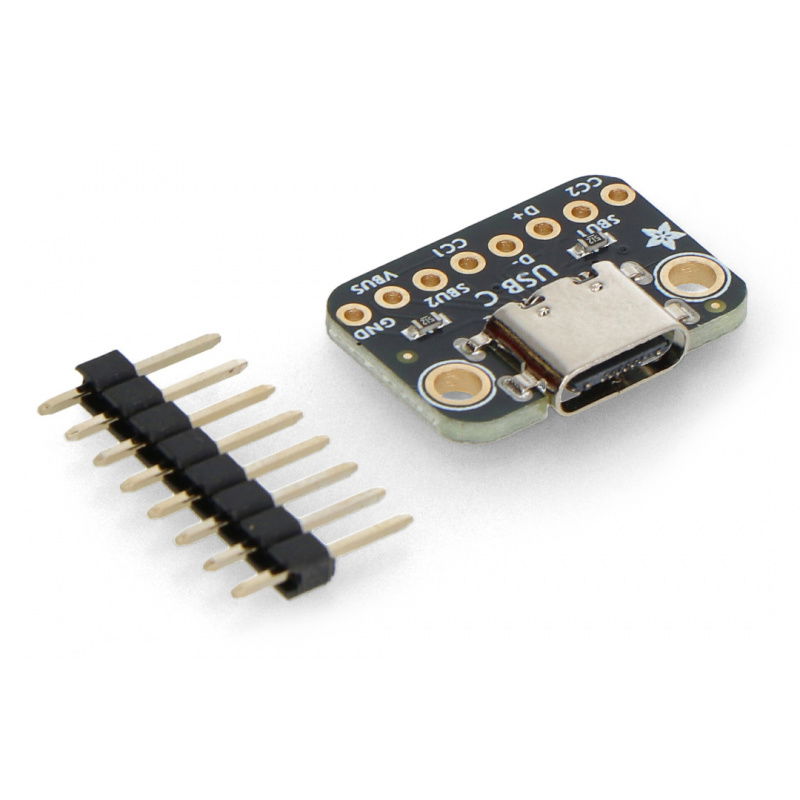

- 1x Module with pins and Sunken USB Type-C port
Thanks to its compact dimensions and minimalist design, the module is ideal for projects requiring small space. Useful links |
