Product description: Module with USB Type-C socket - vertical connector - SparkFun BOB-23055
Module for Sparkfun with a socket allowing you to connect a USB Type-C plug to any system. It has 7 pins and the pin pitch is 2.54 mm , which means it is compatible with standard contact boards and commonly used connection cables. The board does not have goldpin connectors - they must be purchased separately. The module can be used as a stand-alone element or as part of another device, e.g. a USB hub .

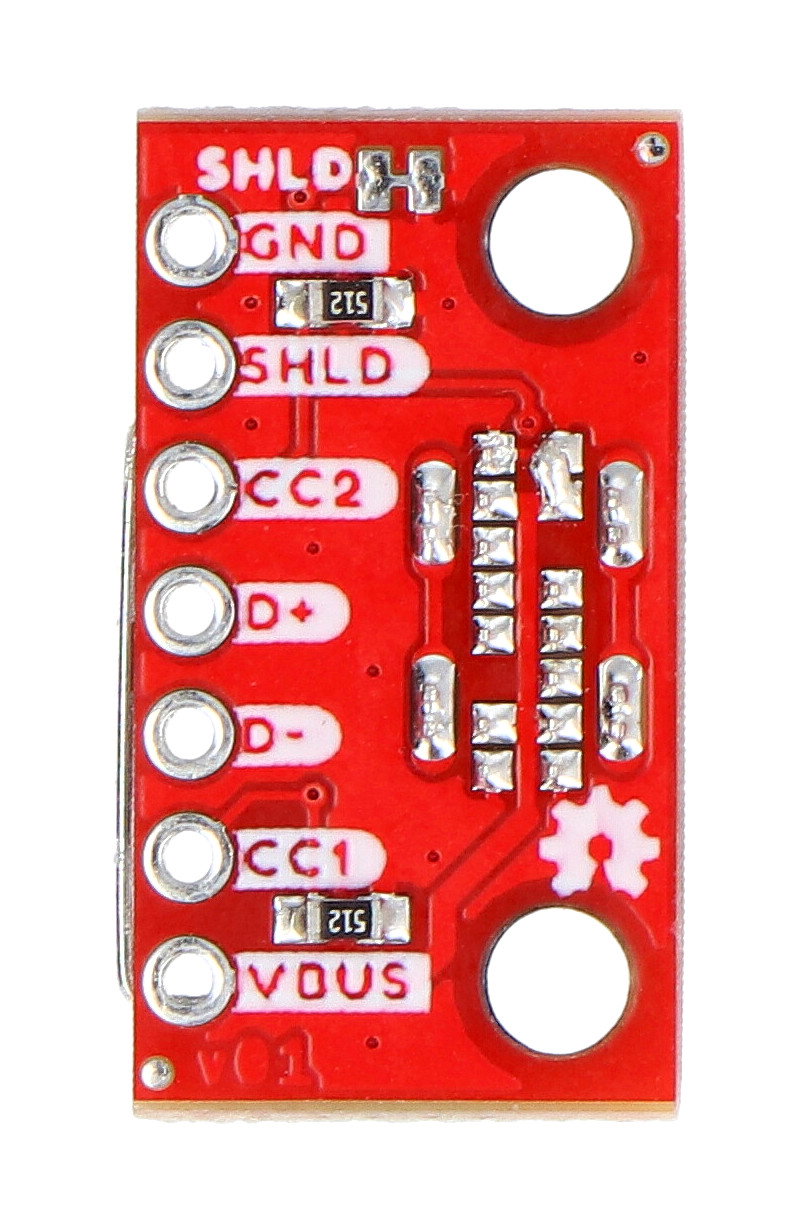

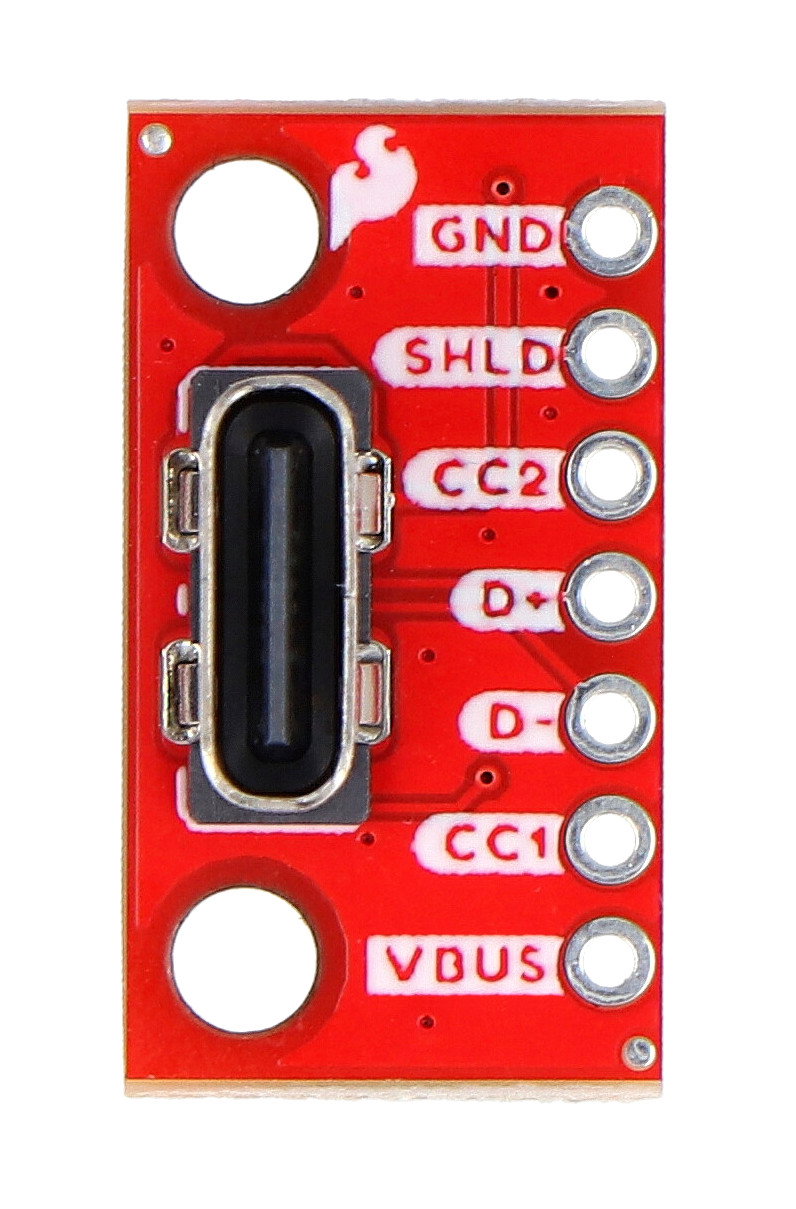

Module with a USB type C socket - vertical connector - SparkFun BOB-23055.
The plate has two mounting holes.
Pinout description
- GND - system ground
- CC2 - configuration pin
- D+ - differential USB data transmission line
- D- - differential USB data transmission line
- CC1 - configuration pin
- VBUS - power supply
More information about pinouts can be found in the technical documentation .
Technical specifications of the board
- Type: adapter
- Pinouts: soldering pads, USB type C connector
- USB connector location: vertical
- Mounting holes: 2x
- Board dimensions: 20.32 x 11.43 x 11.70 mm
- Plate weight: 1.6 g
Are you building your own project and need more assembly elements? Check out the accessories for breadboards available in our offer!
All pins have clear markings.
