Official Cooling Fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM - Waveshare 21600

Index: WSR-21613
The official fan designed to cool the NVIDIA Jetson Xavier NX minicomputer. The fan is controlled by the PWM signal , what's more, the user can adjust the speed of rotation . The rotation speed is 5500 ± 10% RPM . The supply voltage is 5 V.
Official Cooling Fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM - Waveshare 21600
€13.90
€11.30 tax excl.
Goods pending acceptance - available within a few days
Waiting for delivery
PayPal payment
Manufacturer: Nvidia

Product Description: Official fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM - Waveshare 21600

The official fan designed to cool the NVIDIA Jetson Xavier NX minicomputer. The fan is controlled by the PWM signal , what's more, the user can adjust the speed of rotation . The rotation speed is 5500 ± 10% RPM . The supply voltage is 5 V. NX-FAN-PWM effectively cools the minicomputer, which significantly improves the operating parameters that are necessary in more demanding applications. The fan is enclosed in an aluminum housing. On its underside there is a silicone grease that should not be tampered with during assembly.

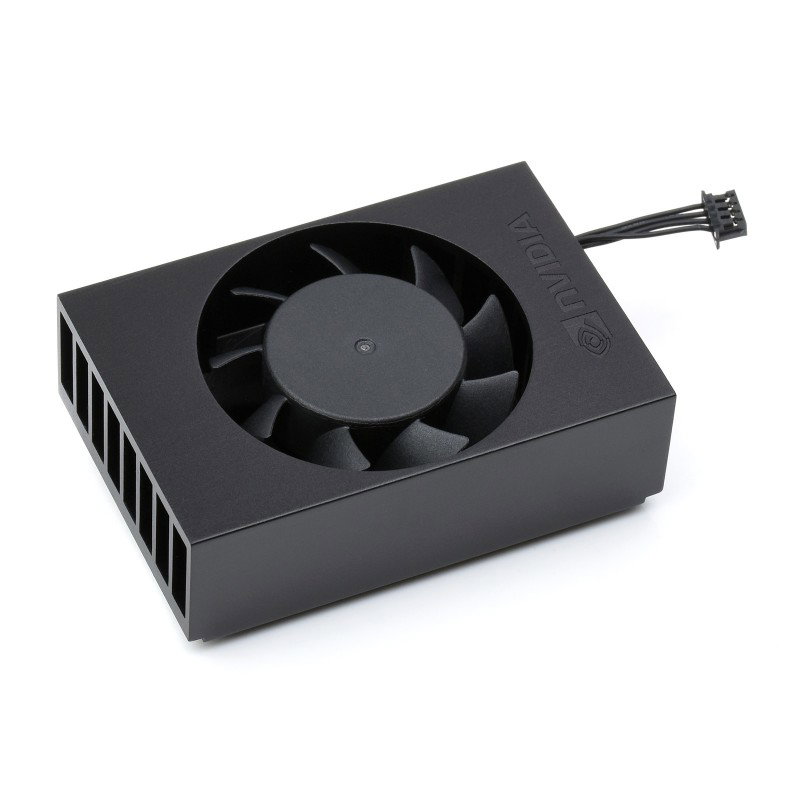

Official fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM - Seeedstudio 21600.

Official fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM - Seeedstudio 21600.

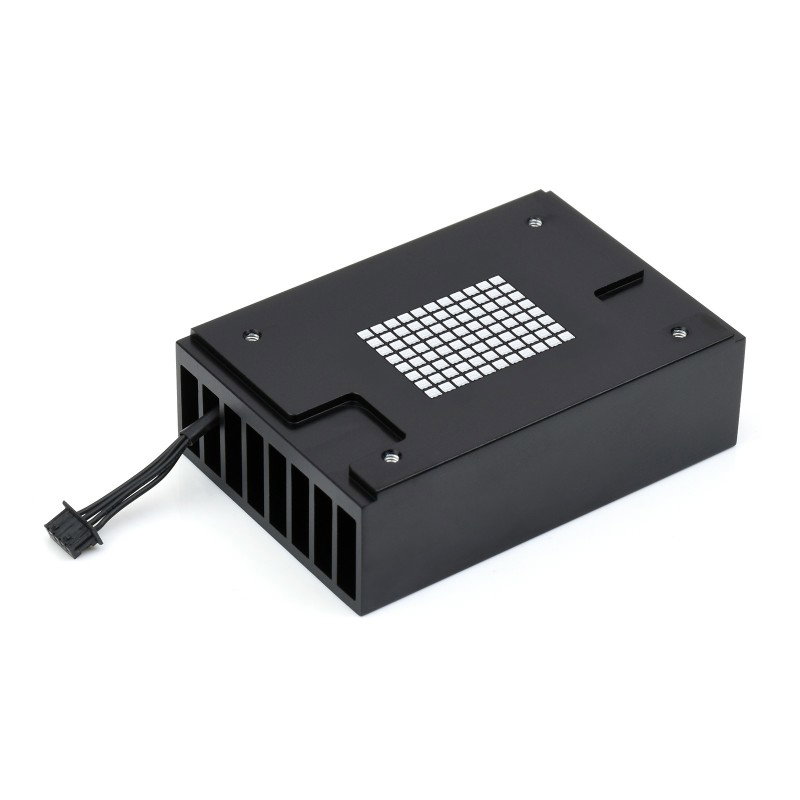

There is a silicone grease on the bottom of the housing.

There is a silicone grease on the bottom of the housing.

Technical specification of the element

  • Type: fan
  • Manufacturer part number: NX-FAN-PWM
  • Purpose: for NVIDIA Jetson Xavier NX
  • Control: PWM signal
  • Adjustable PWM speed: yes
  • Rotation: 5500 ± 10% RPM
  • Input voltage: 5V DC
  • Power: 0.65W @ 5V / 0.13A
  • Housing: integrated
  • Housing material: aluminum
  • Black colour
  • Conclusions: cables terminated with a plug
  • Cord Length: 37mm ± 3mm
  • Fan and housing dimensions: 39 (± 0.25) x 57.8 (± 0.2) x 18 (± 0.25) mm

Kit contents

  • Official fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM
  • Flexible bracket and height-limited bolts

Jetson Xavier NX - general information

NVIDIA Jetson Xavier NX is a very efficient single board computer in the form of a SoM module. The module is equipped with a 6-core NVIDIA Carmel processor 1.9 GHz , as well as the NVIDIA Volta graphics chip with 384 CUDA cores and 48 Tensor cores. Jetson Xavier NX is an ideal tool for working with artificial intelligence . It allows you to run neural networks and process data from multiple sensors in parallel. Native cloud support makes it easy to build and implement artificial intelligence applications to edge devices. The module supports all popular SI platforms.

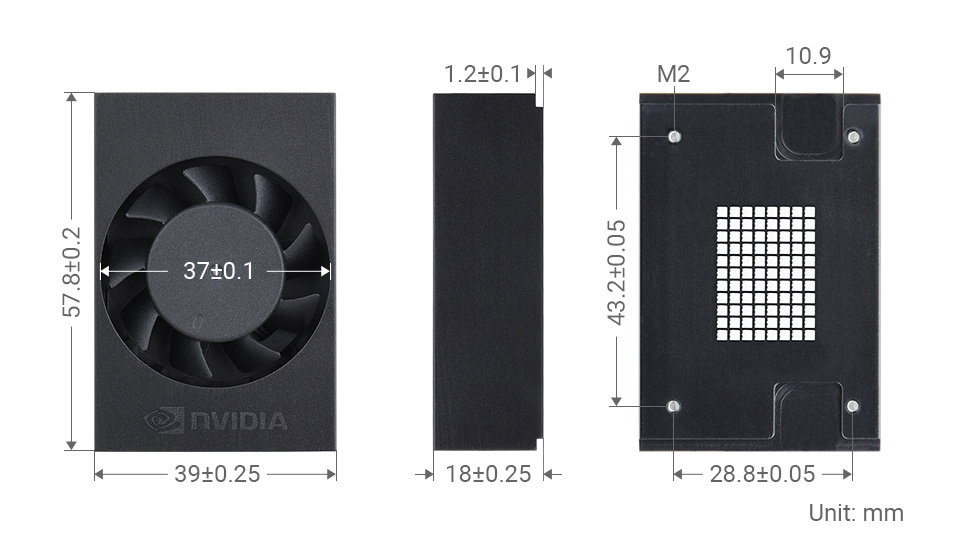

Fan and housing dimensions.

Fan and housing dimensions.

Package width 9 cm
Package height 5.7 cm
Package depth 4 cm
Package weight 0.077 kg
