Product description: AR023 Color Global Shutter camera for NVIDIA Jetson Nano / Xavier NX / Orin NX - ArduCam B0429
The ArduCam AR0234 2.3 MPx with Global Shutter is a camera designed for use with the NVIDIA Jetson Nano, Xavier NX, and Orin series platforms. It is equipped with a 1/2.6" optical sensor that eliminates image distortion during fast movements . The camera module has an external trigger function and offers high image and video resolutions of 1920 x 1200 / 30 FPS, 1920 x 1080 / 30 FPS, and 1280 x 720 / 60 FPS . Requires driver installation for full compatibility with NVIDIA Jetson kits.
There is a user guide on the manufacturer's website that makes it easier to get started with the module.

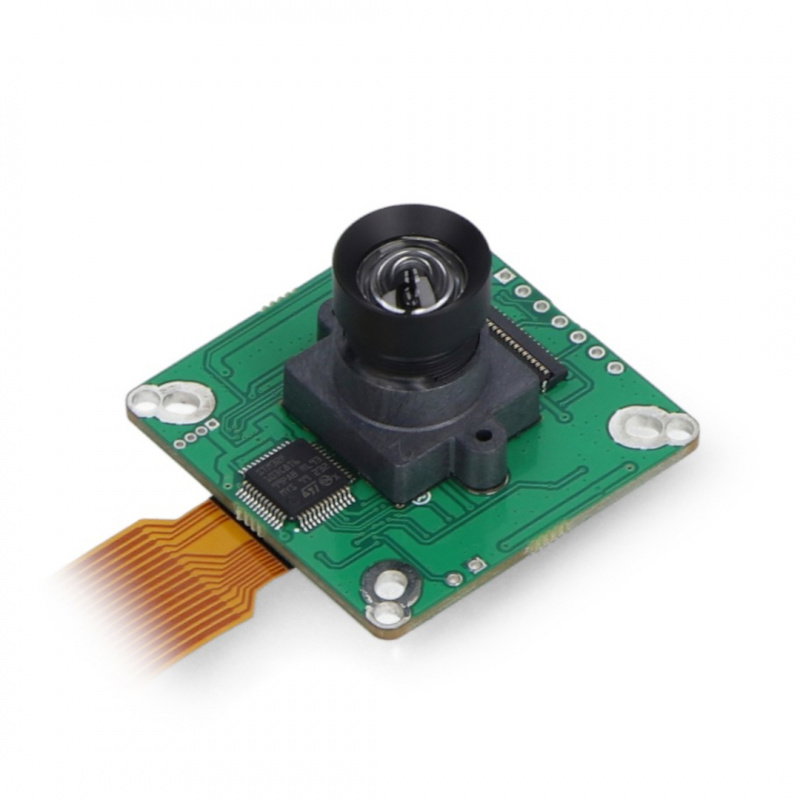

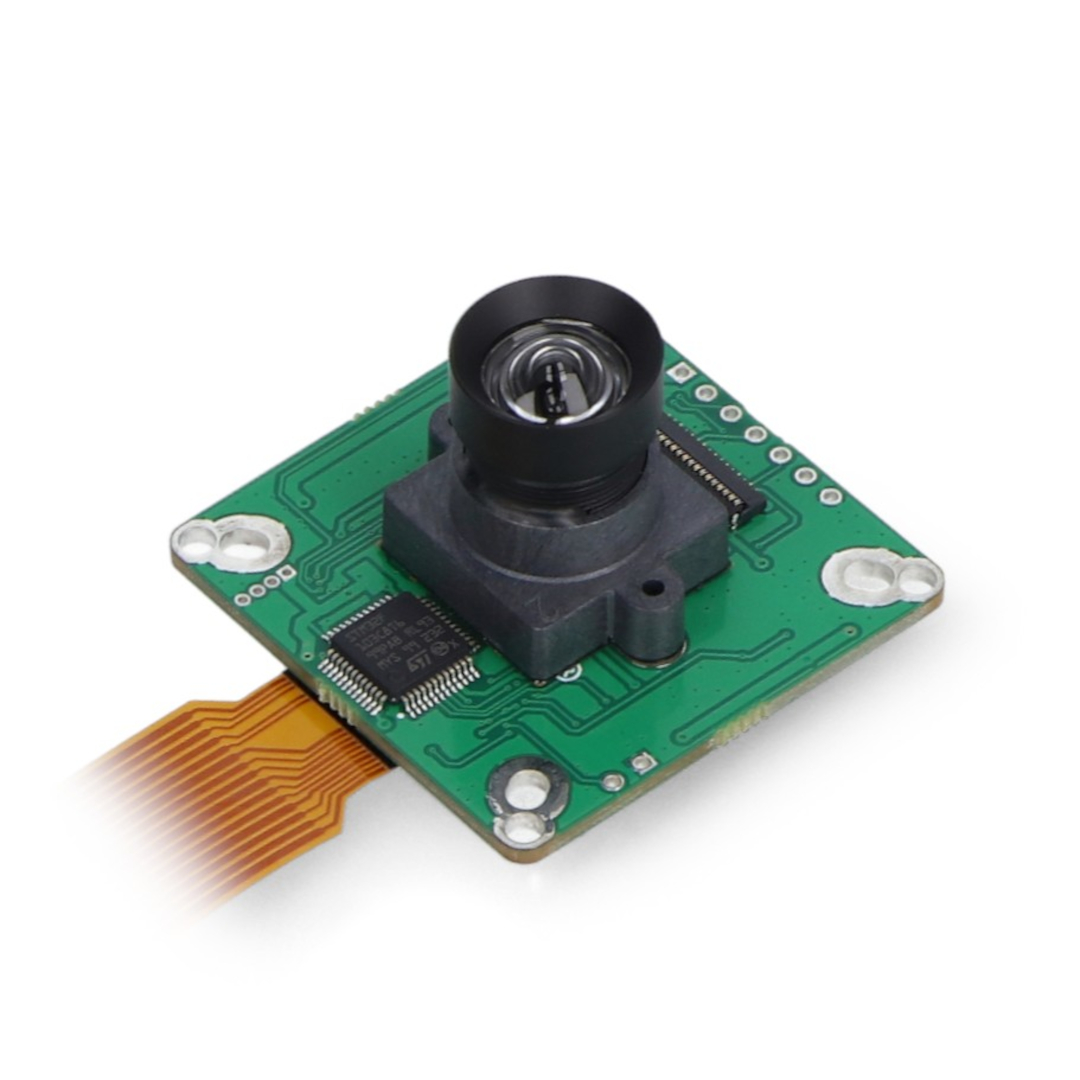

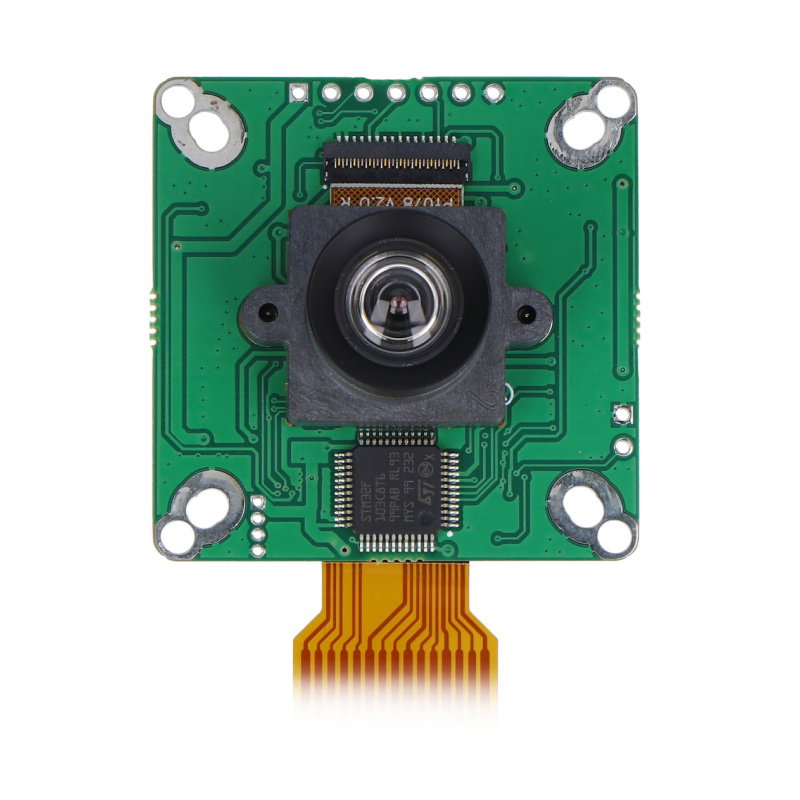

AR0234 2.3 MPx Color Global Shutter camera for NVIDIA Jetson Nano / Xavier NX / Orin NX - ArduCam B0429.
The camera has a built-in AR0234 sensor with a Global Shutter.
Main features of the camera
- It is compatible with NVIDIA Jetson Nano, Xavier NX, AGX Orin, Orin Nano, Orin NX
- It uses a 2.3MP AR0234 image sensor with a Global Shutter shutter that allows for more accurate capture of moving objects.
- It is used in gesture recognition, 3D scanning and machine vision.
- Offers high image and video resolution: 1920 x 1200 / 30 FPS, 1920 x 1080 / 30 FPS, 1280 x 720 / 60 FPS
- Supports external triggering and dual-band MIPI interface
The built-in lens of this camera module is not replaceable.
Camera technical specifications
- Sensor: AR0234 with Global Shutter
- Optical format: 1/2.6''
- Effective focal length (EFL): 3.6 mm
- Focal Ratio (F/NO): 3
- Pixel size: 3 x 3 μm
- Viewing angle for 1/2.6'' sensor (D/H/V): 120°/90°/75°
- Matrix resolution: 2.3 MPx, 1920 x 1200 px
- Video: 1920 x 1200 30 FPS, 1920 x 1080 30 FPS, 1280 x 720 60 FPS
- Lens: M12
- Color filter: RGB
- Output format: RAW10
- Interface: MIPI, 2-lane
- Compatible with: NVIDIA Jetson Nano, Xavier NX, AGX Orin, Orin Nano, Orin NX
- Dimensions: 38 x 38 mm
Contents of the set

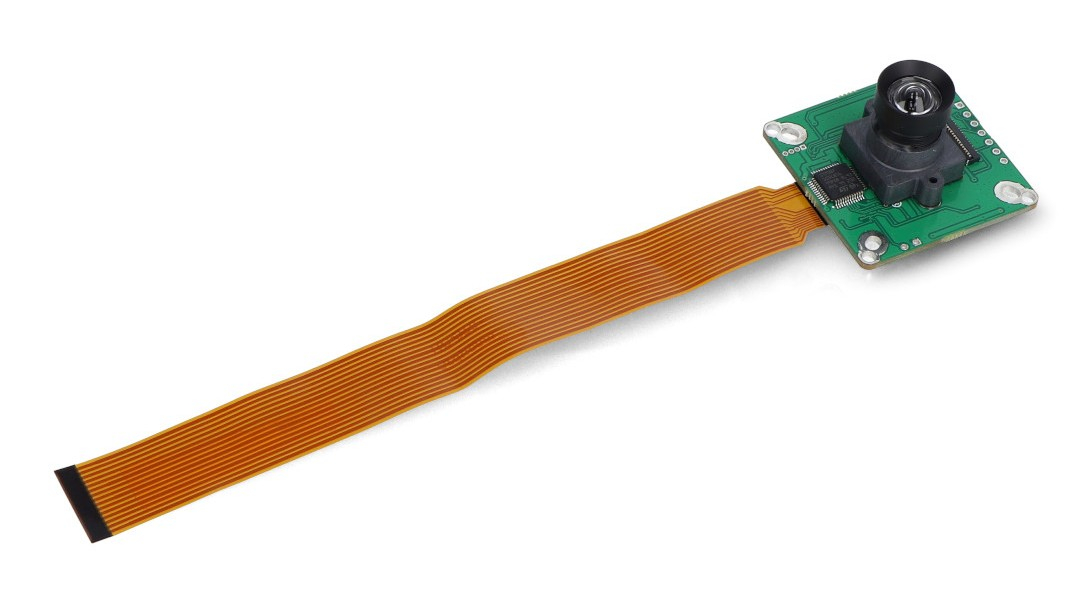

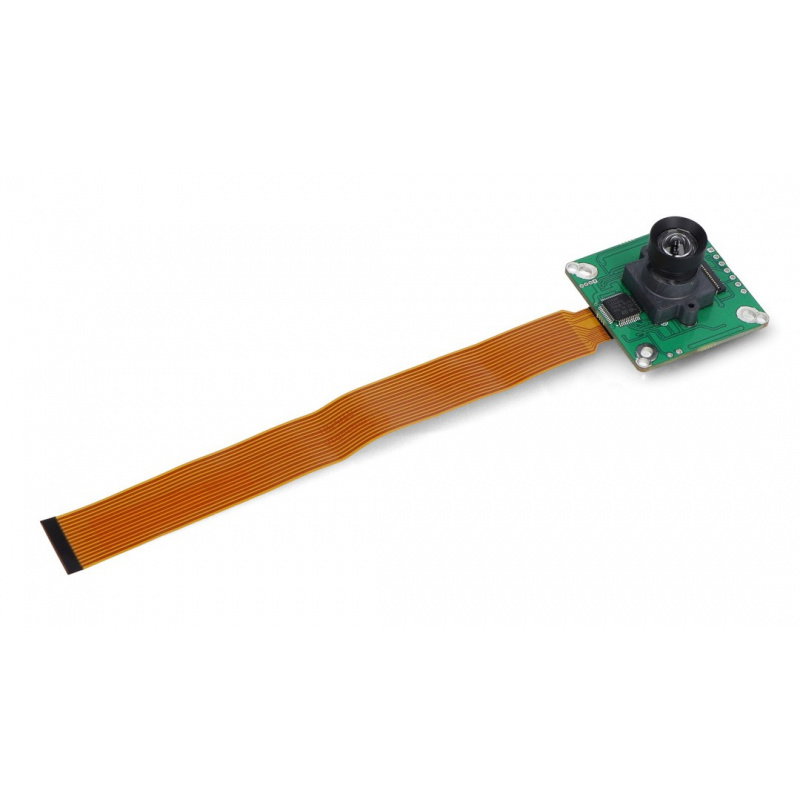

- 1x Arducam 2.3 MPx AR0234 camera module with Global Shutter
- 1x FPC cable 15 cm, 15-22 pin
The camera module is exclusively adapted to NVIDIA Jeston.
The camera module has an external trigger function and offers high image and video resolutions of 1920 x 1200 / 30 FPS, 1920 x 1080 / 30 FPS and 1280 x 720 / 60 FPS.
