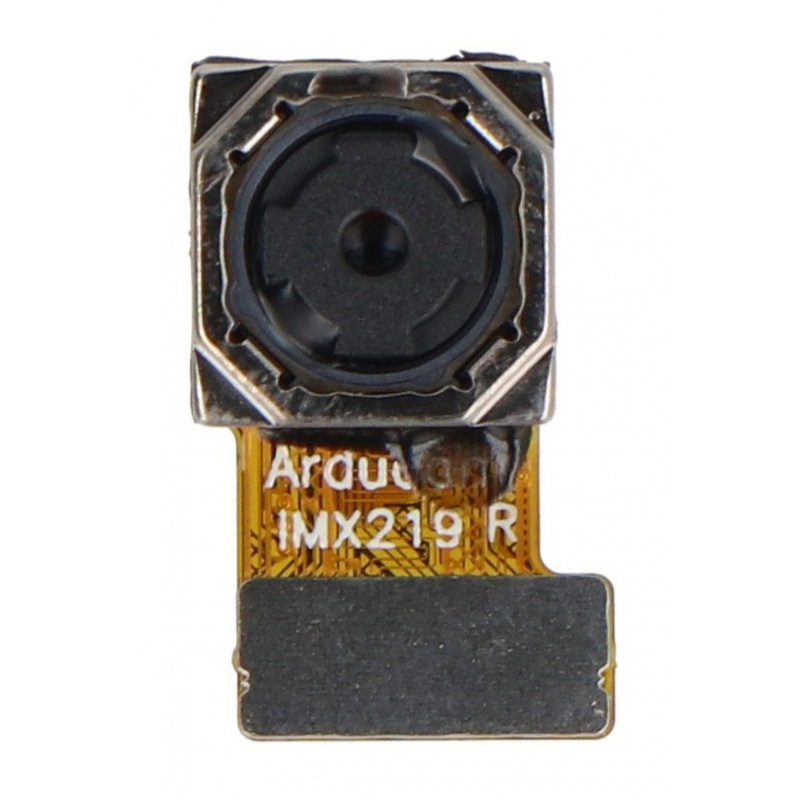

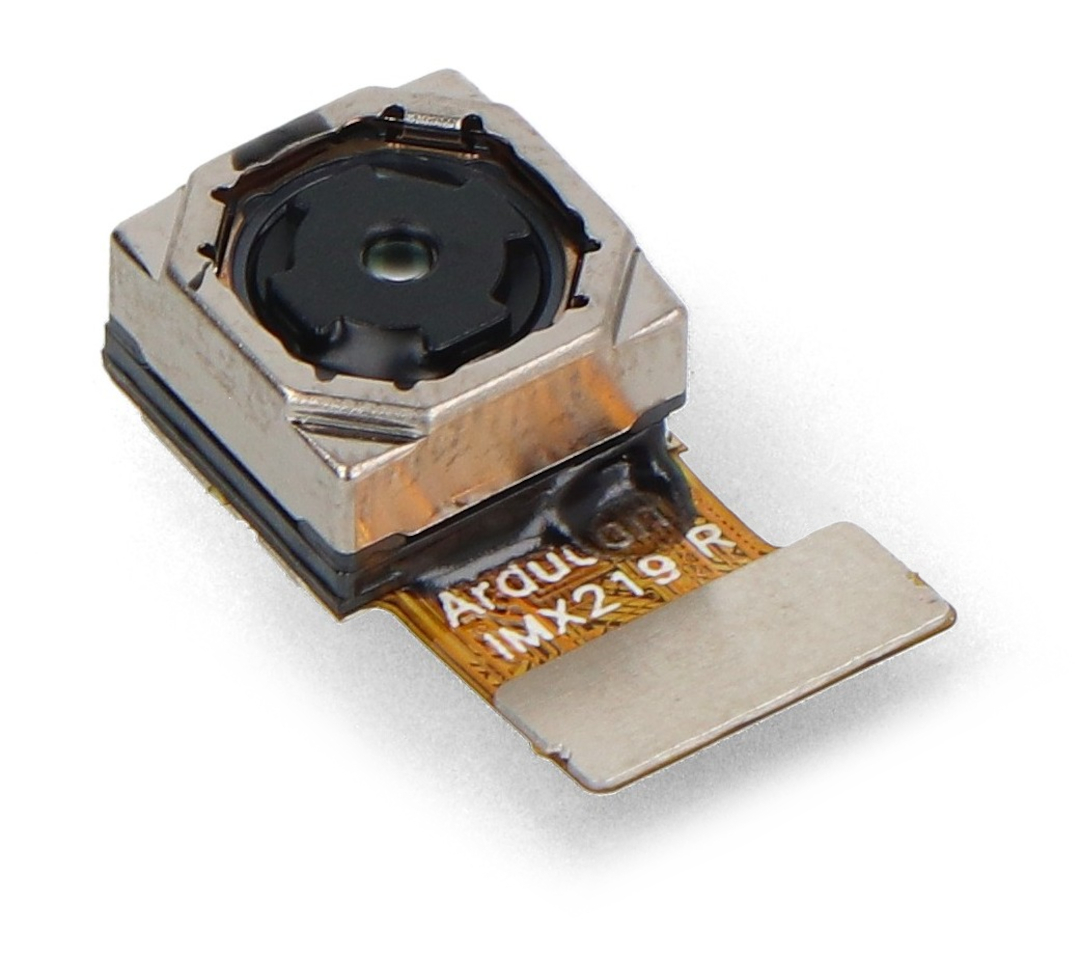

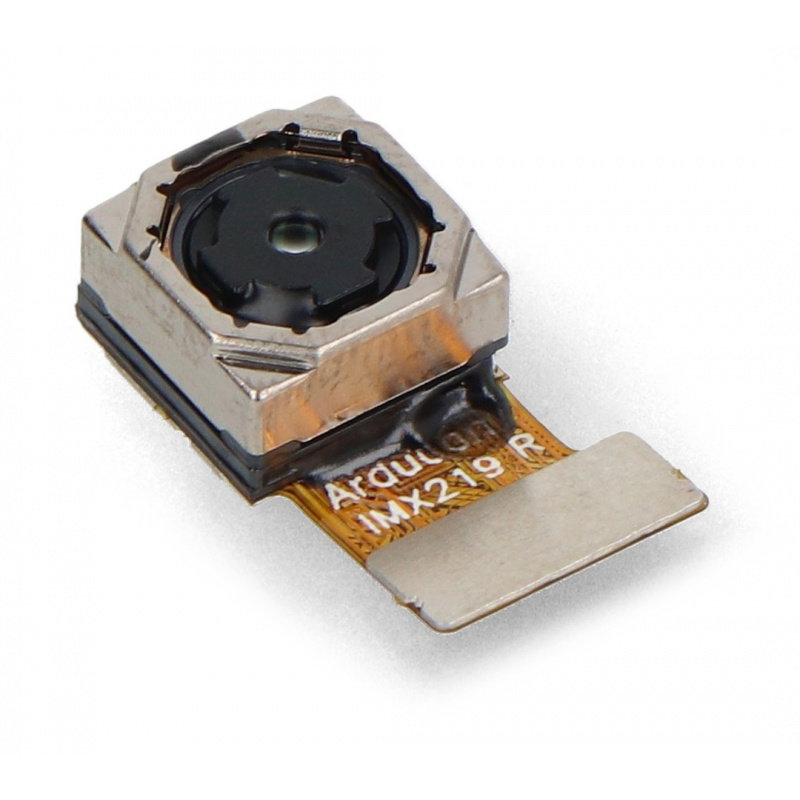

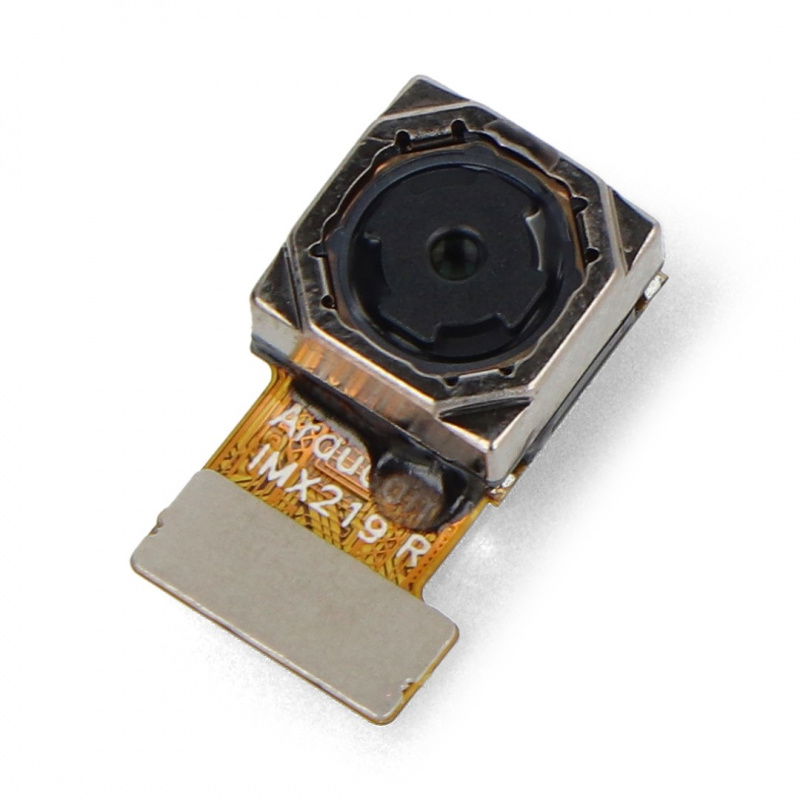

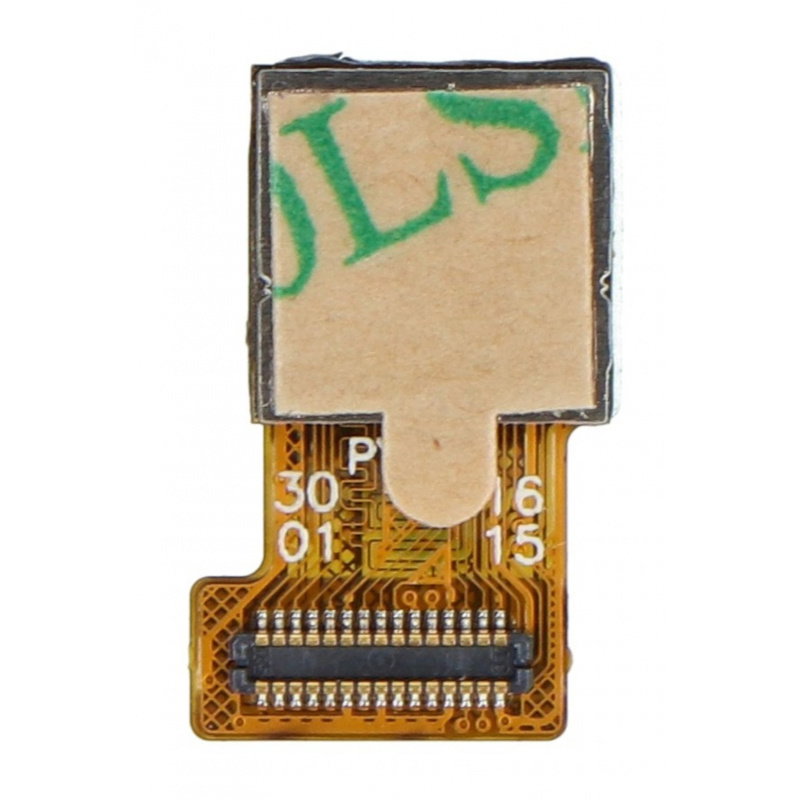

Product description: Sony IMX219 8 MPx autofocus camera module - for Raspberry Pi - ArduCam B0182
A replacement module for the official v2 camera for the Raspberry Pi . It features an 8MP Sony IMX219 sensor and software-controlled focus , with no additional tools required.
Application of the camera module
- Unmanned aerial vehicles
- Drone construction
- Autonomous vehicles
- Intelligent video analysis
ArduCam Camera Module Specifications
- Sensor: Sony IMX219
- 8 MPx resolution
- Format: 1/4"
- Frame rate: 30 fps / 8 MPx, 60 fps / 1080p, 180fps / 720p
- Data format: RAW8 / RAW10
- Focal length (EFL): 2.8 mm
- Focal Length Ratio (F.NO): 2.2
- Focus type: programmable/automatic
- Viewing angle: 77.6° (diagonal)
- Interface: MIPI CSI
- IR sensitivity: visible light, built-in IR filter
The set includes
- Sony IMX219 8 MPx camera module with autofocus
The image focus can be adjusted using the "up" and "down" buttons on the keyboard. The software can be found on GitHub . The camera can be used in drones, robots, and more.
The sale includes a module with an IMX219 sensor, the camera and Raspberry Pi can be purchased separately.Sony IMX219 8MPx Autofocus Camera Module - for Raspberry Pi - ArduCam B0182
The Arducam B0182 camera module, equipped with a Sony IMX219 optical sensor and a fisheye lens, was designed according to the hardware specifications of a standard V2 camera for the Raspberry Pi minicomputer. Image focus is controlled by software, in a hands-free manner, but can also be manually controlled using buttons. The Arducam B0182 camera can be successfully used in applications such as remotely operated vehicles, drones, macro photography rails, and industrial monitoring systems. The manufacturer provides software code that also enables autofocus mode when the camera is paired with an NVIDIA Jetson Nano computer.
Fisheye lens - wide field of view and interesting visual effects
The Sony IMX219 camera uses a fisheye lens, which offers a much wider viewing angle than traditional wide-angle lenses. Another significant design difference is the degree of image distortion. Standard wide-angle lenses capture images with negligible distortion. A fisheye lens, on the other hand, creates a rounded image, creating the illusion of space being curved. This makes the Sony IMX219 mini camera ideal for nature photography and extreme sports.
