Product description: Aluminum adapter for 6 mm M3 wheel - Pololu 2674
Two-piece aluminum adapter for easy mounting of the wheel to a motor with a shaft diameter of 6 mm . The kit includes a threaded mount and a washer. The adapter is mounted to the motor using the M3 screws included in the set. The design is compatible with scooter or skateboard wheels that work with standard 608 bearings.

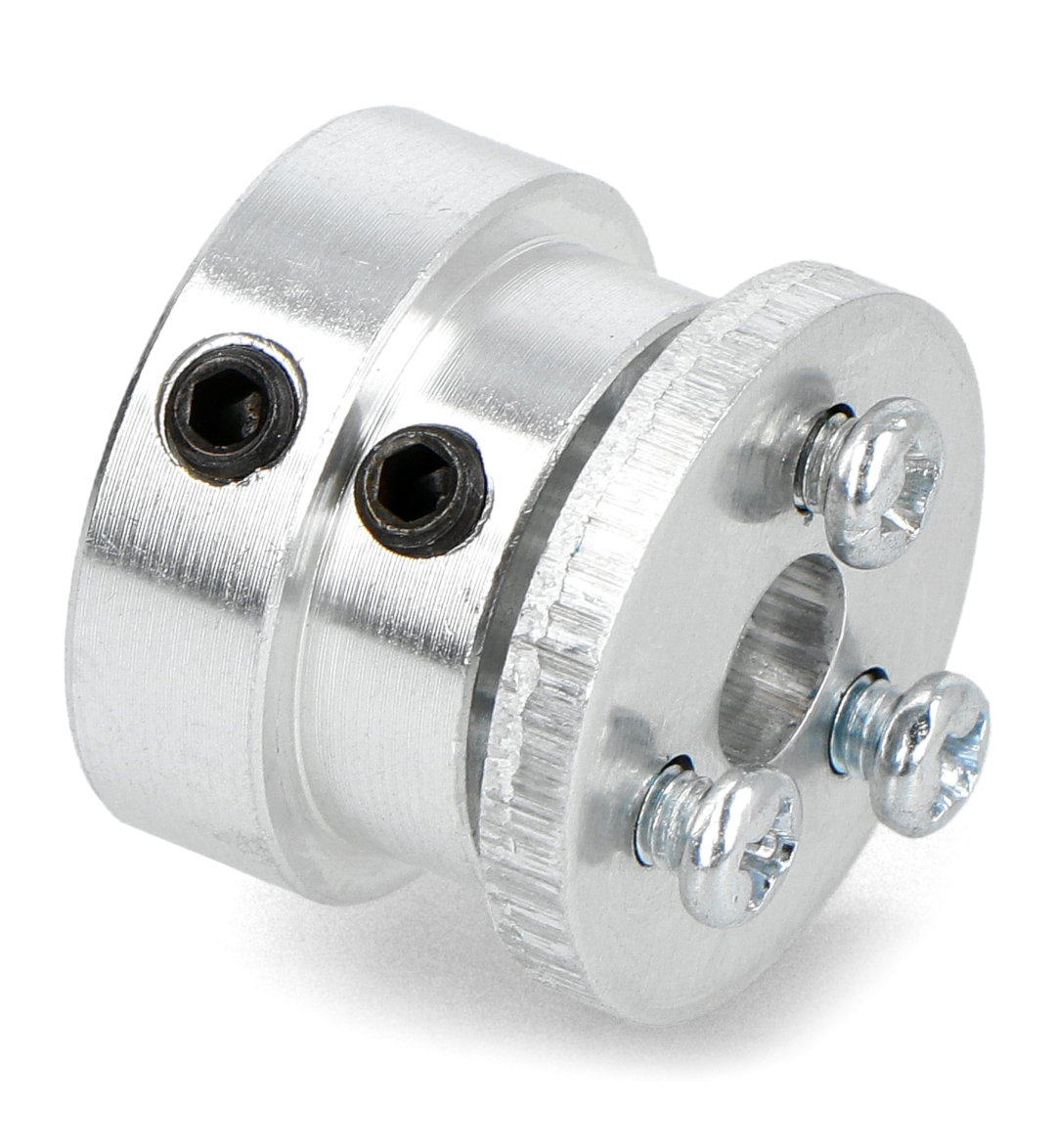

Aluminum adapter for 6 mm M3 wheel - Pololu 2674.
The adapter can be used for scooter wheels.
Mounting the adapter
Installation of the adapter does not require special skills , it is enough that it is assembled in the right order. First, slide the threaded mount onto the motor shaft with the narrow side facing away from the shaft, then tighten the screws. After attaching this element, press the wheel against it. Then align the washer holes with the mounting holes and press the washer into the recess on the other side of the wheel. Finally, insert and tighten the M3 screws.
Technical specification of the wheel adapter
- Compatible Shafts: 4mm
- Material: aluminum
- Weight: 14.7g
Kit contents
- Aluminum wheel adapter:
- threaded mount
- pad
- 4x M3 14mm screw
- 3x M4 screws

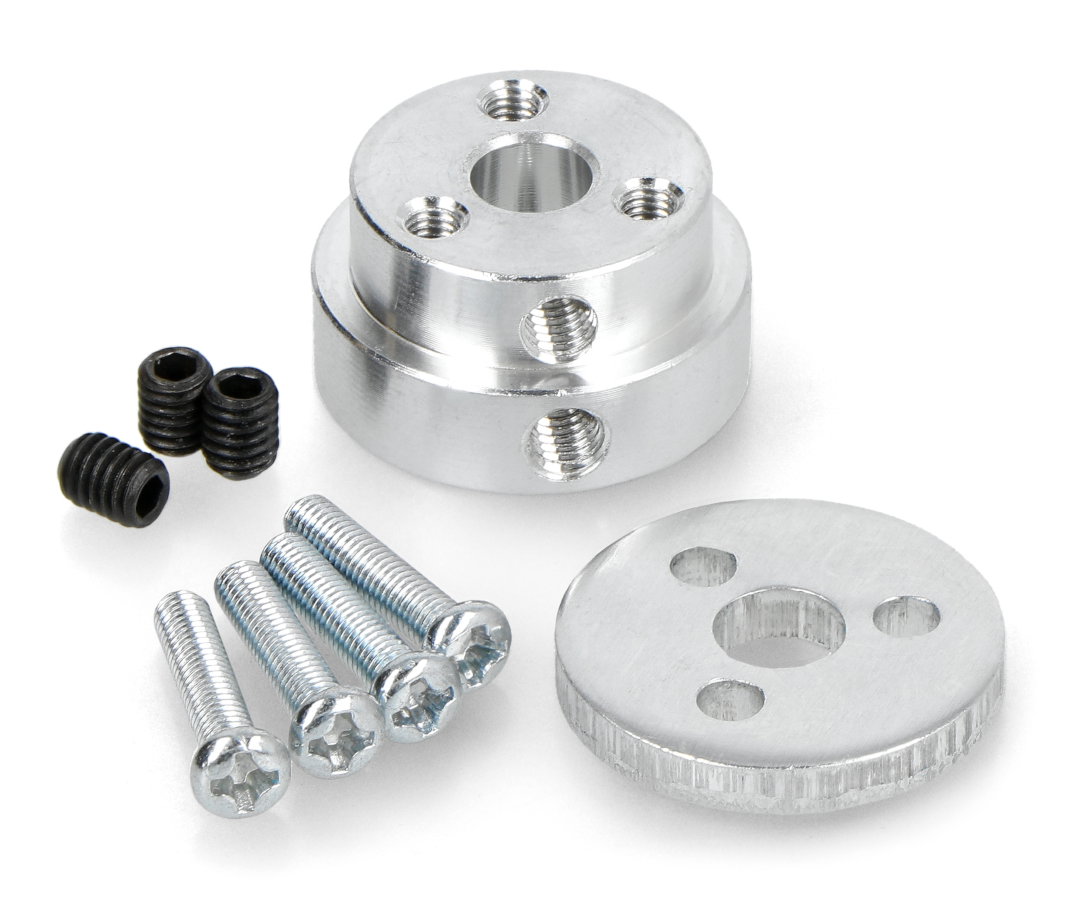

Components included in the set.
