Kailh Big Mechanical Key Switch - Linear Dark Yellow - Adafruit 5305

Index: ADA-20795

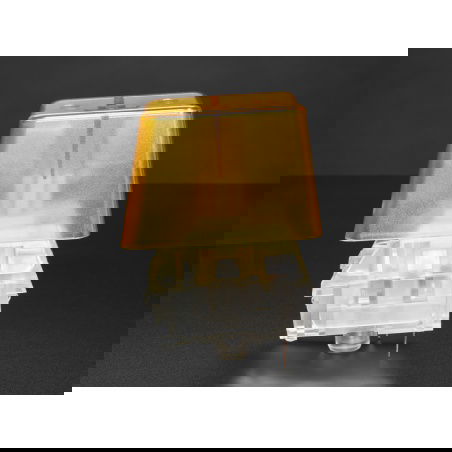

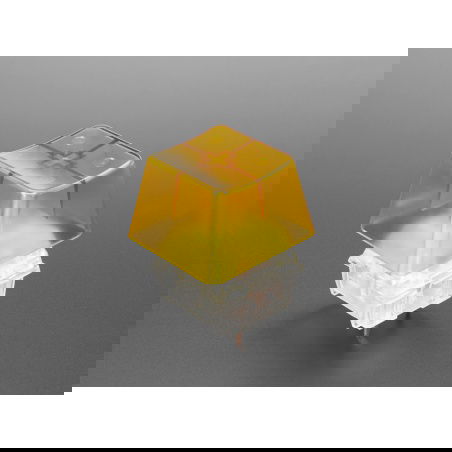

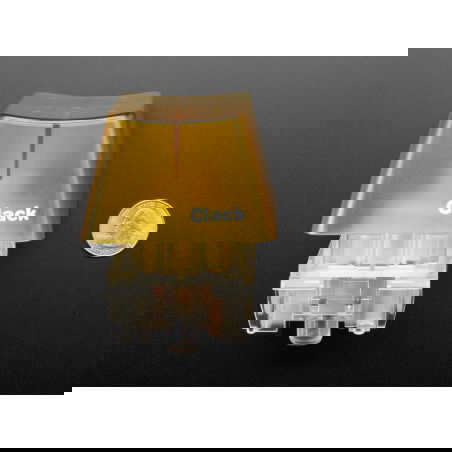

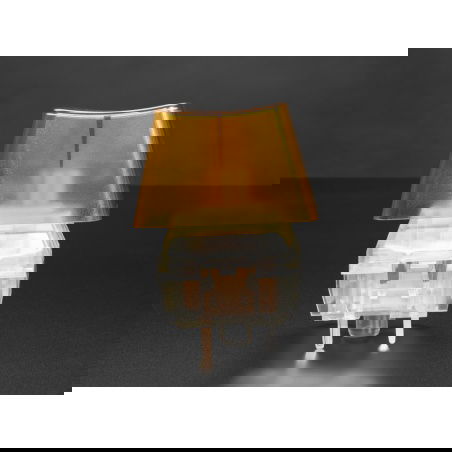

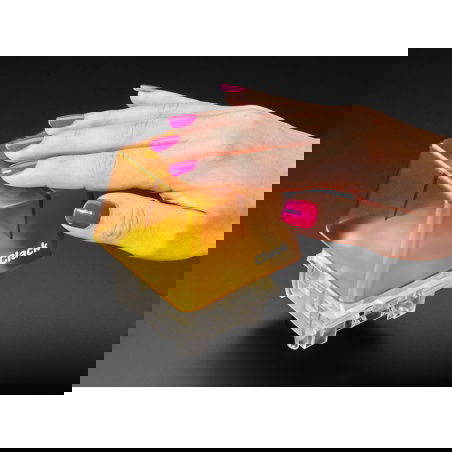

Large, full-featured Kailh mechanical switch. It is four times larger than a normal MX switch. It has a dark yellow cap with Clack marking. The dimensions of the switch without the cap are 62.4 x 55.8 x 55.8 mm. The operating voltage of the switch is from 2 V to 12 V AC / DC, and the current is from 10 μA to 10 mA. The Kailh Big Switch can be used as a fidget toy or soldered into a NeoKey trinkey to create the largest Escape key known to mankind.
€32.78
€26.65 tax excl.
Unavailable
Only on request
30-day returns
PayPal payment
Manufacturer: Adafruit

Product description: Kailh Big Mechanical Key Switch - Linear Dark Yellow - large mechanical button - yellow - Adafruit 5305

A large, fully functional Kailh mechanical switch. It is four times bigger than a normal MX switch. It has a dark yellow cap with Clack marking. The dimensions of the switch without the cap are 62.4 x 55.8 x 55.8 mm. The operating voltage of the switch is from 2 V to 12 V AC / DC, and the current is from 10 μA to 10 mA. The Kailh Big Switch can be used as a fidget toy or soldered into a NeoKey trinkey to create the largest Escape key known to mankind.

Duży przycisk mechaniczny Kailh
Large yellow Clack mechanical button with Kailh switch.

Kailh Big Mechanical Key Switch Specifications

  • Type: Linear
  • Travel distance:
    • actuation: 4.8 mm
    • bottom: 14 mm
  • Press force:
    • minimum: 280 g
    • minimum level: 400 g
  • Mounting: plate
  • Color: dark yellow
  • Operating voltage: 2 V to 12 V AC / DC
  • Operating current: 10 μA to 10 mA
  • Storage temperature: from -20°C to 70°C
  • Operation temperature: from -10°C to 70°C
  • Operating humidity: 45% to 85% RH
  • Life: 5000000 cycles
  • Dimensions: 62.4 x 55.8 x 55.8 mm

Switch - type2 monostable
Switch - type mechaniczny
Switch - shape square
Switch - backlight no
