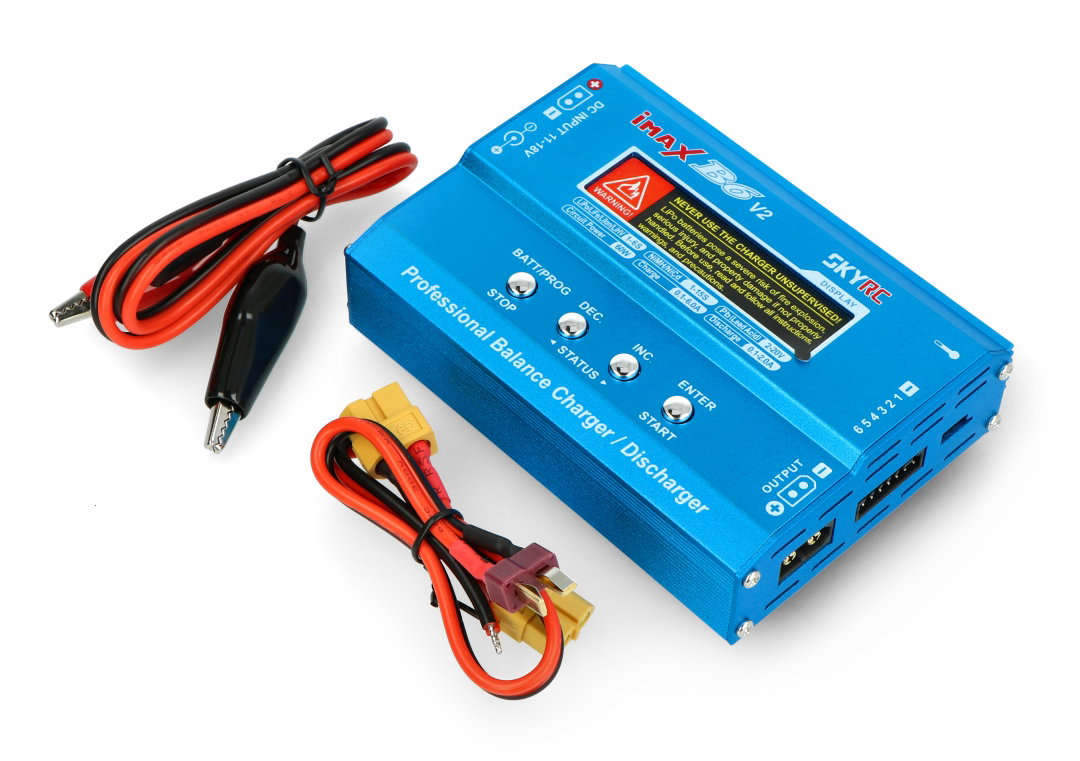

Description: Charger Li-Pol /Li-Ion /Li-Fe / Ni-Cd / Ni-MH with SkyRC IMAX B6 v2 balancer
SkyRC IMAX B6 v2 is a simple and universal charger that works with most of the cells used in robotics and modeling. Large, easy to read display and intuitive user interface allow you to select appropriate parameters and constantly monitor the battery status during charging. A set of adapters ensures trouble-free charging of LiPo, LiIon, LiFe cells and NiCd, NiMH and Pb packages.
Built-in balancer guarantees correct and even charging of all cells in the packages. The charger also has the ability to connecta temperature sensor tocontrol parameters. The new version of the charger allows to charge the batteries to DJI Mavic and Inspire drones with maximum 4 A.
The kit does not include the power adapter required for proper operation of the charger must be purchased separately.
The kit does not includea mains adapter, it must be purchased separately.
SkyRC IMAX B6 v2 charger specifications
- The voltage of the charger itself: DC from 11 V to 18 V
- Power output:
- max. charging power 60 W
- max. discharge power 5 W
- Charging current: 0.1 A to 6.0 A
- Discharge current: 0.1 A to 1.0 A
- Number of NiCD/NiMH cells supported: 1 to 15 cells
- Number of Li-Po/Fe/Ion cells supported: 1 to 6 cells
- Pb/gel batteries supported: from 2 V to 20 V
- 4 programming buttons
- Weight (without wires): 238 g
- Dimensions: 115 x 84 x 30 mm
- Built-in sockets:
- sockets for balancer adapter + 2-6 S adapter
- XT60 sockets for battery power
- 5.5/2.5 mm DC socket (power supply from 11 V to 18 V DC)
- socket for optional temperature sensor
- XT60 socket for battery charging
Set contents
- SkyRC IMAX B6 v2 charger
- Adapter XT60 -> DEANS
- XT60 adapter -> stripped cables
- Crocodile adapter -> DC 5.5/2.5 mm (to power the charger from a 12 V battery)
- Operating instructions in English
