A89301 - sensorless brushless BLDC motor driver 50V/11A - Pololu 5357
BLDC motor without Hall sensors, controlled with FOC: the Pololu A89301 driver for up to 48 V and 11 A.
- Speed: analog, PWM, frequency or I2C
- I2C connector compatible with Qwiic and STEMMA QT
- DIR and BRAKE inputs, FAULT output
We could not load the price.
The promotional price does not combine with quantity discounts.
BLDC motor without Hall sensors and without writing control code
Pololu A89301 is a driver for a single three-phase brushless (BLDC) motor that does not need Hall sensors and works at 5.5 V to 48 V. The Allegro A89301 chip drives the motor with FOC, meaning a sinusoidal current matched to the rotor position, so the motor runs quietly and smoothly. The driver delivers up to 11 A without a heatsink.
You set the speed with an analog voltage, a PWM signal, a pulse frequency or over I2C, and the DIR and BRAKE inputs change the direction and brake the motor. The I2C connector is compatible with Qwiic and STEMMA QT, and you save the settings in the driver's memory using the manufacturer's Windows software.

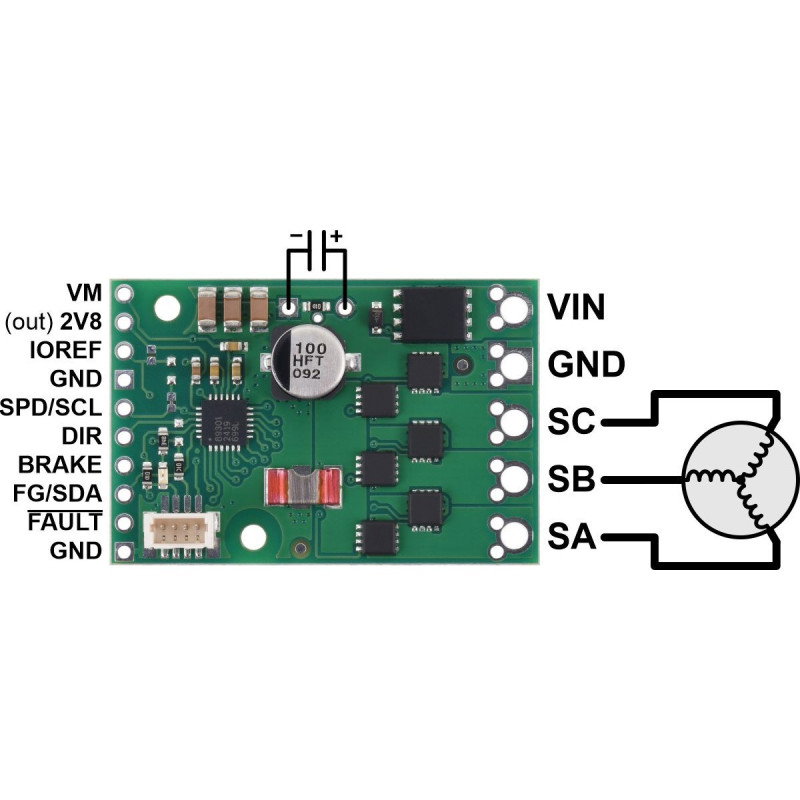

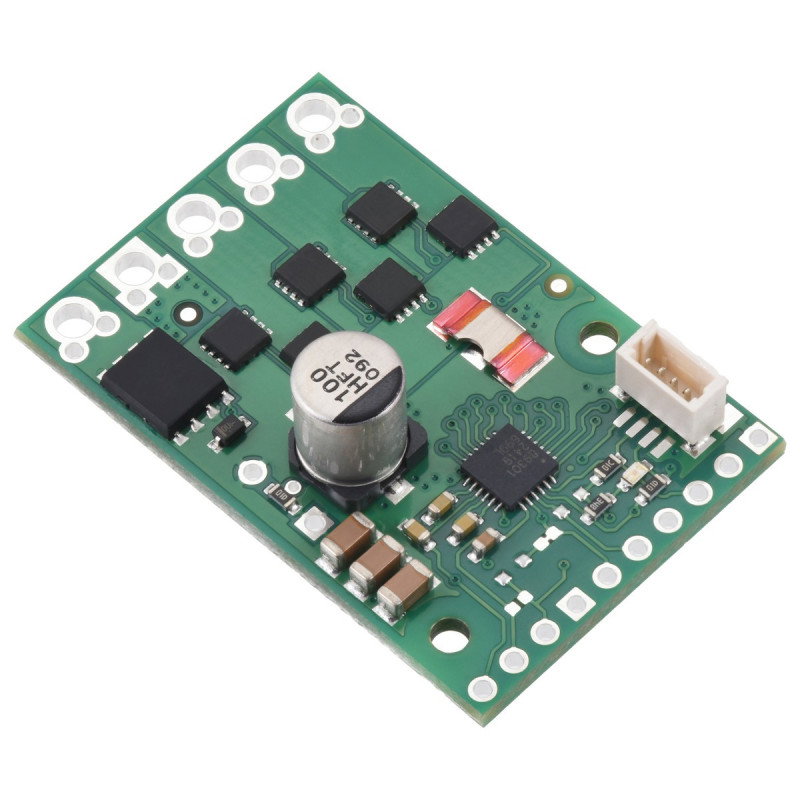

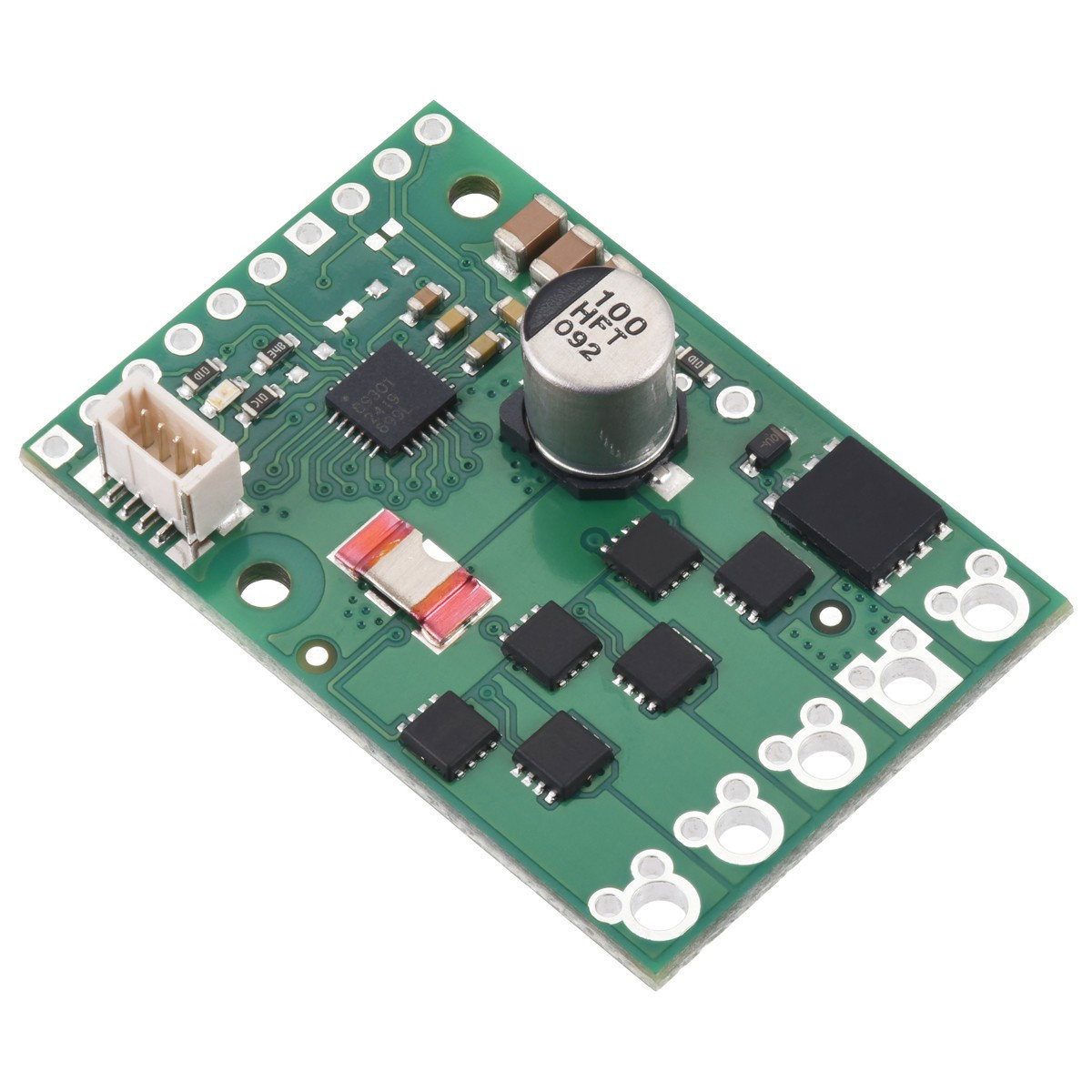

Pololu A89301 brushless motor controller board
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
5.5-48 V
supply voltage (max. 50 V)
11 A
motor current without additional cooling
I2C / PWM / analog
speed control methods
38.1 x 25.4 mm
board dimensions
A good choice for you?
A good choice if:
- you control a BLDC motor without Hall sensors in a fan, a pump or a robot drive
- you want to set the speed with a potentiometer, PWM or over I2C without writing an FOC algorithm
- you need a current of up to 11 A at a voltage of up to 48 V
Consider another option if:
- you have a small BLDC motor and a low voltage: see SparkFun TMC6300 driver
Technical specifications
| Parameter | Value |
|---|---|
| Chip | Allegro A89301, MOSFET transistors on the board |
| Motor | 1 three-phase brushless BLDC motor, sensorless |
| Control method | FOC, sinusoidal phase current |
| Supply voltage | 5.5-48 V (max. 50 V) |
| Motor current | up to 11 A without additional cooling, default limit 11 A |
| Speed control | analog voltage, PWM, frequency, I2C |
| Logic | 2.5-5 V, inputs tolerate 5 V |
| Commutation frequency | max. approx. 1085 Hz |
| Protections | undervoltage, short-circuit, reverse power connection (up to 40 V), motor stall detection |
| I2C connector | JST SH 4-pin (Qwiic, STEMMA QT) |
| Dimensions | 38.1 x 25.4 mm |
| Included | driver with I2C connector, without screw terminals and pin headers |
| Manufacturer | Pololu (number 5357) |
Did you know?
Speed limit calculated from the poles
The driver commutes the motor at most about 1085 times per second. You can calculate the maximum speed with the formula 1085 x 60 / number of pole pairs, so a 14-pole motor (7 pairs) reaches about 9300 rpm.
Source: Pololu: product page
Frequently asked questions
Do I have to program the driver?
No. By default the speed is set by the analog voltage on the SPD input, e.g. from a potentiometer. The manufacturer's Windows software and a USB-I2C adapter are only needed to change the settings.
Will the driver handle a drone motor?
Usually not. Small drone motors run at very high speeds, and the driver commutates at most about 1085 times per second. If this limit is exceeded, the motor may suddenly stall.
Why did the motor start after I connected I2C?
The SPD/SCL line is a speed input by default. When you connect I2C, the motor may start, so disconnect it before configuring or apply a high state to BRAKE.
