Specification
- Supply voltage: 24 V
- Holding current: 1200 mA
- Unlock time: 1 sec.
- Blocking bolt length: about 10 mm
- Pins: the cable is ended with a 2-pin connector
- The distance between the mounting holes:
- vertical: 30 mm
- horizontal: 30 mm
- Dimensions: 53 x 38 x 27 mm
Connection
After giving the supply voltage of 24 V, the lock, for 1 second, hides pulled out pin, what allows you to unlock the door. Power outage causes pulling the pin out using an internal spring.

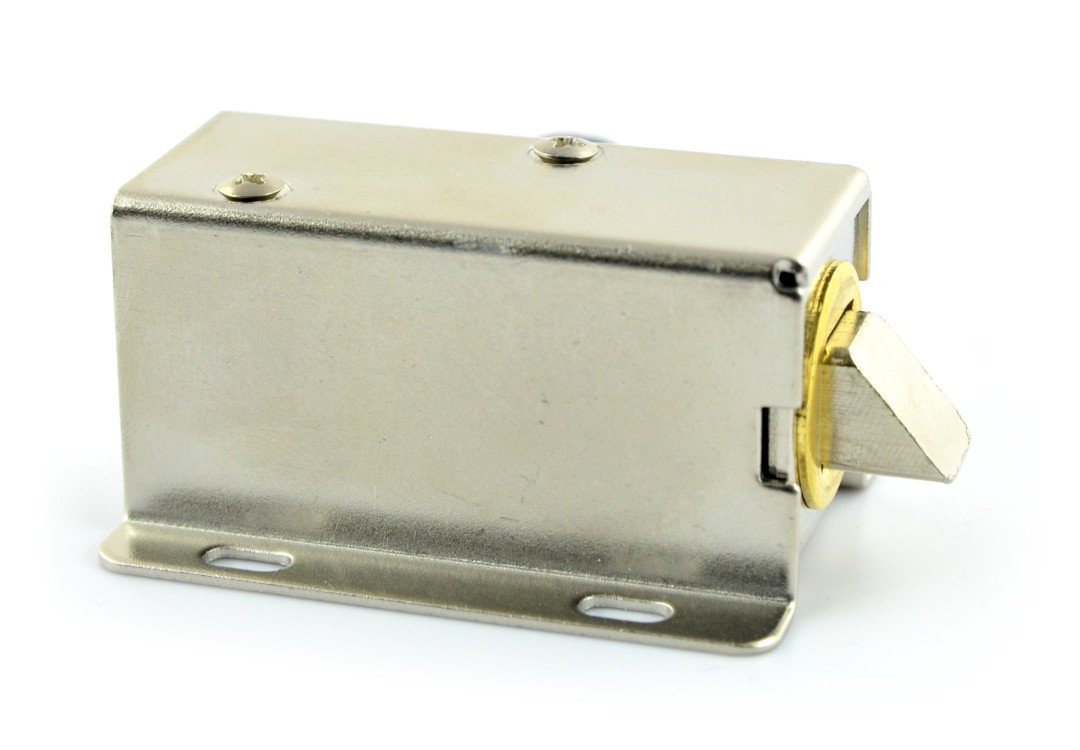

Electric lock with pullout bolt.
