ESP32-S3-EYE - WiFi + Bluetooth module with 2Mpx camera and LCD 1,3'' display
ESP32-S3-EYE is a small AI development board made by Espressif . It is based on the ESP32-S3 and ESP-WHO system, thanks to which WiFi and Bluetooth 5 LE communication is also possible. The board is equipped with a 2 Mpx camera , a 1.3" LCD display and a microphone that can be used for image recognition and sound processing. ESP32-S3 EYE is equipped with 8 MB PSRAM memory and 8 MB Flash memory.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: ESP32-S3-EYE - WiFi + Bluetooth module with 2Mpx camera and 1.3'' LCD screen
ESP32-S3-EYE is a small AI development board made by Espressif . It is based on the ESP32 -S3 and ESP-WHO system, thanks to which WiFi and Bluetooth 5 LE communication is also possible. The board is equipped with a 2 Mpx camera , a 1.3" LCD display and a microphone , which can be used for image recognition and sound processing. ESP32-S3 EYE is equipped with 8 MB PSRAM memory and 8 MB Flash memory. It also supports image transmission via WiFi and microUSB debugging.The module is also equipped with a three-axis accelerometer QMA7981 used to rotate the image displayed on the screen.ESP-WHO allows you to create various AIoT applications, such as smart doorbell, surveillance systems, face recognition, etc.

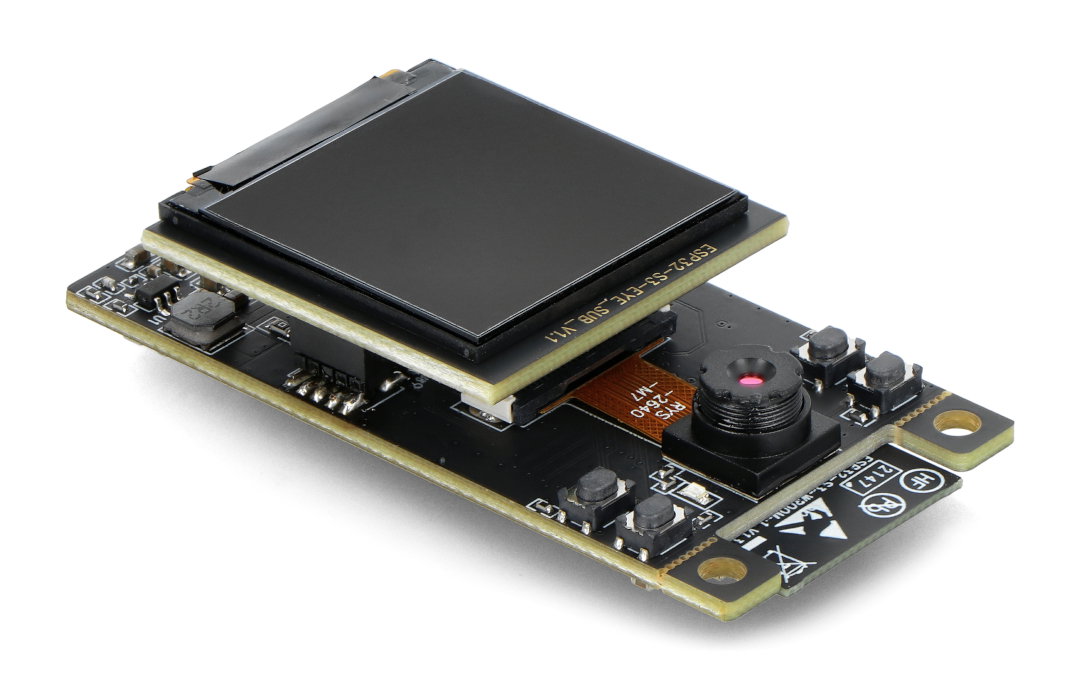

ESP32-S3-EYE - WiFi + Bluetooth module with a 2 Mpx camera and a 1.3" LCD screen.

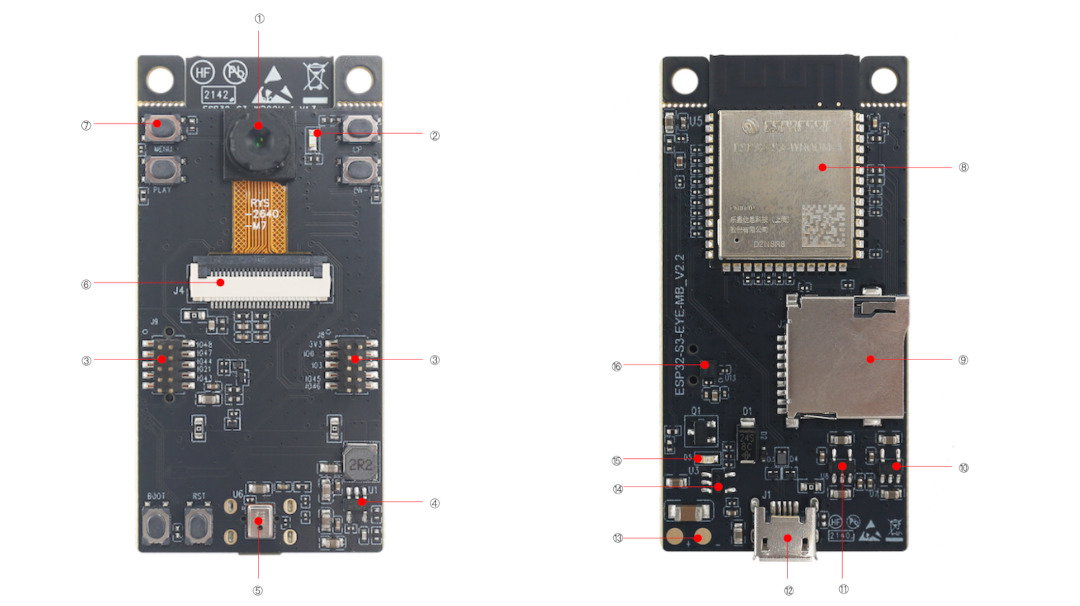

Distribution of elements on the ESP32-S3-EYE board.
More details can be found in the GitHub repository .
Layout of elements on the board
- Camera OV2640 2 Mpx
- Power LED module
- Male connectors for connecting the display
- Voltage regulator 5V - 3.3V
- I2S MEMS digital microphone
- FPC connector
- Function button
- ESP32-S3-WROOM-1 allowing WiFi / Bluetooth 5 LE communication
- microSD card slot
- Voltage regulator 3.3V - 1.5V
- Voltage regulator 3.3V - 2.8V
- MicroUSB port for powering the board with 5 V and communication with the system via GPIO19 and GPIO20
- Solder connectors for 3.7V battery power
- Battery charger 1A ME4054BM5G-N
- Red LED to indicate battery status
- QMA7981 accelerometer
ESP32-S3-EYE specification
- Chip: ESP32-S3-WROOM-1
- PSRAM: 8MB
- Flash memory: 8Mb
- Wireless communication: WiFi / Bluetooth 5 (LE)
- Camera:
- sensor: OV2640
- resolution: 2 Mpx 1600 x 1200 px
- viewing angle: 66.5°
- Display: LCD 1.3"
- microSD card slot
- Accelerometer: QMA7981
- Microphone: I2S MEMS 61 dB SNR, sensitivity -26 dBFS
- Power supply: 5V, microUSB
- Dimensions: 30x60mm
Kit contents
- ESP32-S3-EYE - WiFi + Bluetooth module with 2MPx camera
- 1.3" LCD display

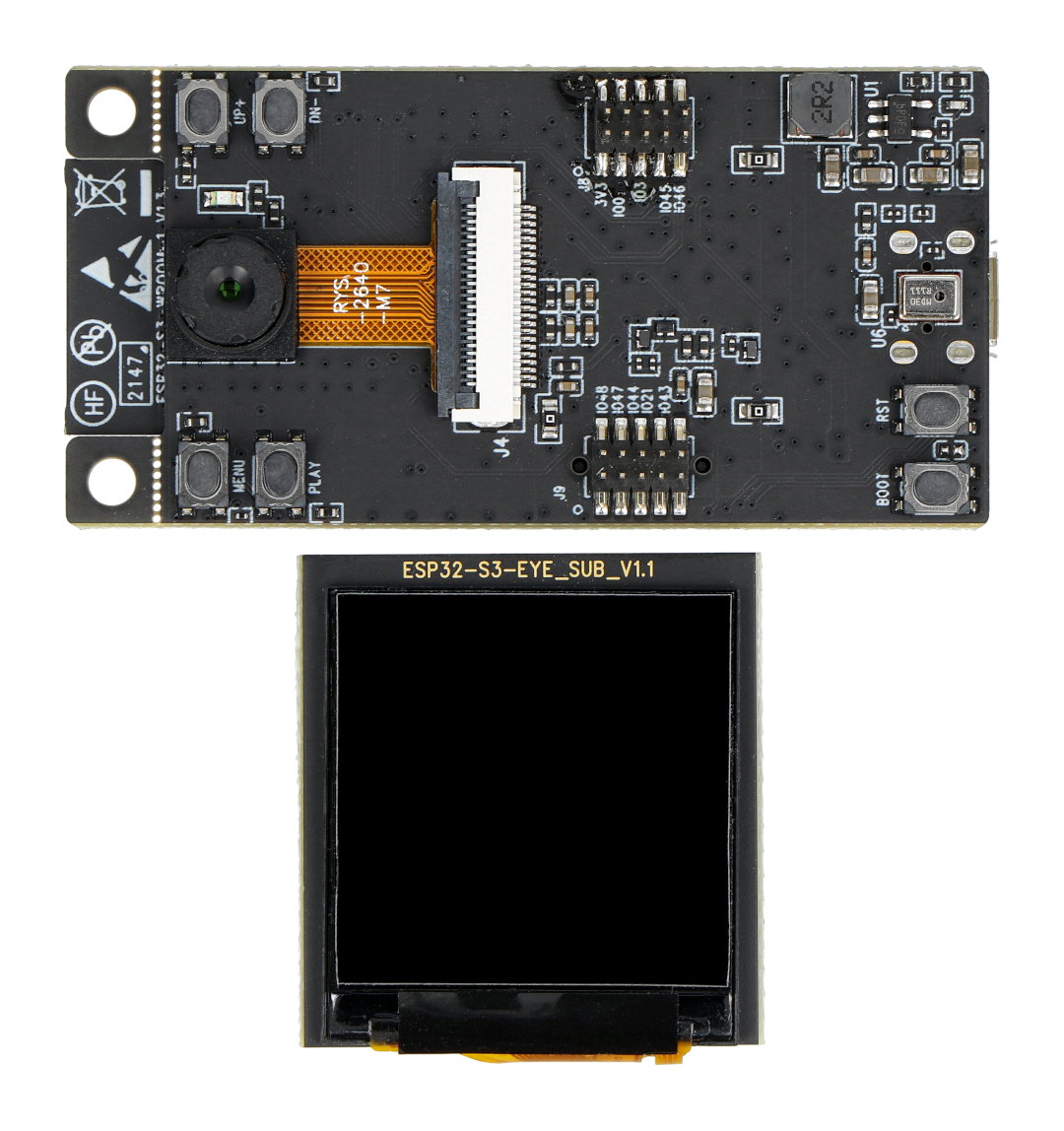

The kit includes the ESP32-S3-EYE module with a 2 Mpx camera and a 1.3" LCD display.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-S3-WROOM-1 |
| UC - Flash | 8 MB |
| UC - RAM | 8 MB |
| UC - WiFi | yes |
| UC - microSD | yes |
| UC - Bluetooth | yes |
| UC - Camera interface | yes |
| Width | 8 cm |
| Height | 5.5 cm |
| Depth | 3.5 cm |
| Weight | 0.04 kg |
