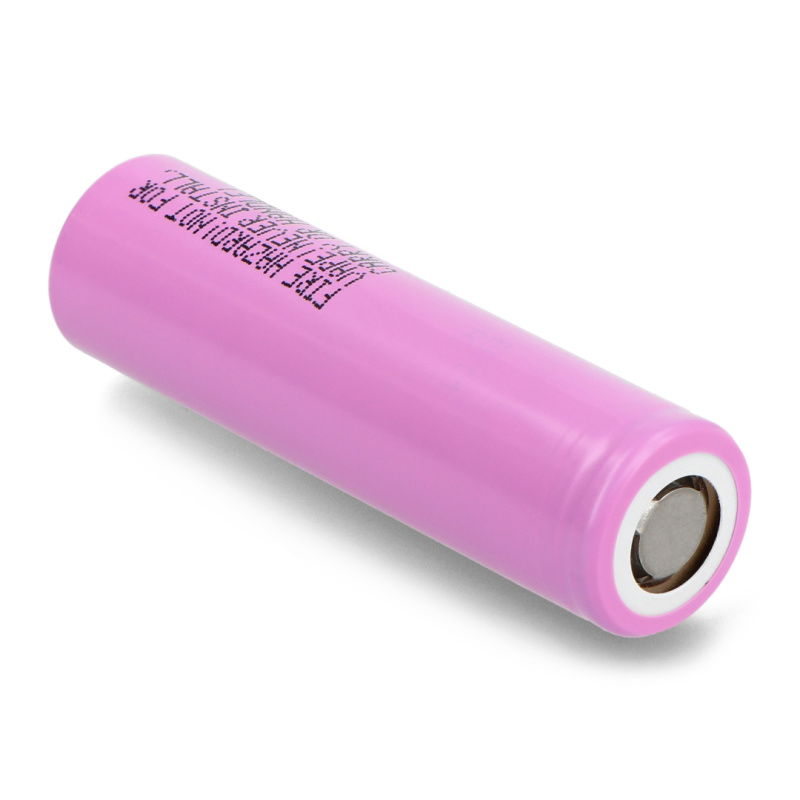

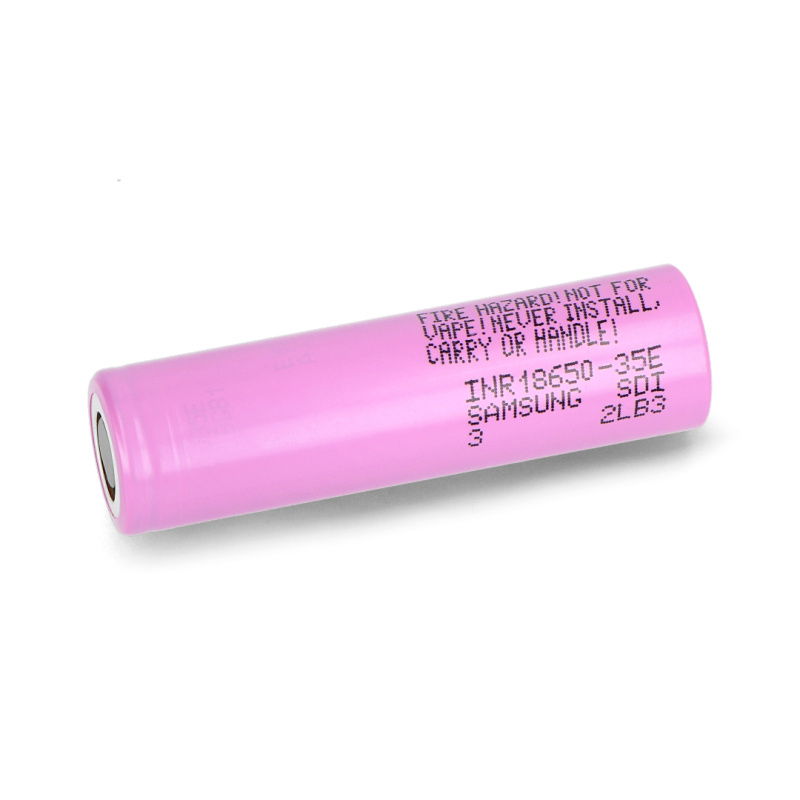

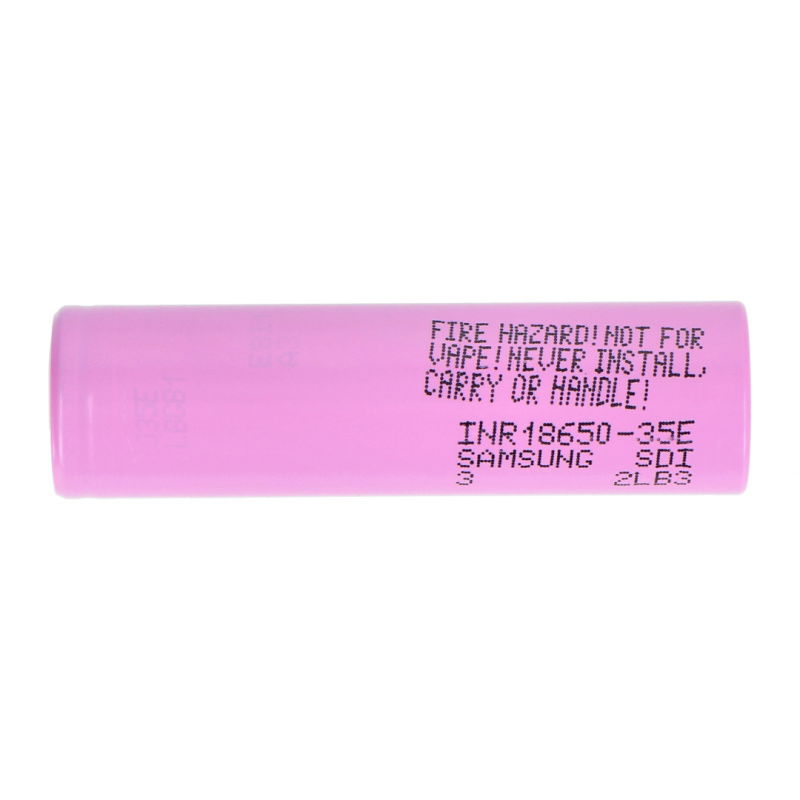

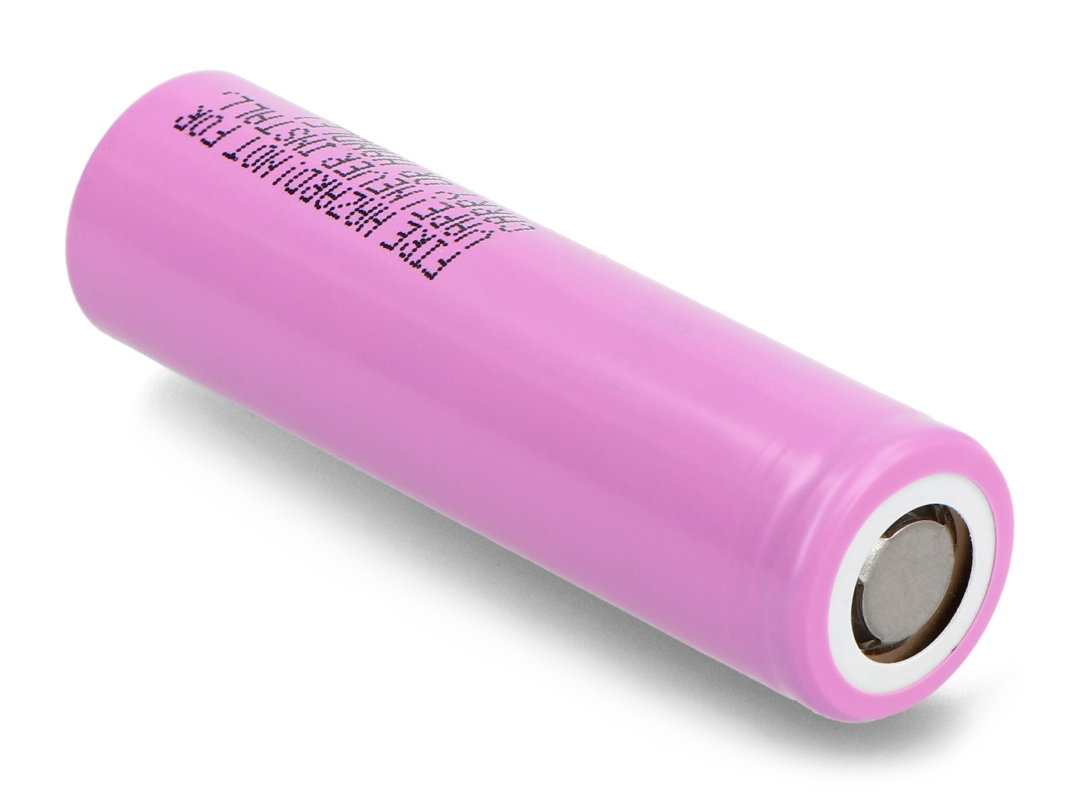

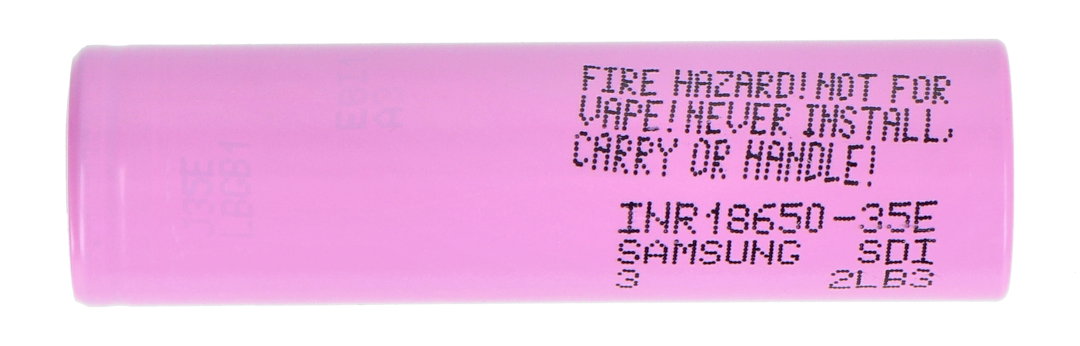

Product description: 18650 Li-Ion cell Samsung INR18650-35E
Pink 18650 lithium-ion battery with a nominal voltage of 3.6 V and a capacity of 3400 mAh . The cell dimensions are small: height is 65.25 mm and diameter is 18.55 mm .
The battery does not have overcharge or deep discharge protection. It is best to use a microprocessor charger for charging. Do not allow the battery to charge above 4.2 V or discharge below 2.5 V. |
18650 Li-Ion cell Samsung INR18650-35E.
18650 lithium-ion battery in pink .Precautions
- Do not allow the cell to discharge below 2.5 V
- You should use a charger that cuts off charging at 4.2V.
- Do not carry the battery with metal parts (risk of short circuit, burns)
- Do not solder the plates or wires using a regular soldering iron.
- Do not use with a damaged/dented housing
- Keep away from water and other liquids
- Do not allow to overheat
Our offer also includes a charger for 18650 batteries and battery baskets .
Li-Ion cell specifications
| Parameter | Range |
|---|---|
| Cell model | Samsung INR18650-35E |
| Nominal voltage | 3.6V |
| Capacity |
|
| Charging current |
|
| Maximum discharge current |
|
| Maximum charging voltage | 4.2V |
| Discharge cut-off voltage | 2.65V |
| Battery type | Lithium-ion |
| Dimensions |
|
| Mass | 48 g |
