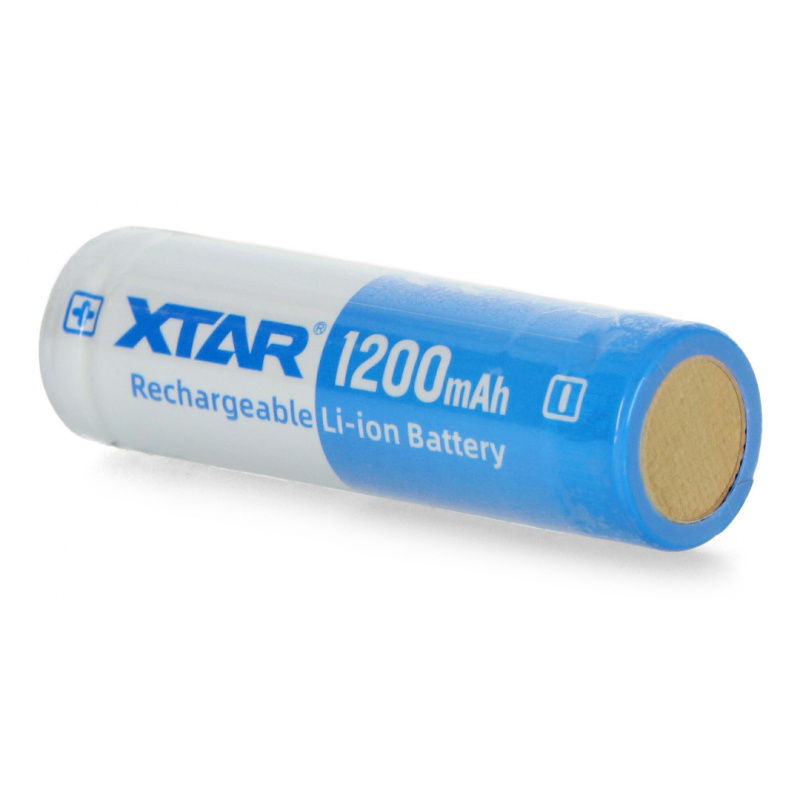

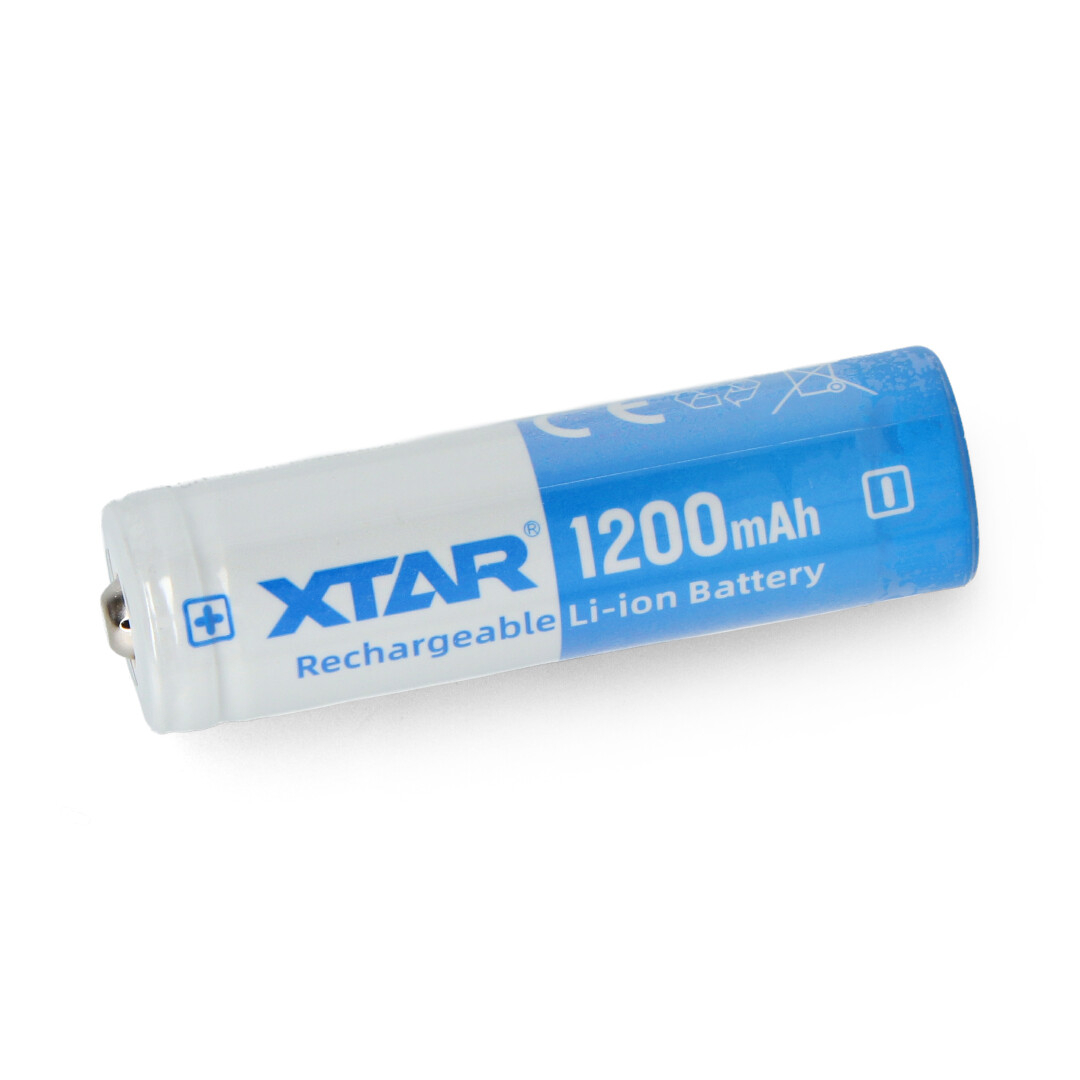

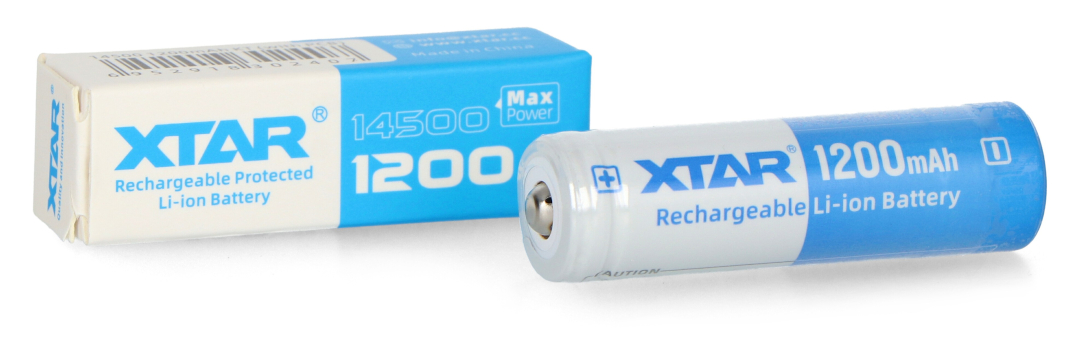

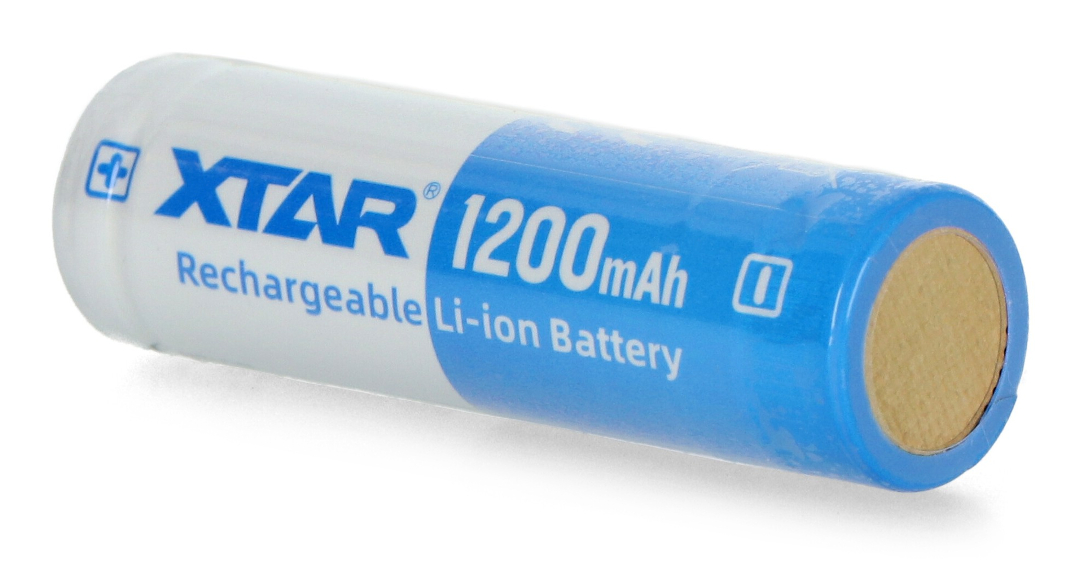

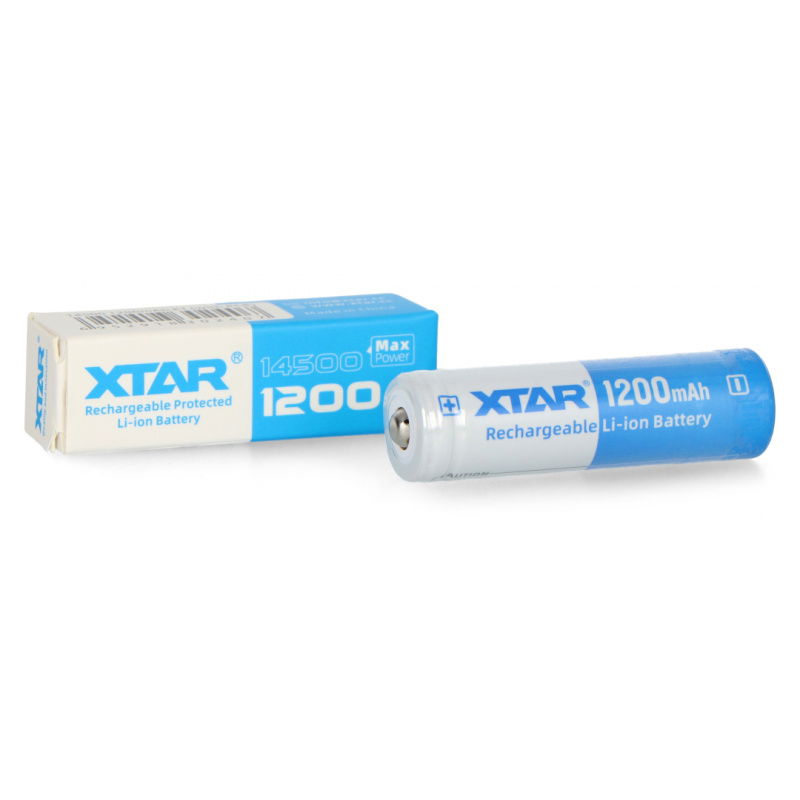

Product description: 14500 Li-Ion Xtar 1200mAh cell with protection
Xtar 's high-quality 14500 lithium-ion battery, with a voltage of 3.6V and a capacity of 1200mAh , is the ideal solution for demanding users seeking a reliable power source. The cell offers a stable current of up to 2.5A and a built-in electronic protection PCB (Power Circuit Board) that protects against overcharging, discharging, overloading, and short circuiting. It's ideal for flashlights, camping gear, and headlamps. With over 500 charge cycles, it reduces the consumption of disposable batteries, making it an environmentally friendly choice.
14500 Li-Ion Xtar 1200mAh cell with protection.
The 14500 lithium-ion battery from Xtar ensures long operating time of devices thanks to its 1200 mAh capacity.
Main features of the battery
- High capacity 1200 mAh : ensures long operating time of devices
- 3.6V voltage : compatible with most 14500 cell powered devices
- PCB Protection : Overcharge, overdischarge, overload and short circuit protection
- Output up to 2.5 A : a guarantee of stable power supply for demanding devices
- Reusable - over 500 cycles : saving and ecology
- Standard size AA/R6 : fits popular flashlights, headlamps and toys
Practical applications
The Xtar 14500 battery is perfect for powering EDC flashlights, headlamps, diving flashlights, camping lanterns, and other portable devices. Its compact size and high capacity make it an ideal solution for active people, hikers, DIY enthusiasts, and outdoor equipment users.
Built-in lithium-ion battery protection
The Xtar 14500 cell is equipped with a built-in PCB protection board that protects the battery against dangerous phenomena such as overcharging, deep discharge, overload, and short circuit . This ensures not only long cell life but also safety for the user and connected devices. Each cell undergoes rigorous quality testing, guaranteeing high reliability .
How to charge the Xtar 14500 battery?
It is recommended to use chargers dedicated to Li-Ion cells , supporting a charging current of 0.5 A. The battery can be charged using Xtar Mini chargers, among others, which offer fast and safe charging with an automatic cycle termination function when it reaches 4.2 V. A full charge takes approximately 2.7 hours . Remember to avoid overheating and use chargers with safety mechanisms.
| Battery technical specifications | |
|---|---|
| Producer | Xtar |
| Designation | 14500 |
| Battery type | Lithium-ion (Li-ion) |
| Nominal voltage | 3.6V |
| Nominal capacity | 1200 mAh |
| Minimum capacity | 1150 mAh |
| Internal resistance | ≤130 mΩ |
| Continuous discharge current | 2.5 A |
| Maximum discharge current | 2.8 A |
| Overcurrent protection | from 3 A to 4.8 A |
| Standard charging voltage | 4.2V ± 0.03V |
| Standard charging current | 240 mA |
| Maximum charging current | 840 mA |
| Number of charging cycles | over 500 |
| Security | Against overcharging, discharging, short circuit, overload |
| Operating temperature | from -20°C to 60°C |
| Storage temperature | from -20°C to 50°C (recommended 25°C ±5°C) |
| Dimensions |
|
| Mass | ≤ 20 g |
