Product description: Gravity - set of I2C / UART connection cables - male-male - 30 cm - 5 pcs - DFRobot FIT0916-MM

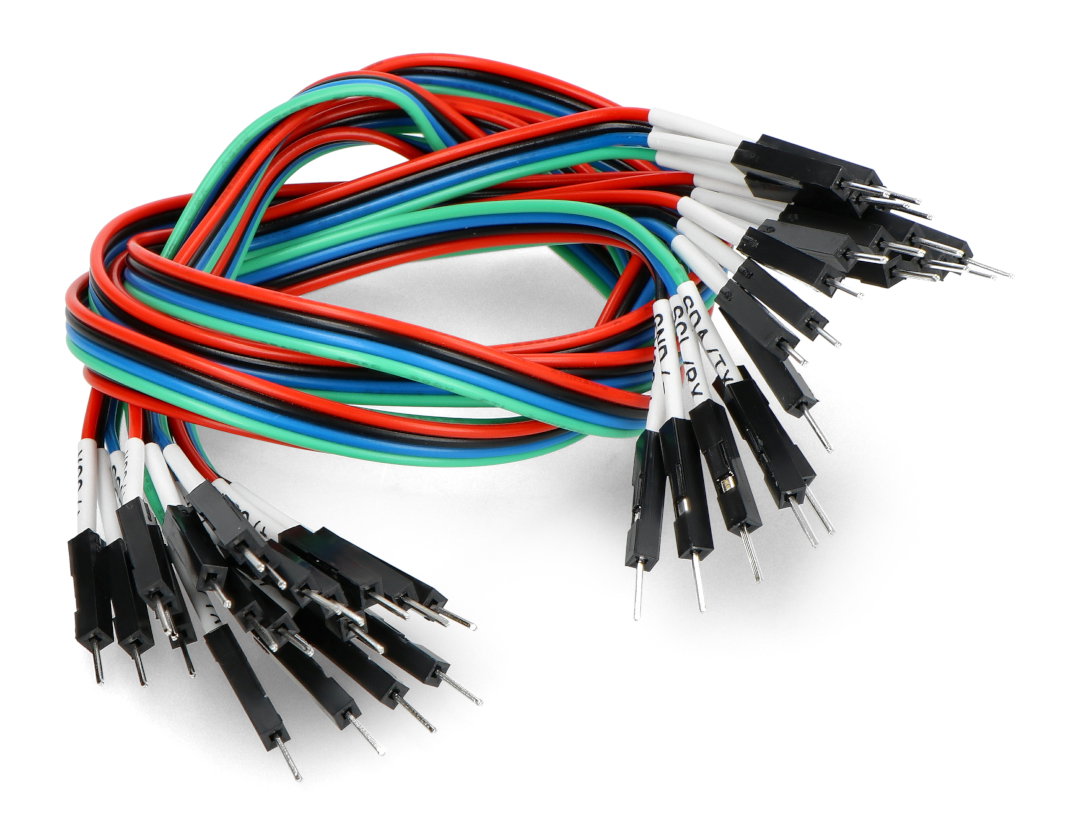

The set includes 5 pieces of 30 cm long connection cables from DFRobot . The cable consists of four wires corresponding to the power, ground and signal lines for I2C and UART . They are terminated with a male connector on both sides. Each of them is signed, which makes it easy to distinguish them. Thanks to this, creating projects will consume much less time. The cables are made of high-quality materials and are characterized by high durability.
Each strand has a label indicating its function.

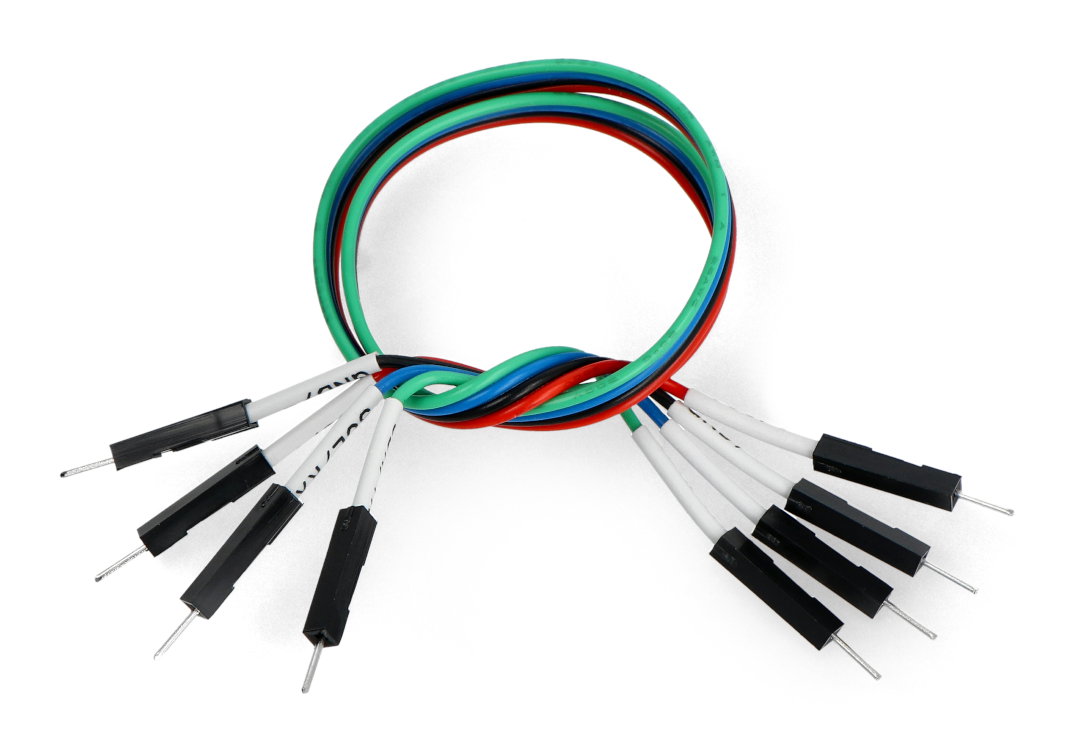

Gravity - a set of I2C / UART-male-male connecting cables.
Pin description
- I2C:
- Red - VCC (power)
- Black - GND (ground)
- Blue - SCL (clock line)
- Green - SDA (data line)
- UART
- Red - VCC (power)
- Black - GND (ground)
- Blue - TX (transmitter)
- Green - RX (receiver)
Technical specification of I2C/UART connection cables
- Maximum voltage: < 50V
- Maximum current: < 1000 mA
- Number of pins: 4
- Type: male-male
- Pitch: 2.54mm
- Cord length: 30 cm
- Number of pieces in the set: 5 pcs.
The cables are made of high-quality materials.
