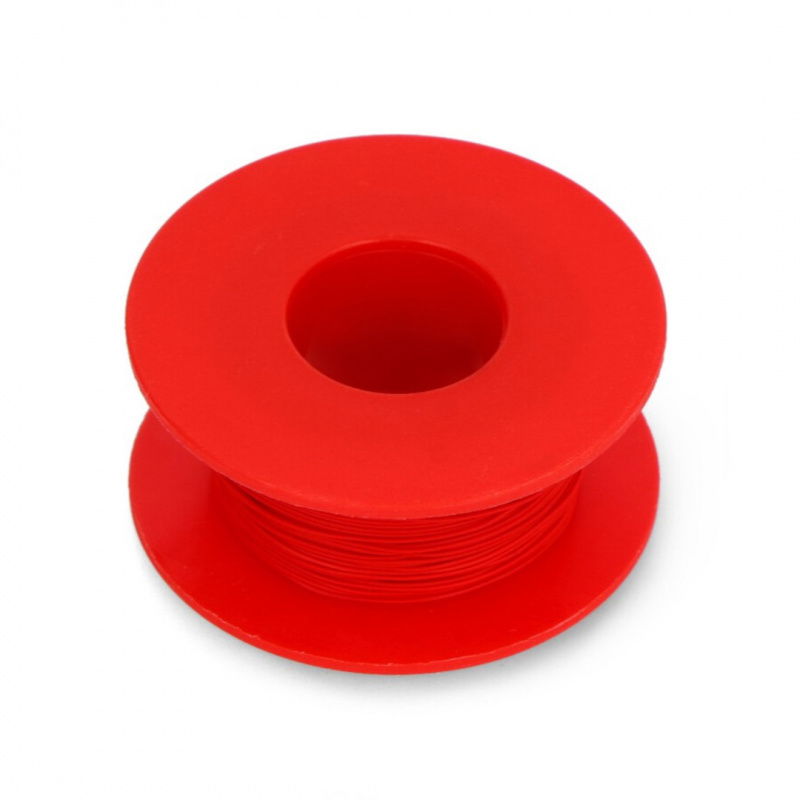

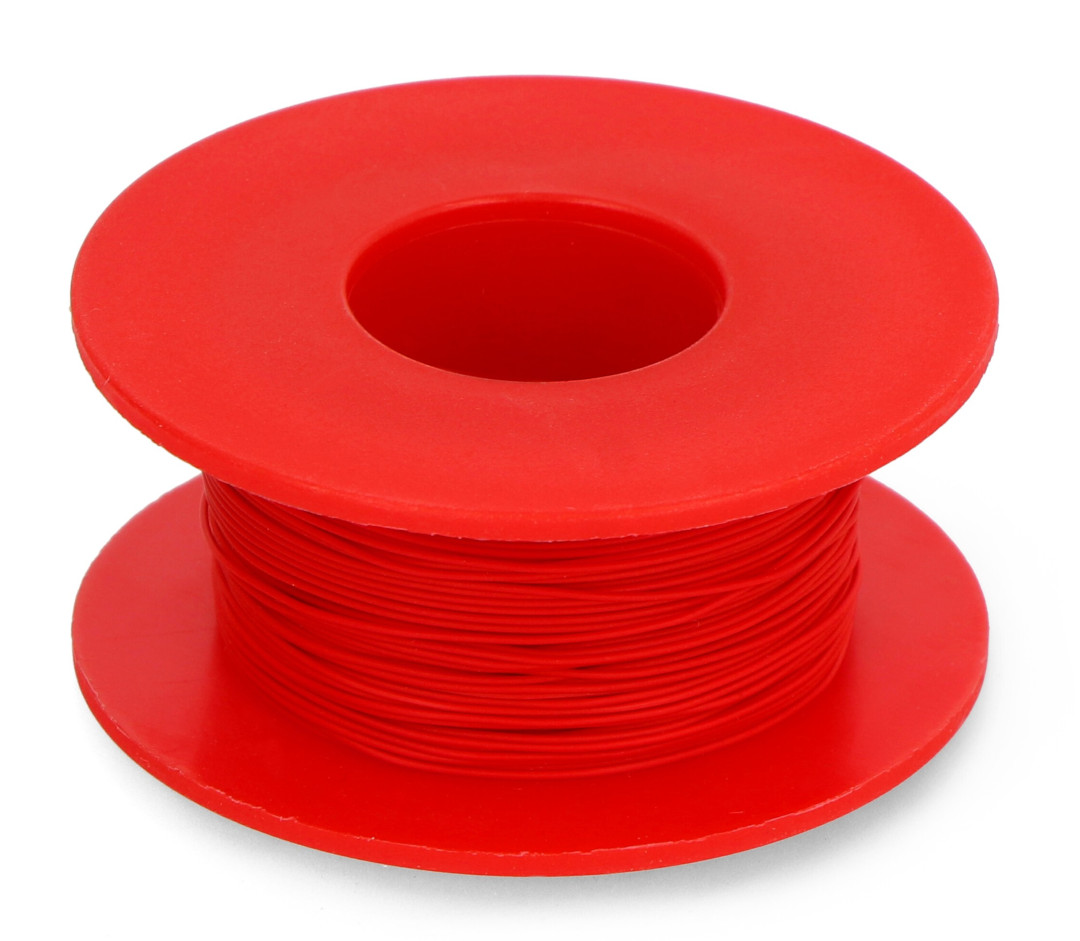

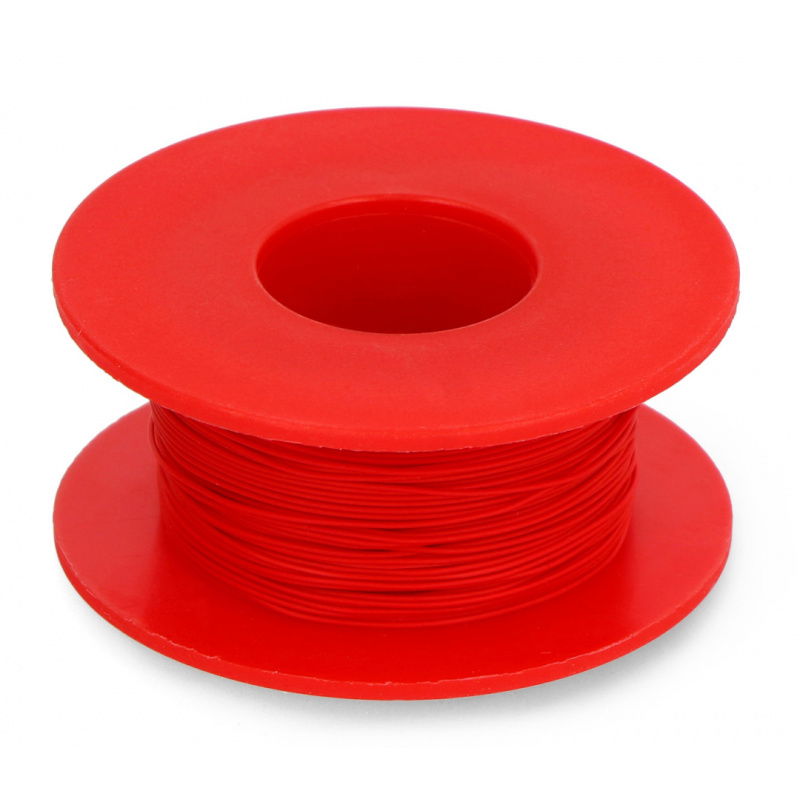

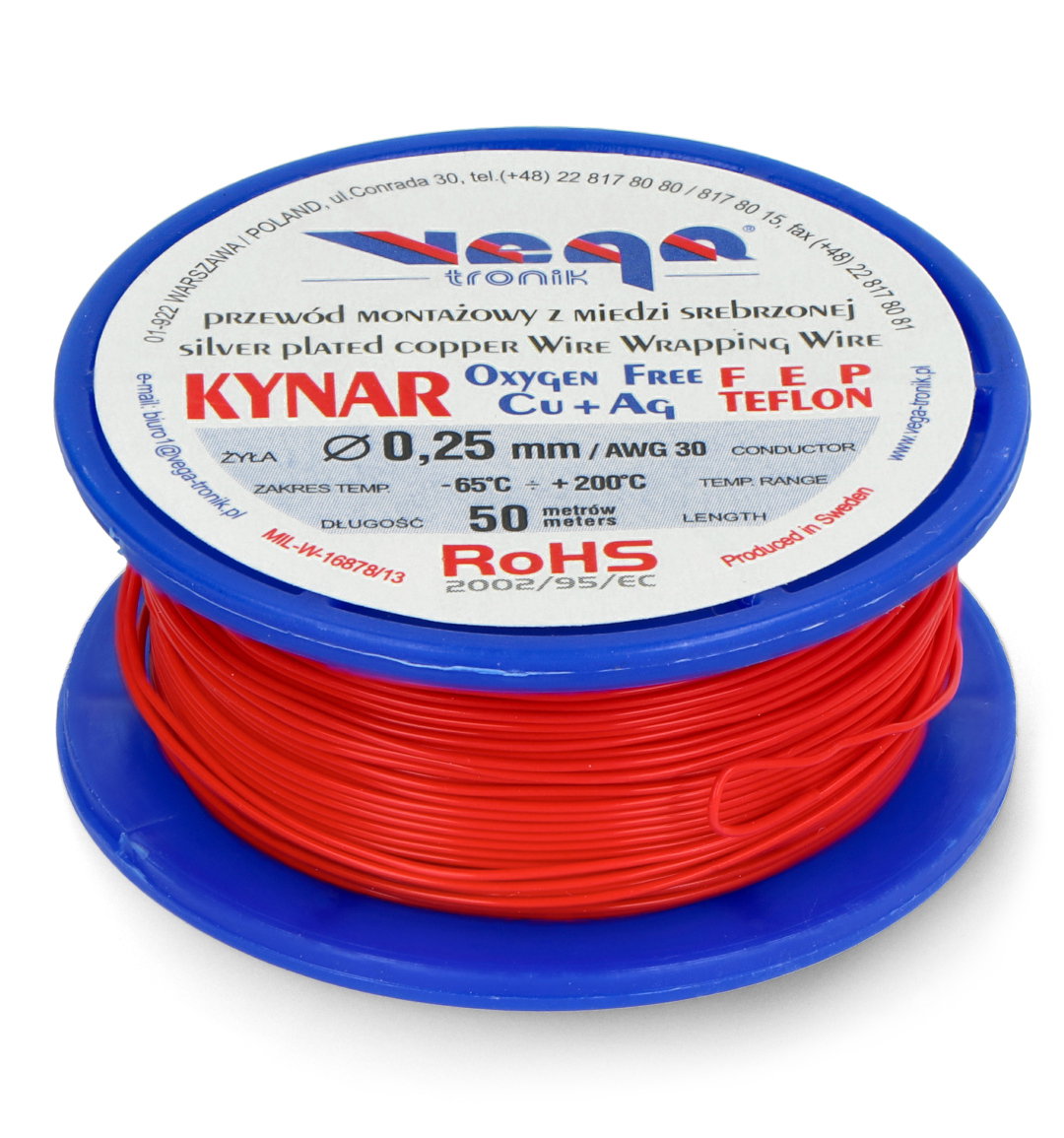

Product description: Kynar silver-plated copper hook-up wire - 0.25 mm / AWG 30 - red - 50 m
High-quality cable designed for assembly, connections used in various types of professional medical equipment, military, industrial automation or ordinary hobby work. Made of oxygen-free silver-plated copper , covered with red PVDF insulation. The insulation provides high resistance to electrical, mechanical, thermal or chemical overloads. The length of the cable is 50 m . The wire has a diameter of 0.25 mm, and AWG 30. The operating temperature is from -30 ° C to 135 ° C at a voltage of 300 V. The cable is made in accordance with the MIL-W-16878/13 standard in the RoHS standard. Manufactured in Sweden.
Mounting cable specification
- Cable Type: Kynar
- Color: red
- Material: silver-plated oxygen-free copper
- Design: in accordance with MIL-W-16878/13 in the RoHS standard
- Core diameter: Ø 0.25 mm / AWG 30
- Core cross-section: 0.05 mm²
- Vein structure: 1 x 0.254 mm
- Core sheath: PVDF (Polyvinylidene fluoride)
- Operating temperature: -30°C to 135°C
- Maximum core diameter: Ø 0.28 mm
- Nominal voltage: 300 V
- Made in Sweden
- Cable length: 50 m
Kynar silver-plated copper hook-up wire - 0.25 mm / AWG 30 - red - 50 m.
