Product description: HDMI capture module - HDMI adapter - USB 3.0 - Waveshare 24211
HDMI - USB 3.0 adapter designed for video capture and transmission. The module is equipped with an HDMI port that is a 4K image input (3850 x 2160 px at 30 Hz) and an output in the form of a USB 3.0 plug (1920 x 1080 px at 60 Hz). The product guarantees exceptional smoothness of the transmitted image and sound. It works with multiple systems such as Windows, Linux, macOS, and Android. It can be used to transfer data between a smartphone or tablet and a desktop computer or laptop. The module is compatible with Raspberry Pi minicomputers, however, an appropriate cable is required to connect the board.

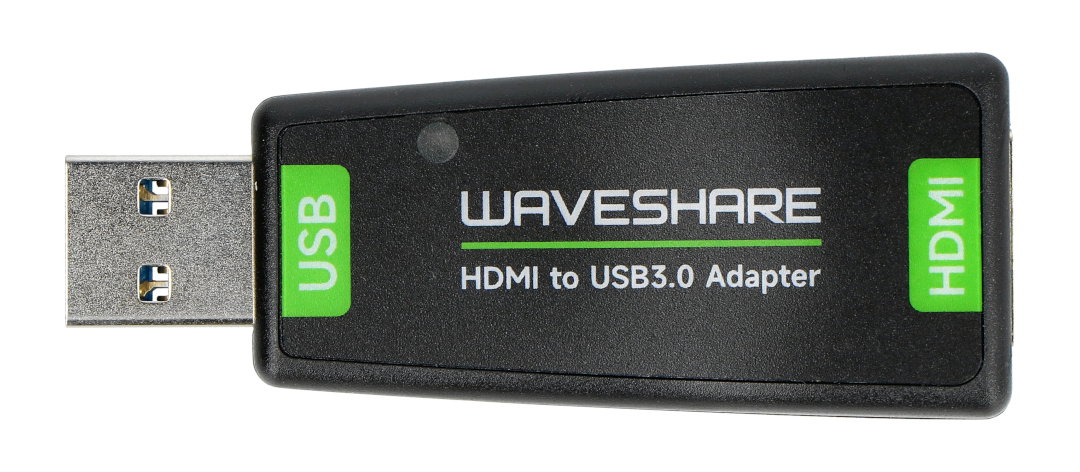

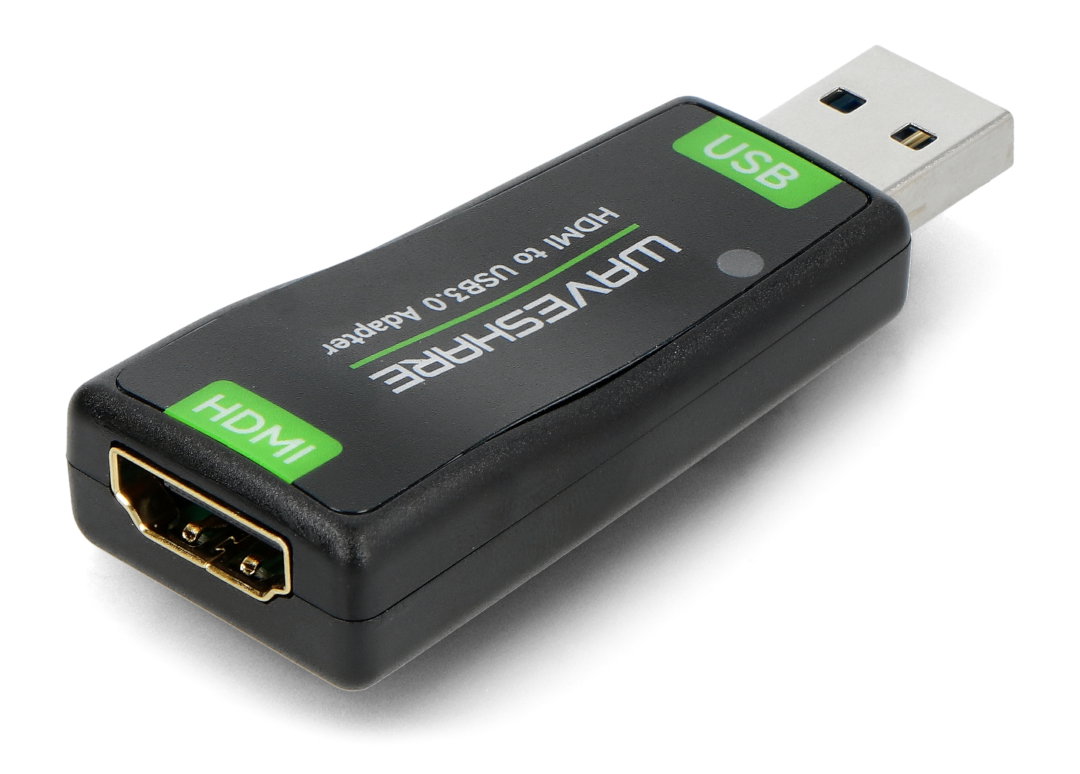

HDMI image capture module - HDMI adapter - USB 3.0 - Waveshare 24211.
The module guarantees exceptional smoothness of the transmitted image and sound.
Adapter technical specification
- Manufacturer: Waveshare
- Image input parameters:
- HDMI 4K (3840 x 2160 @ 30Hz)
- Compliant with HDMI 1.4B
- Image output parameters:
- USB 3.0 1080P (1920x1080p@60Hz)
- Support YUV422 and MJPEG modes
- UVC 1.0 and UAC 1.0 compliant
- Audio: synchronous audio - video
- Compatible operating systems: Windows, Linux, macOS, Android
- Supported software: OBS, Potplayer, QuickTime, XSplit, etc.
