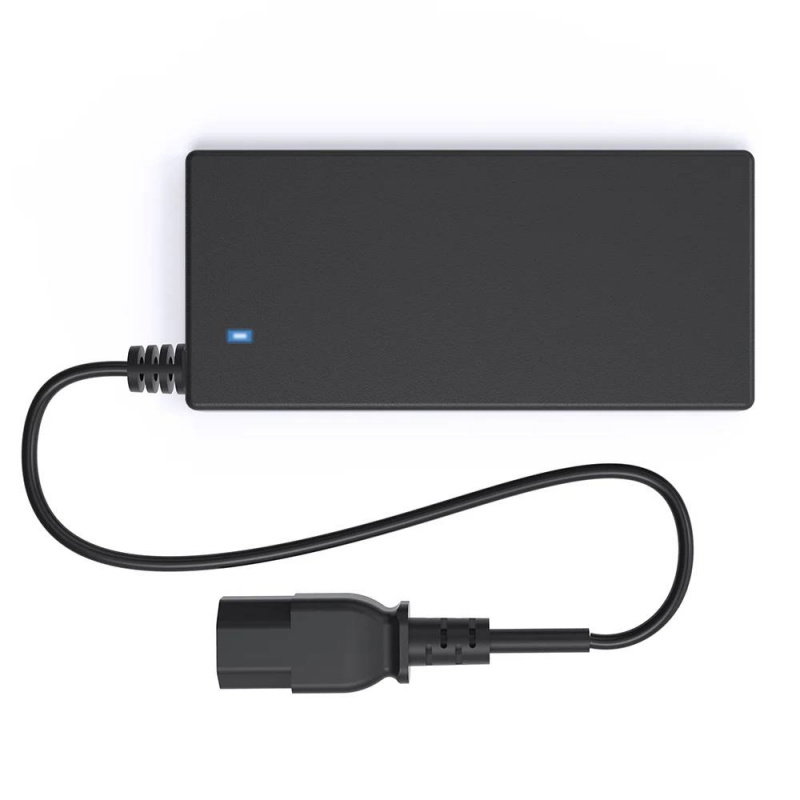

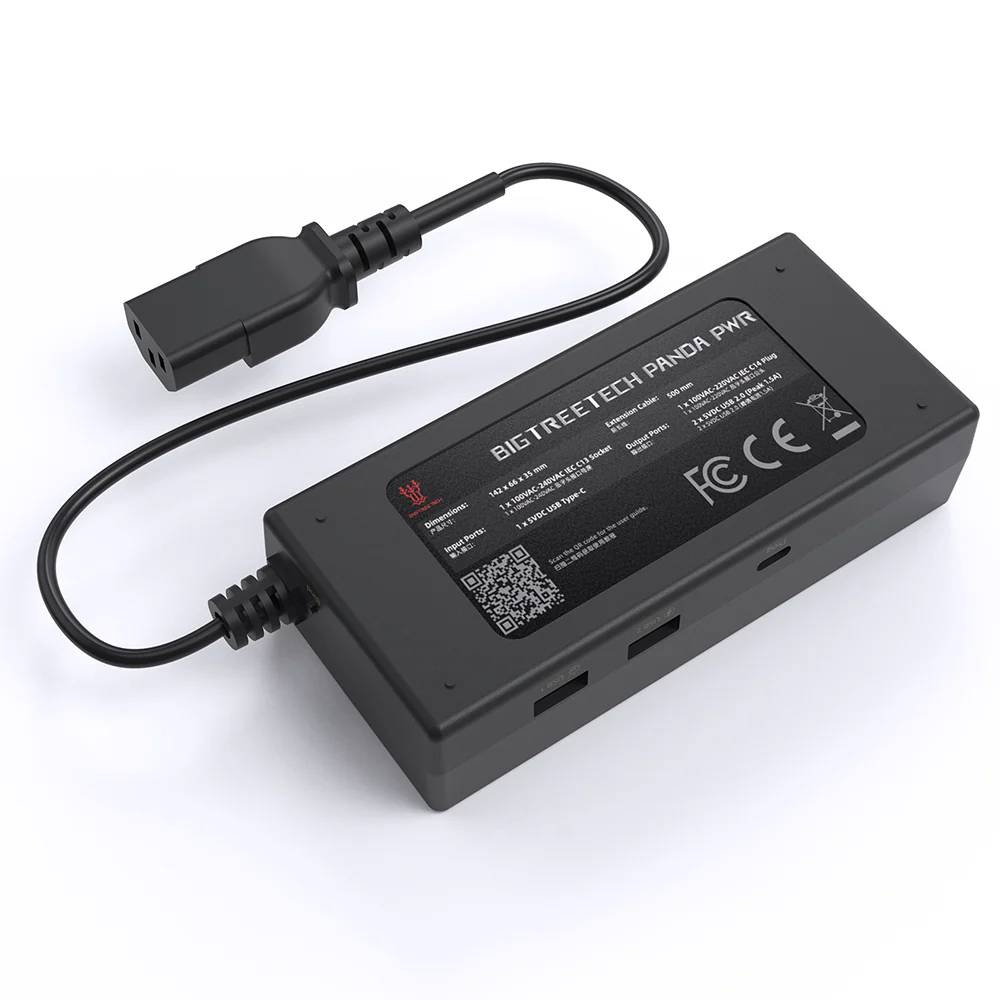

Product description: BIGTREETECH Panda PWR - intelligent power supply for 3D printers

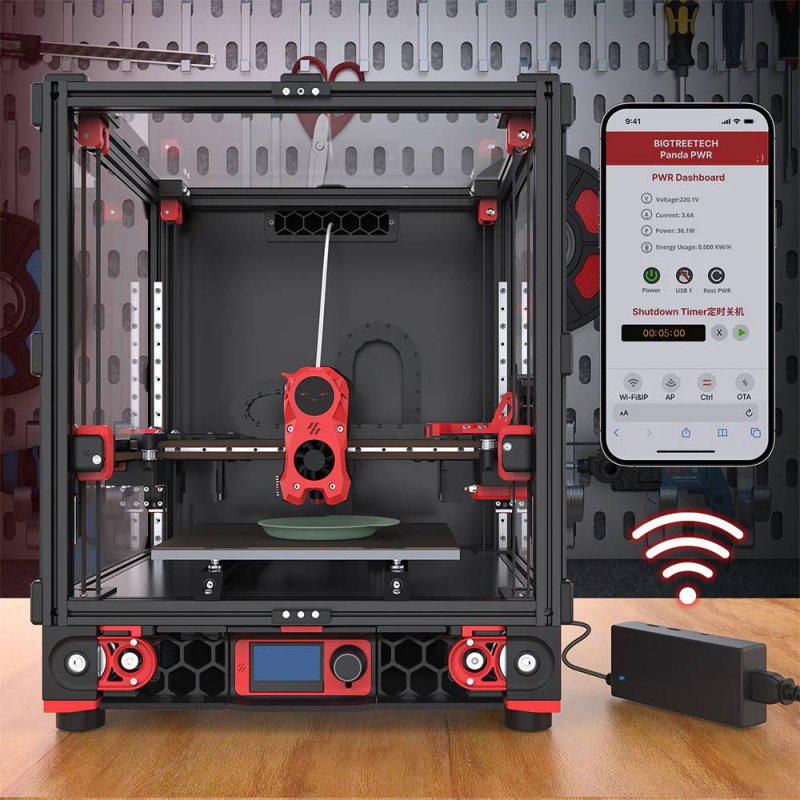

The BIGTREETECH Panda PWR is a modern power controller designed for convenient 3D printer control. It works with Bambu Lab, Creality K1, Voron, and many other models equipped with an IEC-C14 connector . Using WiFi , it allows you to remotely turn the printer on and off, control the USB1 port, and monitor voltage, current, power, and energy consumption from a smartphone, computer, or the optional Panda Touch panel. The module features an automatic shutdown after printing, which increases safety and reduces energy consumption. Two USB ports allow you to connect accessories – USB1 can be controlled by software, while USB2 provides constant power to devices. The Panda PWR supports OTA updates and is protected against overvoltage, overload, and short circuit.
Power supply technical specifications
- Wireless communication: WiFi 2.4 GHz IEEE 802.11 b/g/n
- WiFi module: ESP8684-MINI-1-H4
- RAM: 272 kB
- Flash memory: 4 MB
- Power Input: IEC-C14 100 VAC to 240 VAC
- Power Output: IEC-C13 100 VAC to 220 VAC
- Maximum load current: 9 A
- USB1 port: 5V/1.5A - controlled
- USB2 port: 5V/1.5A - constant power supply
- USB Type-C port: 5V - communication and firmware update
- Monitoring parameters: voltage, current, power, energy consumption
- Features: remote control, automatic shutdown, OTA updates
- Panda Touch support: yes
- Possibility of control via Panda Touch: up to 10 printers with Panda PWR modules
- Protection: overvoltage, overcurrent, short circuit
- Operating temperature: -10°C to 60°C
- Compatibility: Bambu Lab X1C, P1P, P1S, A1, Creality K1, Voron 2.4, Hurakan and other 3D printers with IEC-C14 connector
- Supported Panda Touch Version: V1.0.5 and later
- Cable length: 500 mm

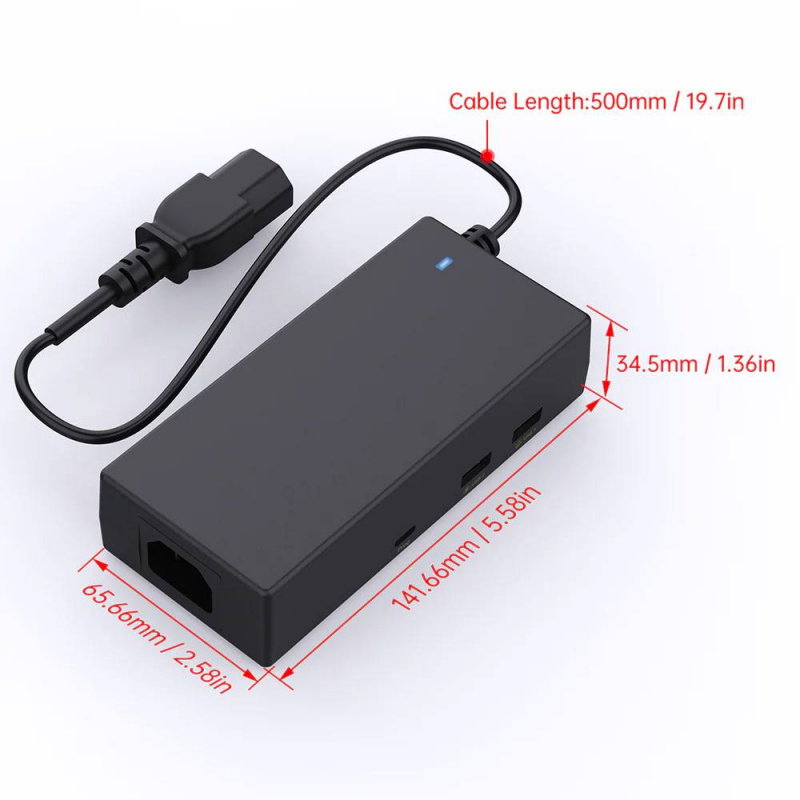

- Dimensions: 141.66 x 65.66 x 34.5 mm

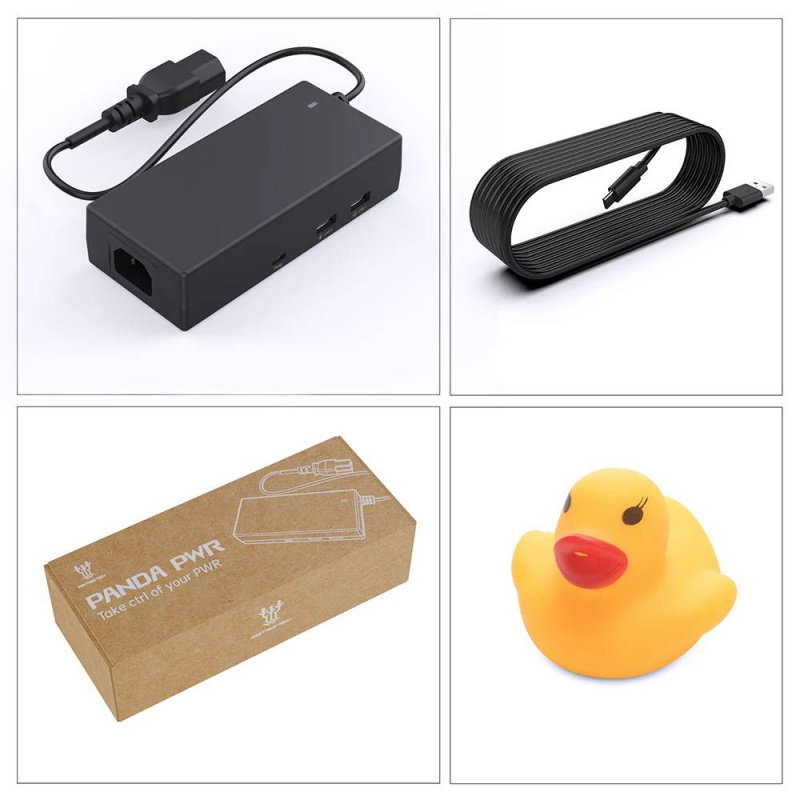

Contents of the set
- 1x Panda PWR
- 1x USB Type-C cable
- 1x BTT Duck
