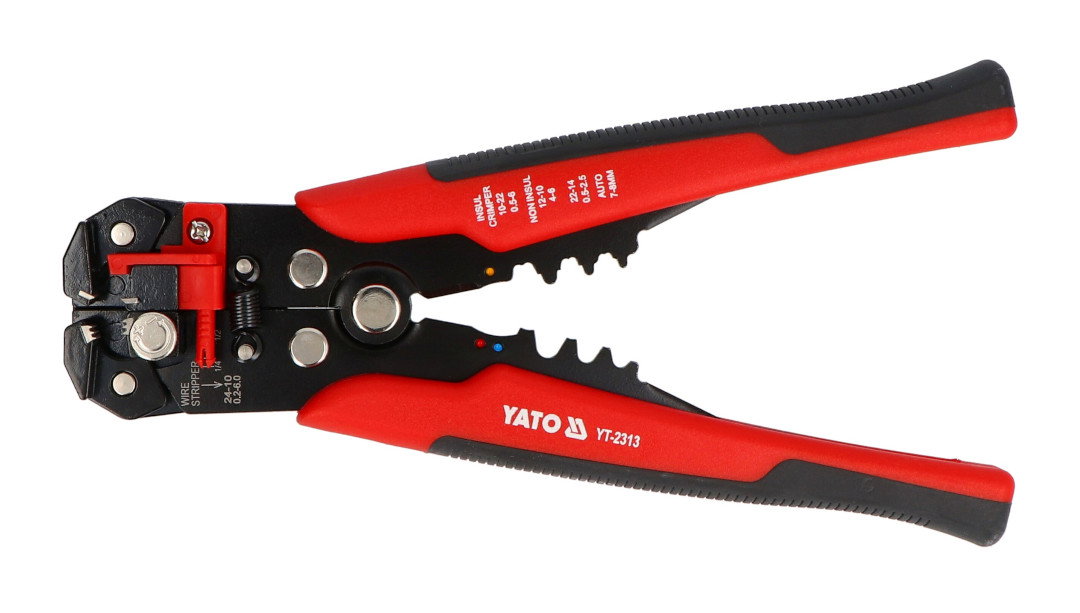

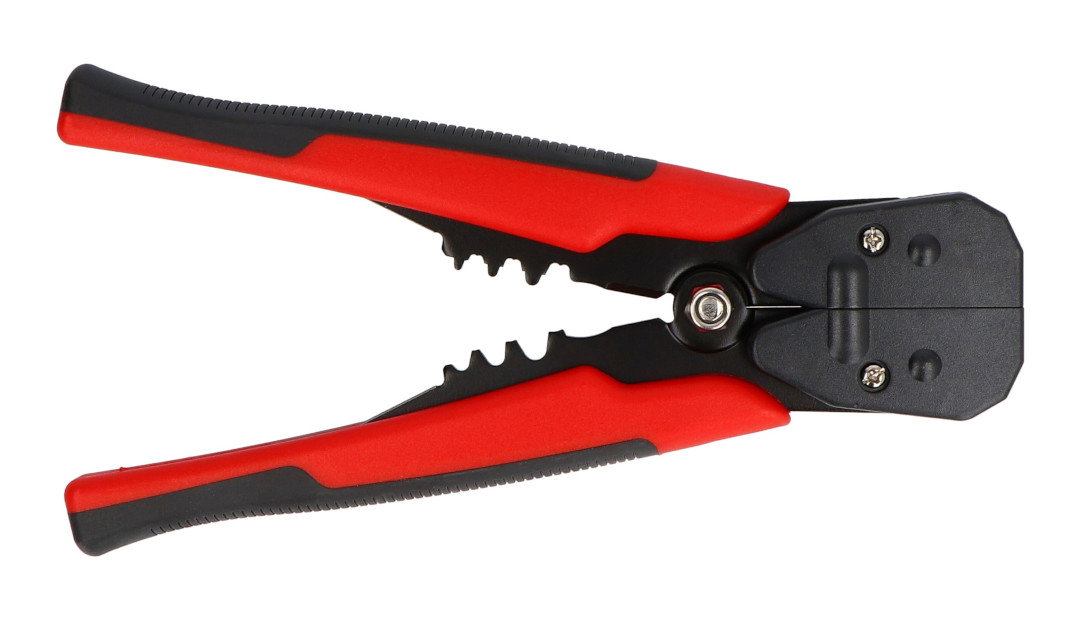

Product description: Insulation stripper 0.2 - 6 mm2 - Yato YT-2313
The Yato YT-2313 wire stripper is a multifunctional tool that combines the functions of cutting, stripping and crimping connectors . Made of high-quality carbon steel, which has been blackened and oxidized, provides long-term protection against corrosion and high resistance to wear. Thanks to the quick and automatic insulation stripping mechanism, the pliers enable precise and effective removal of insulation from wires with cross-sections from 0.2 mm² to 6 mm² . Ergonomic handles made of two-component plastic (PP and TPR) provide a comfortable and secure grip , which increases comfort during long-term use. Additionally, the tips of the working jaws are hardened to HRC 52-57 , which guarantees their durability and effectiveness in cutting wires and crimping connectors, both insulated and non-insulated .
In our offer you will also find many other models of insulation strippers and connector crimpers . |
Insulation stripper 0.2 - 6 mm2 - Yato YT-2313.
Allows you to strip insulation from wires with cross-sections ranging from 0.2 mm² to 6 mm².
Special features of Yato YT-2313
- Material: high quality carbon steel, blackened and oxidized for increased corrosion resistance.
- Length: 205 mm - optimal for precise work in various electrical applications.
- Handles: two-component PP and TPR covers ensure an ergonomic grip and comfort of use.
- Cross-section range:
- F (AWG 10 to 24): 0.2 mm² to 6 mm²
- B (AWG 10 to 22): 1.5 mm² to 6 mm²
- C (AWG from 10 to 22): from 0.5 mm² to 6 mm²
- Functions: cutting wires, stripping insulation, crimping connectors (both insulated and non-insulated).
- Tip hardness: 52-57 HRC – ensures durability and precision of work.
How to properly use a wire stripper?
To use the Yato YT-2313 wire stripper correctly, you must first select the appropriate function depending on the task: cutting wires, stripping insulation or crimping connectors. Set the pliers to the appropriate wire or connector diameter . For stripping, place the wire in the jaws and press until the insulation is removed. For cutting wires, adjust the pliers to the wire cross-section and make the cut, holding the tool in a stable manner . Using the crimping function, place the connector in the appropriate jaws and squeeze until the connector is securely fastened.
It offers functions for cutting, stripping insulation and crimping connectors.
Yato YT-2313 Wire Stripper Specifications
- Model: YT-2313
- Function: stripping insulation, cutting wires, crimping connectors
- Wire cross-section range: from 0.2 mm 2 to 6 mm 2
- Operating ranges for a given wire AWG rating:
- AWG 10 to 22: 0.2 mm2 to 6 mm2
- AWG 10 to 22: 1.5 mm2 to 6 mm2
- AWG 10 to 22: 0.5 mm2 to 6 mm2
- Body Material: Carbon Steel
- Surface finish: blackened, oxidized
- Hardness: 52-57 HRC
- Handle material: PP, TPR
- Length: 205mm
