NVMe Base expansion board - for Raspberry Pi 5 - Pimoroni PIM699
Pimoroni NVMe Base is an expansion board with a PCIe connector for Raspberry Pi 5 , enabling the installation of very fast NVMe SSD drives. They ensure the smooth operation of the Raspberry Pi OS system and the applications installed on it. The kit includes all necessary components for assembly.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
Product description: NVMe Base expansion board - for Raspberry Pi 5 - Pimoroni PIM699
NVMe Base is a PCIe expansion board dedicated to Raspberry Pi 5 that allows you to install an M-Key NVMe SSD in sizes from 2230 to 2280 . Thanks to this extension, the user can easily expand their minicomputer with fast and efficient mass memory , which will enable the transformation of Raspberry Pi into a device suitable for applications such as file servers, multimedia centers or other projects related to data transfer. The kit includes an NVMe Base board with an M.2 slot, a PCIe Pipe flexible cable , rubber feet for stability, as well as a set of screws, nuts and spacers needed to mount the SSD drive and the board itself. Compatible NVMe SSDs are not included in this expansion board kit and must be purchased separately.
The manufacturer has prepared a user guide that makes it much easier to start working with the NVMe Base expansion board for Raspberry Pi 5.

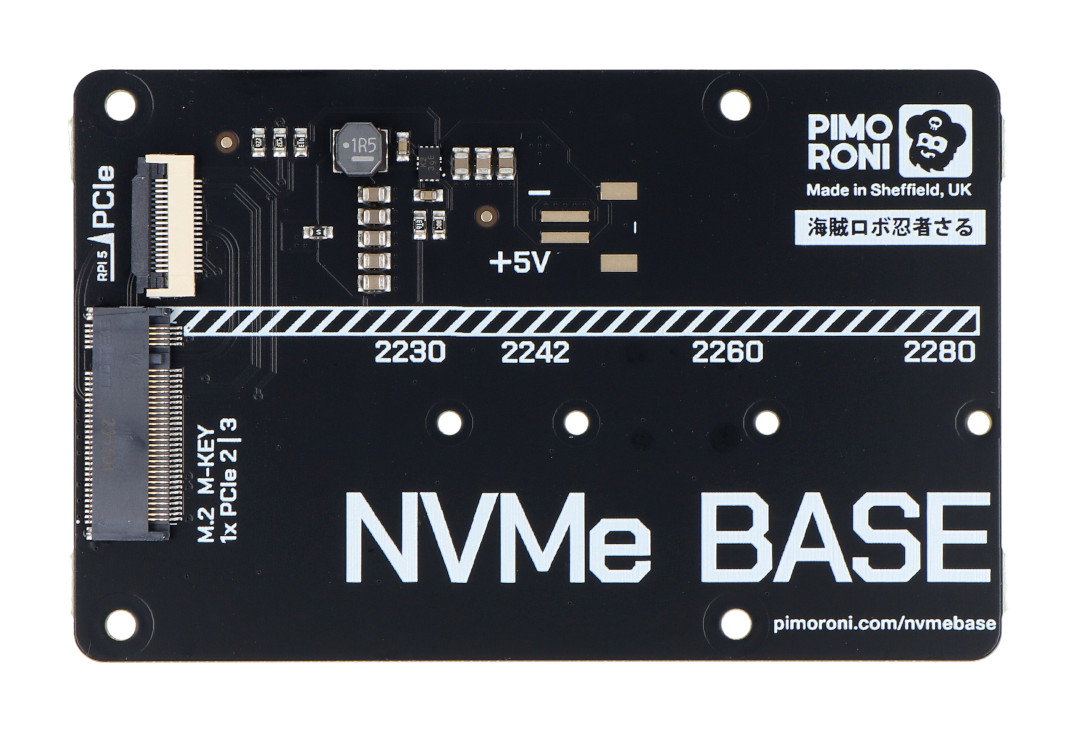

NVMe Base expansion board - for Raspberry Pi 5 - Pimoroni PIM699.
NVMe Base from Pimoroni allows you to install fast NVMe SSD drives in Raspberry Pi 5.
Technical specifications of the NVMe Base board
- Compatibility: Raspberry Pi 5
- Support for drives: M.2 NVMe from 2230 to 2280 (a detailed list of compatible drive models is described on the manufacturer's website )
- Access to ports: M.2 for mounting an NVMe SSD and PCIe for connecting the board to Raspberry Pi 5
- Black colour
- Dimensions: 87.5 x 56 mm

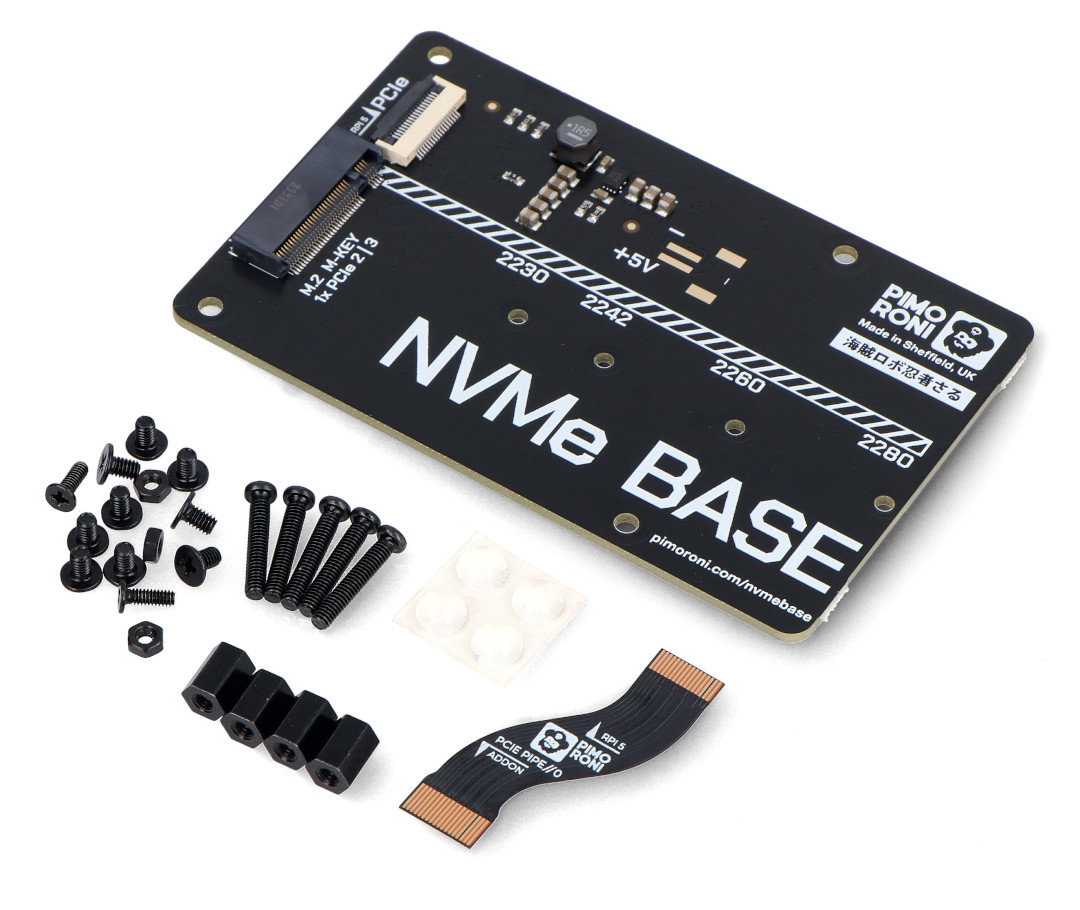

Set contents
- NVMe Base PCB with M.2 (M-Key) slot
- PCIe Pipe Flat Flex Cable
- 4 rubber feet
- 1 M2 screw and 2 nuts
- 4 M2.5 spacers, 7 mm long
- 8 short M2.5 screws
- 4 long M2.5 screws
The set does not include the Raspberry Pi 5 minicomputer and the NVMe disk. Our offer includes Raspberry Pi 5 4 GB and Raspberry Pi 5 8 GB .
Useful links
| Name | Value |
|---|---|
| Width | 9 cm |
| Height | 16 cm |
| Depth | 1 cm |
| Weight | 0.025 kg |
