Product description: Raspberry Pi NVMe SSD drive - 512 GB
The Raspberry Pi 512GB NVMe SSD delivers excellent performance with PCI Express 2.0 technology. Using the 1-lane PCIe interface, users can enjoy high read and write speeds that far outperform traditional storage media such as SD cards or pendrives. This is an ideal solution for Raspberry Pi 5 users who need the fast data transfer that NVMe technology offers.
The official Raspberry Pi M.2 SSD NVMe comes in two capacities: 256 GB and 512 GB. There are also ready-made kits available with an M.2 HAT+ overlay and a 256 GB or 512 GB drive.

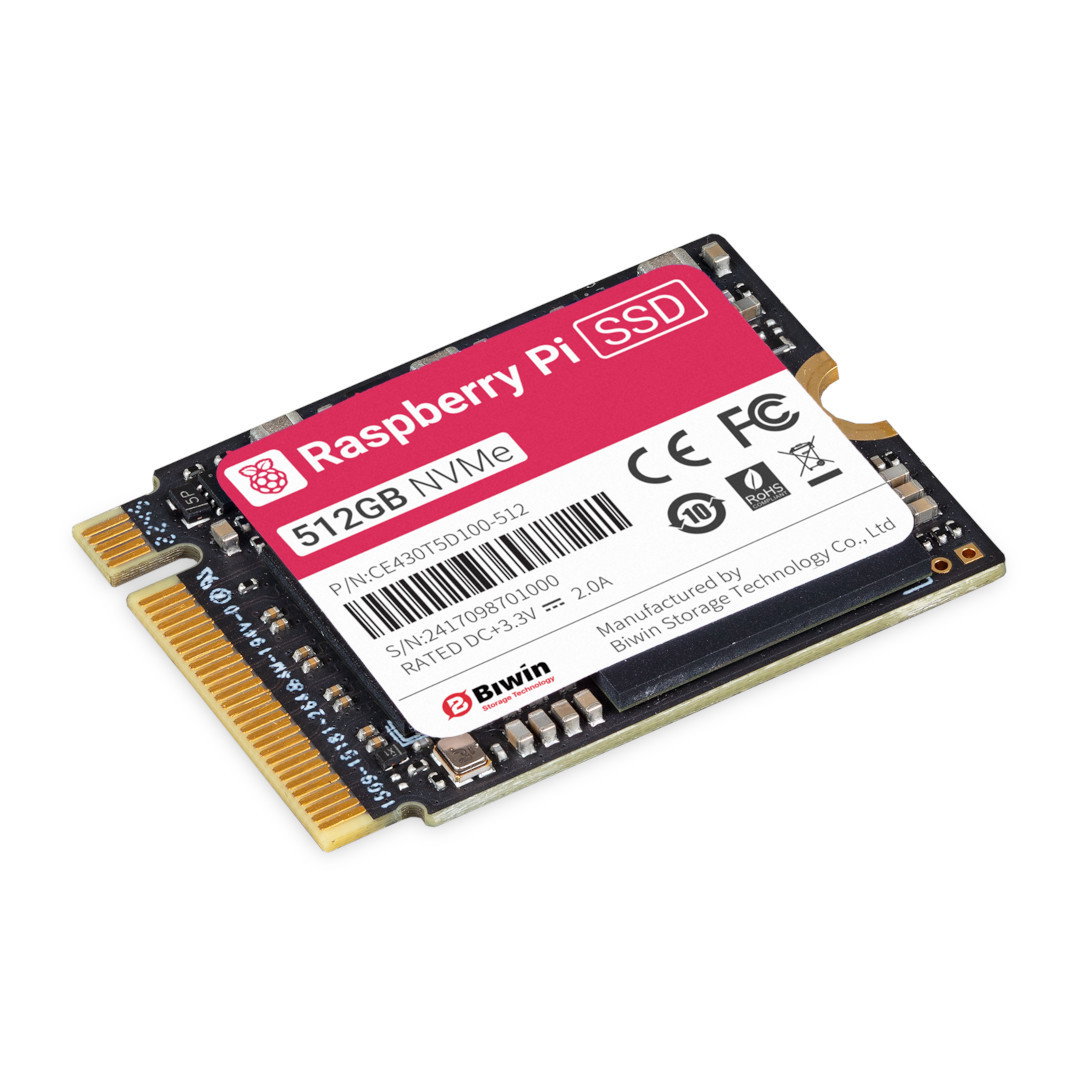

Raspberry Pi NVMe SSD drive - 512 GB.

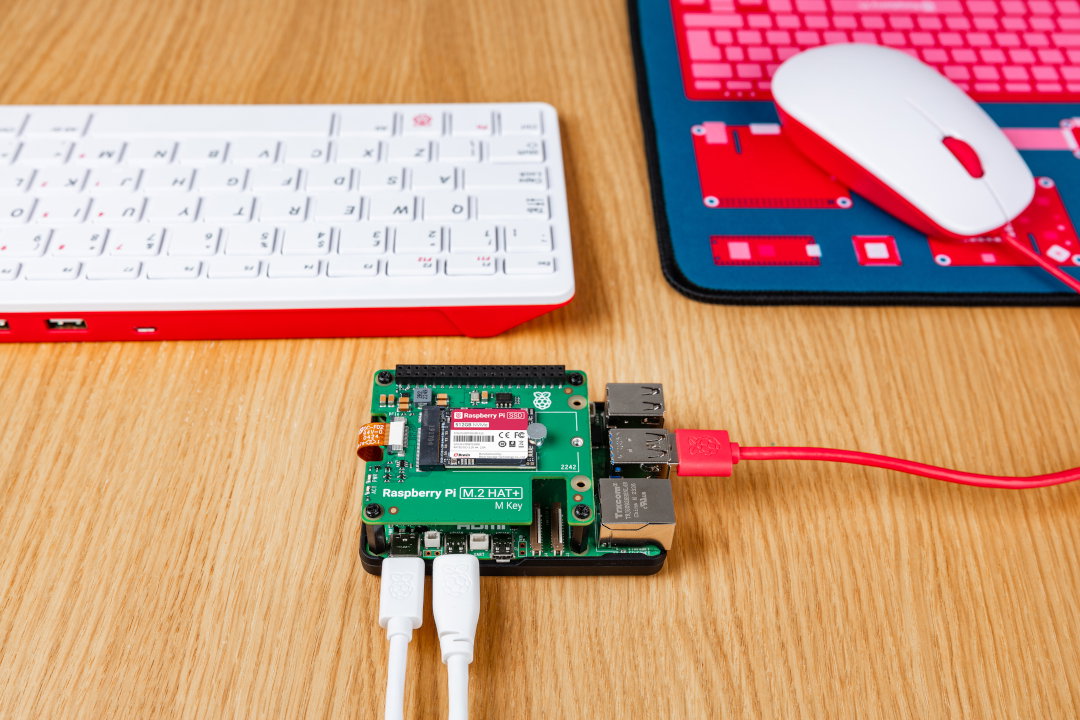

Raspberry Pi SSD NVMe 512 GB with Raspberry Pi M.2 HAT+ mounted on Raspberry Pi 5.Key Features of the Raspberry Pi NVMe SSD
- Exceptional SSD performance : Available in two capacities, 256 GB or 512 GB, the drive offers high data read and write speeds for optimal performance.
- Full HAT+ Compatibility : The Raspberry Pi M.2 HAT+ is fully compliant with the Raspberry Pi HAT+ specification, enabling seamless integration with the Raspberry Pi 5, ensuring a perfect fit for your system.
- Random Read Performance (4KB) :
- 256GB: 40,000 IOPS
- 512GB: 50,000 IOPS
- Random Write Performance (4KB) :
- 256GB: 70,000 IOPS
- 512GB: 90,000 IOPS
Raspberry Pi SSD Specifications
- Memory capacity: 512 GB
- Type: NVMe SSD
- Compatibility: Raspberry Pi M.2 HAT+
- Supported Device: Raspberry Pi 5
- Disk format: 2230
- Interface: PCIe Gen3x4
- Flash Memory Type: TLC
- Read speed: 3260 MB/s
- Write speed: 2660 MB/s
- Read IOPS (4KB): 40K (256GB) / 50K (512GB)
- Write IOPS (4KB): 70K (256GB) / 90K (512GB)
- Operating voltage: 3.3 V
- Current consumption: 2 A
- Maximum power consumption: 2.8 W
- Operating temperature: 0°C to 70°C
- Dimensions: 22 x 30 x 2.3 mm
Kit Contents
- Raspberry Pi NVMe SSD drive - 512 GB
Disk with Raspberry Pi M.2 HAT+ cover.
