Product description: Extended straight cutters 160 mm VDE Yato YT-21154
Long straightpliers160 mm long. Their metal construction is made of high quality CrV steel. Specially designedanti-slip handle, VDE certified, provides protection when working withvoltages up to 1000 V AC. The product has a rounded, tapered clamping profile with grooves on which there are grooves ensuring a firm grip on the repaired element. The pliers arepart of the VDE series, designed for electrical and electromechanical specialists.

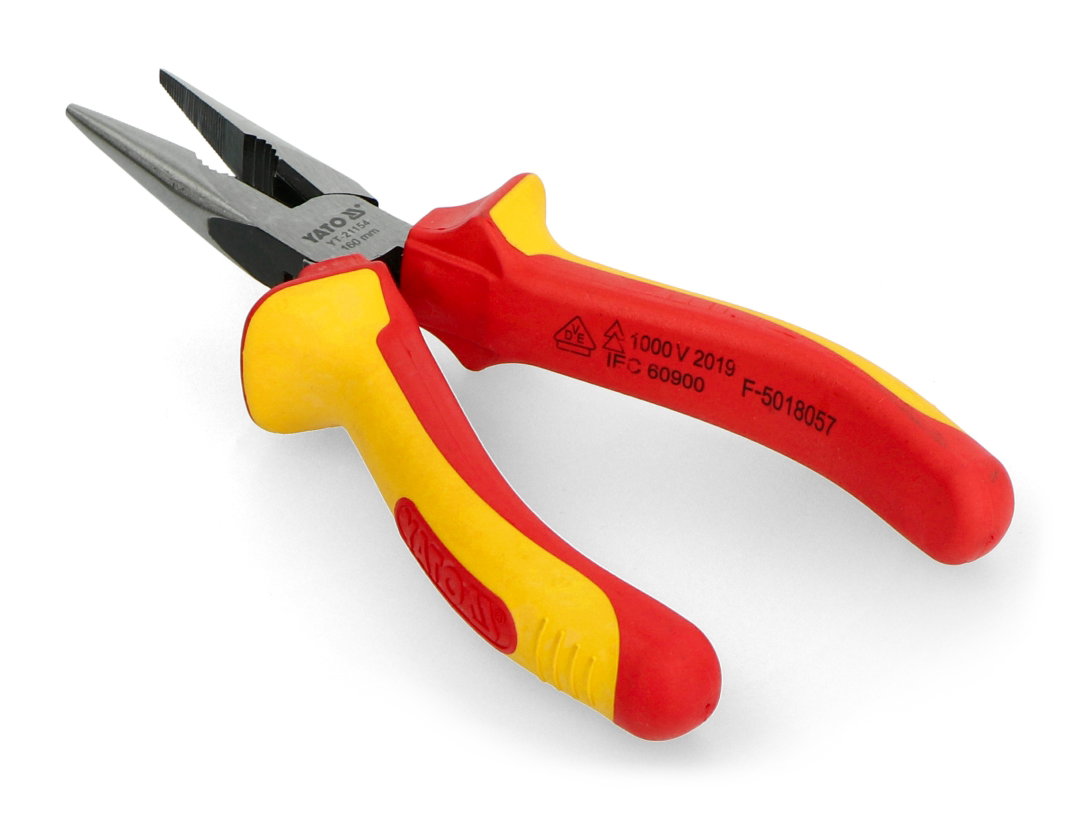

Extended straight pliers 160 mm VDE Yato YT-21154.
Characteristics of VDE insulated tools
-
Compression resistance- tested by heating the tool up to 70°C,applying a 5000 V voltage and applying a 20 N pressure point.
- Resistance tovoltage- tools are approved for 1000 V AC and 1500 V DC.
- VDE coating is firmly embedded on the tool -the VDE insulating coating remains on the handle even when the tool is pulled down with 500 N.
- Low-temperature strength- the insulation coating is resistant to cracking at -40°C in accordance with EN/IEC60900.
- Fire resistant properties- tools do not ignite even if they stay for 10 seconds in a 12 cm flame.
- VDE insulationalso prevents accidental scratching of sensitive surfaces during operation. It protects against damage to materials such as aluminium, copper or brass.

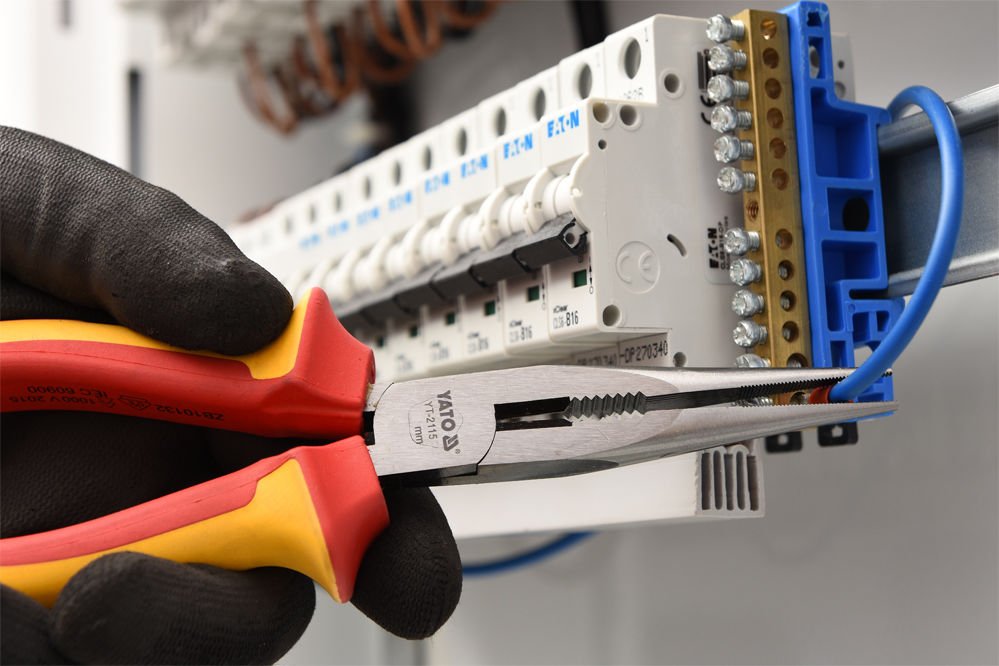

VDE 160 mm Yato-21154 straight pliers.
Specification of the 160 mm VDE pliers YT-21154
- Material of pliers: CrV steel
- Material of handle insulation: VDE coating
- The product is designed to operate at maximum voltage:
- 1000 V AC
- 1500 V DC
- Length: 160 mm
|
We also offer other toolsnecessaryfor the work of an electrician. |
