Tinycontrol AHT20 - temperature and humidity sensor - I2C
The AHT20 temperature and humidity sensor (same as the AM2301B) with an I2C interface is a precise solution for monitoring environmental conditions. Equipped with a cable terminated with an RJ12 connector , it is compatible with LK3.9, LK3.5+, LK4, LK4mini, and tcPDU controllers, as well as Arduino- and Raspberry Pi -based projects. A special filter protects the sensing element from moisture condensation, increasing operational reliability.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Tinycontrol AHT20 - temperature and humidity sensor - I2C
The AHT20 temperature and humidity sensor utilizes an I2C bus, ensuring stable and easy integration with automation systems and educational platforms. It measures temperature from -40°C to 85°C with an accuracy of 0.3°C and humidity from 0% RH to 100% RH with an accuracy of 2% . This model is fully identical to the AM2301B sensor , allowing it to be used as a direct replacement without requiring design modifications. A protective filter reduces the risk of water condensation on the surface of the measuring system , minimizing false humidity readings. Wide supply voltage range From 2.2 V to 5.5 V DC and high measurement accuracy make the sensor suitable for both hobbyist and professional applications. It works perfectly with Tinycontrol controllers . It can also be used in Arduino , Raspberry Pi , and other platforms equipped with an I2C interface.

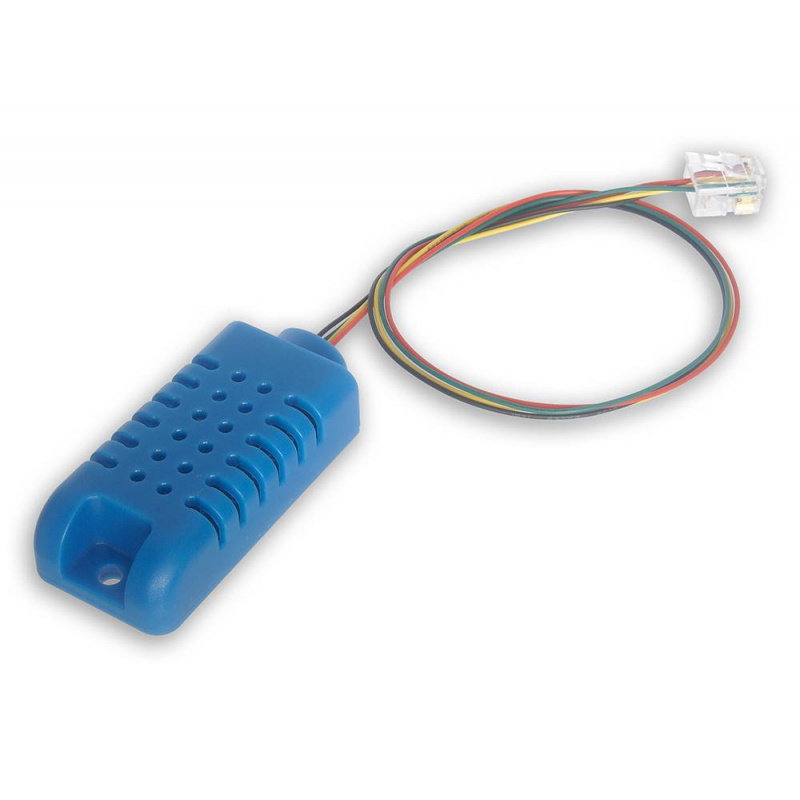

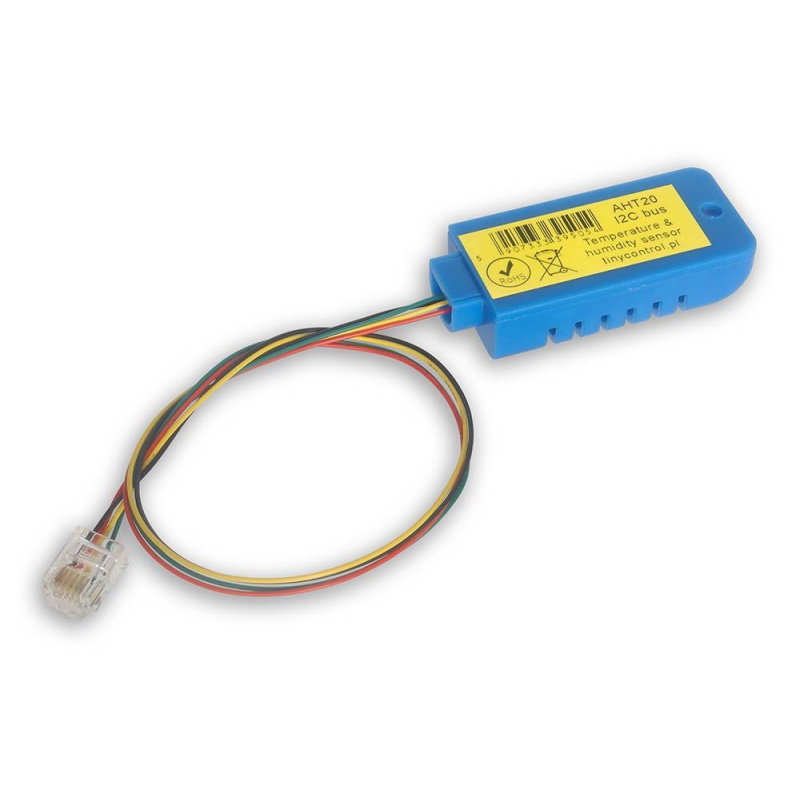

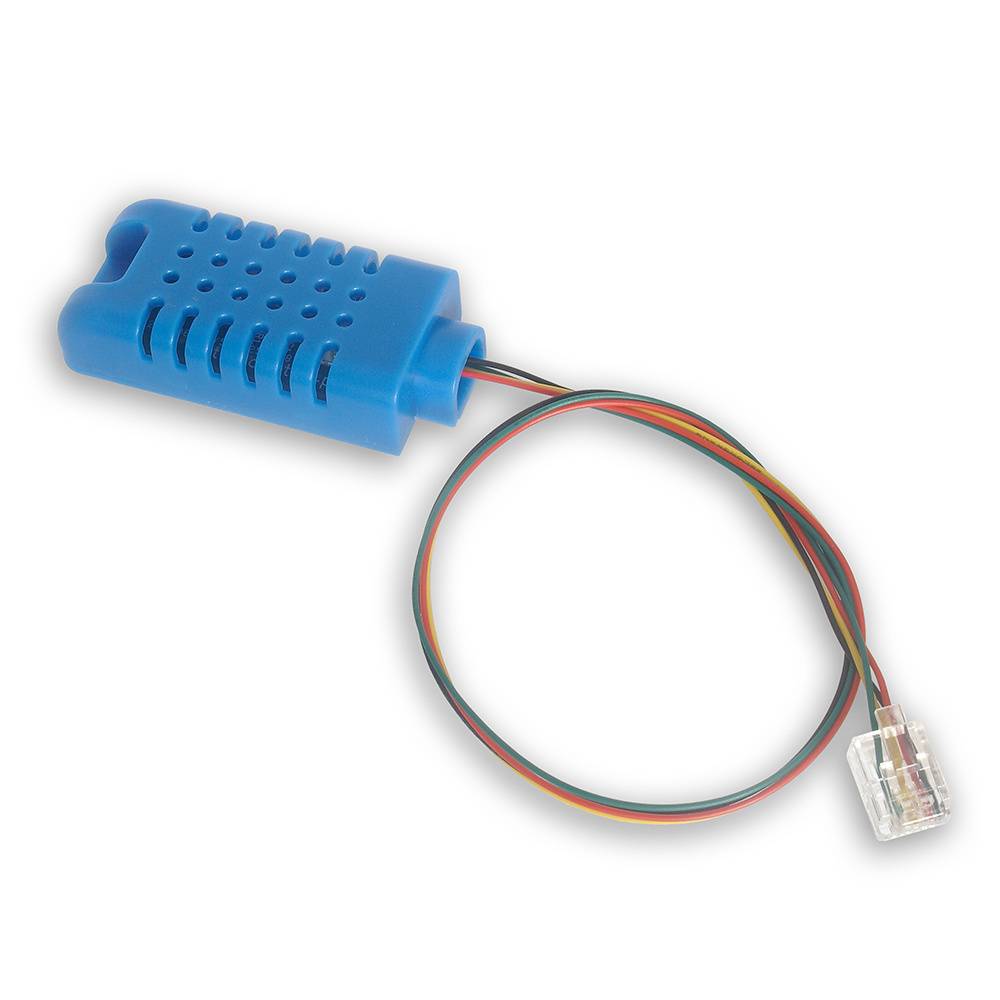

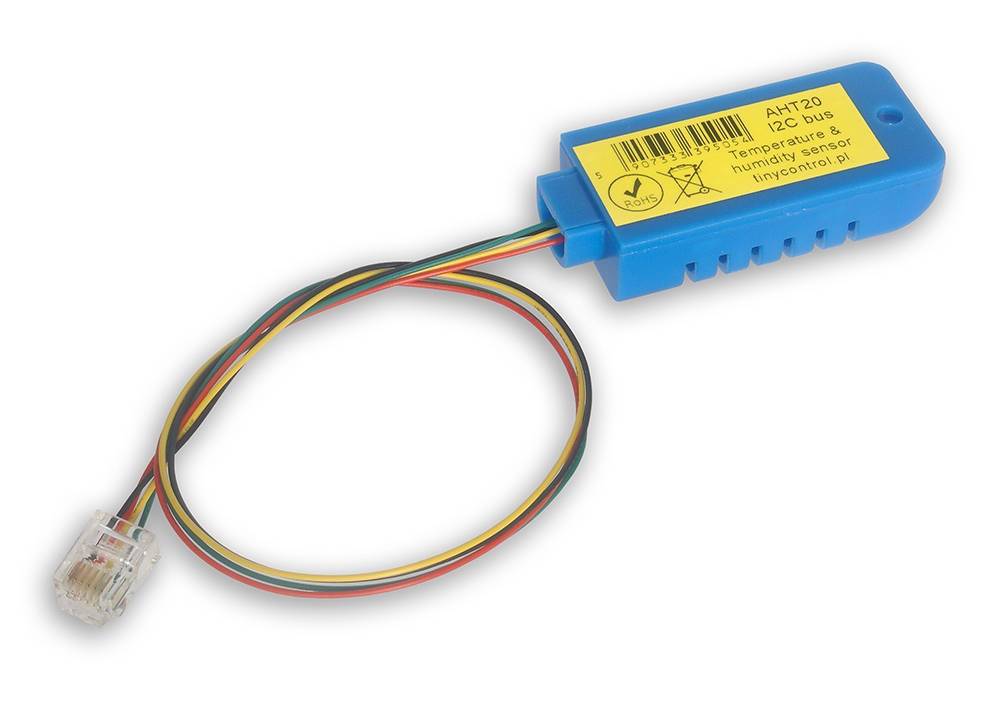

Tinycontrol AHT20 - temperature and humidity sensor - I2C.

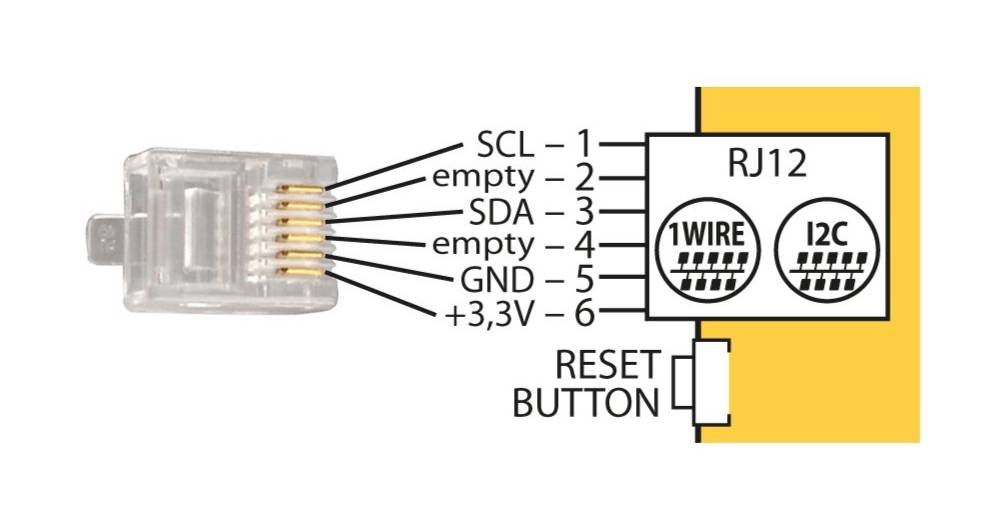

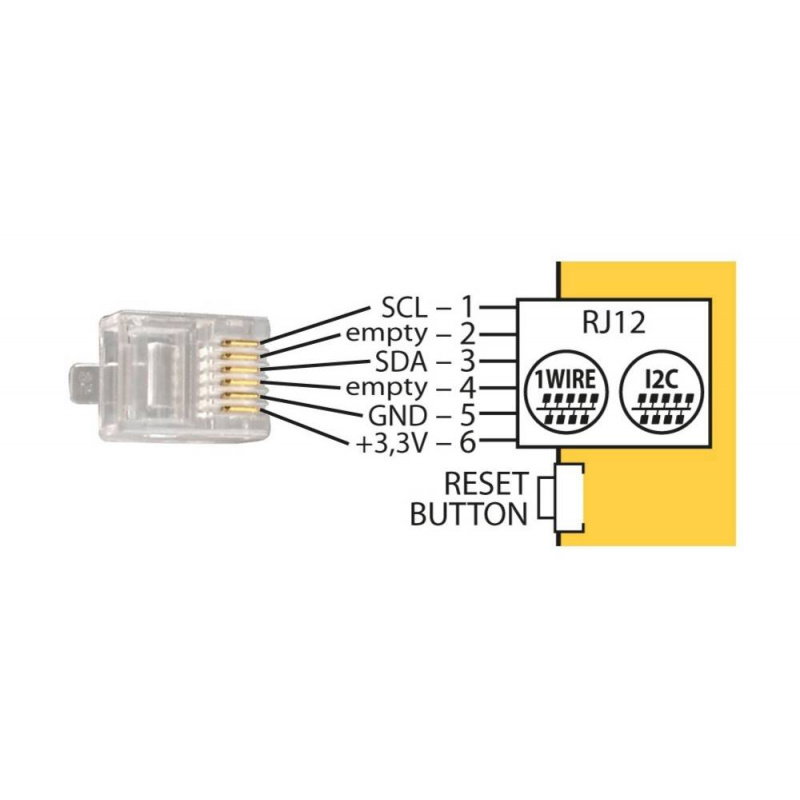

Pinout diagram.
Main features of the AHT20 sensor
- Precise AHT20 sensor : provides accurate measurement of ambient temperature and humidity
- I2C interface : enables simple communication with microcontrollers and single-board computers
- Identical to AM2301B : can be used as a direct replacement in existing designs
- Anti-condensation filter : reduces the risk of moisture in the measuring element and false readings
- RJ12 connector : facilitates quick connection to compatible tinycontrol devices
- Wide power supply range : operates from 2.2V to 5.5V DC
AHT20 Technical Specifications
- Sensor: AHT20
- Communication interface: I2C
- Power supply: 2.2 V to 5.5 V DC
- Humidity measurement range: 0% RH to 100% RH
- Temperature measurement range: -40°C to 85°C
- Humidity measurement accuracy: ±2% RH at 25°C
- Temperature measurement accuracy: ±0.3°C
- Connector: RJ12
- Cable length: approximately 27 cm
- Dimensions: 58 x 26 x 13 mm
Kit contents
- AHT20 temperature and humidity sensor with a cable terminated with an RJ12 connector
The temperature and humidity sensor has a cable terminated with an RJ12 connector.
| Name | Value |
|---|---|
| Interface | I2C |
| Sensor - type | temperature, humidity |
| Sensor - Temperature to | 85 °C |
| Sensor - Temperature from | -40 °C - 120 °C |
| Width | 6 cm |
| Height | 8 cm |
| Depth | 1.8 cm |
| Weight | 0.014 kg |
