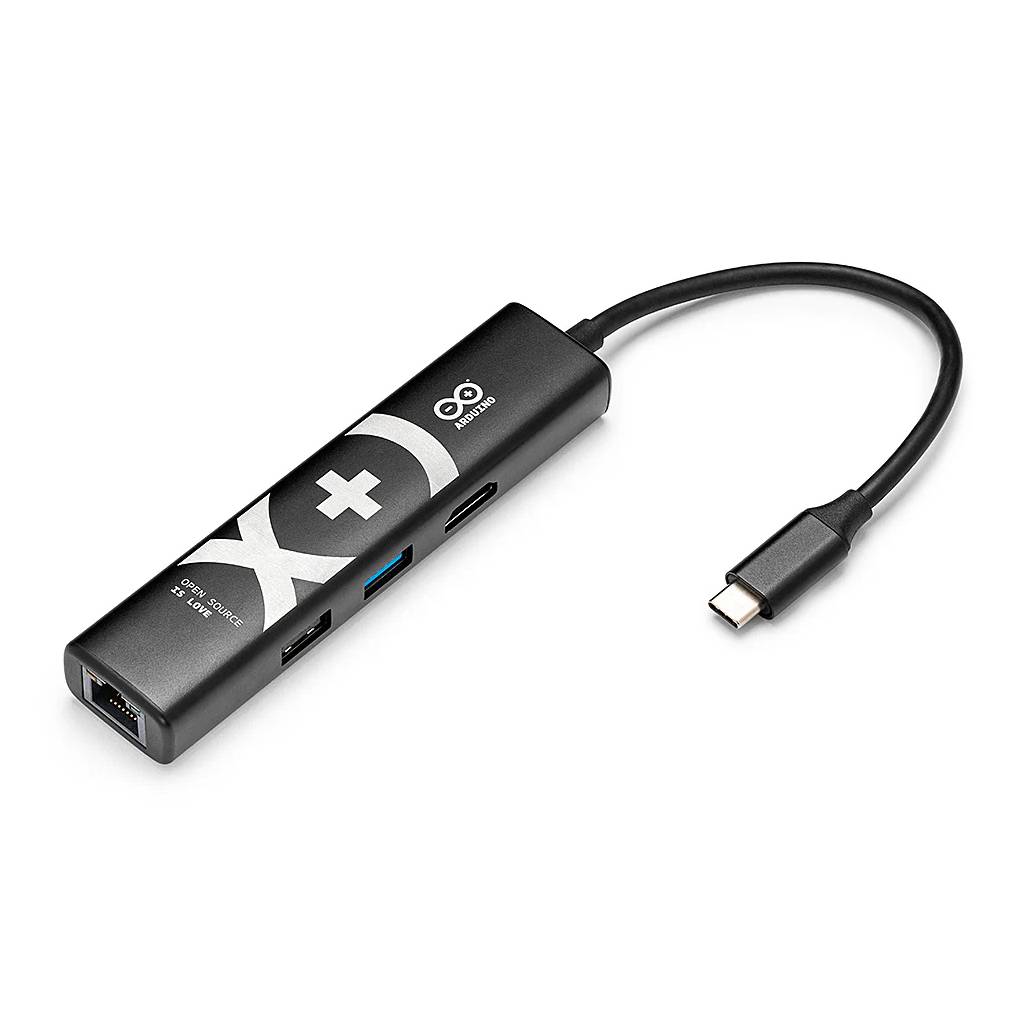

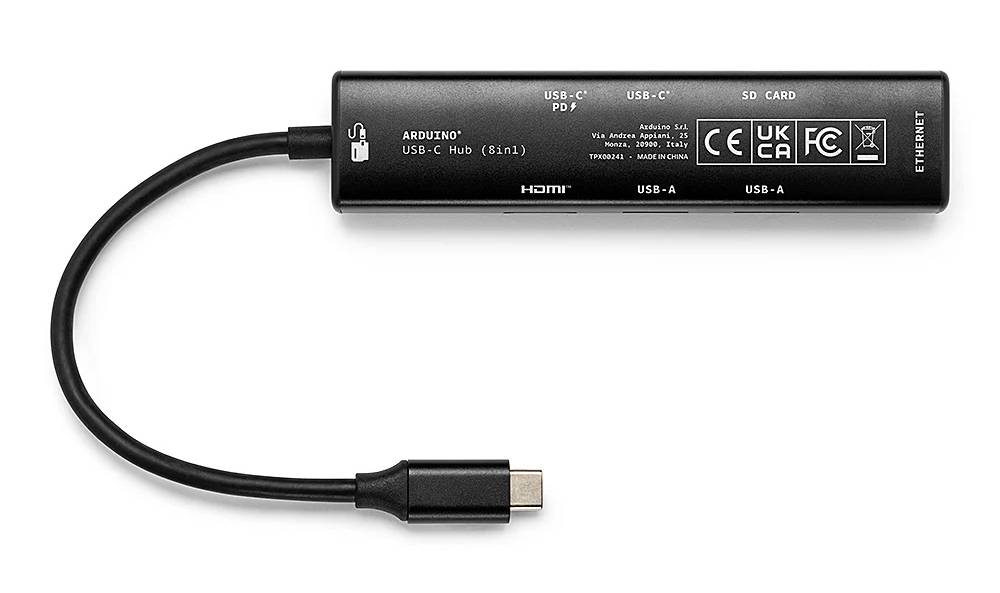

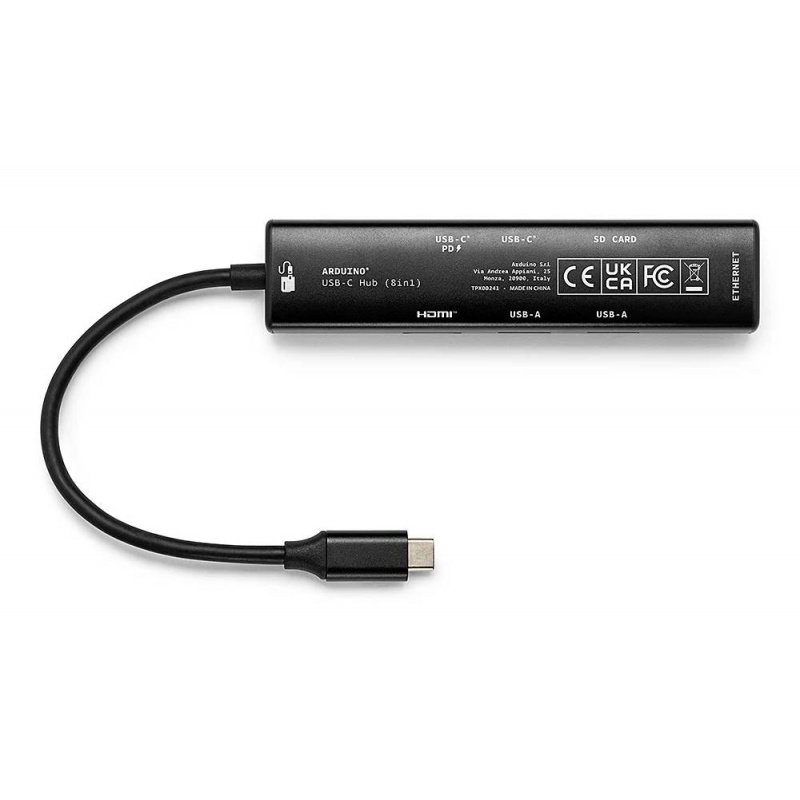

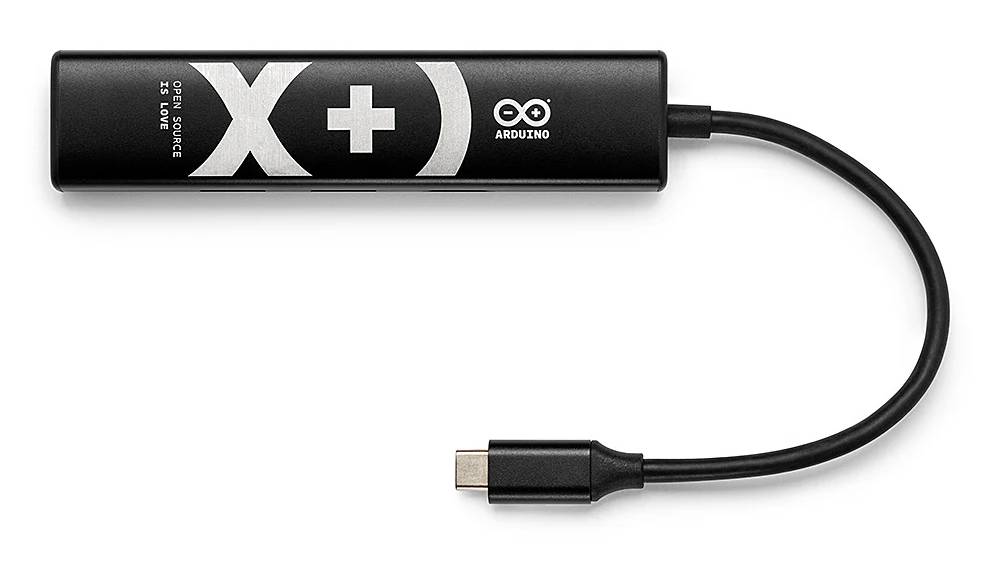

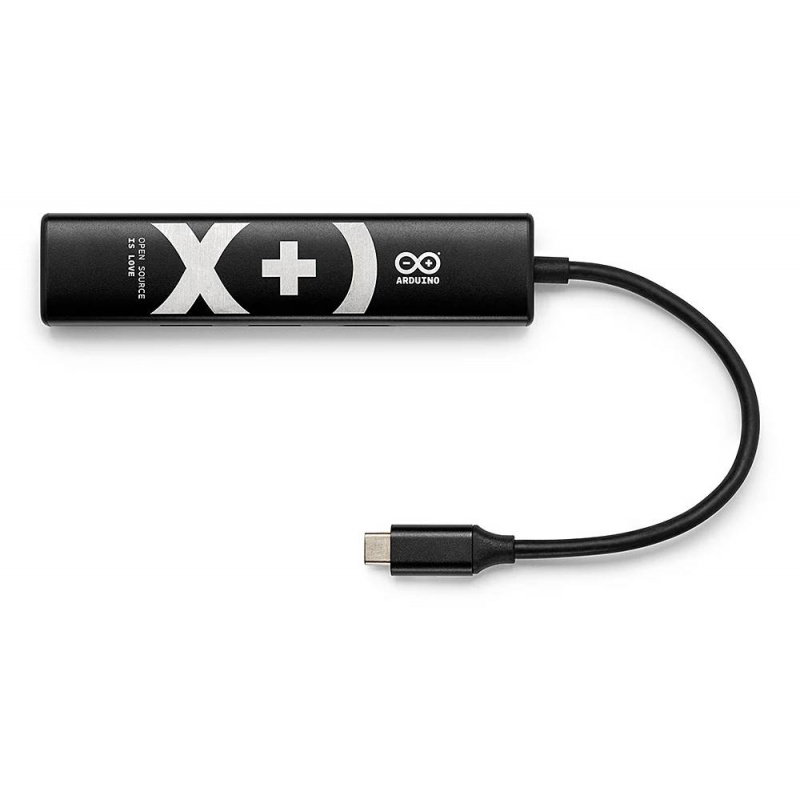

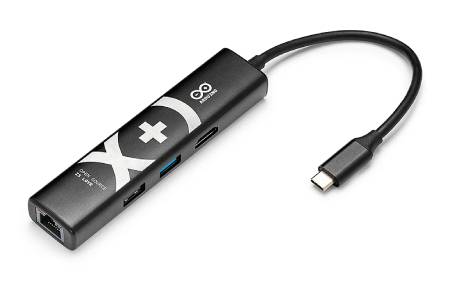

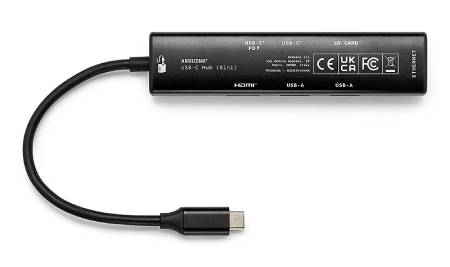

Product description: Arduino USB-C Hub 8in1 - TPX00241
The Arduino USB-C Hub 8-in-1 is designed to maximize the capabilities of Arduino boards and other devices with a USB Type-C port. Integrating HDMI, Ethernet, USB , and memory card readers allows you to create a fully functional work environment. The hub supports 4K resolution at 30 Hz , fast data transfer rates of up to 5 Gbps , and Power Delivery of up to 65 W. Its plug-and-play design and full compatibility with Windows, macOS, and Linux systems ensures immediate readiness without the need for driver installation. The slim, black housing, weighing just 60 g, makes the hub incredibly portable, and the integrated 175 mm cable allows for convenient placement on your workstation.
Arduino USB-C Hub 8in1 - TPX00241.
Designed with the Arduino ecosystem in mind, this UNO Q model allows you to turn your development board into a full-fledged single-board computer.
Main features of the hub
- 8 ports in one : Expand one USB Type-C port to eight interfaces for maximum functionality
- HDMI 4K : Supports resolutions up to 3840 x 2160 px at 30 Hz for external monitors
- Power Delivery 65 W : powering devices during operation without losing port functionality
- High-speed USB : USB 3.0 up to 5 Gbps and USB 2.0 up to 480 Mbps for various applications
- Ethernet RJ45 : stable wired connection up to 100 Mbps
- SD and microSD card readers : support for cards up to 2 TB
- Plug and play : compatible with Windows, macOS and Linux without drivers
- Compact design : lightweight body weighing 60g
Hub technical specifications
- Power supply: USB Type-C Power Delivery 5V to 20V (max. 65W)
- HDMI: up to 4K (3840 x 2160 px) at 30 Hz
- USB Type C (date): up to 480 Mbps
- USB Type-A 2.0: up to 480 Mbps
- USB Type-A 3.0: up to 5 Gbps
- Ethernet: RJ45 10/100 Mbps
- SD reader: SD, SDHC, SDXC up to 2 TB
- MicroSD reader: microSD, microSDHC, microSDXC up to 2 TB
- Color: black
- Operating temperature: 0°C to 50°C
- Cable length: 175 mm
- Dimensions: 119 x 27.8 x 16 mm
- Weight: 60 g
Contents of the set
- 1x Arduino USB-C Hub 8in1
The hub offers support for 4K video, fast data transfer and 65W Power Delivery, ensuring stable operation of peripherals, monitors and external memories in professional electronic projects.
