Product description: Raspberry Pi USB 3 Hub - 4-port USB hub
The Raspberry Pi USB 3 Hub is a compact USB hub that turns a single USB A port into four additional ports , allowing you to connect multiple devices to your Raspberry Pi . With optional external power supply via the USB C port, the hub can also support higher-drain devices, such as hard drives . Thanks to USB 3 technology, it provides fast data transfers, up to 5 Gb / s , and its backward compatibility allows it to work with devices supporting the USB 2.0 standard.

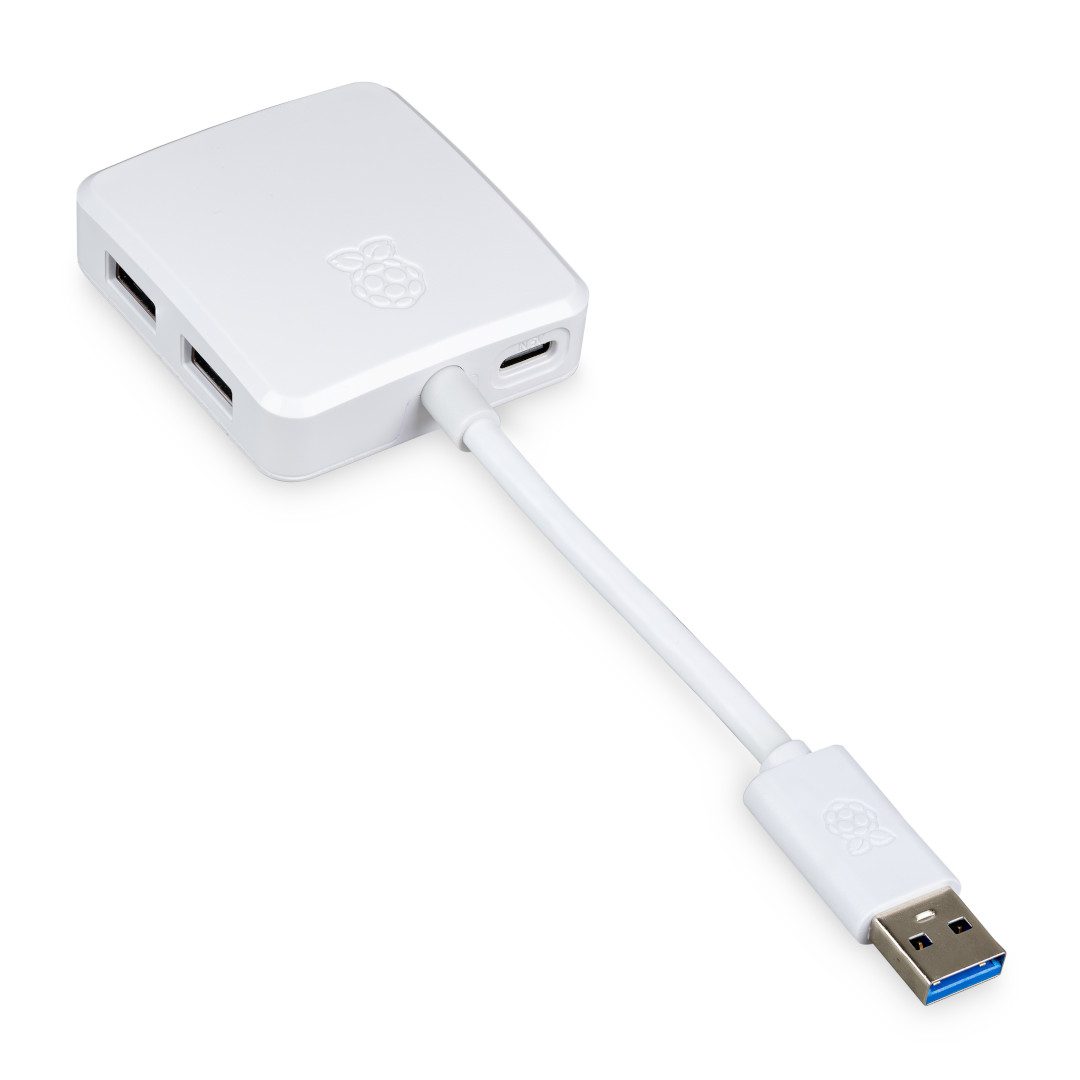

Raspberry Pi USB 3 Hub - 4-port USB hub.
Active USB Hub from Raspberry Pi.
Key Features of the Raspberry Pi USB 3 Hub
- Expanded Ports : Turns a single USB-A port into four, allowing you to connect additional devices.
- Fast data transfer : Thanks to USB 3.0 technology, it provides data transfers of up to 5 Gbps, which is ideal for transferring large files and using demanding applications.
- Optional external power supply : USB-C port for connecting an external 5V@3A power supply, allowing you to connect higher power-draining devices such as hard drives.
- Backward compatibility : Works with both USB 3.0 and USB 2.0 ports, making it compatible with a wide range of Raspberry Pi devices and models.
- Compact design : The compact design means the hub doesn't take up much space, and its elegant appearance perfectly complements the aesthetics of your Raspberry Pi devices.
The all-in-one USB hub for your devices
The Raspberry Pi USB 3 Hub is a great solution for those who need additional USB ports for their Raspberry Pi. The hub is equipped with four USB 3.0 Type A ports , which allow you to connect additional devices such as external drives, keyboards , mice, or cameras. All this without the need to change devices or limit the use of the full functionality of the system. Thanks to the integrated USB Type A cable (8 cm), the hub is easy to connect and takes up minimal space. An additional advantage is the ability to connect an external power supply via the USB Type C port, which allows you to support devices with higher energy requirements. In the case of low-power devices, an external power supply is not required.
Directions for use
To ensure long-term and safe operation of the Raspberry Pi USB 3 Hub, it is worth remembering a few important rules. The hub is intended for indoor use only, so avoid exposing it to moisture, dust, and extreme temperatures. The hub should be protected from excessive load and dropping, which could damage the device. Regular cleaning of the device with a dry, soft cloth will maintain its aesthetic appearance and functionality.

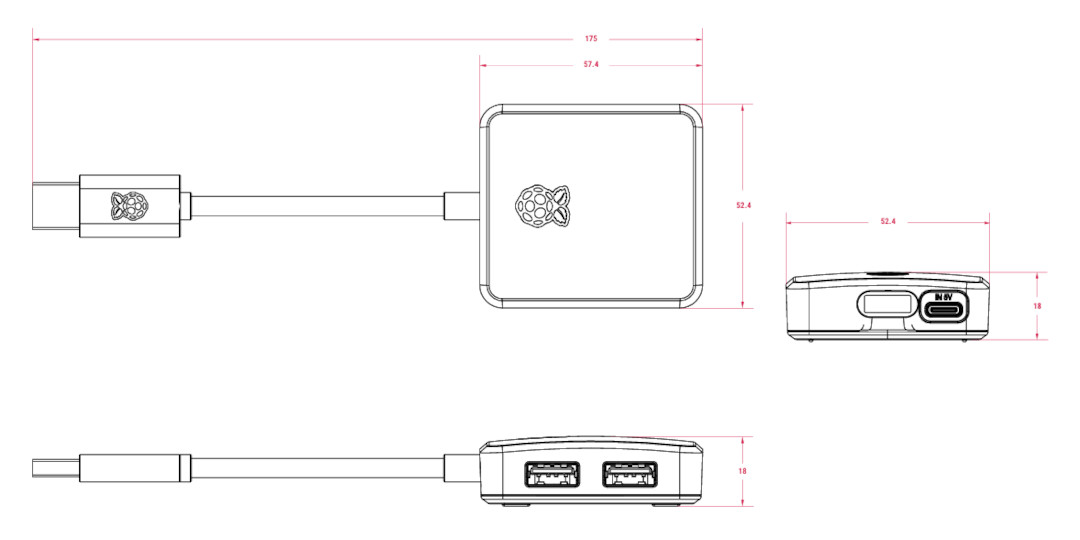

Dimensions of the 4-port USB Hub are given in mm.| Raspberry Pi USB 3 Hub Specifications | |
|---|---|
| Interface | USB 3.0, backward compatible with USB 2.0 |
| Ports | 1 x USB Type-A port (for connecting to host), 4 x USB Type-A ports (for connecting devices) |
| Data transfer speed | Up to 5 Gbps |
| External power supply | USB Type-C port (5V, 3A) |
| Cable length | 8 cm |
| Dimensions | 57.4mm x 52.4mm x 18mm |
