Description of product: 3x USB hub with Ethernet PoE socket with housing for Raspberry Pi Zero - Waveshare 20895
Hub with three USB type A ports and a single Ethernet PoE socket compatible with the 802.3af standard. Dedicated for minicomputers from the Raspberry Pi Zero series: Pi Zero / Zero W / Zero WH / Zero 2 W. Pogo pins are soldered on the board. The set includes a housing in characteristic colors, with two types of cover: full and allowing access to the GPIO strip. The package also includes mounting elements (spacers, screws) and four self-adhesive non-slip feet.
The offer of our store also includes RPI Zero W , RPi Zero WH and RPI Zero 2 W. You will also find other numerous accessories for these mini-computers.

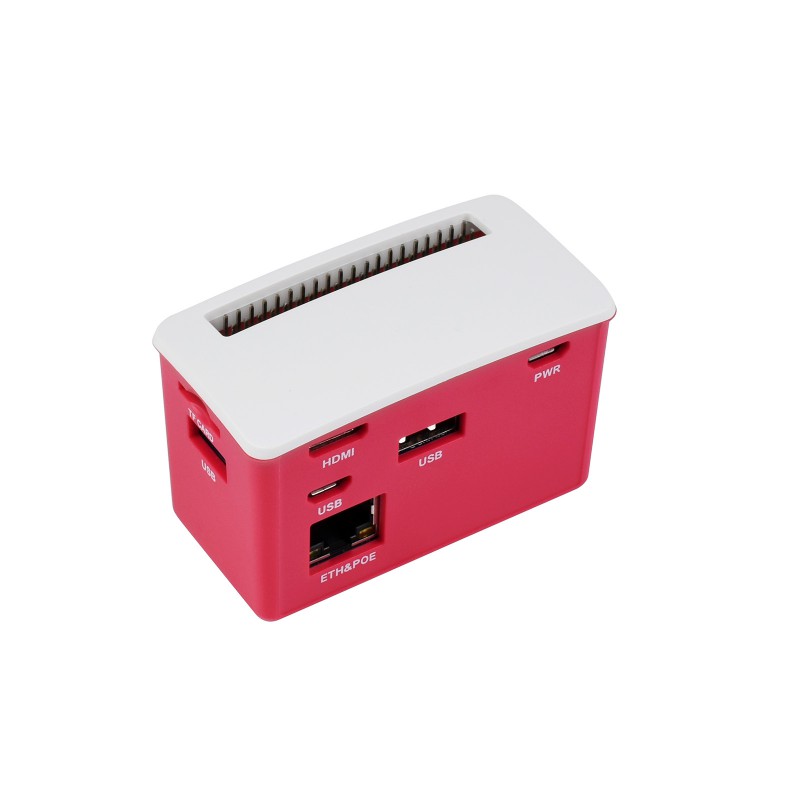

3x USB hub with Ethernet PoE socket with housing for Raspberry Pi Zero.
Connectors located on the hub module .

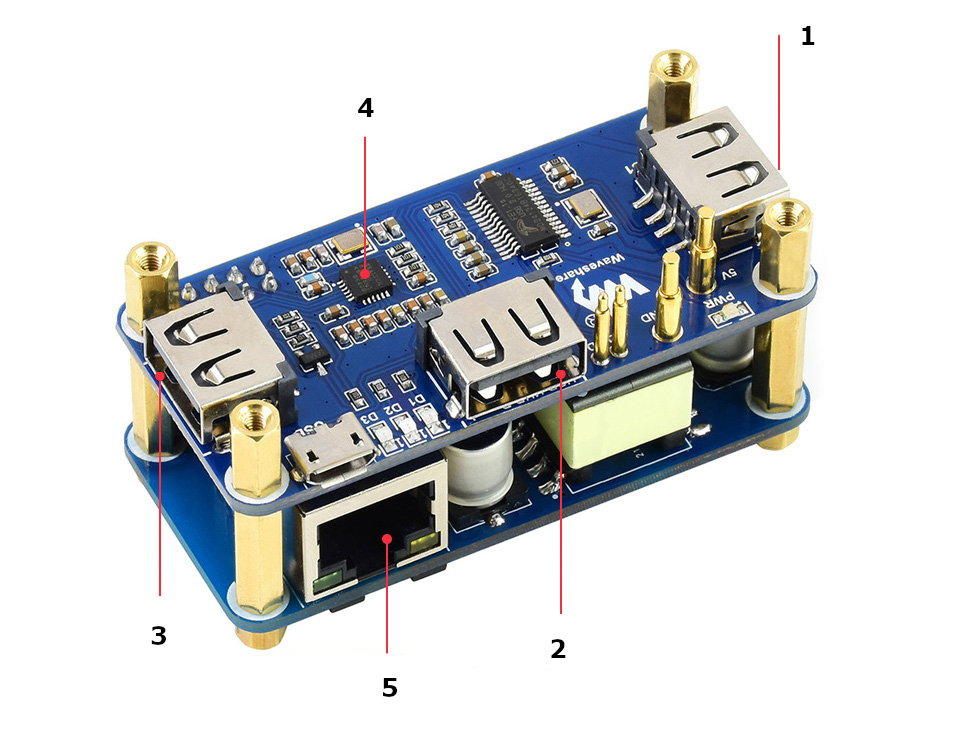

Connectors on the Waveshare 20895 board
- Connector 1 USB Type-A 2.0 / 1.1
- USB Type-A 2.0 / 1.1 connector 2
- Connector 3 USB Type-A 2.0 / 1.1
- PoE Ethernet port compliant with the 802.3af 10/100 Mb / s standard
Product features
- Embedded Ethernet RTL8152B with 10/100 Mbps RJ45 port with auto-negotiation of connection speed
- When used with the appropriate power devices compatible with 802.3af, it allows you to provide both network connection and power for the Raspberry Pi Zero with just one Ethernet cable
- Soldered into the board Pogo pins, allowing direct connection of minicomputers from the Raspberry Pi series from the Zero series
- Fully isolated SMPS (power supply in switch mode)
- Casing with slightly rounded shapes, made of high quality materials
Specification of the Waveshare 20895 manifold
- Developer: Waveshare
- Product type: hub - USB hub with RJ45 socket (Ethernet PoE)
- The product is compatible with Raspberry Pi Zero: Pi Zero / Zero W / Zero WH / Pi Zero 2 W.
- Conclusions:
- 3 x USB Type-A 2.0 / 1.1
- 1 x Ethernet PoE 802.3af 10/100 Mb / s
- PoE power supply (input): 37 V to 57 V DC
- PoE power supply (output): 5V / 2.5A
- Network standard: IEEE 802.3af-compliant PoE
- Housing material: ABS
- Housing dimensions: 72.8 x 37.5 x 45.8 mm
Kit contents
- 3x USB hub with Ethernet PoE socket with housing for Raspberry Pi Zero - Waveshare 20895: 1 pc.
- Housing: 1 pc.
- A set of mounting elements (screws, spacers): 1 pc.
- Non-slip feet: 4 pcs.

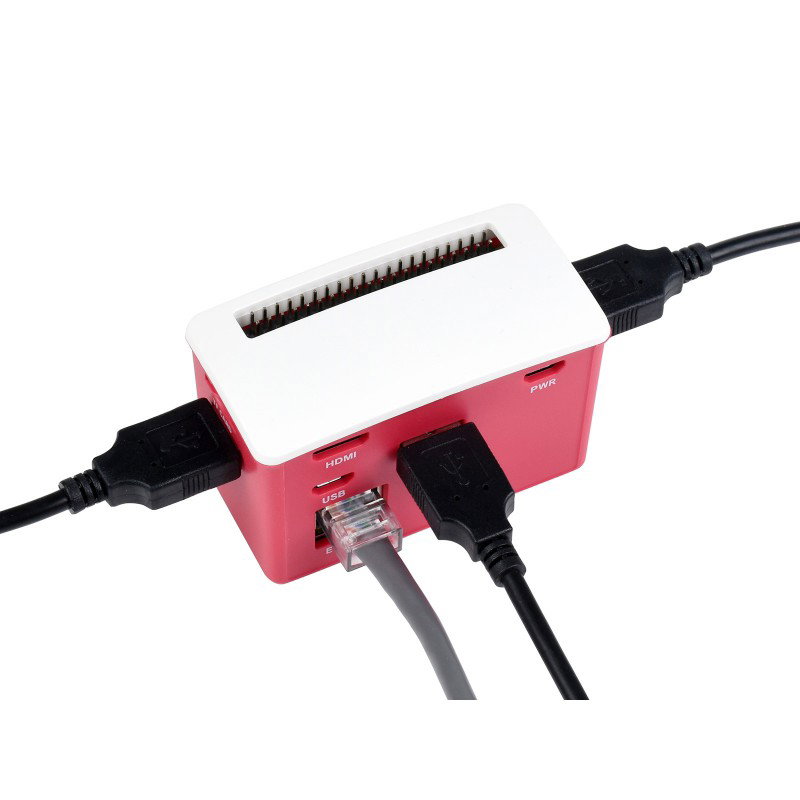

Connection example. Raspberry Pi Zero is not included in the kit .
