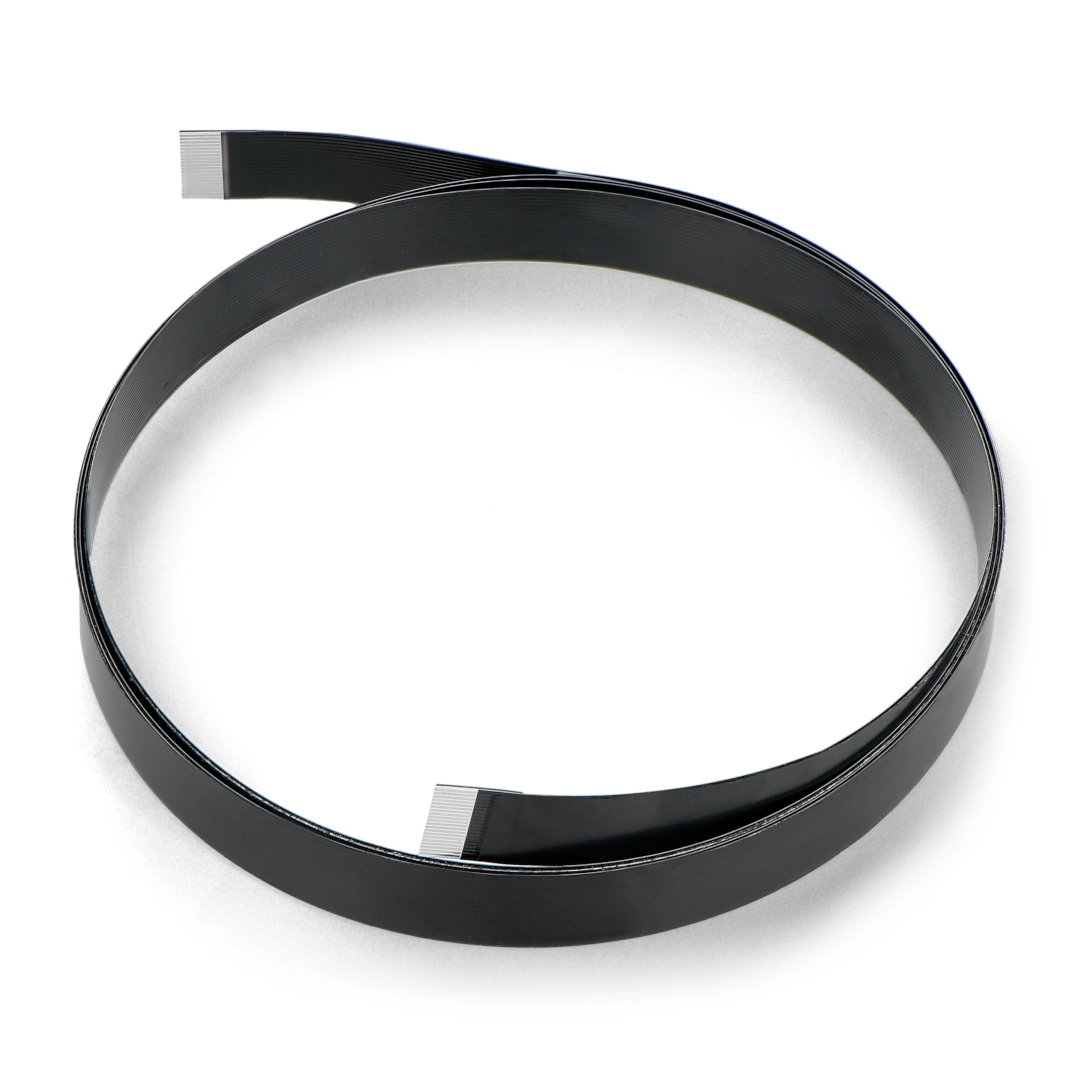

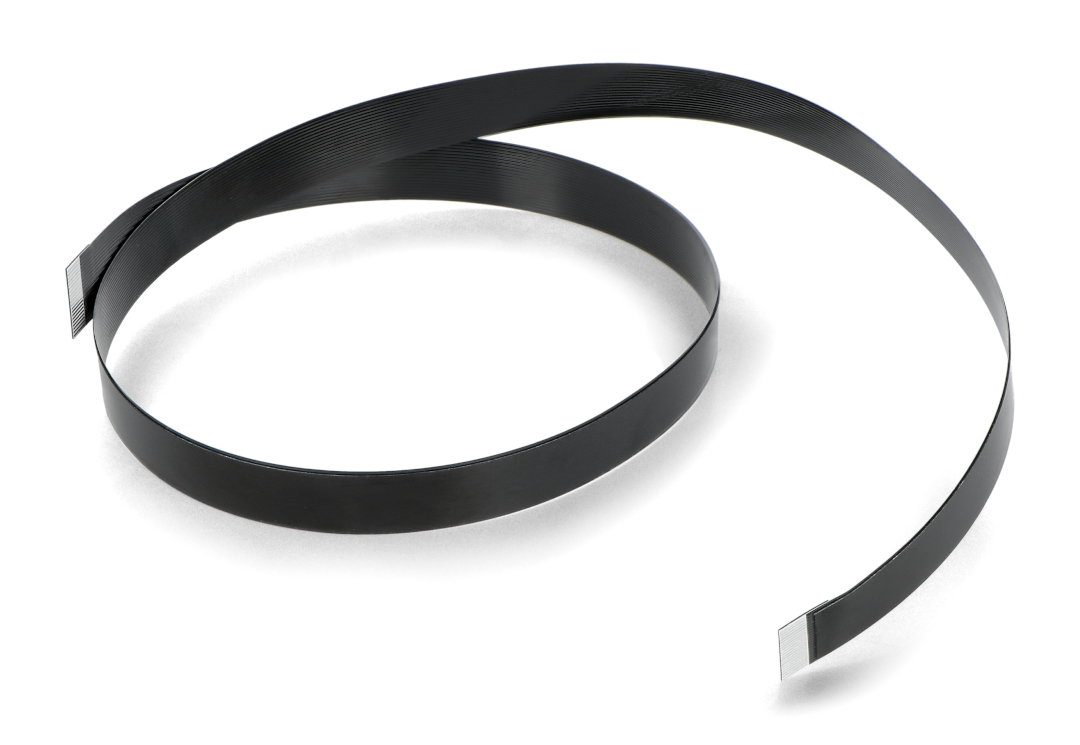

Product description: DIY HDMI cable - FFC - 50 cm - Waveshare 14722
Flexible DIY HDMI FFC cable from Waveshare for transmitting audio and video data. Provides stable data transmission, EMI shielded. The cable connectors consist of 20 pins with a raster of 0.5 mm , they are gold- plated and tin -plated, anti-oxidation, thanks to which they can be used during multiple prototyping. The total length of the cable is 500 mm . The set does not include adapters with an HDMI connector, they must be purchased separately.
DIY HDMI cable - FFC - 50 cm - Waveshare 14722.
In our offer you will also find DIY cables of different lengths:
and the appropriate connectors necessary for prototyping devices with an HDMI interface:
The subject of the sale is one DIY HDMI - FFC cable, the connector must be purchased separately.
Cable technical specification
- Type: audio/video cable
- Cord standard: FFC
- Plugs: gold/tin plated, anti-oxidation
- Number of pins: 20
- Pitch: 0.5mm
- Cable dimensions: 500 x 10.7 x 0.5 mm
Kit contents
- DIY HDMI cable - FFC - 50 cm - Waveshare 14722
