Product description: DIY miniHDMI adapter - angled - Waveshare 22623

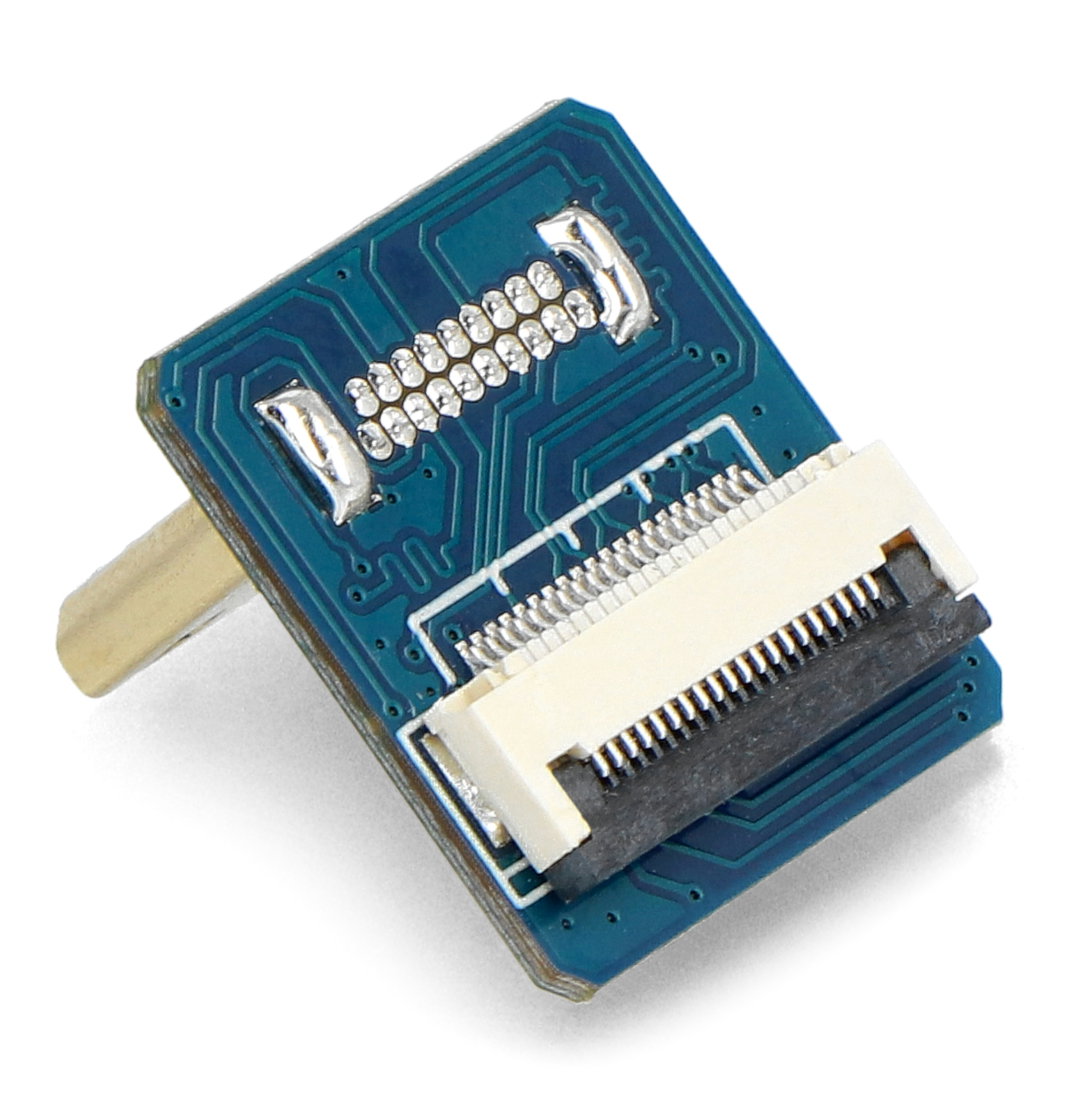

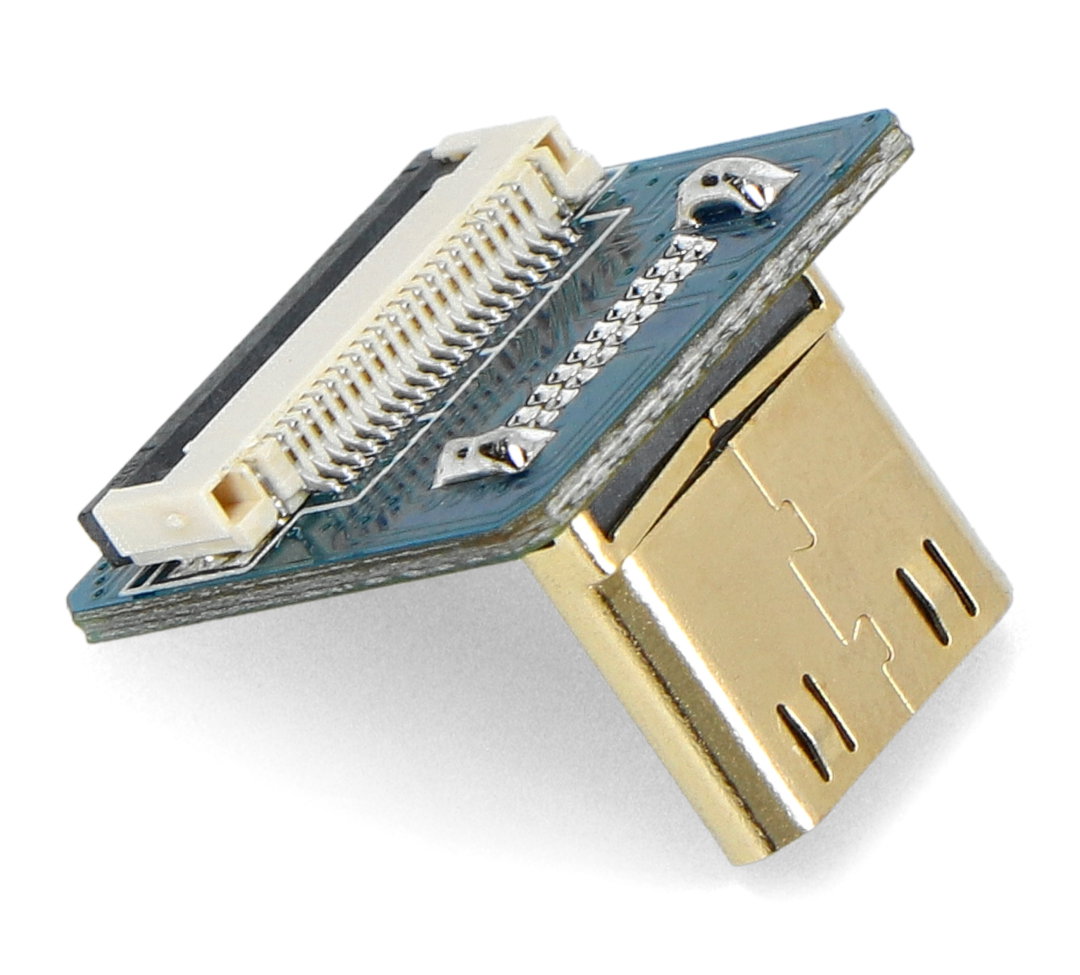

Adapter manufactured by Waveshare , designed to build cables that allow you to transfer audio and video data. The adapter has a socket for the FFC cable and a male plug in the miniHDMI version for a female connector, arranged perpendicularly (angular) to the board. The overall dimensions of the adapter are 17.5 x 16.0 x 12 mm. Two DIY adapters and one FFC cable are required to build the audio/video cable. The set does not contain cables, they must be purchased separately.
More information on the configuration of connectors can be found on the manufacturer 's website.
DIY miniHDMI adapter - angled - Waveshare 22623.
In our offer you will also find other connectors:
and the appropriate cables necessary for prototyping devices with an HDMI interface:
The subject of the sale is one miniHDMI adapter, the cable must be purchased separately.
Technical Specifications
- Type: audio/video adapter
- Connector standard: miniHDMI
- Type: male plug to female connector
- Format: perpendicular (angular)
- Dimensions: 17.5 x 16.0 x 12mm
Kit contents
- DIY miniHDMI adapter - angled - Waveshare 22623
