Product description: 3D scanner - Creality Pika

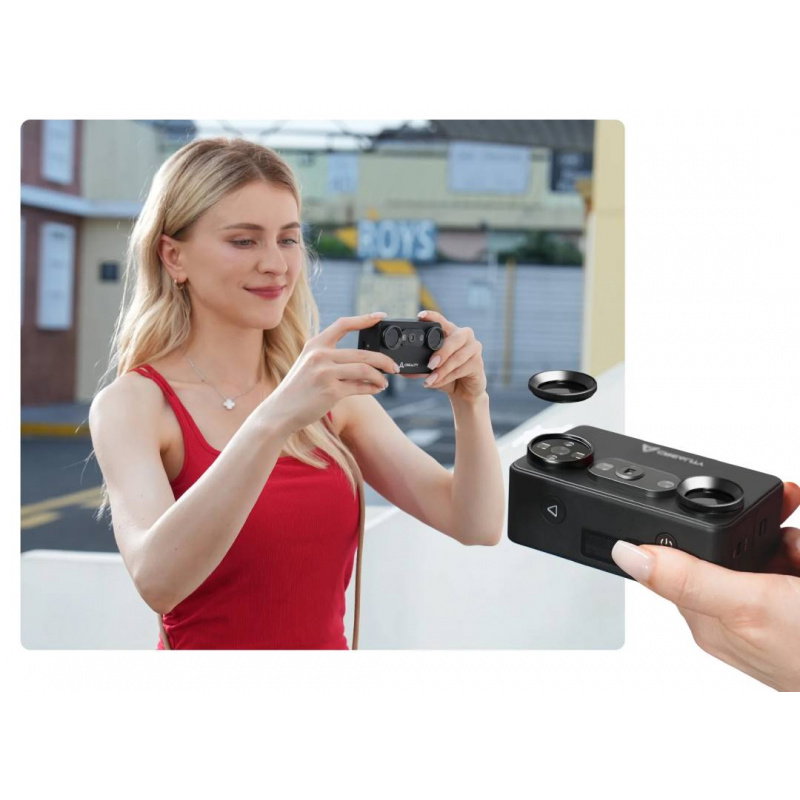

The Creality Pika is a portable 3D scanner utilizing a blue laser and NIR structured light , designed for convenient digitization of both small details and much larger objects. The 7-parallel laser mode offers accuracy down to 0.03 mm , while NIR technology provides a wide scanning area and enables the capture of 24-bit color information. The scanner supports objects from 10 x 10 x 10 mm to 2000 x 2000 x 2000 mm , and when connected to a computer, it reaches speeds of up to 110 FPS. The Pika features a 3-inch touchscreen , WiFi 6 connectivity, and two replaceable 3350 mAh batteries , all while weighing only 260 g. The device works with CrealityScan software on Windows, macOS, Android, and iOS platforms, and available AI features aid in further processing and optimization of scanned models.

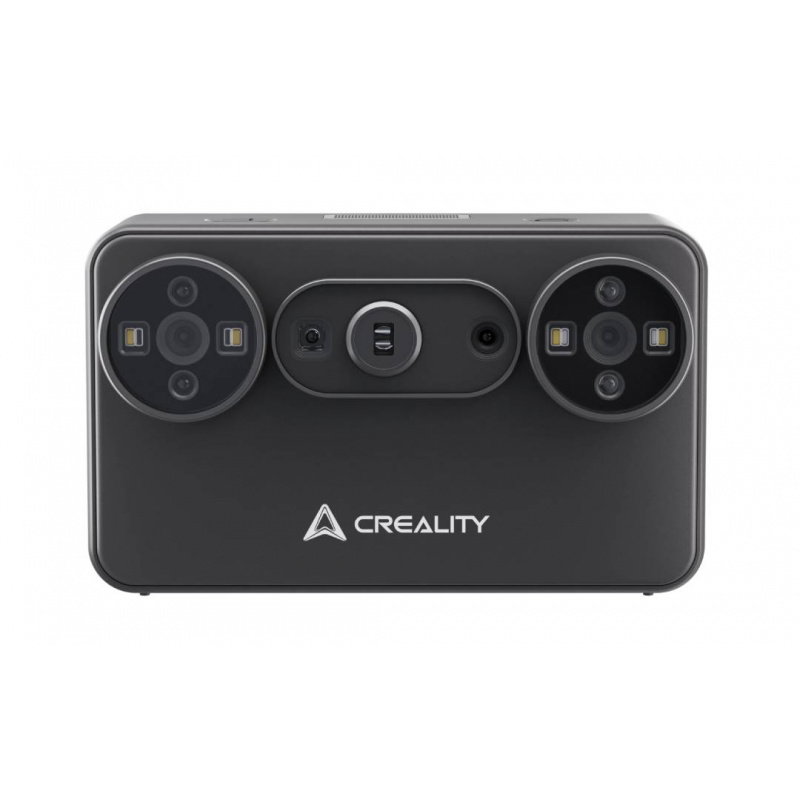

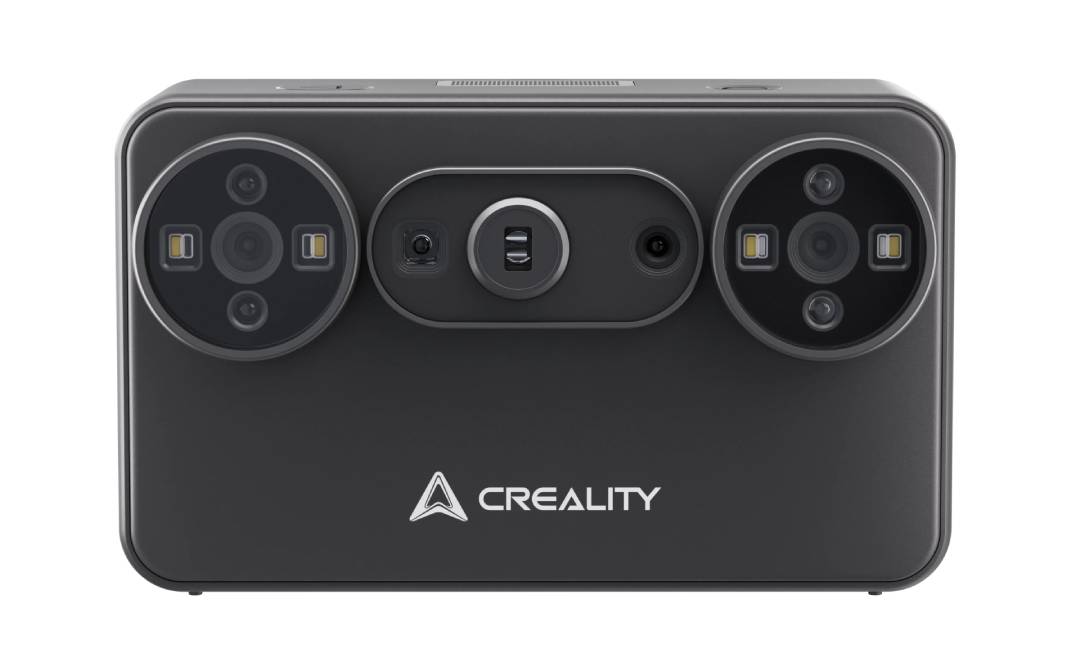

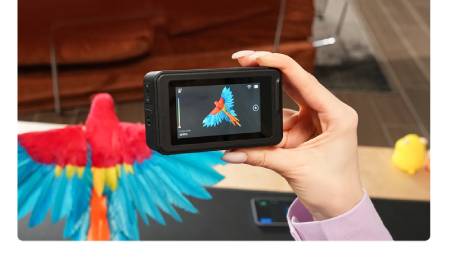

3D Scanner - Creality Pika.
Two optical systems allow you to adapt your workflow to technical parts, everyday objects and larger models.
Two 3D scanning technologies - blue laser and NIR structured light
The Creality Pika combines seven parallel blue laser lines with NIR structured light , allowing the measurement method to be tailored to the size, shape, and characteristics of the scanned object. Laser mode is designed primarily for the precise capture of fine details, complex contours, models, figurines, and small technical parts. NIR structured light offers a significantly larger area per capture and is suitable for scanning larger objects and human figures. In NIR mode, the device also captures 24-bit color , so the scanned model can contain both geometry and surface appearance information. The combination of both technologies allows the Pika to be used in a variety of projects without the need for multiple separate scanners.
Scanning accuracy down to 0.03 mm and a wide range of object sizes
In 7-parallel blue laser line mode, the Creality Pika achieves an accuracy of up to 0.03 mm and a 3D resolution adjustable from 0.1 mm to 2 mm . These parameters allow for the reproduction of small elements, surface details, and parts, which can then serve as a basis for further digital processing or preparing the model for 3D printing. The minimum object size for laser mode is 10 x 10 x 10 mm , while the entire system allows for scanning objects up to 2000 x 2000 x 2000 mm . NIR structured light operates with an accuracy of 0.1 mm and can operate from a distance of up to 1000 mm from the object. This range makes the Pika suitable for digitizing both small models and parts and larger objects, sculptures, and figures.

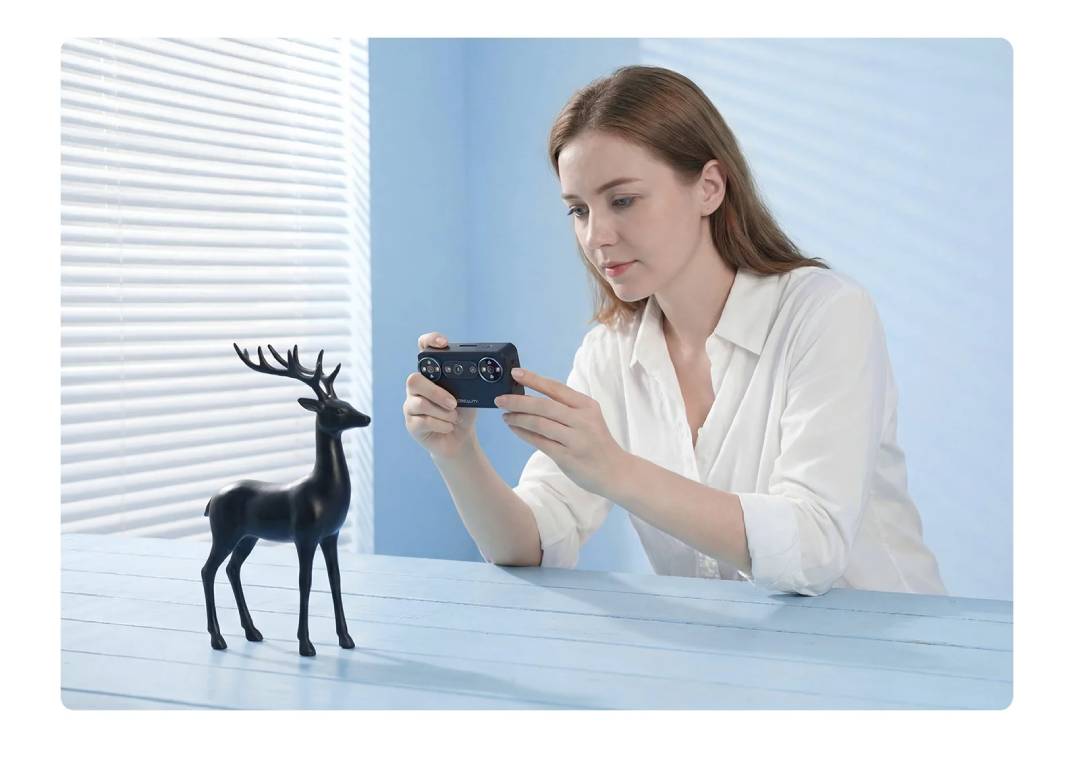

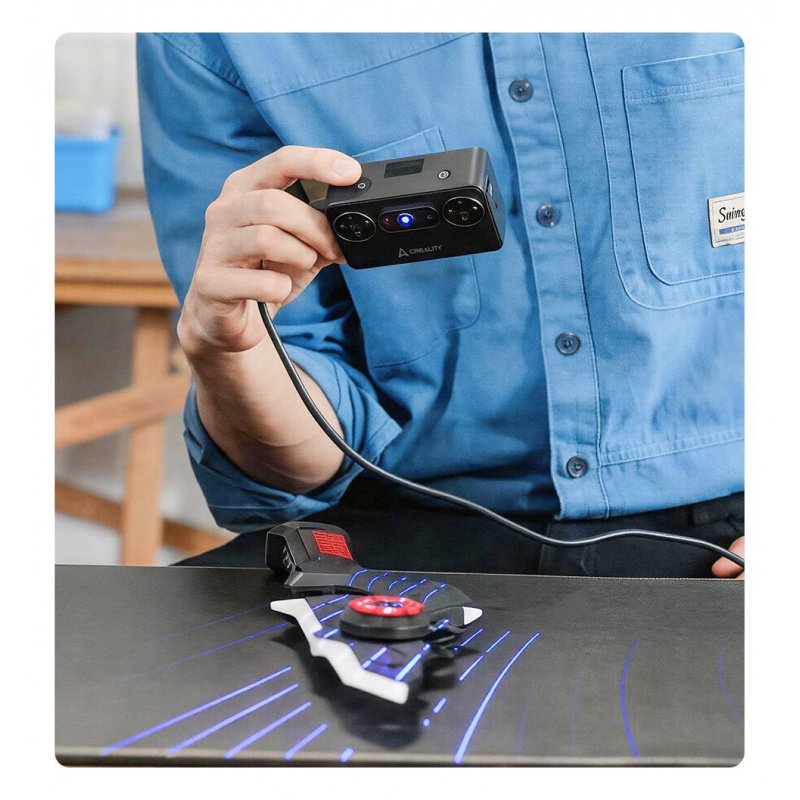

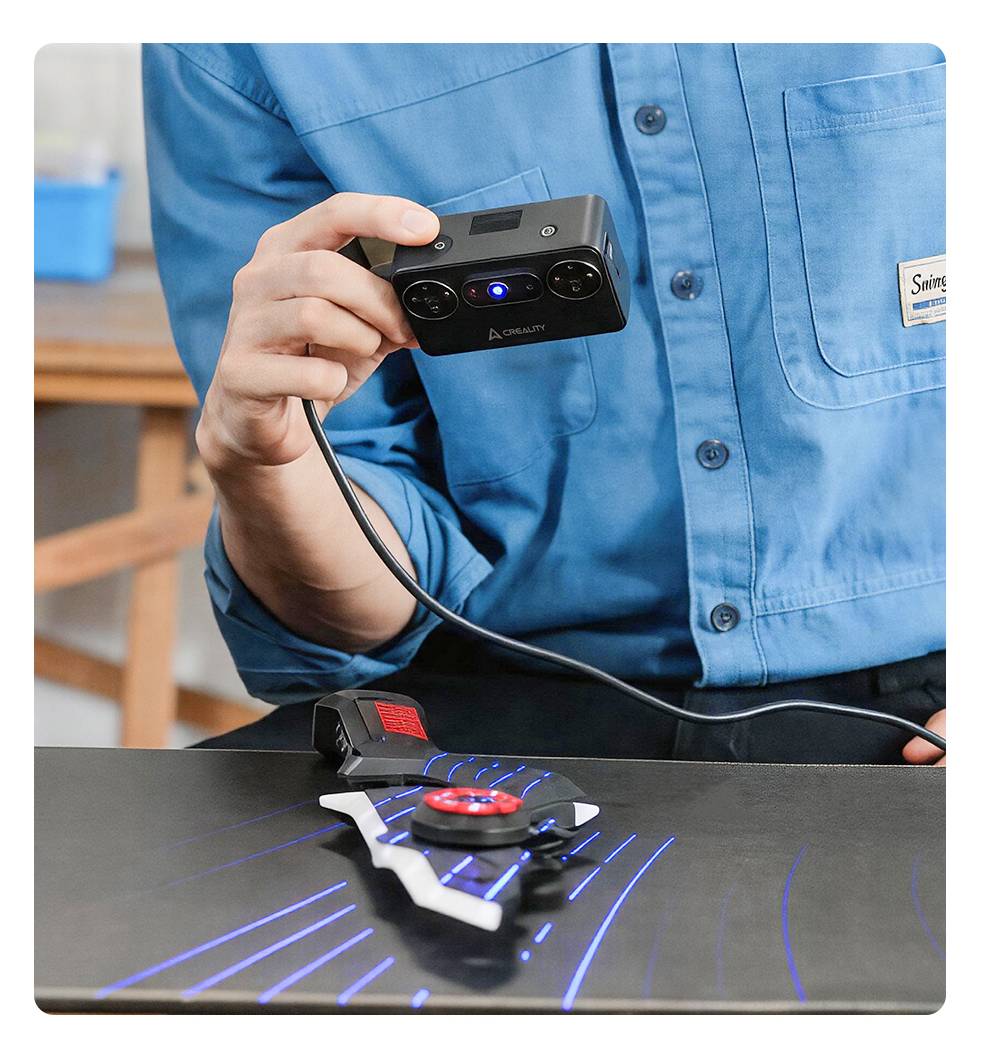

Laser scanning mode allows for precise reproduction of small parts, models, figurines and complex details.
WiFi 6 connectivity allows for wireless collaboration with a computer without running a cable between the scanner and the workstation.

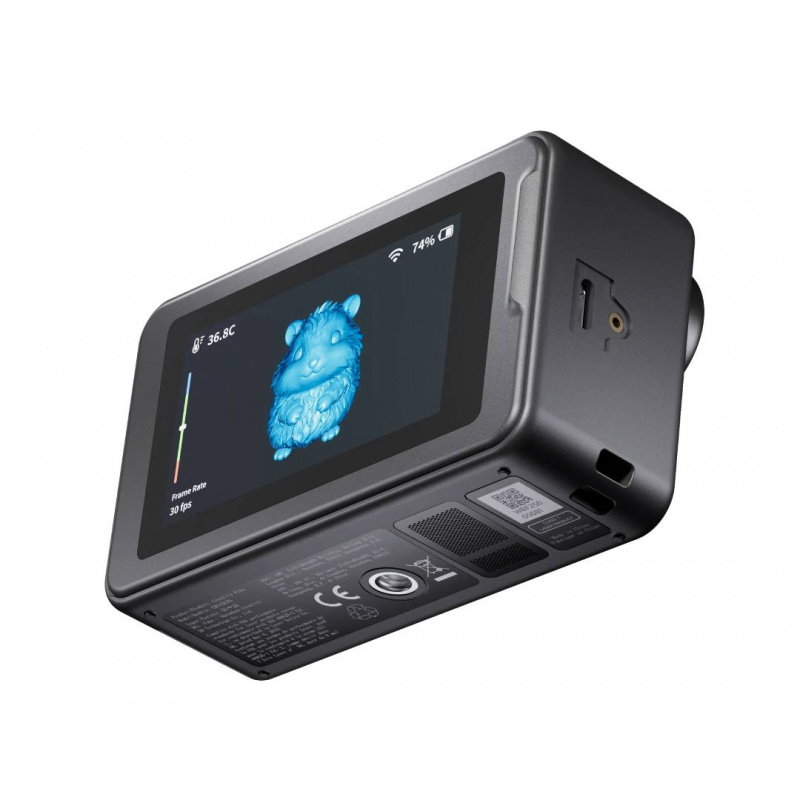

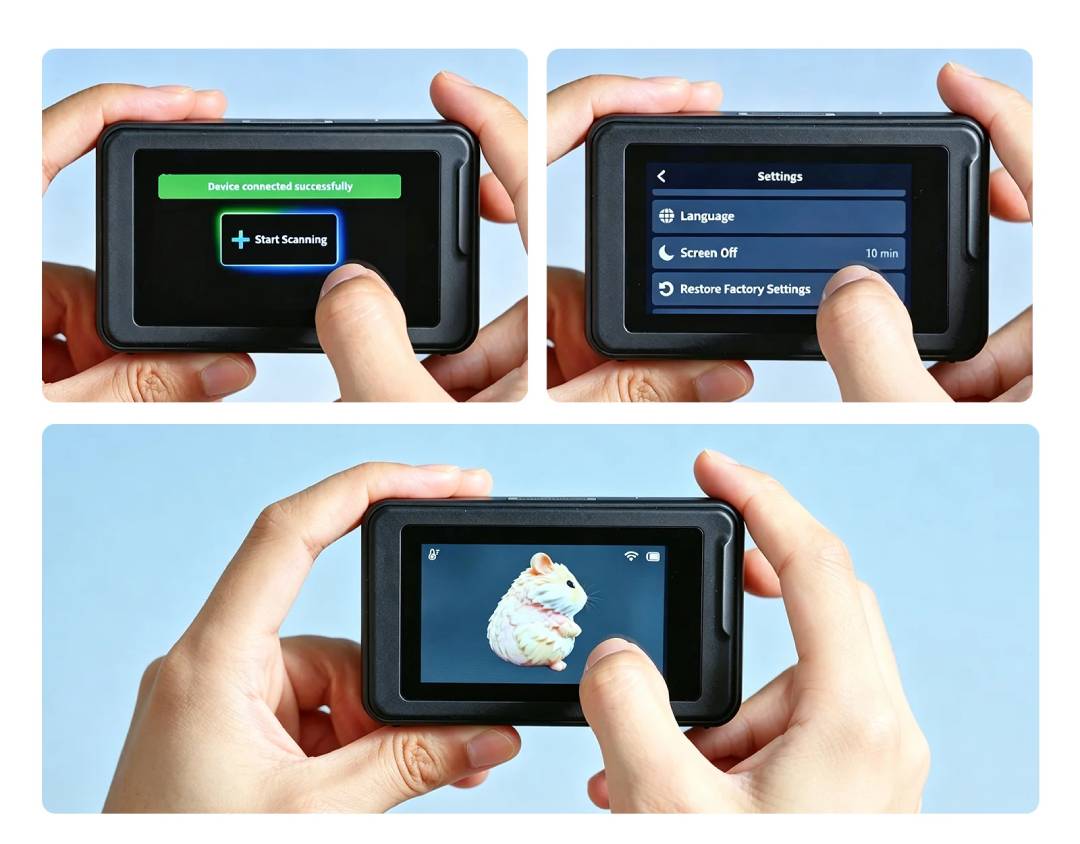

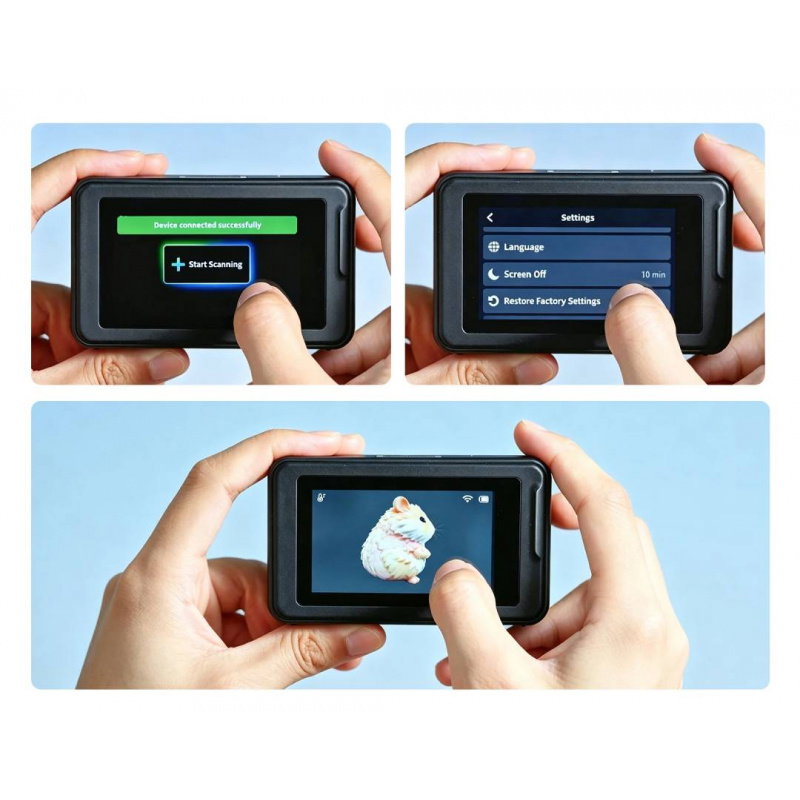

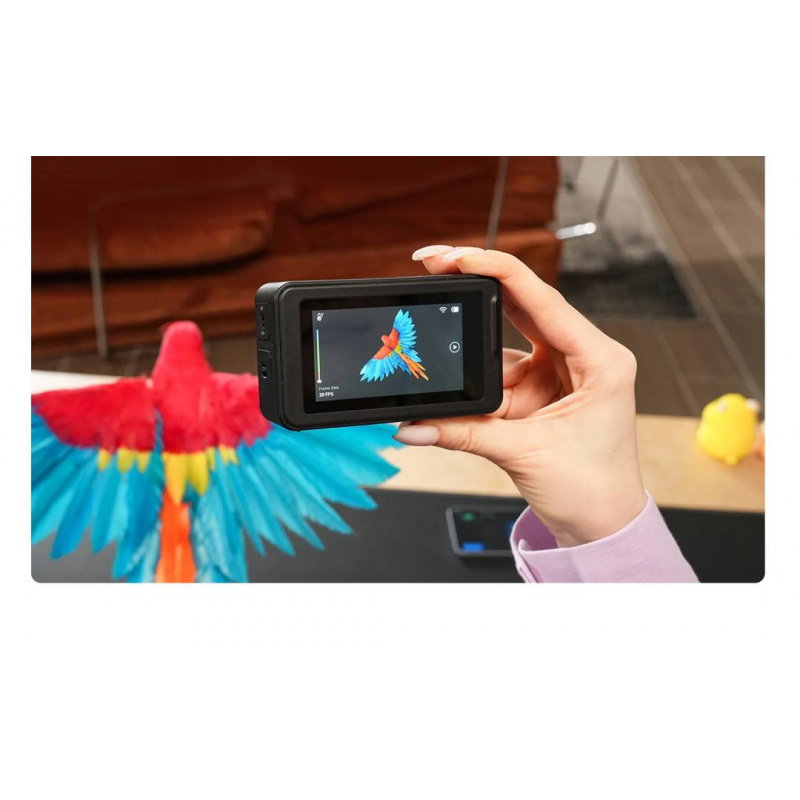

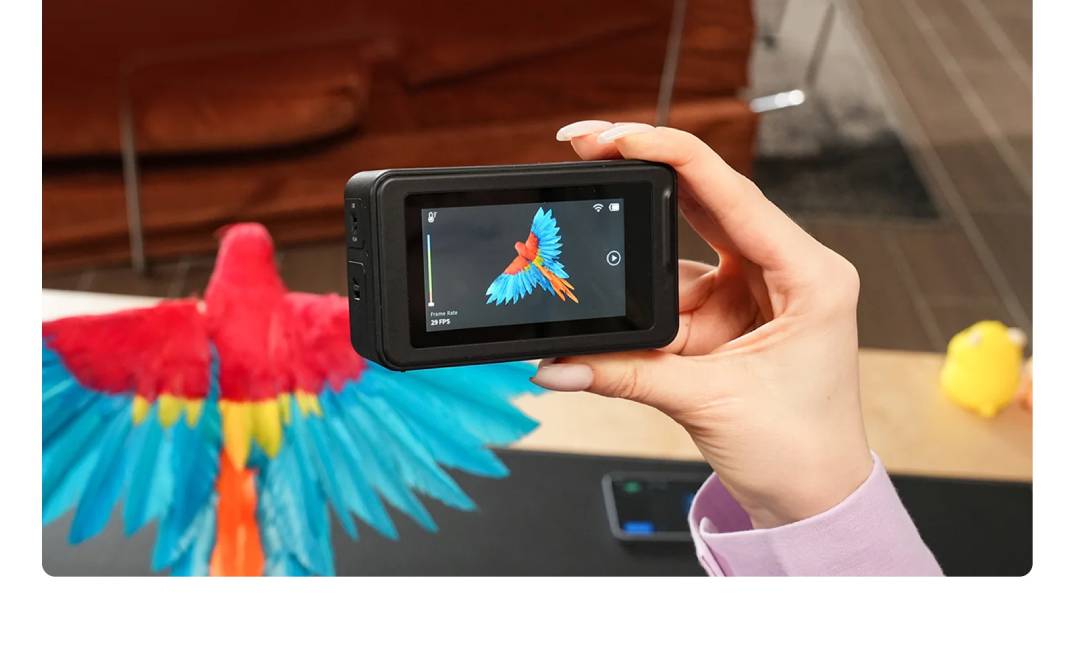

Three Ways to Connect and a 3-Inch Touchscreen Creality Pika
The Creality Pika works with a phone, tablet, or computer during scanning, utilizing the computing power of the connected device to process data and generate a model. You can work with a mobile device, connect the scanner wirelessly to a computer via WiFi 6, or use a wired USB 3.0 connection . Markerless laser scanning is available in wired mode, reducing the time needed to prepare multiple objects for measurement. A 3-inch touchscreen with a maximum brightness of 500 nits makes it easy to manage settings and monitor the scanner's status. The compact 100 x 60 x 35 mm housing allows for comfortable one-handed operation and makes the device easy to take directly to the object being scanned.
Fast scanning up to 110 FPS in bright environments and without spray
In blue laser mode, when used with a computer, the Creality Pika achieves scanning speeds of up to 110 FPS , ensuring smooth geometry acquisition even when dynamically moving the device around the object. When working with a phone, the speed is up to 40 FPS for the blue laser and up to 20 FPS for NIR light , while when connected to a computer, NIR mode can reach up to 30 FPS . A scanning stabilization system reduces the influence of hand movement and helps obtain more consistent data during mobile work. The 7-parallel blue laser mode can operate at illumination levels up to 110,000 lux , while NIR with an installed filter supports conditions up to 80,000 lux . The Pika also allows you to scan black and metal surfaces without the need for matting spray , which can shorten the preparation time for many parts and objects for digitization.
The blue laser supports light intensity up to 110,000 lx, and the NIR with filter up to 80,000 lx.

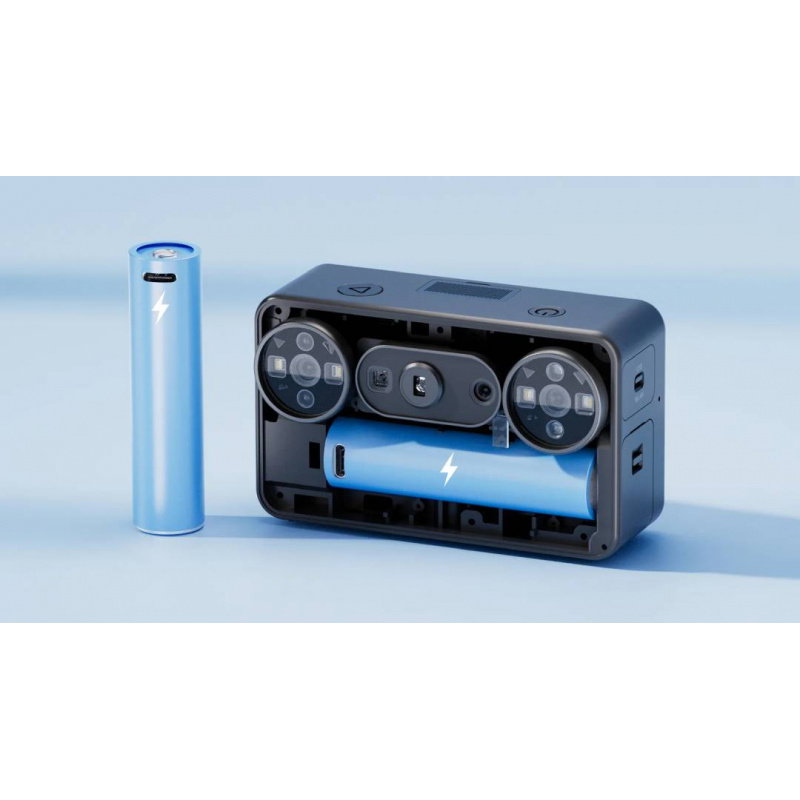

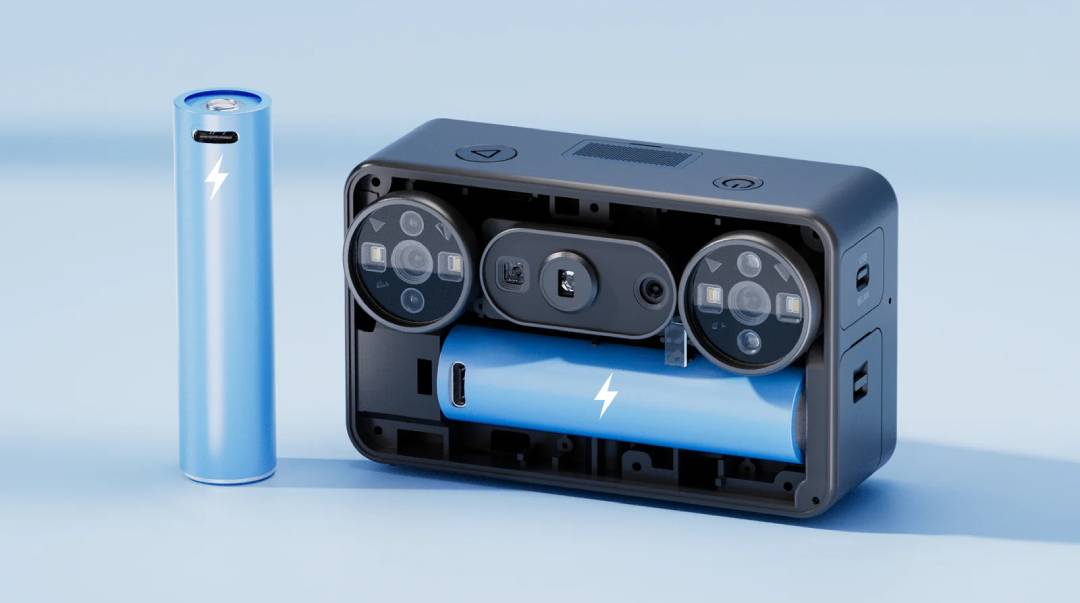

The interchangeable design allows you to quickly replace a discharged battery with the second one included in the set.
Two replaceable 3350 mAh batteries and a portable design weighing 260 g
The Creality Pika was designed as a compact device for frequent portability and scanning away from a fixed workstation. The scanner, including the battery, weighs just 260g , making it easy to carry during extended handheld sessions. The kit includes two replaceable 3350mAh batteries , so if one power source runs out, you can quickly replace it with another. The manufacturer claims an operating time of up to approximately 70 minutes on a single battery , although actual time may vary depending on how the device is used. The combination of replaceable power, compact dimensions, and wireless communication makes the Pika well-suited for work in a variety of locations and on objects that cannot be easily moved to a scanning station.

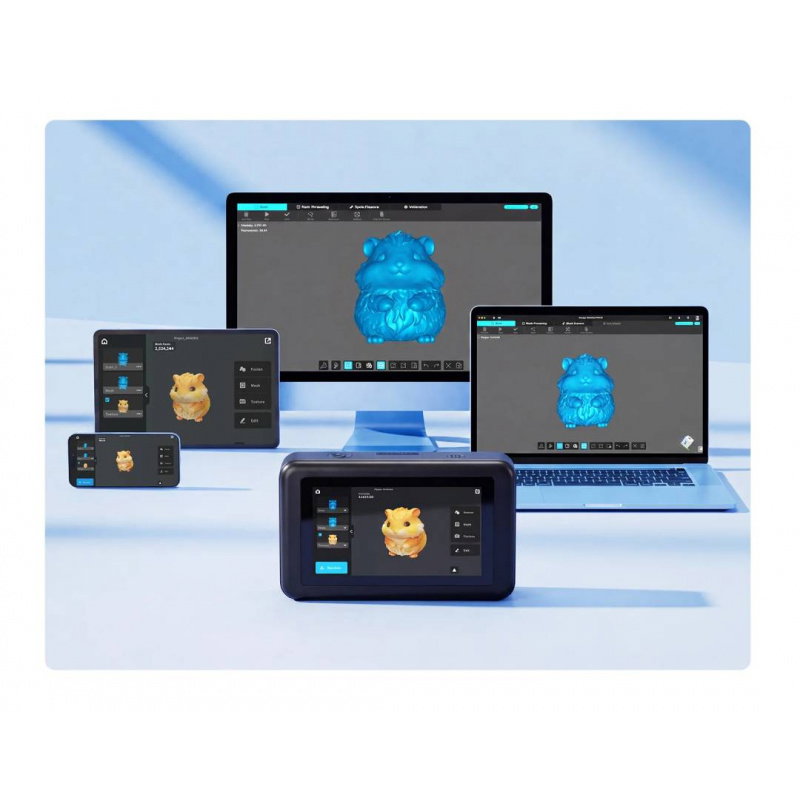

CrealityScan and AI features - from point cloud to finished 3D model
Creality Pika works with the CrealityScan app and software, which guides the user through the scanning process, Data processing, optimization, and basic model editing. The desktop version includes AI features such as AI Retexturing, AI Hole Filling, and AI Body Completion , which help refine textures, fill geometry gaps, and create more complete character models. AI Retexturing allows you to use high-resolution photos taken with a smartphone or camera to more accurately reproduce the surface appearance of a scanned object. Finished models can be exported in popular STL, OBJ, PLY, and ASC formats, facilitating further work in modeling, 3D printing, and digital asset creation environments.

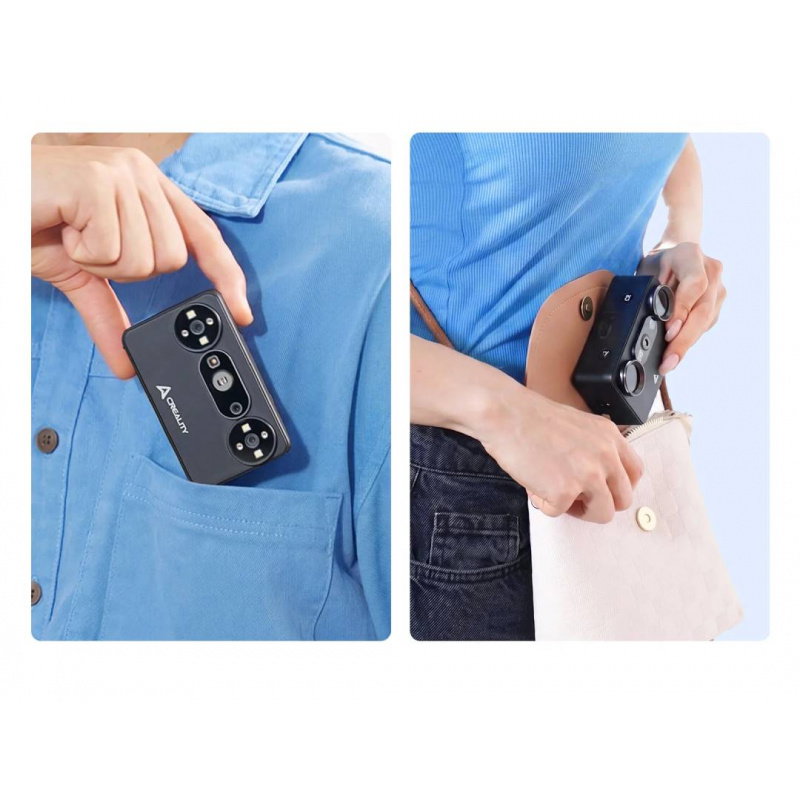

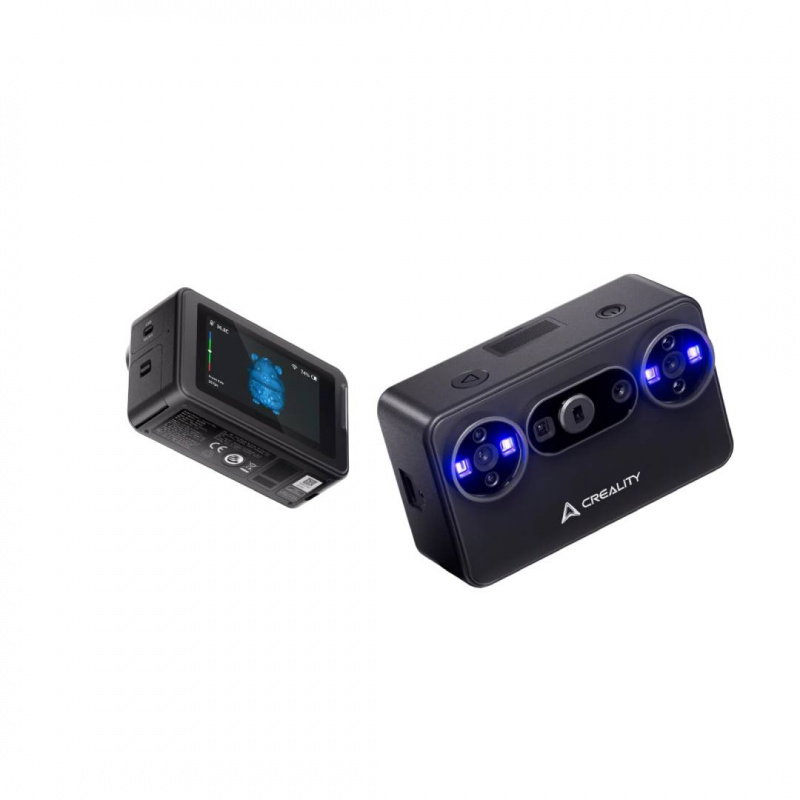

Dimensions of 100 x 60 x 35 mm and a weight of 260 g make the scanner easy to transport and use outside the laboratory.

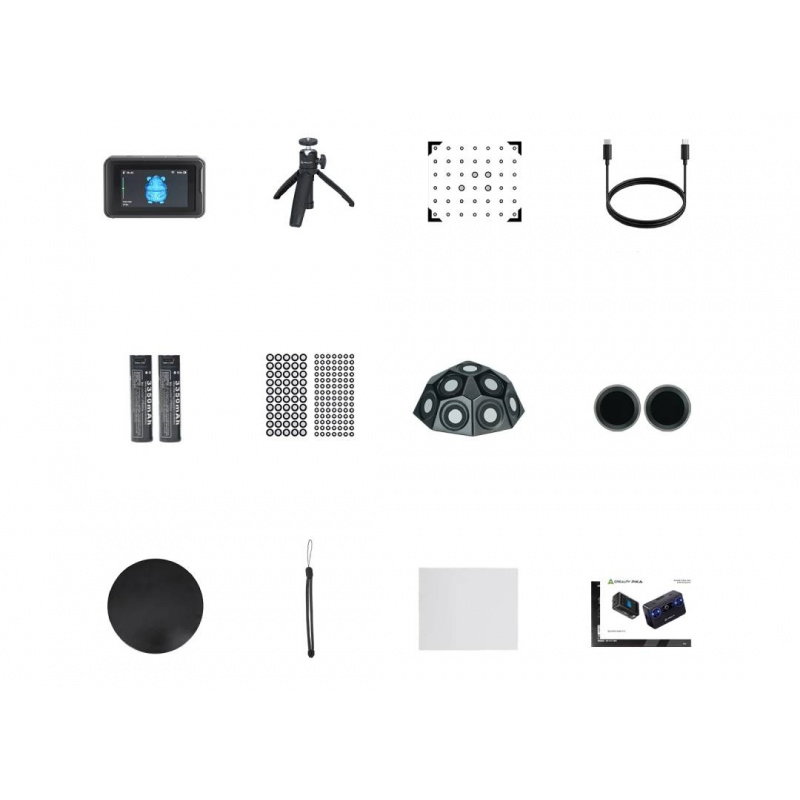

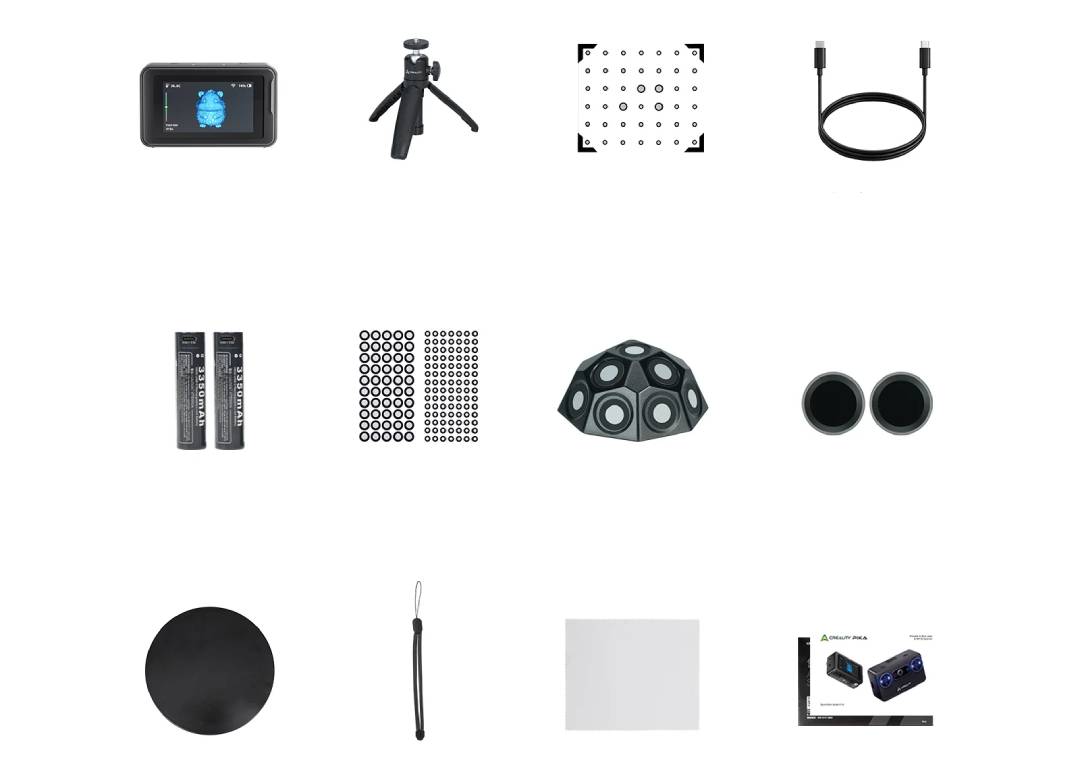

Elements included in the set.
Contents of the Creality Pika Kit
- Creality Pika 3D Scanner
- Tripod
- Precision glass calibration plate
- 2m USB 3.0 Type-C cable
- 3350 mAh battery - 2 pcs.
- Reflective markers, 6 mm diameter - 10 pcs.
- Reflective markers, 3 mm diameter - 10 pcs.
- Turret with markers - 6 pcs.
- NIR filter - 2 pcs.
- Rotary table
- Leash
- Cleaning cloth
Creality Pika 3D Scanner Technical Specifications
| Scan mode | 7 parallel blue laser lines | NIR structured light |
|---|---|---|
| Accuracy | up to 0.03 mm | up to 0.1 mm |
| 3D resolution | from 0.1 mm to 2 mm | from 0.15 mm to 2 mm |
| Scanning speed - phone | up to 40 FPS | up to 20 FPS |
| Scanning speed - computer | up to 110 FPS | up to 30 FPS |
| Minimum size of the scanned object | 10 x 10 x 10 mm | 150 x 150 x 150 mm |
| Single shot area | 101 x 107 mm at 160 mm distance 344 x 268 mm at 400 mm distance | 144 x 134 mm at 200 mm distance 764 x 670 mm at 1000 mm distance |
| Working distance | from 160 mm to 400 mm | from 140 mm to 1000 mm |
| Color mapping | Yes | |
| Scan alignment method | markers / global markers / no markers | geometry / texture |
| Maximum illuminance when scanning outdoors | up to 110,000 lux | up to 80,000 lx with NIR filter |
| Auxiliary lighting | 4 blue-white LEDs + 4 infrared LEDs | |
| Laser safety class | class I | |
| Calibration plate | precision glass calibration plate | |
| NIR filter | - | Yes |
| Processor | 8-core, 2.0 GHz | |
| Display | 3-inch touchscreen | |
| Battery | 3350 mAh, replaceable, second battery included | |
| Interface | USB Type-C / USB 3.0 | |
| Input power | 5V, 3A | |
| Wireless connectivity | WiFi 6 | |
| Recommended configuration | Android | operating system: Android 10.0 or later Processor: Qualcomm Snapdragon 8 Gen 4 or newer RAM: minimum 12 GB |
| iPhone / iOS | operating system: iOS 15 or later processor: Apple A17 or newer RAM: minimum 8 GB wired connection: not supported | |
| Windows | operating system: Windows 10 / Windows 11 64-bit Processor: Intel Core i7 13th generation or newer graphics card: NVIDIA GeForce RTX 3060 or better RAM: minimum 32 GB | |
| macOS | operating system: macOS 14 or later processor: Apple M3 / M4 / M5 RAM: minimum 32 GB | |
| Minimum requirements | Android | operating system: Android 10.0 or later processor: Qualcomm Snapdragon 8 Gen 2 or newer RAM: minimum 8 GB |
| iPhone / iOS | operating system: iOS 15 or later processor: Apple A15 or newer RAM: minimum 6 GB wired connection: not supported | |
| Windows | operating system: Windows 10 / Windows 11 64-bit processor: Intel Core i7 7th generation Graphics card: NVIDIA with at least 8 GB of VRAM RAM: minimum 16 GB | |
| macOS | operating system: macOS 14 or later processor: Apple M2 RAM: minimum 16 GB | |
| Operating temperature | from -10°C to 40°C | |
| Humidity during operation | from 10% RH to 90% RH | |
| Dimensions | 100 x 60 x 35 mm | |
| Mass | 260 g with battery | |
