reComputer Robotics J4012 - Nvidia Jetson Orin NX 16GB RAM + 128GB NVMe - without power supply - Seeedstudio 114110310
An AI computer for robots you power from a 19 V to 54 V battery: reComputer Robotics J4012 with a Jetson Orin NX 16 GB module and two CAN buses.
- 157 TOPS in Super mode and JetPack 6.2 on a 128 GB NVMe drive
- 6 USB 3.2 ports, 2 Ethernet ports and M.2 slots for WiFi and a 5G modem
- No power supply included, XT30 - DC jack cable in the set
We could not load the price.
The promotional price does not combine with quantity discounts.
An AI computer you can power straight from the robot battery
reComputer Robotics J4012 is an AI computer with Jetson Orin NX 16 GB that runs from a 19 V to 54 V battery and connects to drives over CAN, a motor and sensor network. The module delivers 157 TOPS, or 157 trillion AI operations per second, in Super mode, which is unlocked by the preinstalled JetPack 6.2 (NVIDIA's system and AI library package).
The aluminum fan-cooled case has 6 USB 3.2 Type-A ports, 2 Ethernet 1 Gb/s ports, UART and I2C connectors, and M.2 slots for a WiFi module and a 5G modem. The system is already on the 128 GB NVMe drive, so you can start right away with ROS 2, a popular robot programming framework, and NVIDIA Isaac tools. If you need GMSL2 cameras, which carry video and power over a single coaxial cable, choose the reComputer Robotics J4012 with GMSL2 board.

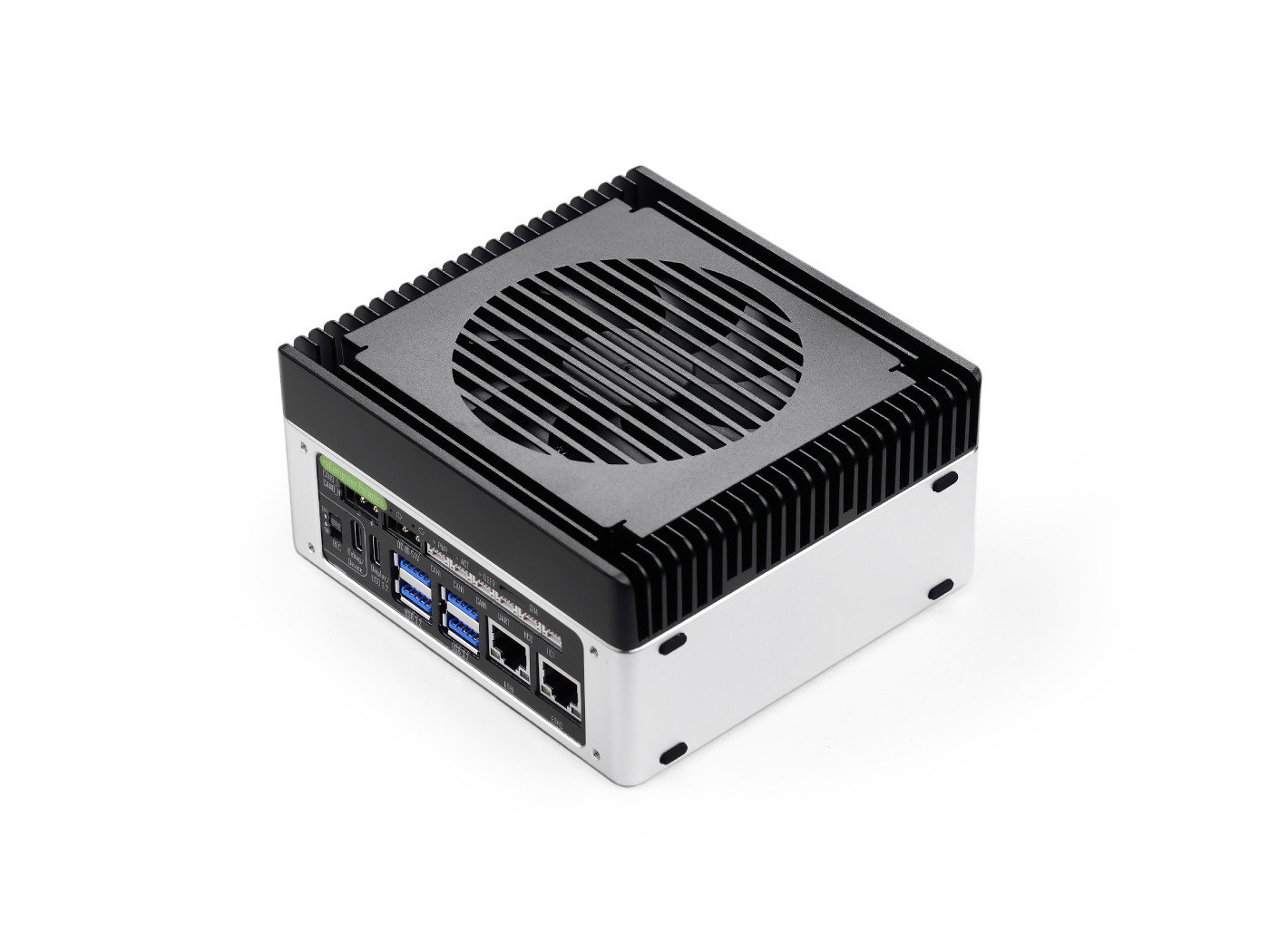

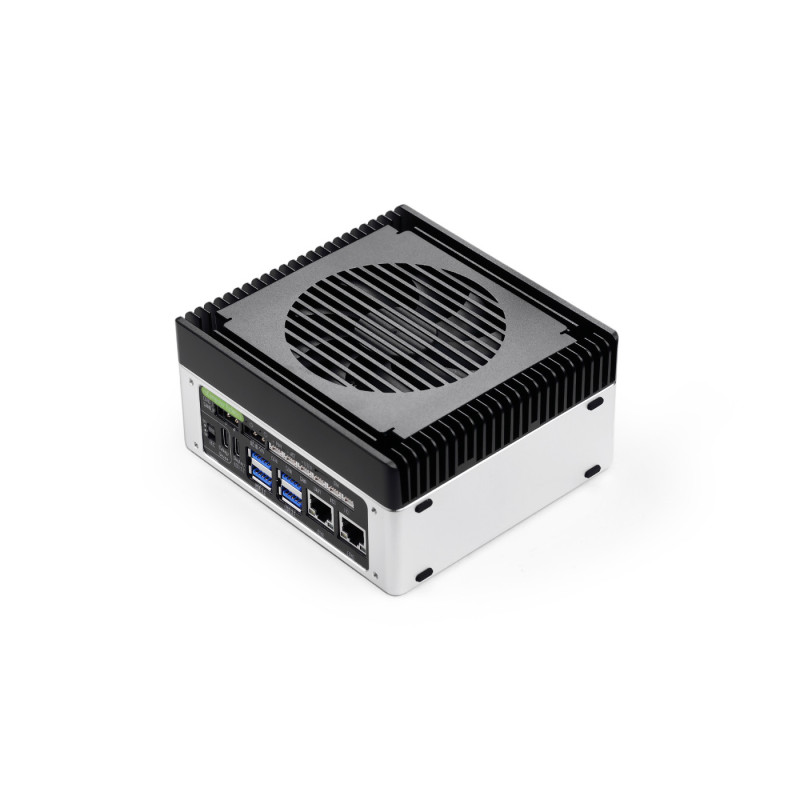

reComputer Robotics J4012 - top view, enclosure with fan
157 TOPS
AI performance of the Jetson Orin NX 16 GB module in Super mode
128 GB
NVMe drive with preinstalled JetPack 6.2
2x Ethernet
1 Gb/s RJ45 ports for network cameras and controllers
M.2 Key B + E
slots for a 5G modem and a WiFi and Bluetooth module
What sets this model apart
19 V to 54 V power and two CAN buses in one computer
You connect the Robotics J4012 directly to the robot battery and to motor controllers, with no separate converter or CAN adapter, because power and the CAN0 bus run through the same XT30(2+2) connector. Keep in mind that this model has no HDMI and no MIPI CSI connectors for ribbon-cable cameras, so for desktop work with a monitor and such cameras a computer from the reComputer Super series is a better fit.
19-54 V
supply voltage range (reComputer Super J4012: 12-19 V)
2 CAN buses
with CAN FD support on 5 connectors (reComputer Super J4012: 1 CAN connector)
6x USB 3.2
USB Type-A ports (reComputer Super J4012: 4 ports)
reComputer Robotics as the brain of a robot
The video shows how reComputer Robotics combines camera perception and control logic in a humanoid robot and an autonomous AGV cart.
Video: the manufacturer's official YouTube channel.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.

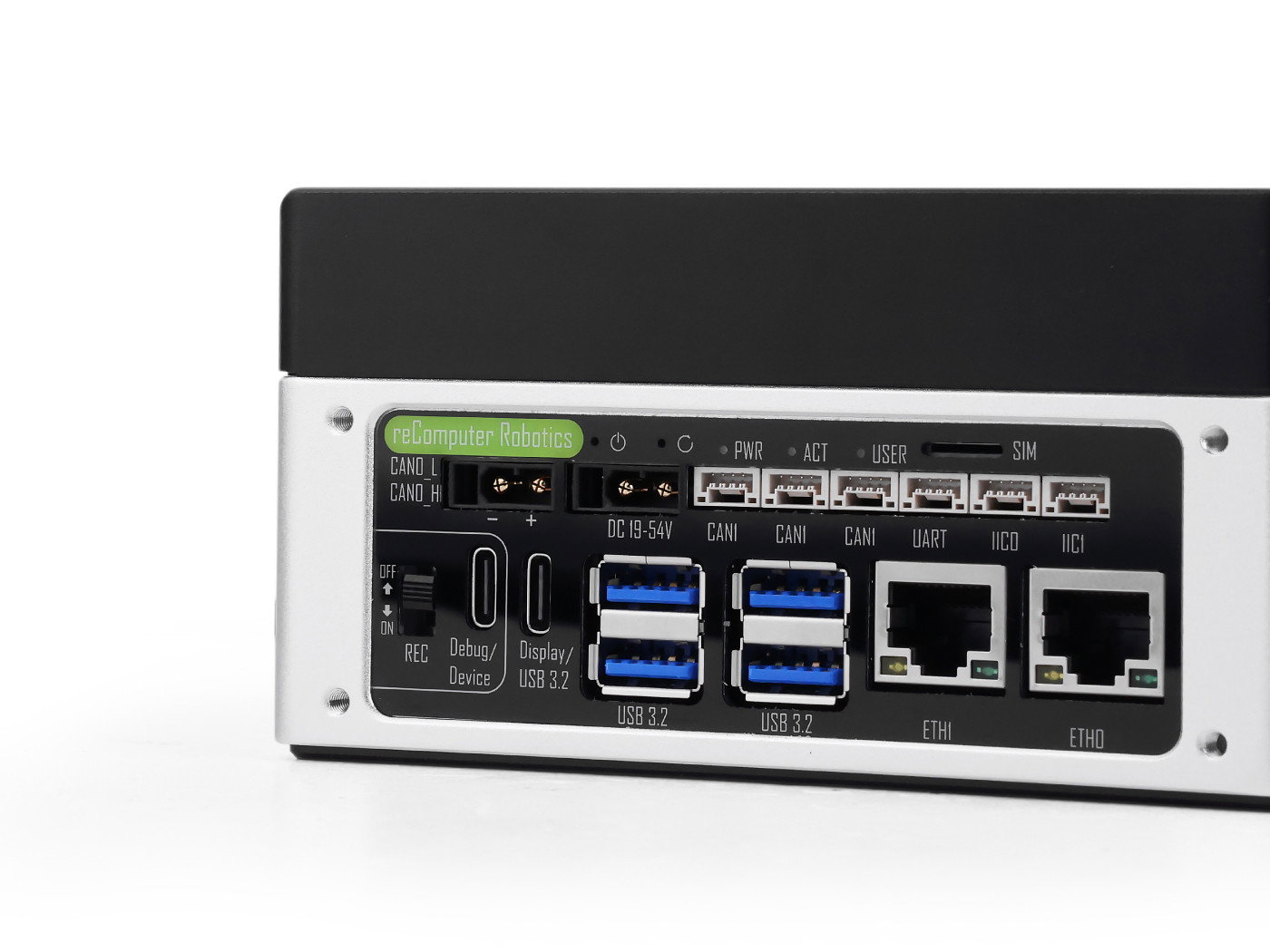

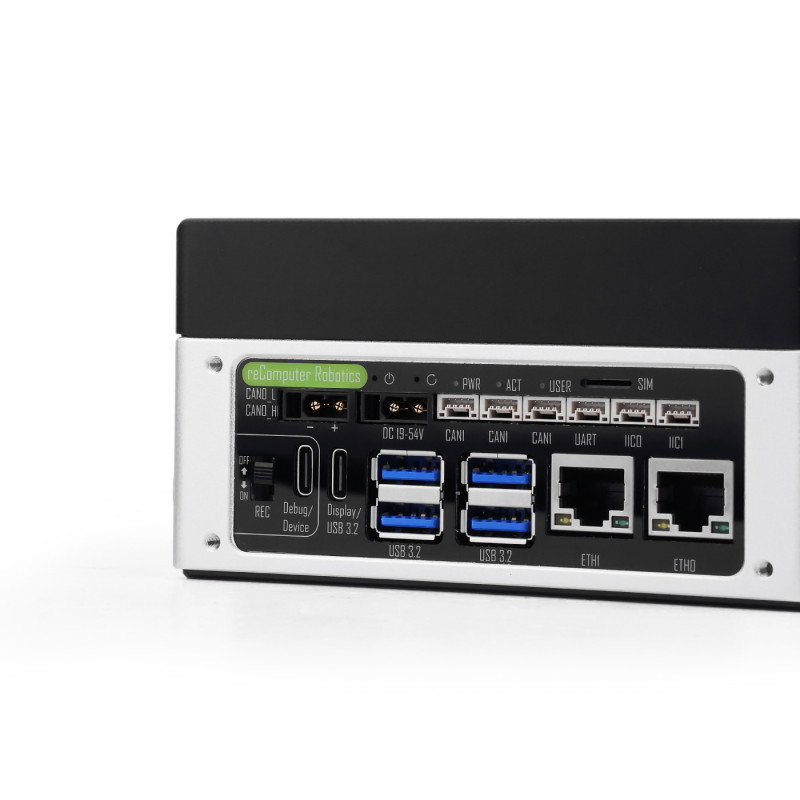

reComputer Robotics J4012 - port panel with USB, Ethernet and CAN
Robot connectors in one place
The CAN0 bus runs through two XT30(2+2) connectors, plugs with two power contacts and two CAN contacts, so a single cable brings both power and data. CAN1 has three GH 1.25 mm connectors, and both buses support CAN FD, a CAN variant with longer frames and faster data transfer.
You connect a monitor to the USB Type-C port with DisplayPort 1.4 output. The M.2 Key B slot takes a 5G modem with a SIM card, and the M.2 Key E slot takes a WiFi and Bluetooth module. For sensors you get a UART connector, e.g. for a LiDAR scanner, and two I2C connectors, and the second Ethernet port is handy for a network camera or a controller.
Is it the right choice for you?
A good choice if you:
- are building a mobile robot or humanoid powered from a 19 V to 54 V battery
- control motors and sensors over CAN or CAN FD
- need many USB ports and two Ethernet ports for cameras, LiDAR and the network
Consider another option if you:
- need HDMI, MIPI CSI camera connectors and 40-pin GPIO: see reComputer Super J4012
- want to connect GMSL2 cameras right away: choose the reComputer Robotics J4012 with GMSL2 board
Comparison of reComputer computers with Jetson Orin
| Robotics J4012 | Robotics J4012 + GMSL2 | Super J401 NX Bundle | J401 Nano Bundle | |
|---|---|---|---|---|
| Module | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin Nano 8 GB |
| AI performance in Super mode | 157 TOPS | 157 TOPS | 157 TOPS | 67 TOPS |
| Form factor | computer in a fan-cooled case | computer in a fan-cooled case | board with heatsink and fan, no case | board with heatsink and fan, no case |
| NVMe drive included | 128 GB | 128 GB | 256 GB | 256 GB |
| Power | 19-54 V DC, XT30(2+2) | 19-54 V DC, XT30(2+2) | 12-19 V DC, 5.5 / 2.5 mm jack | 9-19 V DC, 5.5 / 2.5 mm jack |
| Power supply included | no | no | yes, 19 V / 4.74 A | yes, 19 V / 4.74 A |
| WiFi and Bluetooth module included | no | no | yes, with 2 antennas | yes, with 2 antennas |
| Cameras | USB | 4x GMSL2 (board included) and USB | 4x MIPI CSI and USB | 2x MIPI CSI and USB |
| CAN | 2 buses, CAN FD | 2 buses, CAN FD | 1 connector (TTL, needs a transceiver) | 1 connector (TTL, needs a transceiver) |
| Ethernet 1 Gb/s | 2 ports | 2 ports | 2 ports | 1 port |
| USB Type-A ports | 6x USB 3.2, 5 Gb/s | 6x USB 3.2, 5 Gb/s | 4x USB 3.2, 5 Gb/s | 4x USB 3.2, 10 Gb/s |
| Video output | DisplayPort 1.4 over USB Type-C | DisplayPort 1.4 over USB Type-C | HDMI 2.1 | HDMI 2.1 |
| 40-pin connector | no | no | yes | yes |
| Modem slot | M.2 Key B (5G) | M.2 Key B (5G) | mini-PCIe (LTE 4G) | no |
| Dimensions | 130 x 120 x 66 mm | 130 x 120 x 66 mm | 113.2 x 109 x 67 mm | 100 x 80.6 x 32.5 mm |
| See | this page | Robotics J4012 + GMSL2 | Super J401 NX Bundle | J401 Nano Bundle |
Did you know
Power and CAN in one plug
The XT30(2+2) connector carries 19 V to 54 V power and the CAN0 bus at the same time, and the two such sockets on the case are wired in parallel. This lets you route power and CAN on to the next device in the robot without a separate splitter.
Frequently asked questions
Is a power supply included?
No. The set includes an XT30 - DC 5.5 / 2.5 mm jack cable, for which the manufacturer recommends a 19 V / 4.74 A power supply. In a robot you power the computer directly from a battery with a voltage from 19 V to 54 V.
How do I connect a monitor?
The USB Type-C port working as a host has a DisplayPort 1.4 output, so you can connect a monitor with a USB Type-C input to it. For an HDMI monitor you need a USB Type-C - HDMI adapter.
Can I connect GMSL2 cameras?
Yes, but only with the GMSL2 expansion board, which comes in the reComputer Robotics J4012 with GMSL2 version. This version supports cameras such as SG3S-ISX031C-GMSL2F, SG2-AR0233C-5200-G2A and the Orbbec Gemini 335Lg 3D camera.
How many CAN buses does it have?
The computer has two CAN buses. CAN0 is brought out together with power on two XT30(2+2) connectors, and CAN1 on three GH 1.25 mm connectors. Both buses support CAN FD.
Can I add WiFi or 5G?
Yes. You install a WiFi and Bluetooth module in the M.2 Key E slot and a 5G modem in the M.2 Key B slot next to the SIM card slot. The modules are not included.
Can I install JetPack 7.2 instead of the factory system?
Yes. JetPack 6.2 comes preinstalled on the drive, and you can download the JetPack 7.2 image from the manufacturer's wiki and install it yourself. To reinstall the system you need a computer with Ubuntu and the USB Type-A - USB Type-C cable from the set.

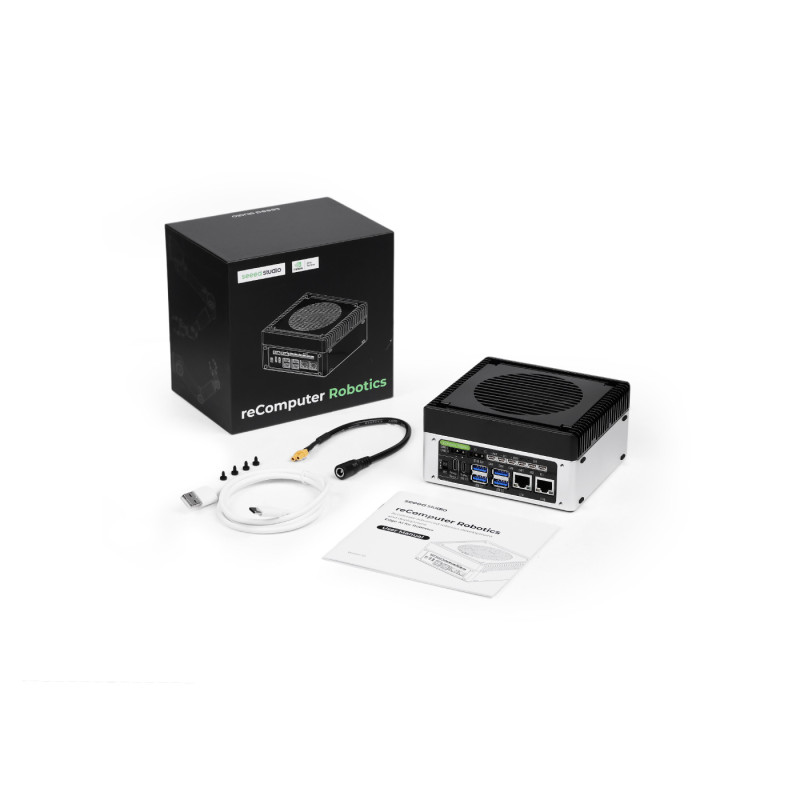

What's in the box
- 1 x NVIDIA Jetson Orin NX 16 GB module
- 1 x reComputer Robotics J401 carrier board
- 1 x 128 GB NVMe drive with the system
- 1 x Aluminum case with heatsink and fan
- 1 x USB Type-A - USB Type-C cable
- 1 x XT30 - DC 5.5 / 2.5 mm jack cable
- 1 x User manual
The power supply, GMSL2 board and WiFi and 5G modules are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | AI computer for robotics in an aluminum case with heatsink and fan |
| Module | NVIDIA Jetson Orin NX 16 GB (260-pin SO-DIMM) |
| AI performance | 157 TOPS (INT8 sparse, Super / MAXN mode) |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit, up to 2 GHz, 2 MB L2 + 4 MB L3 |
| GPU | NVIDIA Ampere, 1024 CUDA cores, 32 Tensor cores, up to 1173 MHz |
| Accelerators | 2x NVDLA v2.0 (up to 1.23 GHz), 1x PVA v2.0 |
| RAM | 16 GB LPDDR5 128-bit, 102.4 GB/s |
| Video encoding | 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265) |
| Video decoding | 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265) |
| Module power modes | 10 W, 15 W, 25 W, 40 W and MAXN |
| Storage | 128 GB NVMe in the M.2 Key M slot (PCIe) |
| Expansion slots | M.2 Key E for a WiFi and Bluetooth module, M.2 Key B for a 5G modem, SIM card slot, 5 antenna holes (modules and antennas not included) |
| Ethernet | 2x RJ45 1 Gb/s |
| USB | 6x USB 3.2 Type-A (5 Gb/s), 1x USB 3.0 Type-C (host, DisplayPort 1.4), 1x USB 2.0 Type-C (device mode, flashing and debugging) |
| Video output | DisplayPort 1.4 over USB Type-C |
| Cameras | USB cameras; expansion connector for a GMSL2 board (board not included) |
| CAN | 2 buses: CAN0 on 2 XT30(2+2) connectors together with power, CAN1 on 3 GH 1.25 mm 4-pin connectors; CAN FD support |
| UART and I2C | 1x UART and 2x I2C on GH 1.25 mm 4-pin connectors |
| Fan | 1x 4-pin 5 V PWM, 1x 4-pin 12 V PWM |
| Other | 2-pin RTC connector and CR1220 battery socket (battery not included), 3 LEDs (PWR, ACT, user), PWR and RESET buttons, REC switch |
| Power | 19-54 V DC via the XT30(2+2) connector, XT30 - DC 5.5 / 2.5 mm jack cable included |
| System | JetPack 6.2 (Jetson Linux 36.4.3) installed on the drive, JetPack 7.2 supported |
| Software | NVIDIA Isaac ROS, ROS 2 and ROS 1, Hugging Face, PyTorch |
| Operating temperature | -20 °C to 60 °C in 25 W mode, up to 55 °C in MAXN mode |
| Mounting | on a desk or on a wall |

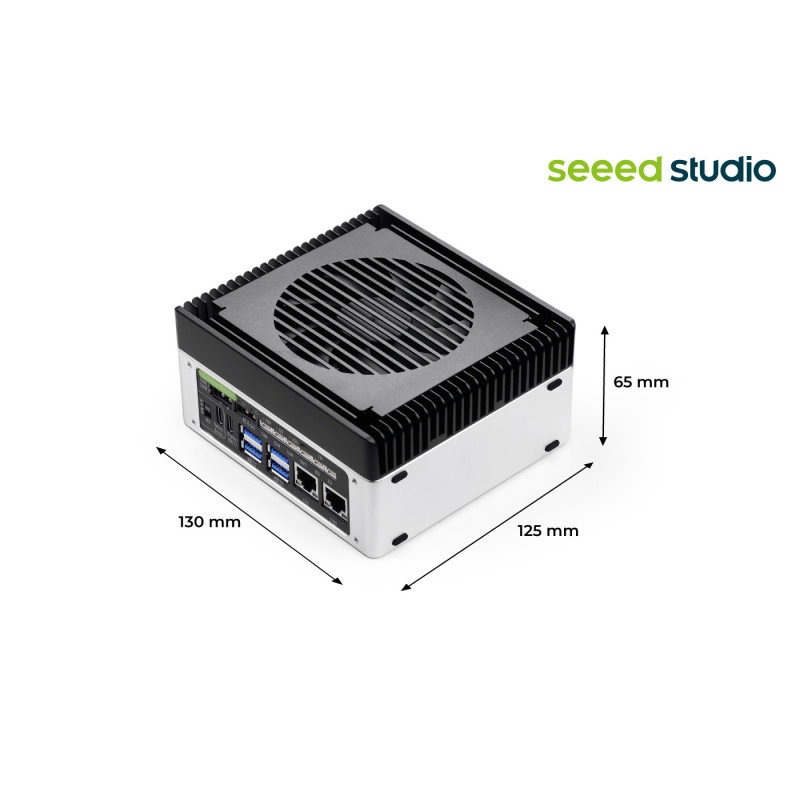

| Dimensions | 130 x 120 x 66 mm |
| Weight | 1100 g |
| Certifications | CE, RoHS, REACH, FCC |
| Manufacturer code | 114110310 |
| Manufacturer | Seeed Studio |
Useful links
| Name | Value |
|---|---|
| Voltage to | 19.0 V |
| Voltage from | 54.0 V |
| UC - Core | Cortex A78AE |
| UC - RAM | 16 GB |
| UC - core | 8. Octa Core |
| UC - External memory | SSD 128 GB |
| UC - freq | 2.0 GHz |
| UC - Ethernet | yes |
| UC - USB | 6x USB |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Linux | yes |
| UC - CAN interface | yes |
| Width | 16 cm |
| Height | 15.3 cm |
| Depth | 11.2 cm |
| Weight | 1.294 kg |
