reComputer Robotics J4012 with GMSL2 - Nvidia Jetson Orin NX 16GB RAM + 128GB NVMe - no power supply - Seeedstudio 100026552
A Jetson Orin NX 16 GB in one case with an input for four GMSL2 cameras on long cables: reComputer Robotics J4012 with a factory-fitted GMSL2 board.
- 4-in-1 mini-FAKRA connector and camera power over the coaxial cable
- 157 TOPS, 2 CAN FD buses and 19 V to 54 V power
- Power supply and cameras not included
We could not load the price.
The promotional price does not combine with quantity discounts.
A connector for four GMSL2 cameras and the brain of a robot in one case
reComputer Robotics J4012 with GMSL2 is an AI computer for robots with Jetson Orin NX 16 GB and a factory-fitted board that connects 4 GMSL2 cameras. GMSL2, a serial camera link, carries video and power over a single coaxial cable, so cameras can be placed far from the computer, across a whole vehicle or robot arm.
The module delivers 157 TOPS, or 157 trillion AI operations per second, in Super mode, which is unlocked by the preinstalled JetPack 6.2 (NVIDIA's system and AI library package). The computer runs from a 19 V to 54 V battery and has two CAN buses, networks for controlling motors and sensors, 6 USB 3.2 ports and 2 Ethernet ports. If USB cameras are enough for you, choose the reComputer Robotics J4012 without GMSL2 board.

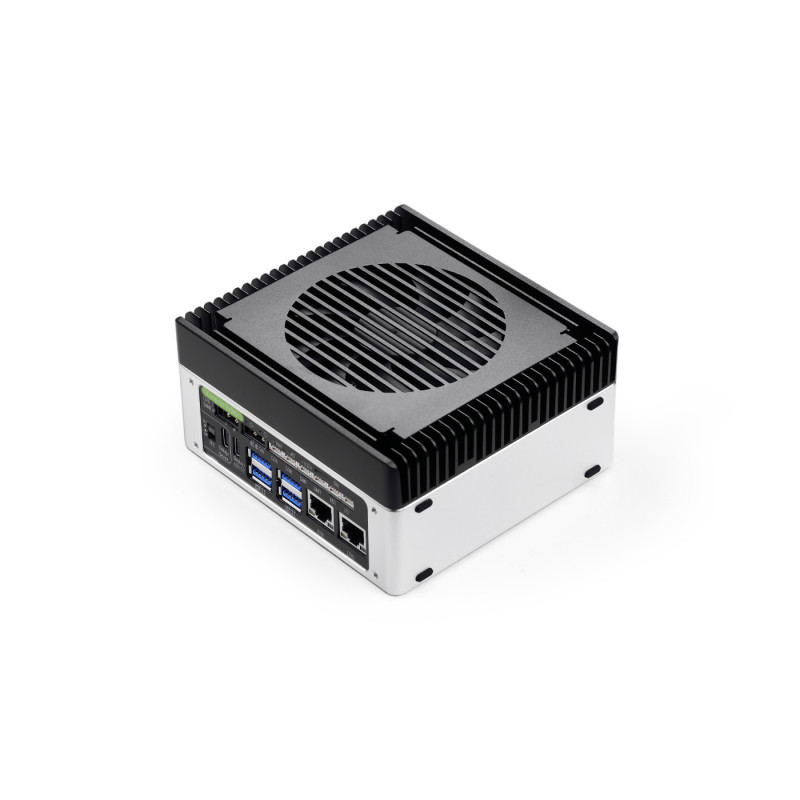

reComputer Robotics J4012 - top view, enclosure with fan
4 GMSL2 cameras
at once, through a single 4-in-1 mini-FAKRA connector
157 TOPS
AI performance of the Jetson Orin NX 16 GB module in Super mode
19-54 V
DC power via the XT30(2+2) connector, straight from the battery
2 CAN buses
CAN0 and CAN1 with CAN FD support
What sets this model apart
4 GMSL2 cameras through one connector, with power in the same cable
The GMSL2 board is factory-fitted, so you connect the cameras for perception around the robot right away, with no electronics to add to the case. Keep in mind that GMSL2 cameras are not included, and if you only plan to use USB cameras, the version without the GMSL2 board is enough.
6 Gb/s
bandwidth of each of the 4 GMSL2 channels
12 V / 400 mA
camera power over the coaxial cable
5 camera models
supported by JetPack images with the GMSL driver, including the Orbbec Gemini 335Lg 3D camera
reComputer Robotics as the brain of a robot
The video shows how reComputer Robotics combines camera perception and control logic in a humanoid robot and an autonomous AGV cart.
Video: the manufacturer's official YouTube channel.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.

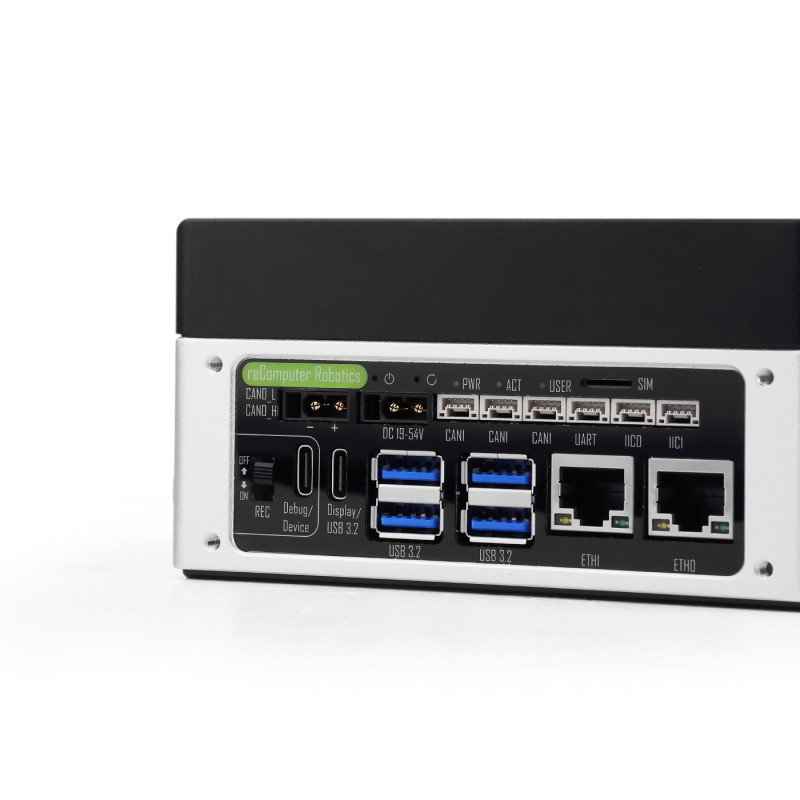

reComputer Robotics J4012 - port panel with USB, Ethernet and CAN

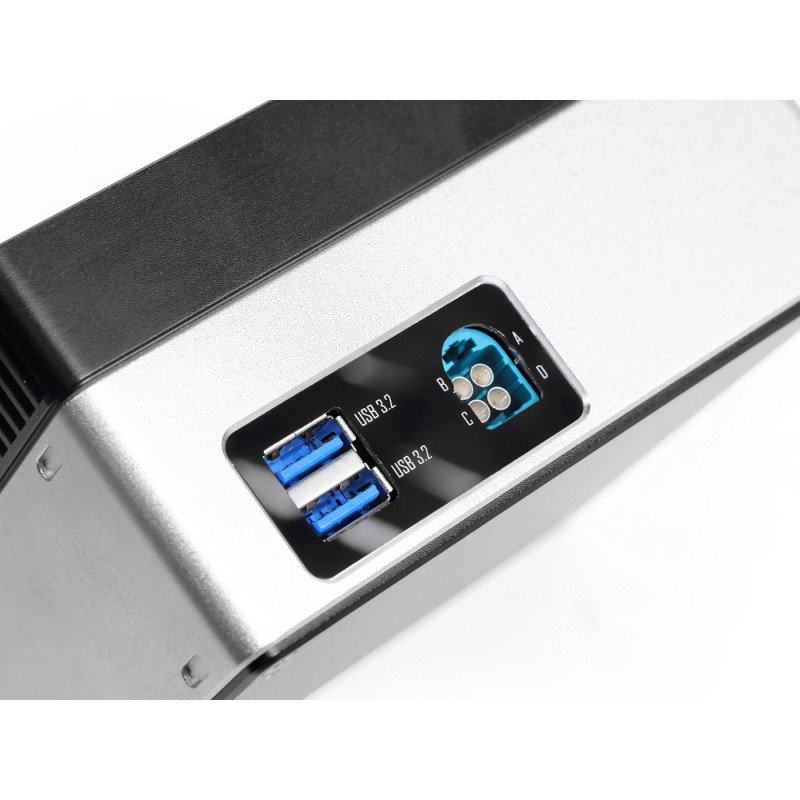

Four cameras through one connector
On the rear panel there is a 4-in-1 mini-FAKRA connector, a snap-in coaxial connector for four camera cables, and next to it two of the six USB 3.2 ports. The MAX96712 deserializer, the chip that receives the signal from the cameras, supports 4 GMSL2 channels at 6 Gb/s each, and the PoC function, power over the coaxial cable, supplies the cameras with 12 V / 400 mA.
The manufacturer lists support for SG3S-ISX031C-GMSL2F 3 MP, SG2-AR0233C-5200-G2A and SG2-IMX390C-5200-G2A cameras with 1920 x 1080 px resolution, the SG8S-AR0820C-5300-G2A 4K camera, and the Orbbec Gemini 335Lg stereo camera, which measures depth for navigation and obstacle avoidance. The manufacturer's wiki has JetPack images with the GMSL driver, and you choose the camera type in the Jetson-IO tool, the system's connector configurator.
Is it the right choice for you?
A good choice if you:
- are building a robot or vehicle whose cameras are far from the computer
- need several cameras at once for a surround view or 3D reconstruction
- want to power the computer from a 19 V to 54 V battery and control motors over CAN
Consider another option if you:
- USB cameras are enough for you: choose the reComputer Robotics J4012 without GMSL2 board
- prefer MIPI CSI cameras on a ribbon cable and an HDMI monitor: see reComputer Super J4012
Comparison of reComputer computers with Jetson Orin
| Robotics J4012 | Robotics J4012 + GMSL2 | Super J401 NX Bundle | J401 Nano Bundle | |
|---|---|---|---|---|
| Module | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin Nano 8 GB |
| AI performance in Super mode | 157 TOPS | 157 TOPS | 157 TOPS | 67 TOPS |
| Form factor | computer in a fan-cooled case | computer in a fan-cooled case | board with heatsink and fan, no case | board with heatsink and fan, no case |
| NVMe drive included | 128 GB | 128 GB | 256 GB | 256 GB |
| Power | 19-54 V DC, XT30(2+2) | 19-54 V DC, XT30(2+2) | 12-19 V DC, 5.5 / 2.5 mm jack | 9-19 V DC, 5.5 / 2.5 mm jack |
| Power supply included | no | no | yes, 19 V / 4.74 A | yes, 19 V / 4.74 A |
| WiFi and Bluetooth module included | no | no | yes, with 2 antennas | yes, with 2 antennas |
| Cameras | USB | 4x GMSL2 (board included) and USB | 4x MIPI CSI and USB | 2x MIPI CSI and USB |
| CAN | 2 buses, CAN FD | 2 buses, CAN FD | 1 connector (TTL, needs a transceiver) | 1 connector (TTL, needs a transceiver) |
| Ethernet 1 Gb/s | 2 ports | 2 ports | 2 ports | 1 port |
| USB Type-A ports | 6x USB 3.2, 5 Gb/s | 6x USB 3.2, 5 Gb/s | 4x USB 3.2, 5 Gb/s | 4x USB 3.2, 10 Gb/s |
| Video output | DisplayPort 1.4 over USB Type-C | DisplayPort 1.4 over USB Type-C | HDMI 2.1 | HDMI 2.1 |
| 40-pin connector | no | no | yes | yes |
| Modem slot | M.2 Key B (5G) | M.2 Key B (5G) | mini-PCIe (LTE 4G) | no |
| Dimensions | 130 x 120 x 66 mm | 130 x 120 x 66 mm | 113.2 x 109 x 67 mm | 100 x 80.6 x 32.5 mm |
| See | Robotics J4012 | this page | Super J401 NX Bundle | J401 Nano Bundle |
Did you know
Video and power in one cable
In GMSL2 the same coaxial cable carries the camera video and powers it, on this board with 12 V at up to 400 mA. This way you run only one cable to each camera, which simplifies the robot's wiring.
Frequently asked questions
How many GMSL2 cameras can I connect at the same time?
You can connect four cameras. The board has one 4-in-1 mini-FAKRA connector and the MAX96712 deserializer, which supports 4 GMSL2 channels at 6 Gb/s each.
Which GMSL2 cameras are supported?
The manufacturer lists support for SG3S-ISX031C-GMSL2F 3 MP, SG2-AR0233C-5200-G2A, SG2-IMX390C-5200-G2A, SG8S-AR0820C-5300-G2A 4K and the Orbbec Gemini 335Lg 3D stereo camera.
Are the cameras included?
No. The set includes the computer with the GMSL2 board fitted, a drive with the system, a USB cable and an XT30 - DC jack cable, and you choose the cameras to suit your project.
How are GMSL2 cameras powered?
The board supplies power over the same coaxial cable that carries the video. The PoC function delivers 12 V at up to 400 mA to the camera.
Will GMSL2 cameras work on the factory system without changes?
To use GMSL2 cameras you need a JetPack image with the GMSL driver, which the manufacturer provides on its wiki. You then choose the camera type in the Jetson-IO tool.
Is a power supply included?
No. The computer needs 19 V to 54 V DC, so in a robot you power it from a battery, and for mains power the manufacturer recommends a 19 V / 4.74 A power supply with a 5.5 / 2.5 mm plug.

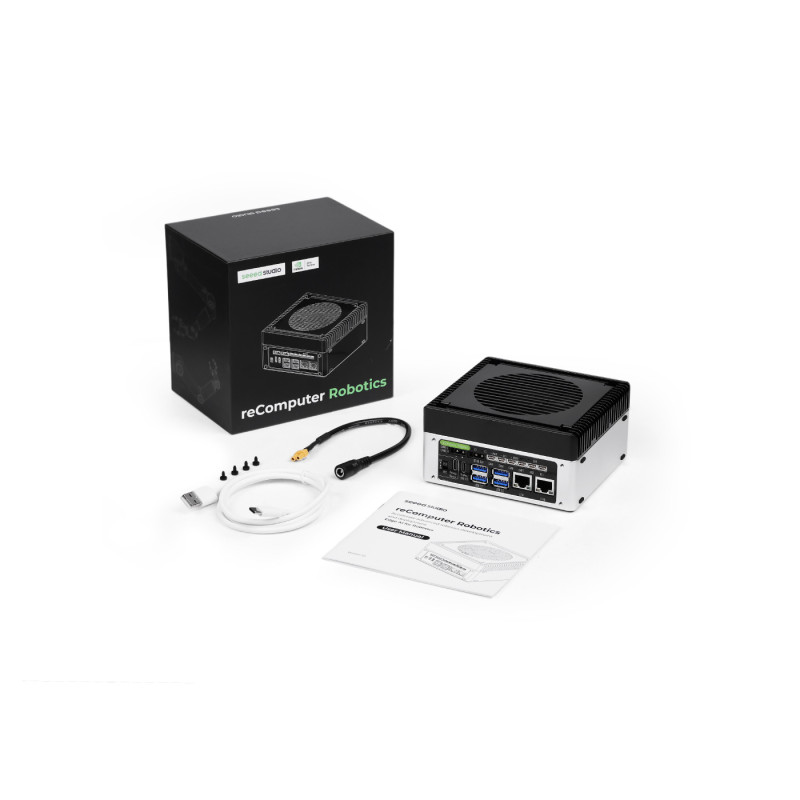

What's in the box
- 1 x NVIDIA Jetson Orin NX 16 GB module
- 1 x reComputer Robotics J401 carrier board with GMSL2 expansion board
- 1 x 128 GB NVMe drive with the system
- 1 x Aluminum case with heatsink and fan
- 1 x USB Type-A - USB Type-C cable
- 1 x XT30 - DC 5.5 / 2.5 mm jack cable
- 1 x User manual
The power supply, GMSL2 cameras and WiFi and 5G modules are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | AI computer for robotics in an aluminum case with heatsink and fan |
| Module | NVIDIA Jetson Orin NX 16 GB (260-pin SO-DIMM) |
| AI performance | 157 TOPS (INT8 sparse, Super / MAXN mode) |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit, up to 2 GHz, 2 MB L2 + 4 MB L3 |
| GPU | NVIDIA Ampere, 1024 CUDA cores, 32 Tensor cores, up to 1173 MHz |
| Accelerators | 2x NVDLA v2.0 (up to 1.23 GHz), 1x PVA v2.0 |
| RAM | 16 GB LPDDR5 128-bit, 102.4 GB/s |
| Video encoding | 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265) |
| Video decoding | 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265) |
| Module power modes | 10 W, 15 W, 25 W, 40 W and MAXN |
| Storage | 128 GB NVMe in the M.2 Key M slot (PCIe) |
| Expansion slots | M.2 Key E for a WiFi and Bluetooth module, M.2 Key B for a 5G modem, SIM card slot, 5 antenna holes (modules and antennas not included) |
| Ethernet | 2x RJ45 1 Gb/s |
| USB | 6x USB 3.2 Type-A (5 Gb/s), 1x USB 3.0 Type-C (host, DisplayPort 1.4), 1x USB 2.0 Type-C (device mode, flashing and debugging) |
| Video output | DisplayPort 1.4 over USB Type-C |
| Cameras | GMSL2 board included: 1 4-in-1 mini-FAKRA connector, MAX96712 deserializer, 4 GMSL2 channels at 6 Gb/s, PoC camera power 12 V / 400 mA |
| CAN | 2 buses: CAN0 on 2 XT30(2+2) connectors together with power, CAN1 on 3 GH 1.25 mm 4-pin connectors; CAN FD support |
| UART and I2C | 1x UART and 2x I2C on GH 1.25 mm 4-pin connectors |
| Fan | 1x 4-pin 5 V PWM, 1x 4-pin 12 V PWM |
| Other | 2-pin RTC connector and CR1220 battery socket (battery not included), 3 LEDs (PWR, ACT, user), PWR and RESET buttons, REC switch |
| Power | 19-54 V DC via the XT30(2+2) connector, XT30 - DC 5.5 / 2.5 mm jack cable included |
| System | JetPack 6.2 (Jetson Linux 36.4.3) installed on the drive, JetPack 7.2 supported |
| Software | NVIDIA Isaac ROS, ROS 2 and ROS 1, Hugging Face, PyTorch |
| Operating temperature | -20 °C to 60 °C in 25 W mode, up to 55 °C in MAXN mode |
| Mounting | on a desk or on a wall |
| Dimensions | 130 x 120 x 66 mm |
| Certifications | CE, RoHS, FCC |
| Manufacturer code | 100026552 |
| Manufacturer | Seeed Studio |
