reComputer J401 Nano Bundle - Nvidia Jetson Orin Nano 8GB RAM + 256GB NVMe - without case - Seeedstudio 100088050
A Jetson to start with, with a power supply, WiFi and a 256 GB drive included: reComputer J401 Nano Bundle with a Jetson Orin Nano 8 GB module in Super mode.
- 67 TOPS and JetPack 6.2 on the NVMe drive
- HDMI 2.1, 4 USB 3.2 10 Gb/s ports and 2 MIPI CSI camera connectors
- Open board without a case, measuring 100 x 80.6 x 32.5 mm
We could not load the price.
The promotional price does not combine with quantity discounts.
Your first AI models on a Jetson right out of the box
reComputer J401 Nano Bundle is a developer kit with a Jetson Orin Nano 8 GB module, a power supply, a WiFi module with antennas and a 256 GB drive with the system. The module delivers 67 TOPS, or 67 trillion AI operations per second, in Super mode, which is unlocked by the preinstalled JetPack 6.2 (NVIDIA's system and AI library package).
The reComputer J401 board with a heatsink and fan has an Ethernet 1 Gb/s port, 4 USB 3.2 Type-A 10 Gb/s ports, HDMI 2.1, 2 MIPI CSI connectors, the ribbon-cable camera connectors, a 40-pin connector and a CAN connector. The manufacturer has prepared Jetson tutorials for beginners and Jetson-example projects, from which you can launch LeRobot, Ollama, Qwen and YOLO, among others, with a single command.

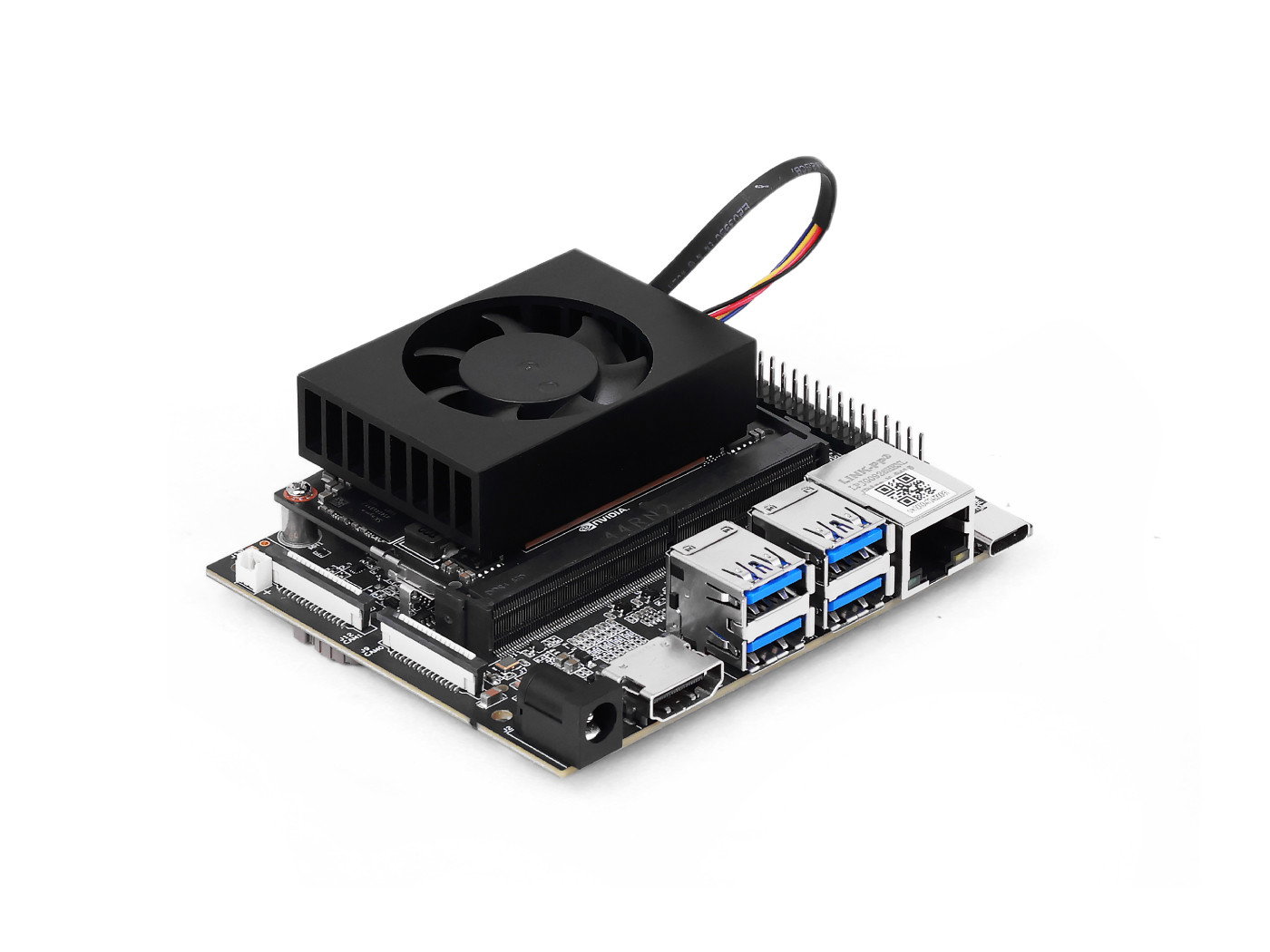

reComputer J401 Nano - board with fan and USB ports
67 TOPS
AI performance of the Jetson Orin Nano 8 GB module in Super mode
256 GB
NVMe drive with preinstalled JetPack 6.2
WiFi and Bluetooth
module with 2 antennas included
HDMI 2.1
video output for a monitor
What sets this model apart
Complete Jetson Orin Nano kit on a 100 x 80.6 mm board
The box includes a 19 V power supply, a WiFi and Bluetooth module with two antennas and a 256 GB drive with JetPack 6.2, so you can run your first AI models as soon as you connect the power supply. The 100 x 80.6 x 32.5 mm board is smaller than the board in the Super J401 NX Bundle (113.2 x 109 x 67 mm), so it is easier to fit into a small robot. Keep in mind that the Orin Nano 8 GB reaches 67 TOPS, so for larger models and many cameras the reComputer Super J401 NX Bundle with Orin NX 16 GB (157 TOPS) is a better choice.

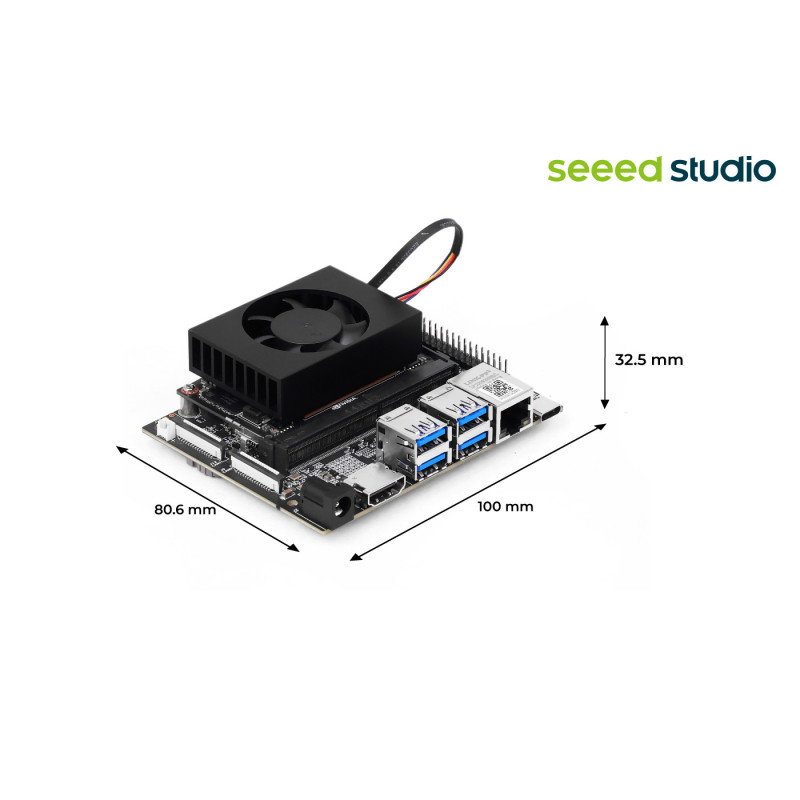

100 x 80.6 x 32.5 mm
board dimensions with heatsink (Super J401 NX Bundle: 113.2 x 109 x 67 mm)
25 W
max. module power mode, useful for battery power (Super J401 NX Bundle: 40 W)
10 Gb/s
USB 3.2 Type-A ports (Super J401 NX Bundle: 5 Gb/s)

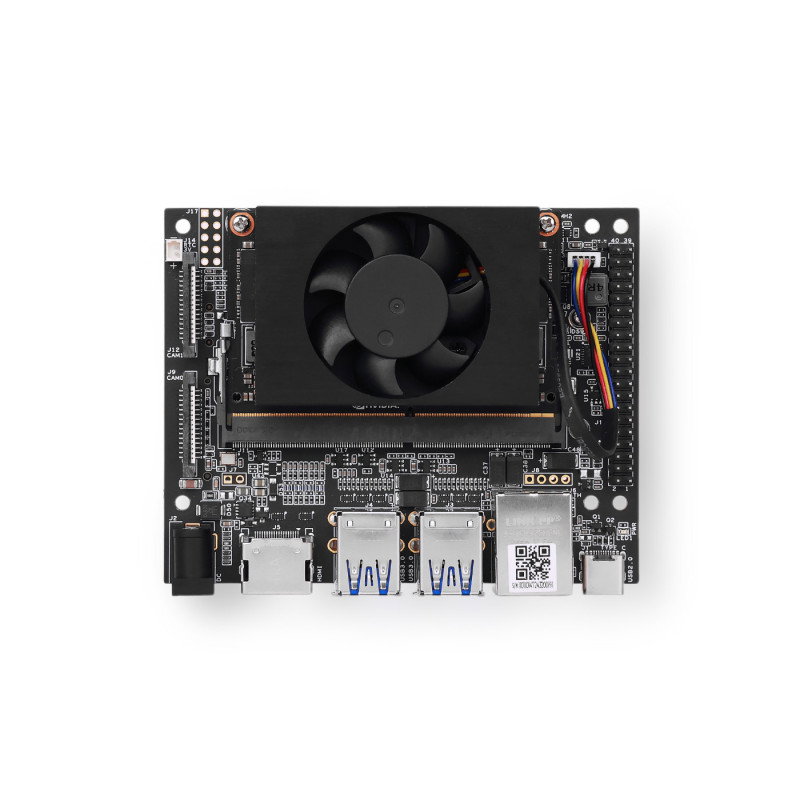

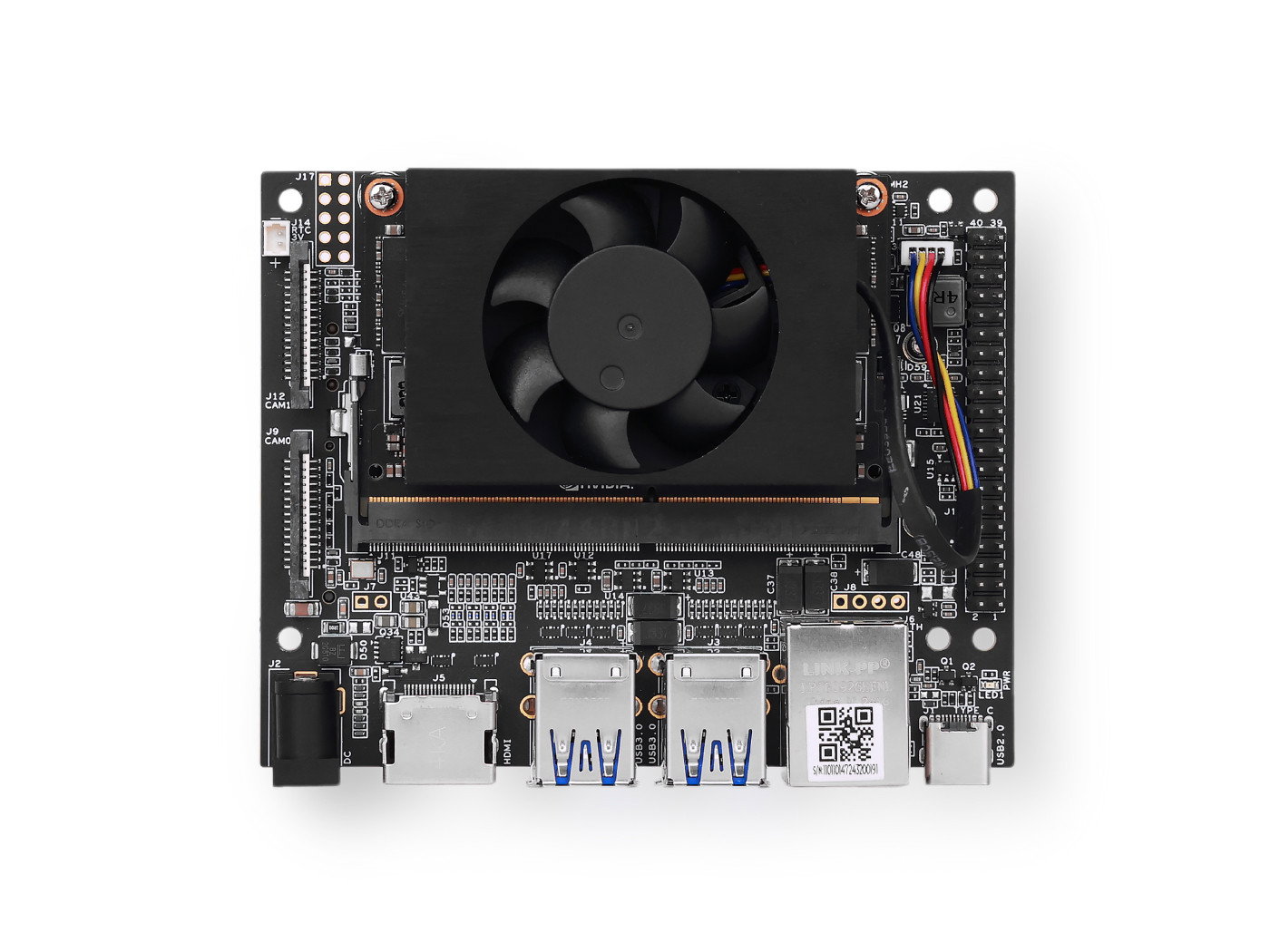

reComputer J401 Nano - top view
Video analytics and generative AI on a small board
The hardware video decoder handles up to 11 1080p30 streams or 1 4K60 stream at the same time, so the board is suited to analyzing video from several cameras, e.g. detecting objects with a YOLO model. With VLM models, which combine images with text, such as LLaVA, you can build an agent that describes and searches recordings based on natural-language commands.
The board measures 100 x 80.6 x 32.5 mm and sits on five copper standoffs from the set. It operates at temperatures from -10 °C to 60 °C, and the 7 W, 15 W and 25 W power modes let you match performance to your power supply and cooling.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if you:
- are starting with Jetson and want a kit that works as soon as you plug in the power supply
- are learning AI, building machine vision prototypes or testing small language models
- need HDMI, a 40-pin connector and MIPI CSI cameras on a compact board
Consider another option if you:
- need more performance and 16 GB RAM: see reComputer Super J401 NX Bundle
- prefer a computer from the reComputer Super series with the same Orin Nano 8 GB module: see reComputer Super J3011
Comparison of reComputer computers with Jetson Orin
| Robotics J4012 | Robotics J4012 + GMSL2 | Super J401 NX Bundle | J401 Nano Bundle | |
|---|---|---|---|---|
| Module | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin Nano 8 GB |
| AI performance in Super mode | 157 TOPS | 157 TOPS | 157 TOPS | 67 TOPS |
| Form factor | computer in a fan-cooled case | computer in a fan-cooled case | board with heatsink and fan, no case | board with heatsink and fan, no case |
| NVMe drive included | 128 GB | 128 GB | 256 GB | 256 GB |
| Power | 19-54 V DC, XT30(2+2) | 19-54 V DC, XT30(2+2) | 12-19 V DC, 5.5 / 2.5 mm jack | 9-19 V DC, 5.5 / 2.5 mm jack |
| Power supply included | no | no | yes, 19 V / 4.74 A | yes, 19 V / 4.74 A |
| WiFi and Bluetooth module included | no | no | yes, with 2 antennas | yes, with 2 antennas |
| Cameras | USB | 4x GMSL2 (board included) and USB | 4x MIPI CSI and USB | 2x MIPI CSI and USB |
| CAN | 2 buses, CAN FD | 2 buses, CAN FD | 1 connector (TTL, needs a transceiver) | 1 connector (TTL, needs a transceiver) |
| Ethernet 1 Gb/s | 2 ports | 2 ports | 2 ports | 1 port |
| USB Type-A ports | 6x USB 3.2, 5 Gb/s | 6x USB 3.2, 5 Gb/s | 4x USB 3.2, 5 Gb/s | 4x USB 3.2, 10 Gb/s |
| Video output | DisplayPort 1.4 over USB Type-C | DisplayPort 1.4 over USB Type-C | HDMI 2.1 | HDMI 2.1 |
| 40-pin connector | no | no | yes | yes |
| Modem slot | M.2 Key B (5G) | M.2 Key B (5G) | mini-PCIe (LTE 4G) | no |
| Dimensions | 130 x 120 x 66 mm | 130 x 120 x 66 mm | 113.2 x 109 x 67 mm | 100 x 80.6 x 32.5 mm |
| See | Robotics J4012 | Robotics J4012 + GMSL2 | Super J401 NX Bundle | this page |
Did you know
Up to 80 times faster than Jetson Nano
NVIDIA states that Jetson Orin Nano modules, even at 40 TOPS, offered up to 80 times the AI performance of the first Jetson Nano. Super mode with JetPack 6.2 raises the performance of the Orin Nano 8 GB to 67 TOPS.
Source: NVIDIA: Jetson Orin family (EN)
Frequently asked questions
What does Super mode add?
Super mode, unlocked by JetPack 6.2, raises the performance of the Jetson Orin Nano 8 GB module from 40 to 67 TOPS and adds a 25 W power mode. The change is software only, and the hardware stays the same.
Does the board have a case?
No. It is an open board with a heatsink and fan measuring 100 x 80.6 x 32.5 mm that you place on the copper standoffs from the set.
Which cameras can I connect?
The board has 2 MIPI CSI connectors (2 lanes, 15-pin), and the manufacturer's wiki lists cameras from the IMX219 and IMX477 families. You can also connect USB cameras to the USB 3.2 ports.
Does it have a video encoder?
No. The module has no hardware encoder, a chip that compresses video, so 1080p30 recording is encoded by 1-2 CPU cores. The hardware decoder handles up to 1 4K60 stream or 11 1080p30 streams.
How do I reinstall the system?
The manufacturer's wiki has JetPack 6.2 and 7.2 images. You need a computer with Ubuntu and a USB Type-C cable, which is not included, and you enable recovery mode by shorting the FC REC and GND pins on the 12-pin connector with a jumper.

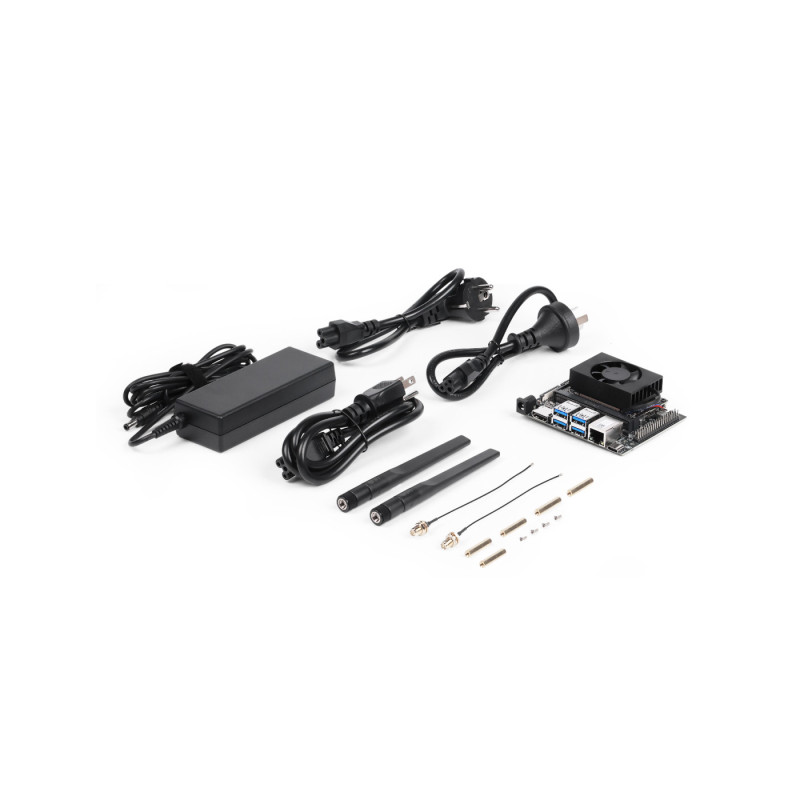

What's in the box
- 1 x reComputer J401 carrier board
- 1 x NVIDIA Jetson Orin Nano 8 GB module
- 1 x 256 GB NVMe drive with the system
- 1 x Heatsink with fan
- 1 x WiFi and Bluetooth module
- 2 x WiFi antenna
- 1 x 19 V / 4.74 A power supply with a 5.5 / 2.5 mm plug
- 3 x Power cable with a US, EU or CN plug
- 5 x Copper standoff
- 5 x Screw
The case, cameras, HDMI cable and USB Type-C cable are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | developer kit: reComputer J401 board with module, heatsink and fan, no case |
| Module | NVIDIA Jetson Orin Nano 8 GB (Super mode) |
| AI performance | 67 TOPS (INT8 sparse, Super mode) |
| CPU | 6-core Arm Cortex-A78AE, up to 1.7 GHz, 1.5 MB L2 + 4 MB L3 |
| GPU | NVIDIA Ampere, 1024 CUDA cores, 32 Tensor cores, up to 1020 MHz |
| RAM | 8 GB LPDDR5 128-bit, 102 GB/s |
| Video encoding | 1080p30 in software, on 1-2 CPU cores |
| Video decoding | 1x 4K60, 2x 4K30, 5x 1080p60, 11x 1080p30 (H.265) |
| Module power modes | 7 W, 15 W, 25 W (Super) |
| Storage | 256 GB NVMe M.2 2280 in the M.2 Key M slot, with the system |
| Wireless connectivity | WiFi and Bluetooth module in the M.2 Key E slot, 2 antennas |
| Ethernet | 1x RJ45 1 Gb/s |
| USB | 4x USB 3.2 Type-A (10 Gb/s), 1x USB 2.0 Type-C (device mode) |
| Video output | 1x HDMI 2.1 |
| Cameras | 2x MIPI CSI (2 lanes, 15-pin) |
| CAN | 1 connector, TTL/CMOS signals, needs an external transceiver |
| GPIO | 40-pin connector, control connector and 12-pin UART |
| Fan | 1x 4-pin 1.25 mm 5 V PWM |
| Other | 2-pin RTC connector and CR1220 battery socket (battery not included) |
| Power | 9-19 V DC, 5.5 / 2.5 mm jack; 19 V / 4.74 A power supply included |
| System | JetPack 6.2 installed on the drive, JetPack 7.2 supported |
| Software | NVIDIA Isaac, Hugging Face, ROS 2 and ROS 1 |
| Operating temperature | -10 °C to 60 °C |
| Mounting | on a desk, on the standoffs from the set |
| Dimensions | 100 x 80.6 x 32.5 mm |
| Weight | 168 g |
| Certifications | CE, RoHS, FCC |
| Manufacturer code | 100088050 |
| Manufacturer | Seeed Studio |
