reComputer Super J401 NX Bundle - Nvidia Jetson Orin NX 16GB RAM + 256GB NVMe - without case - Seeedstudio 100029661
Jetson Orin NX 16 GB with a power supply, WiFi and a 256 GB drive in one kit: reComputer Super J401 NX Bundle is an open developer board without a case.
- 157 TOPS in MAXN Super mode and JetPack 6.2 on the drive
- 4 MIPI CSI camera connectors, HDMI 2.1 and 2 Ethernet ports
- 40-pin connector, CAN and a mini-PCIe slot for an LTE modem
We could not load the price.
The promotional price does not combine with quantity discounts.
Jetson Orin NX 16 GB ready to work right out of the box
reComputer Super J401 NX Bundle is a developer kit with a Jetson Orin NX 16 GB module, a power supply, a WiFi module with antennas and a 256 GB drive with the system. The module delivers up to 157 TOPS, or 157 trillion AI operations per second, in MAXN Super mode, which is unlocked by the preinstalled JetPack 6.2 (NVIDIA's system and AI library package).
It is the open reComputer Super J401 board with a heatsink and fan, without a case, the same one that runs the reComputer Super J4012. It has 2 Ethernet 1 Gb/s ports, 4 USB 3.2 ports, HDMI 2.1, 4 MIPI CSI connectors, the ribbon-cable camera connectors, a 40-pin connector and a mini-PCIe slot for an LTE 4G modem.

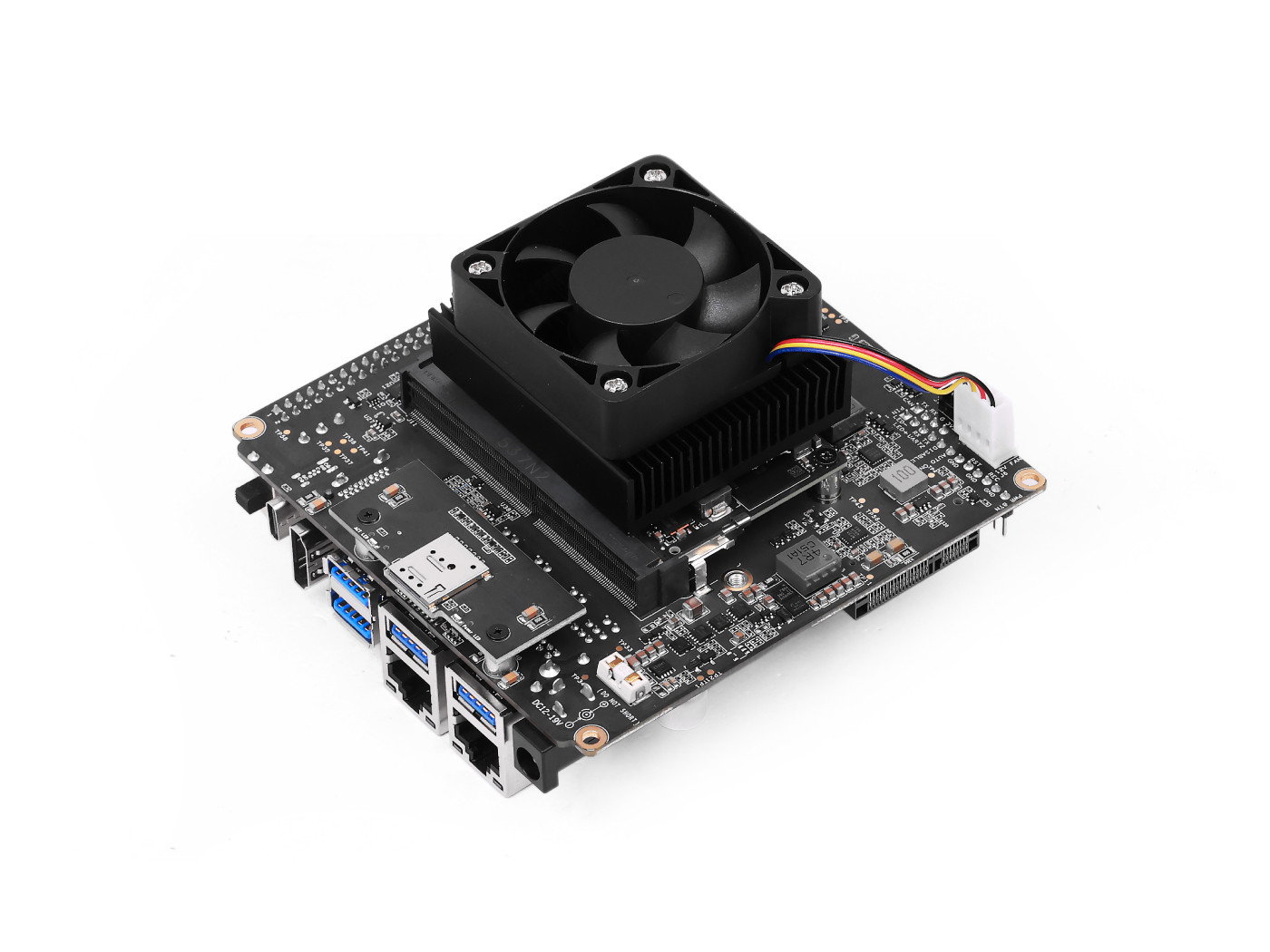

reComputer Super J401 NX - module with fan on the carrier board
157 TOPS
AI performance of the Jetson Orin NX 16 GB module in MAXN Super mode
HDMI 2.1
video output for a monitor
4x MIPI CSI
camera connectors, 2 lanes, 15-pin
2x Ethernet
1 Gb/s RJ45 ports
What sets this model apart
Power supply, WiFi and a 256 GB drive in the box with the Orin NX board
The set includes everything you need for the first start: a 19 V power supply with three mains cables, a WiFi and Bluetooth module with antennas and a drive with the system. Keep in mind that the board has no case, so for work in a workshop, in a vehicle or in a dusty place a computer in an aluminum case is a better fit.
256 GB
NVMe drive with the system included (reComputer Super J4012: 128 GB)
19 V / 4.74 A
power supply included (reComputer Super J4012: no power supply)
2 antennas
included with the WiFi and Bluetooth module in the M.2 Key E slot (reComputer Super J4012: slot without a module)
reComputer Super series with MAXN mode
The video shows the reComputer Super series with Jetson Orin NX and Orin Nano modules running in Super / MAXN mode.
Video: the manufacturer's official YouTube channel.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.

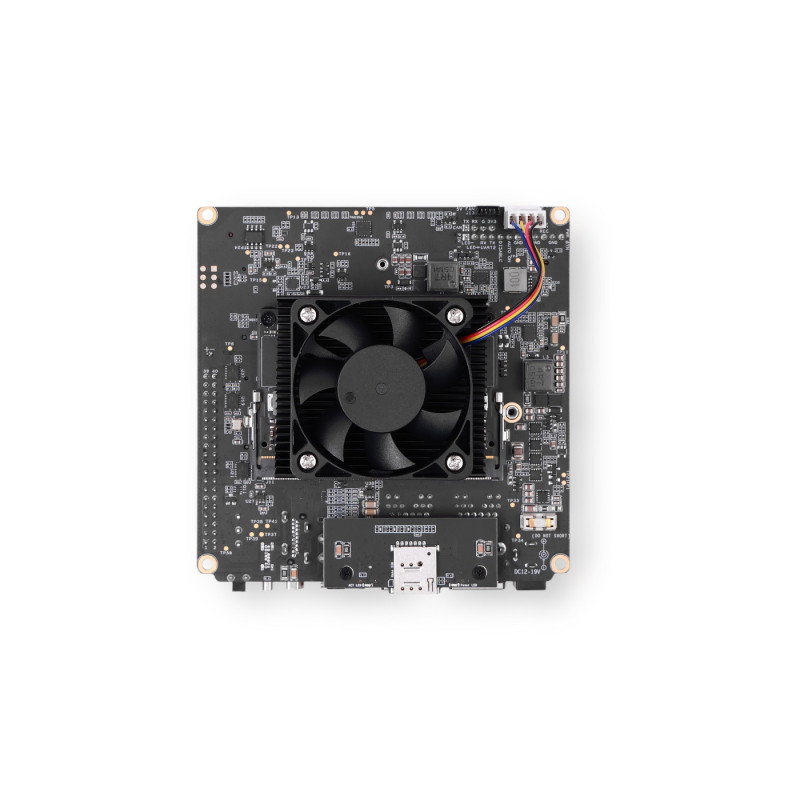

reComputer Super J401 NX - top view
A board for your own case and many cameras
With up to 4 MIPI CSI or USB cameras you can build a surround view of a robot or vehicle, and the module processes several video streams at once. The 40-pin connector gives access to GPIO, programmable digital inputs and outputs, and the CAN connector with TTL/CMOS logic levels connects to motor controllers once you add a transceiver, a chip that adapts the signal to a standard bus.

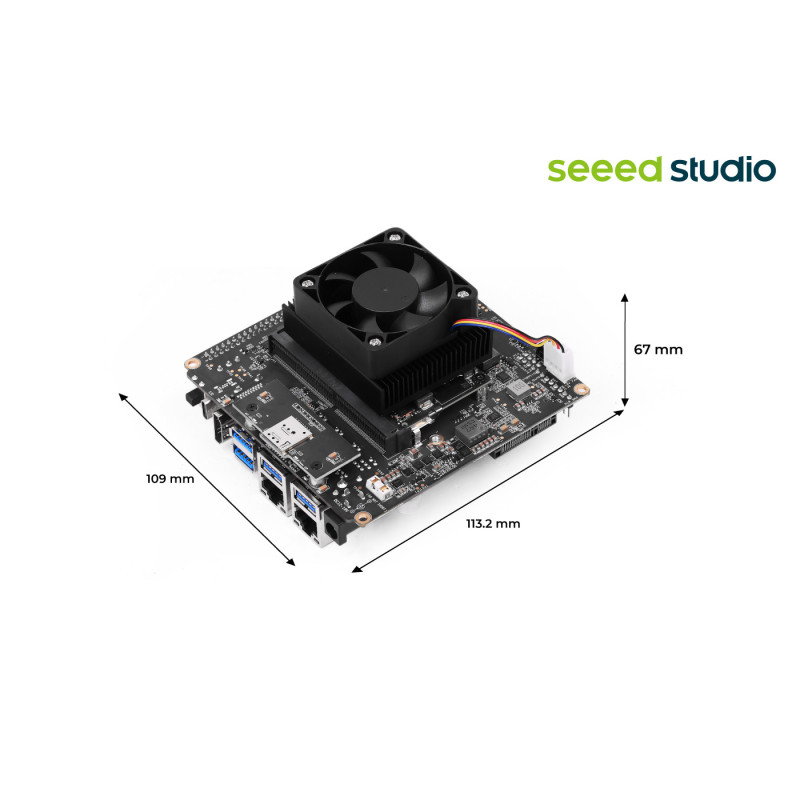

The board measures 113.2 x 109 x 67 mm and sits on five copper standoffs from the set, so it is easy to mount in your own enclosure or device. It operates at temperatures from -20 °C to 50 °C in 40 W mode, and power modes from 10 W to 40 W let you match performance to your power supply.
Is it the right choice for you?
A good choice if you:
- want to start right away, because the power supply, WiFi and a drive with the system are included
- are building the board into your own case, robot or device
- need 4 MIPI CSI cameras, HDMI and a 40-pin connector
Consider another option if you:
- need a computer in an enclosed case with the same board: see reComputer Super J4012
- are building a robot powered from a 19 V to 54 V battery with two CAN buses: see reComputer Robotics J4012
Comparison of reComputer computers with Jetson Orin
| Super J401 NX Bundle | Super J4012 | J401 Nano Bundle | Robotics J4012 | |
|---|---|---|---|---|
| Module | Jetson Orin NX 16 GB | Jetson Orin NX 16 GB | Jetson Orin Nano 8 GB | Jetson Orin NX 16 GB |
| AI performance in Super mode | 157 TOPS | 157 TOPS | 67 TOPS | 157 TOPS |
| Form factor | board with heatsink and fan, no case | computer in a fan-cooled case | board with heatsink and fan, no case | computer in a fan-cooled case |
| NVMe drive included | 256 GB | 128 GB | 256 GB | 128 GB |
| Power | 12-19 V DC, 5.5 / 2.5 mm jack | 12-19 V DC, 5.5 / 2.5 mm jack | 9-19 V DC, 5.5 / 2.5 mm jack | 19-54 V DC, XT30(2+2) |
| Power supply included | yes, 19 V / 4.74 A | no | yes, 19 V / 4.74 A | no |
| WiFi and Bluetooth module included | yes, with 2 antennas | no | yes, with 2 antennas | no |
| Cameras | 4x MIPI CSI and USB | 4x MIPI CSI and USB | 2x MIPI CSI and USB | USB |
| CAN | 1 connector (TTL, needs a transceiver) | 1 connector (TTL, needs a transceiver) | 1 connector (TTL, needs a transceiver) | 2 buses, CAN FD |
| Ethernet 1 Gb/s | 2 ports | 2 ports | 1 port | 2 ports |
| USB Type-A ports | 4x USB 3.2, 5 Gb/s | 4x USB 3.2, 5 Gb/s | 4x USB 3.2, 10 Gb/s | 6x USB 3.2, 5 Gb/s |
| Video output | HDMI 2.1 | HDMI 2.1 | HDMI 2.1 | DisplayPort 1.4 over USB Type-C |
| 40-pin connector | yes | yes | yes | no |
| Modem slot | mini-PCIe (LTE 4G) | mini-PCIe (LTE 4G) | no | M.2 Key B (5G) |
| Dimensions | 113.2 x 109 x 67 mm | 130 x 120 x 66 mm | 100 x 80.6 x 32.5 mm | 130 x 120 x 66 mm |
| See | this page | Super J4012 | J401 Nano Bundle | Robotics J4012 |
Did you know
Up to 5 times faster than Xavier NX
NVIDIA states that even in its original 100 TOPS specification the Jetson Orin NX was up to 5 times faster than the Jetson Xavier NX. Super mode with JetPack 6.2 raises the performance of the Orin NX 16 GB module to 157 TOPS.
Source: NVIDIA: Jetson Orin family (EN)
Frequently asked questions
Does the board have a case?
No. It is an open board with a heatsink and fan that you place on the copper standoffs from the set. The same board in an aluminum case is used by the reComputer Super J4012.
How many cameras can I connect?
The board has 4 MIPI CSI connectors (2 lanes, 15-pin), and the manufacturer also provides for working with 4 USB cameras, e.g. for a surround view of a robot.
Can I add an LTE modem?
Yes. The mini-PCIe slot takes a 4G LTE module, and the board has a SIM card slot. The LTE module is not included.
Can I connect the CAN connector directly to a CAN bus?
No. The CAN connector outputs signals at TTL/CMOS levels, so a standard CAN bus needs an external transceiver. The board supports CAN FD frames.
Can I upgrade the drive?
Yes. You can replace the NVMe M.2 2280 drive in the M.2 Key M slot with a larger one, and the manufacturer lists tested drives for the series from 128 GB to 2 TB. After replacing it you need to install the system from a JetPack image from the manufacturer's wiki.

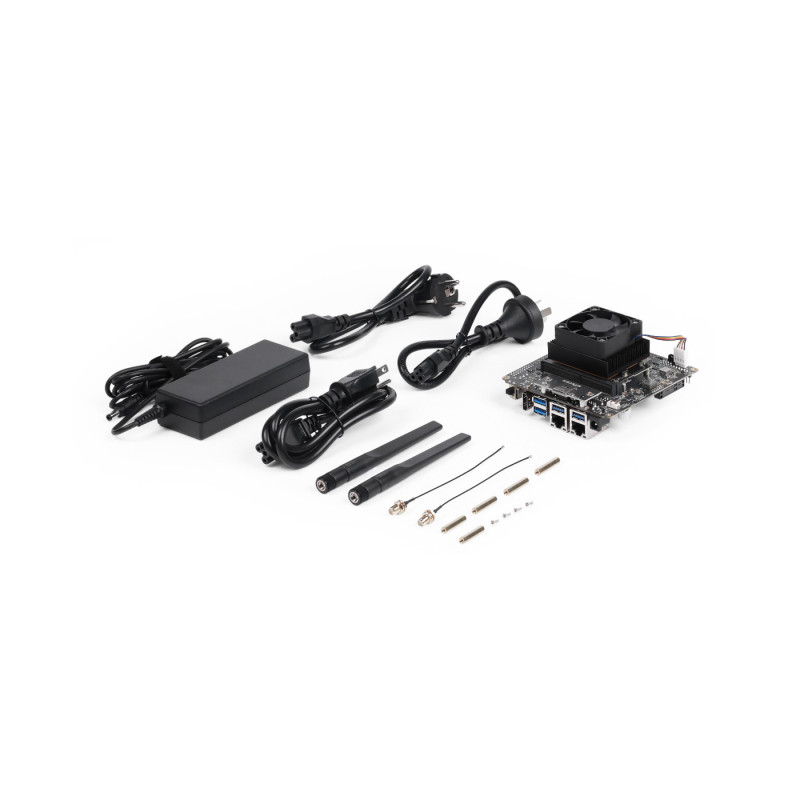

What's in the box
- 1 x reComputer Super J401 carrier board
- 1 x NVIDIA Jetson Orin NX 16 GB module
- 1 x 256 GB NVMe drive with the system
- 1 x Heatsink with fan
- 1 x WiFi and Bluetooth module
- 2 x WiFi antenna
- 1 x 19 V / 4.74 A power supply with a 5.5 / 2.5 mm plug
- 3 x Power cable with a US, EU or CN plug
- 5 x Copper standoff
- 5 x M3 screw
The case, cameras, LTE modem and USB Type-C cable are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | developer kit: reComputer Super J401 board with module, heatsink and fan, no case |
| Module | NVIDIA Jetson Orin NX 16 GB |
| AI performance | up to 157 TOPS (INT8 sparse, MAXN Super mode) |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit, up to 2 GHz, 2 MB L2 + 4 MB L3 |
| GPU | NVIDIA Ampere, 1024 CUDA cores, 32 Tensor cores, up to 1173 MHz |
| Accelerators | 2x NVDLA v2.0 (up to 1.23 GHz), 1x PVA v2.0 |
| RAM | 16 GB LPDDR5 128-bit, 102.4 GB/s |
| Video encoding | 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265) |
| Video decoding | 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265) |
| Module power modes | 10 W, 15 W, 25 W, 40 W |
| Storage | 256 GB NVMe M.2 2280 in the M.2 Key M slot, with the system |
| Wireless connectivity | WiFi and Bluetooth module in the M.2 Key E slot, 2 antennas |
| Cellular network | mini-PCIe slot for a 4G LTE module (module not included), SIM card slot |
| Ethernet | 2x RJ45 1 Gb/s |
| USB | 4x USB 3.2 Type-A (5 Gb/s), 1x USB 2.0 Type-C (device mode, debugging) |
| Video output | 1x HDMI 2.1 |
| Cameras | 4x MIPI CSI (2 lanes, 15-pin) |
| CAN | 1 4-pin connector, TTL/CMOS signals, needs an external transceiver, CAN FD frame support |
| GPIO | 40-pin connector, control connector and 12-pin UART |
| Fan | 1x 4-pin 1.25 mm 5 V PWM, 1x 4-pin 2.54 mm 12 V PWM |
| Other | 2-pin RTC connector and battery socket, 2 LEDs (PWR, ACT), PWR and RESET buttons, REC switch |
| Power | 12-19 V DC, 5.5 / 2.5 mm jack; 19 V / 4.74 A power supply included |
| System | JetPack 6.2 installed on the drive, JetPack 7.2 supported |
| Software | NVIDIA Isaac, Hugging Face, ROS 2 and ROS 1, ONNX, PyTorch |
| Operating temperature | -20 °C to 50 °C in 40 W mode |
| Mounting | on a desk, on the standoffs from the set |
| Dimensions | 113.2 x 109 x 67 mm |
| Certifications | CE, RoHS, FCC |
| Manufacturer code | 100029661 |
| Manufacturer | Seeed Studio |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 19.0 V |
| UC - Core | Cortex A78AE |
| UC - RAM | 16 GB |
| UC - core | 8. Octa Core |
| UC - Digital pins | 40 |
| UC - External memory | SSD 256 GB |
| UC - freq | 2.0 GHz |
| UC - Ethernet | yes |
| UC - WiFi | yes |
| UC - USB | 4x USB |
| UC - Bluetooth | yes |
| UC - HDMI | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
| UC - Camera interface | yes |
| UC - Linux | yes |
| UC - CAN interface | yes |
| Weight | 0.95 kg |
