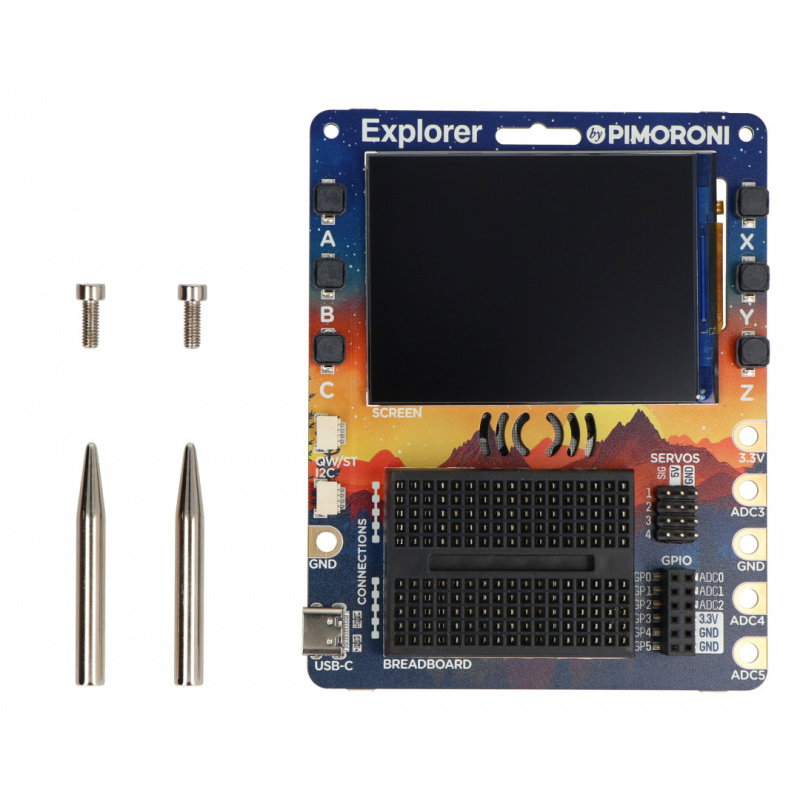

PiMoroni Explorer - development board with RP2350B module and 2,8'' LCD display + accessories - PiMoroni PIM744
PiMoroni Explorer is a modern and versatile educational board that allows you to easily experiment with electronics, build robots and develop programming skills. It has been designed with beginners and advanced users in mind, offering a rich set of features in a compact form. The module is based on the dual-core RP2350B microcontroller. You can easily control servos , sensors , and experiment with GPIO systems and the I2C interface .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description:PiMoroni Explorer - development board with RP2350B module and 2.8'' LCD display + accessories - PiMoroni PIM744
PiMoroni Explorer is a modern and versatile educational board that allows you to easily experiment with electronics, build robots and develop programming skills. It has been designed with beginners and advanced users in mind, offering a rich set of features in a compact form. The module is based on the dual-core RP2350B microcontroller , which provides performance and versatility in designing interactive applications. The Explorer is equipped with a 2.8-inch LCD display , speaker , mini breadboard and various connectors and terminals , allowing you to connect a wide range of electronic components. You can easily control servos , sensors , and experiment with GPIO systems and the I2C interface . The set also includes accessories such as servos , buttons , potentiometer and jumper cables.
PiMoroni Explorer - development board with RP2350B module and 2.8'' LCD display + accessories - PiMoroni PIM744.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
PiMoroni Explorer is an educational board that allows you to easily experiment with electronics, build robots, and develop programming skills.
PiMoroni Explorer Special Features
- RP2350B microcontroller - provides high computing performance
- 16 MB QSPI Flash Memory - enables fast application startup with Execute-in-Place (XiP) support
- Easy communication and programming - USB Type-C connector for convenient code transfer and board power supply
- Built-in mini breadboard - enables quick prototyping without the need for soldering

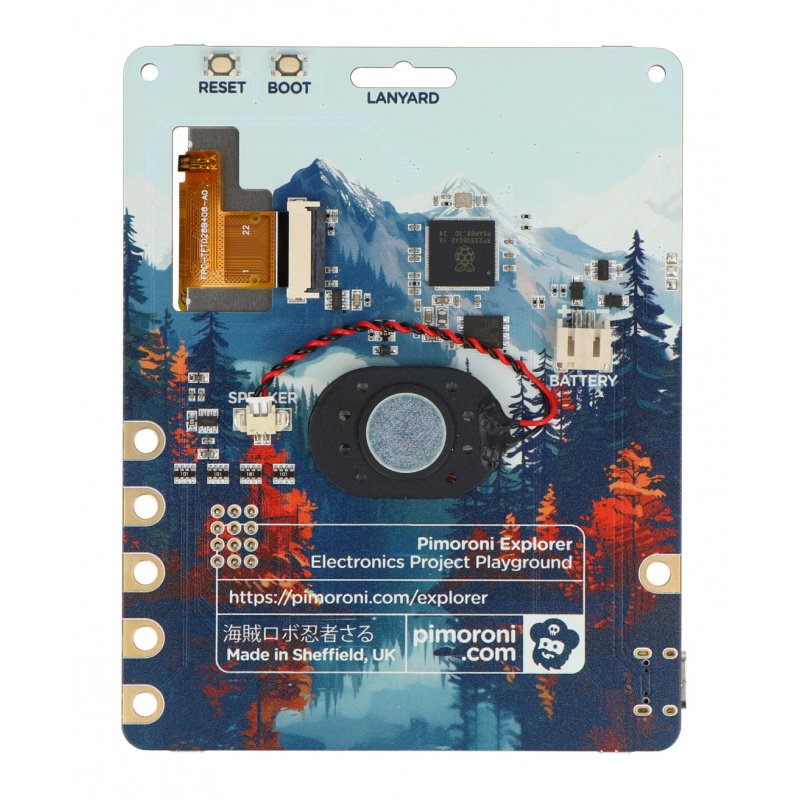

- Sound system - piezoelectric speaker allows you to play sound signals in interactive projects
- Control buttons - 6 user buttons and additional reset and boot buttons for convenient system operation
- Terminals for crocodile leads - 6 connectors for connecting crocodile leads, including 3 for ADC and 3.3V power supply and ground
- Servo support - 4 dedicated PWM outputs for connecting and controlling servos
- Battery powered - 2-pin JST-PH connector, enabling connection of a battery for mobile operation
PiMoroni Explorer Practical Applications
Thanks to its rich capabilities, Pimoroni Explorer is perfect for a variety of projects:
- Education: A great tool for learning the basics of electronics and programming in languages such as Python and MicroPython
- Electronics prototyping: the ability to experiment without soldering
- Servo Control: Simplify Robot, Interactive Mechanism, and IoT Projects
- Experiment with sound and multimedia: With its built-in speaker and LCD screen, the Explorer is suitable for audiovisual applications
- Creating smart devices: the ability to connect I2C sensors and accessories opens the way to building automation systems
The board was designed with both beginners and advanced users in mind, offering a rich set of features in a compact form.

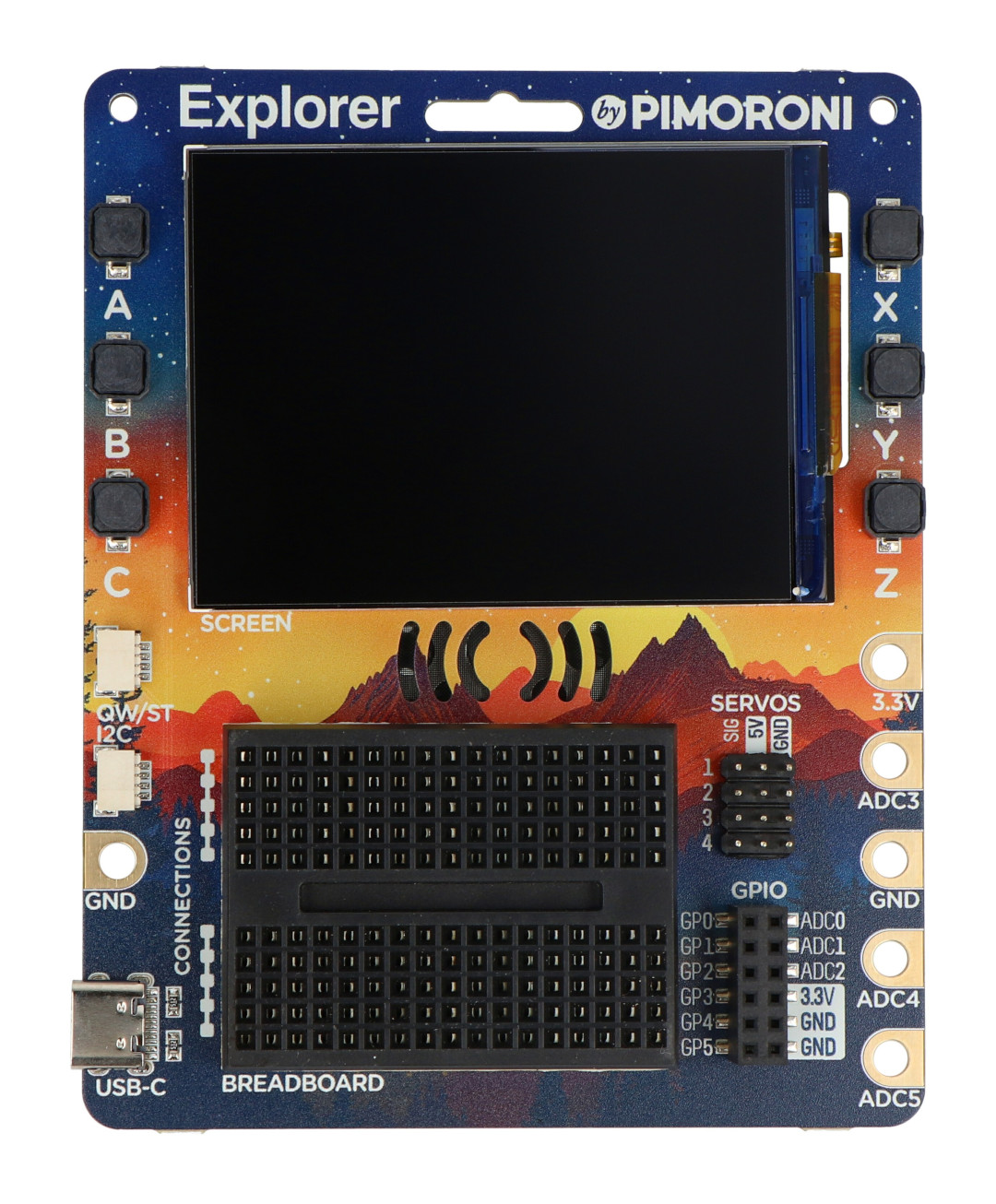

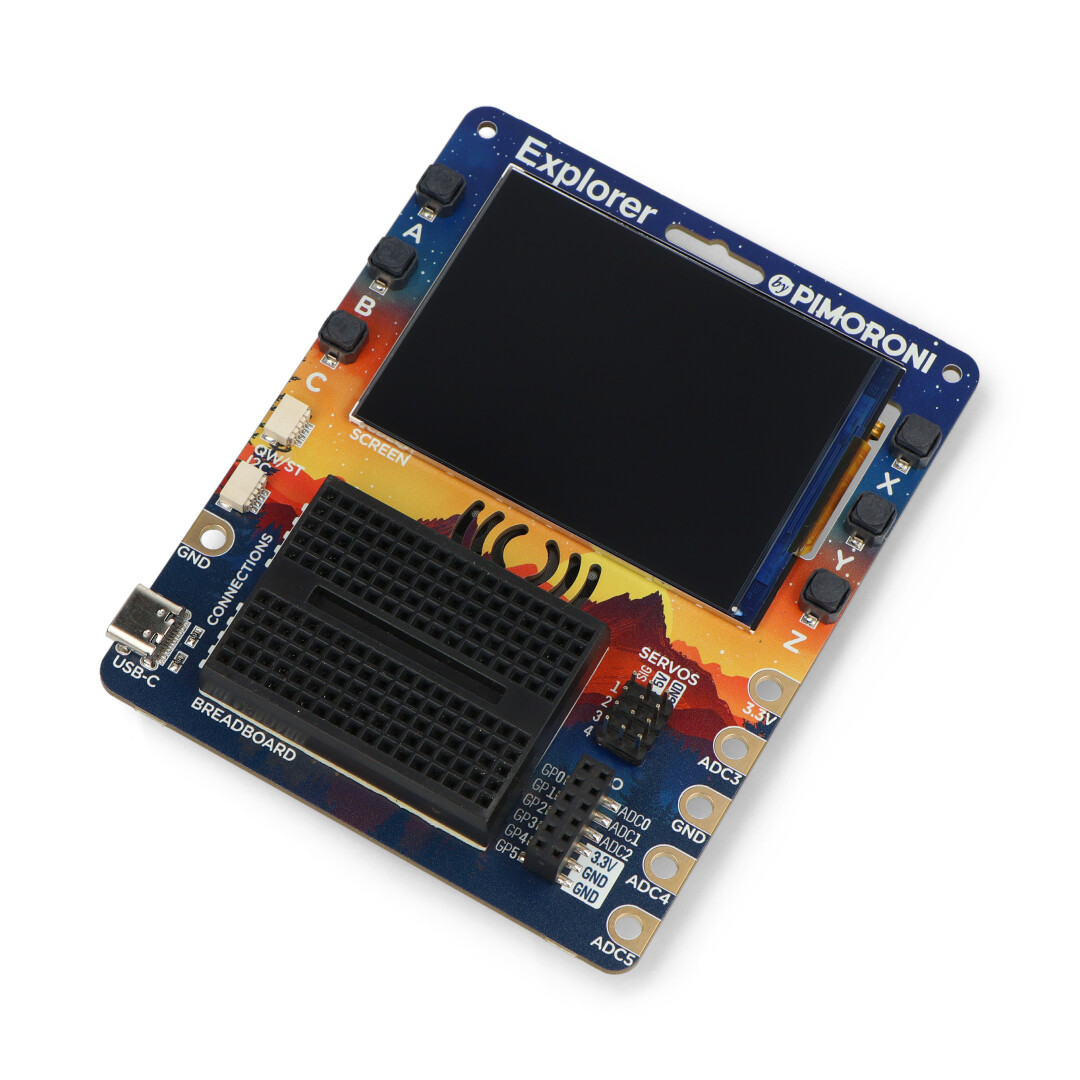

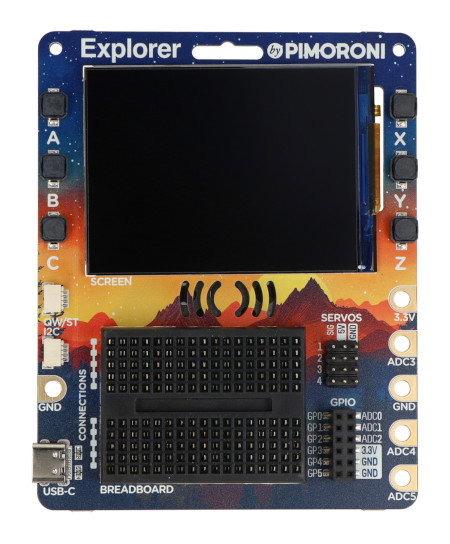

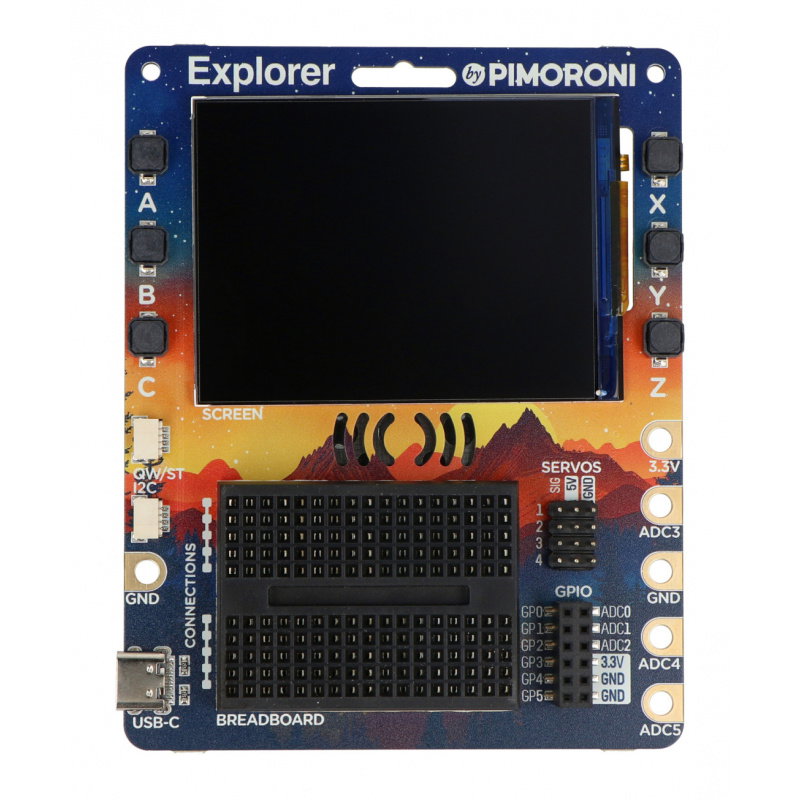

The Explorer is equipped with a 2.8-inch LCD display, speaker, mini breadboard, and various connectors and terminals.
Technical specification of the board
- Microcontroller: RP2350B
- Processor: Dual-core Arm Cortex M33
- Clock speed: up to 150 MHz
- SRAM memory: 520 KB
- Flash Memory: 6 MB QSPI with Execute-in-Place (XiP) support
- Screen: LCD IPS
- Diagonal: 2.8 inches
- Resolution: 320 x 240 px
- Brightness: 250 cd/m²
- Connectors and interfaces:
- USB Type-C port
- Qw/ST connectors: two ports for I2C modules
- GPIO: 6 common outputs, 3 analog inputs (ADC), 3.3 V power supply, ground (GND)
- Alligator clips: 6 terminals, 3 ADC inputs, 3.3V power supply, Ground (GND)
- Servo Control: 4 x 3-pin PWM outputs
- Speaker: piezoelectric
- Buttons: 6 user buttons, reset, boot
- Power supply:
- Battery Connector: 2-pin JST-PH
- Powered by USB Type-C
- Programming language: C/C++ or MicroPython
- Dimensions: 107 x 85 x 16 mm

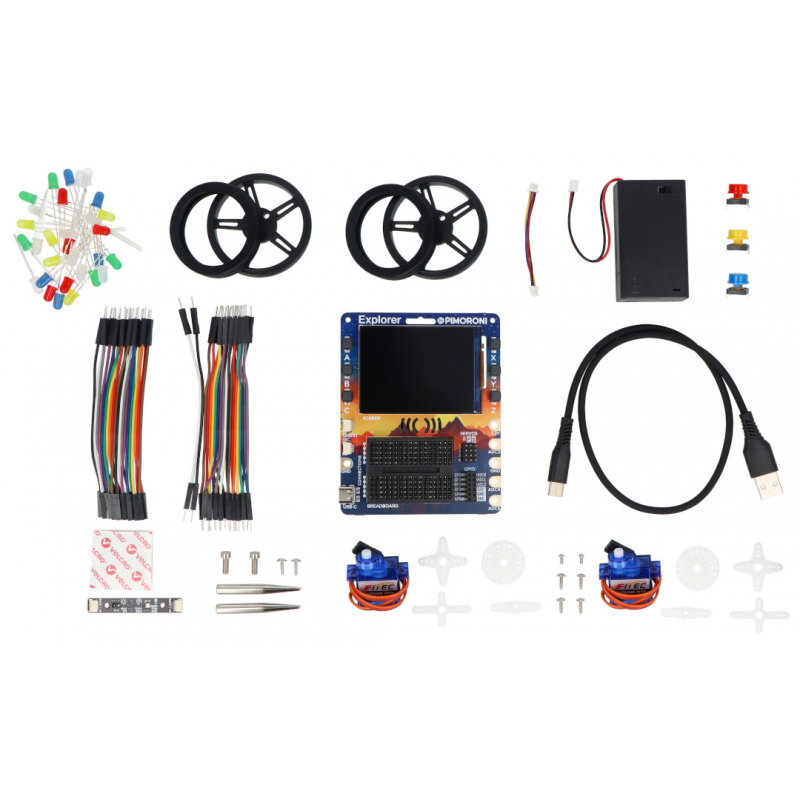

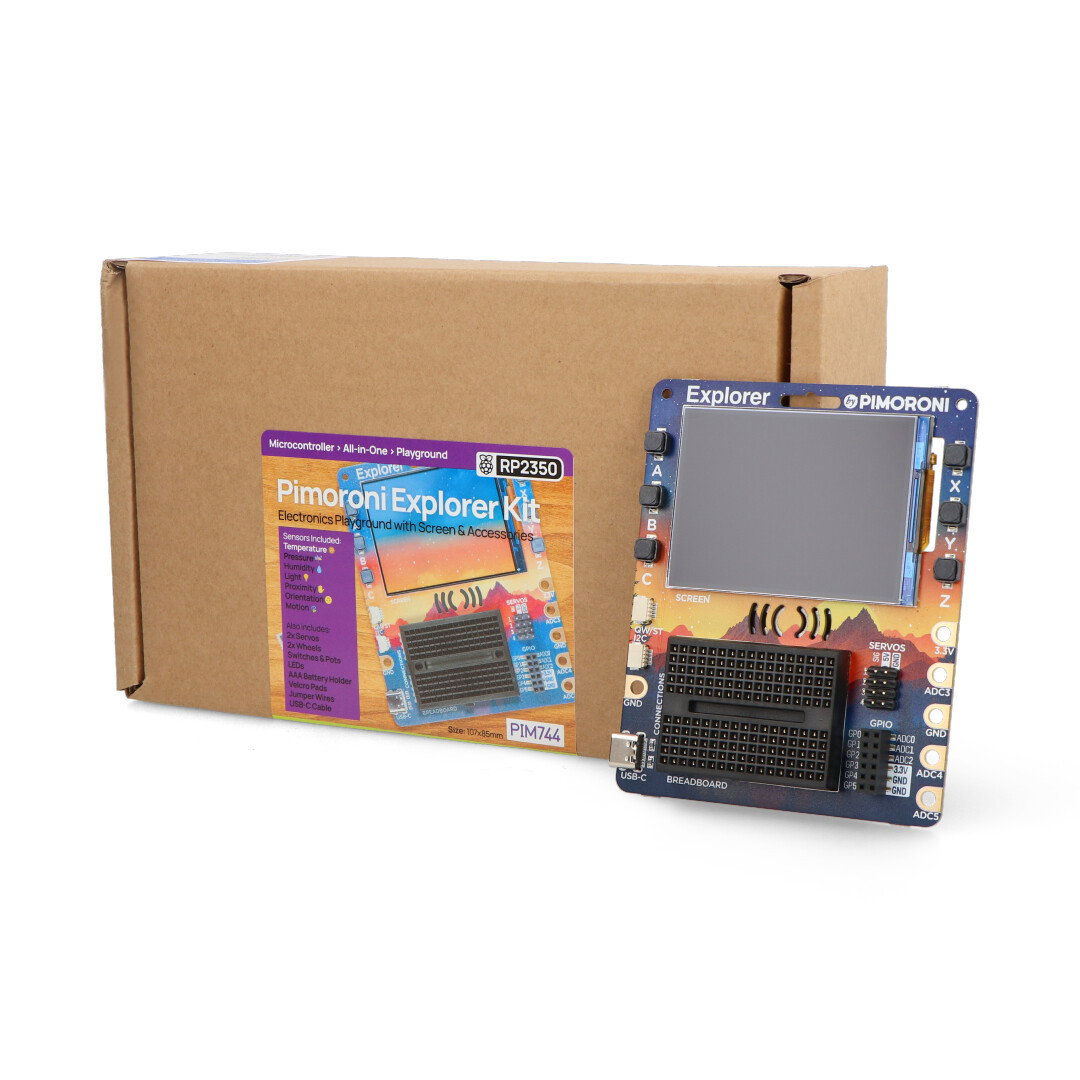

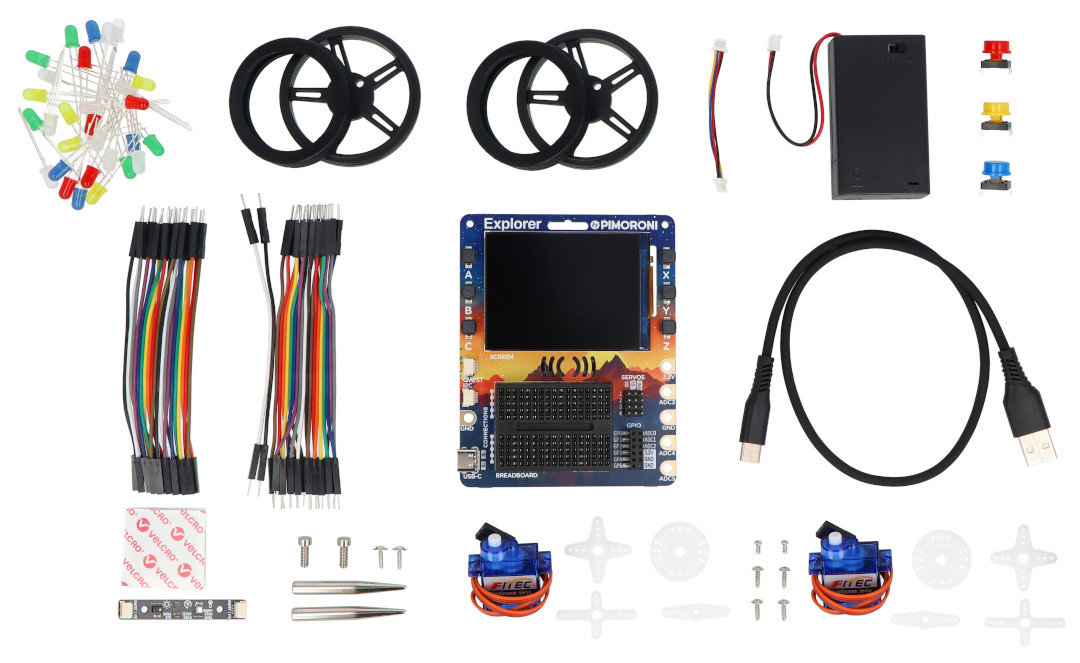

Kit Contents
- Pimoroni Explorer Tile
- Multi-Sensor Stick - sensor module (BME280 + LTR559 + LSM6DS3) for measuring environment, light and movement
- Set of LEDs in different colors (red, yellow, green, blue, white, RGB)
- Potentiometer
- 3x 12mm button with colored caps
- 2x Continuous Rotation Servo
- 2x 60mm servo wheel
- AAA battery holder (batteries not included)
- Velcro for attaching the battery holder
- 20x Male-Male Jumper Cables
- 20x male-female jumper wires
- Qw/ST cable for connecting the Multi-Sensor Stick
- USB Type-C Silicone Programming and Power Cable

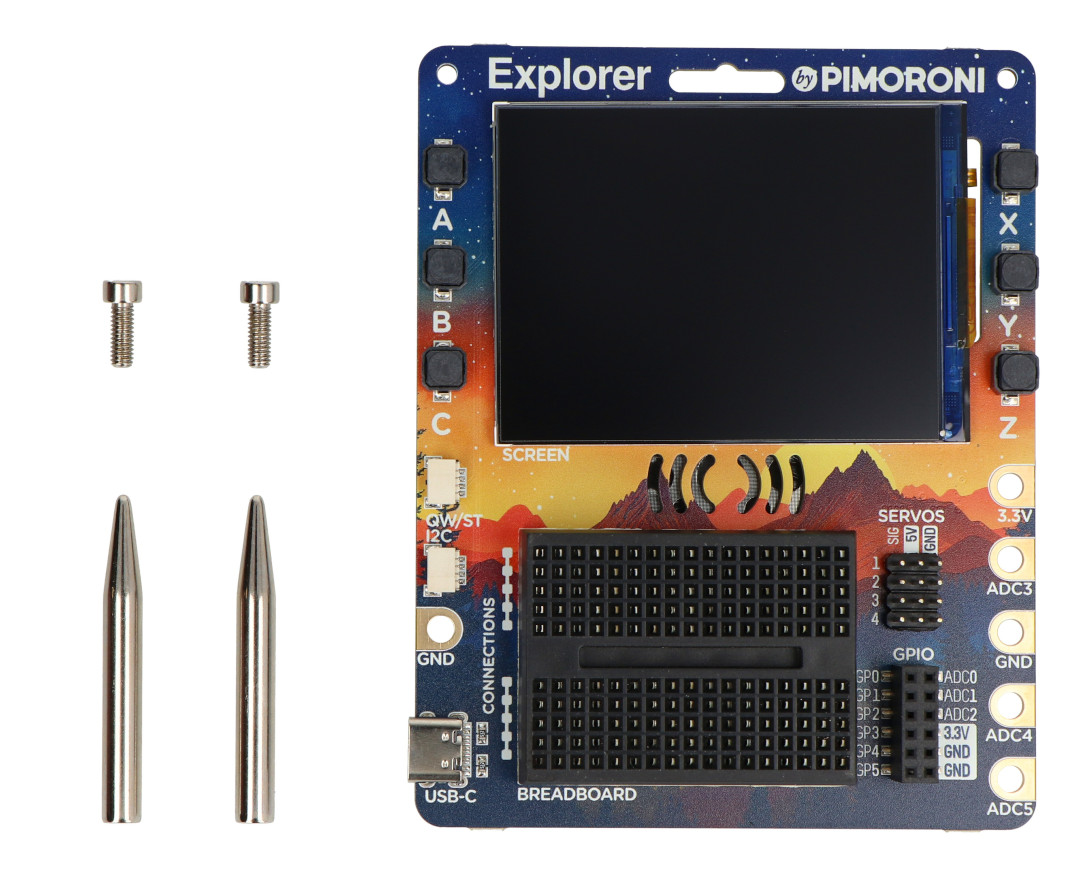

- Metal legs
You can easily control servos, sensors, and also experiment with GPIOs and the I2C interface.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 2.8'' |
| Screen - resolution | 320x240px |
| UC - Microcontroller | RP2350 |
| UC - Core | Cortex M33 |
| UC - Flash | 16 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| UC - USB | USB C |
| UC - I2C | yes |
| Width | 23 cm |
| Height | 13.4 cm |
| Depth | 6 cm |
| Weight | 0.28 kg |
