Product description: RP2350-Tiny-Kit - miniature RP2350A development board with USB adapter and FPC cable - Waveshare 29394
The RP2350-Tiny is a compact development board based on the Raspberry Pi RP2350A microcontroller , combining two Arm Cortex-M33 cores and two Hazard 3 RISC-V cores with a maximum clock speed of 150 MHz . With 520 kB of SRAM and 4 MB of Flash, it enables the implementation of complex projects and advanced applications. The module's surface-mount (SMD) pinout allows for easy mounting on carriers, making it suitable for embedded applications. The RP2350-Tiny supports C/C++ and MicroPython , and available libraries enable quick start-up and integration into projects.

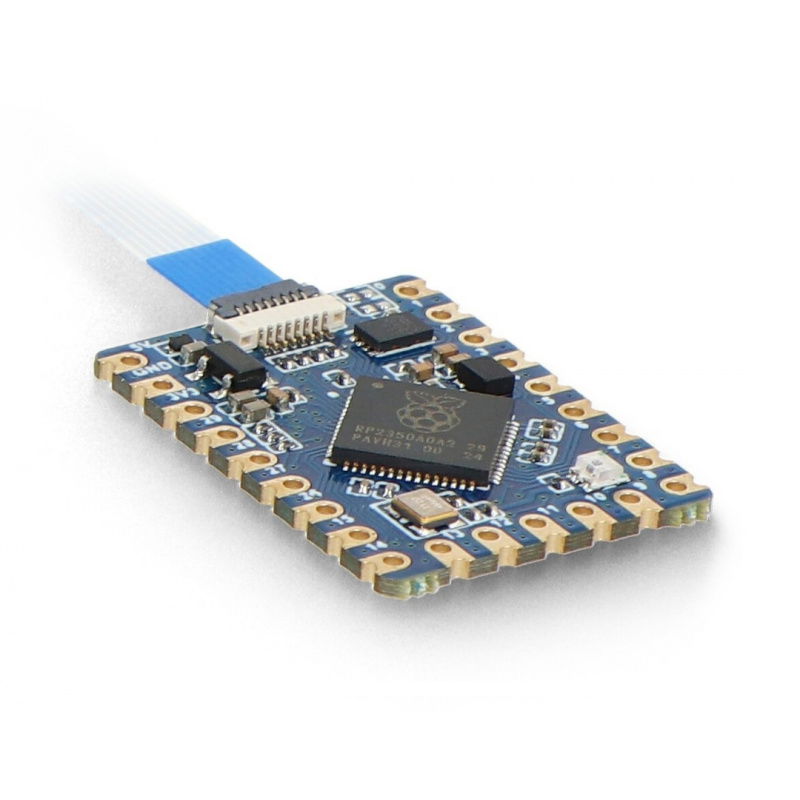

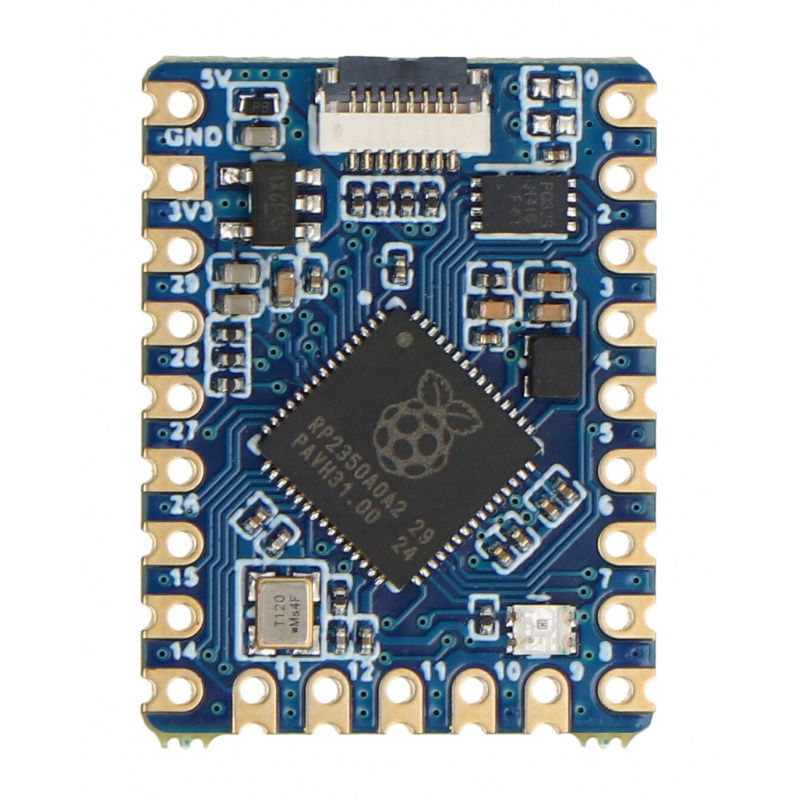

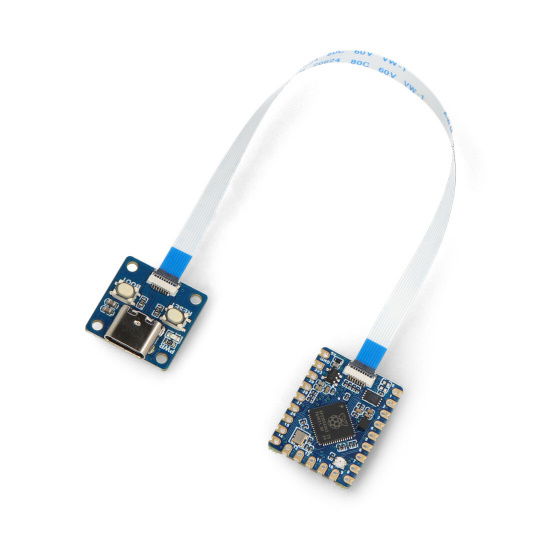

RP2350-Tiny-Kit - RP2350A miniature development board with USB adapter and FPC cable - Waveshare 29394.

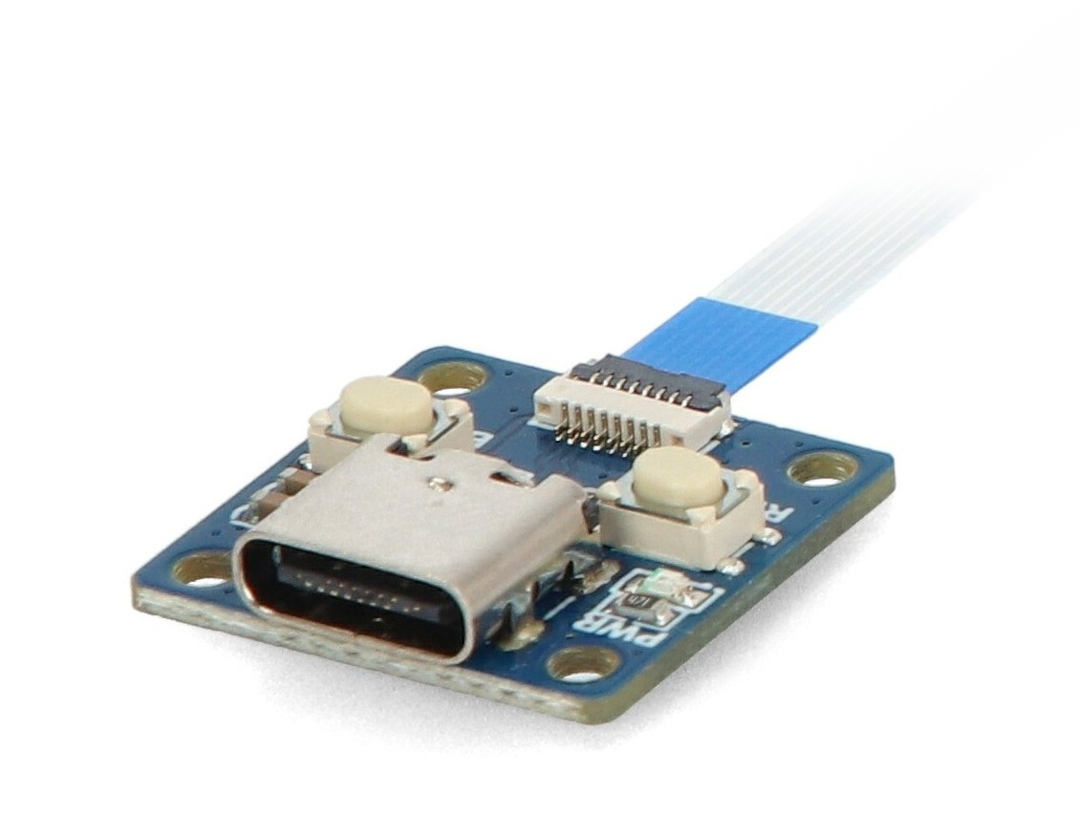

The adapter board is equipped with a USB Type-C connector.
Special features
- Powerful microcontroller: Combines two Arm Cortex-M33 cores and two Hazard 3 RISC-V cores, running at up to 150 MHz, for high-performance computing
- Memory: 4 MB Flash memory and 520 kB SRAM enable execution of complex programs and data storage
- USB Type-C port: accessible via adapter (included with RP2350-Tiny-Kit), supports both host and USB 1.1 device modes
- Versatile GPIO: 28 multi-function pins, configurable for various design needs
- Programmable PIO: 12 state machines to support custom peripherals and extensions
- Communication interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC and 16 PWM channels provide wide possibilities for connecting sensors and modules
- Energy saving modes: sleep and dormant allow you to minimize power consumption in energy-saving designs
- C/C++ and MicroPython support: facilitates rapid prototyping and integration with various projects

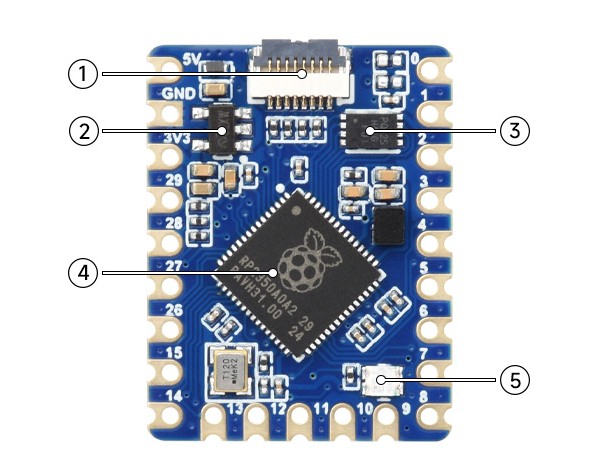

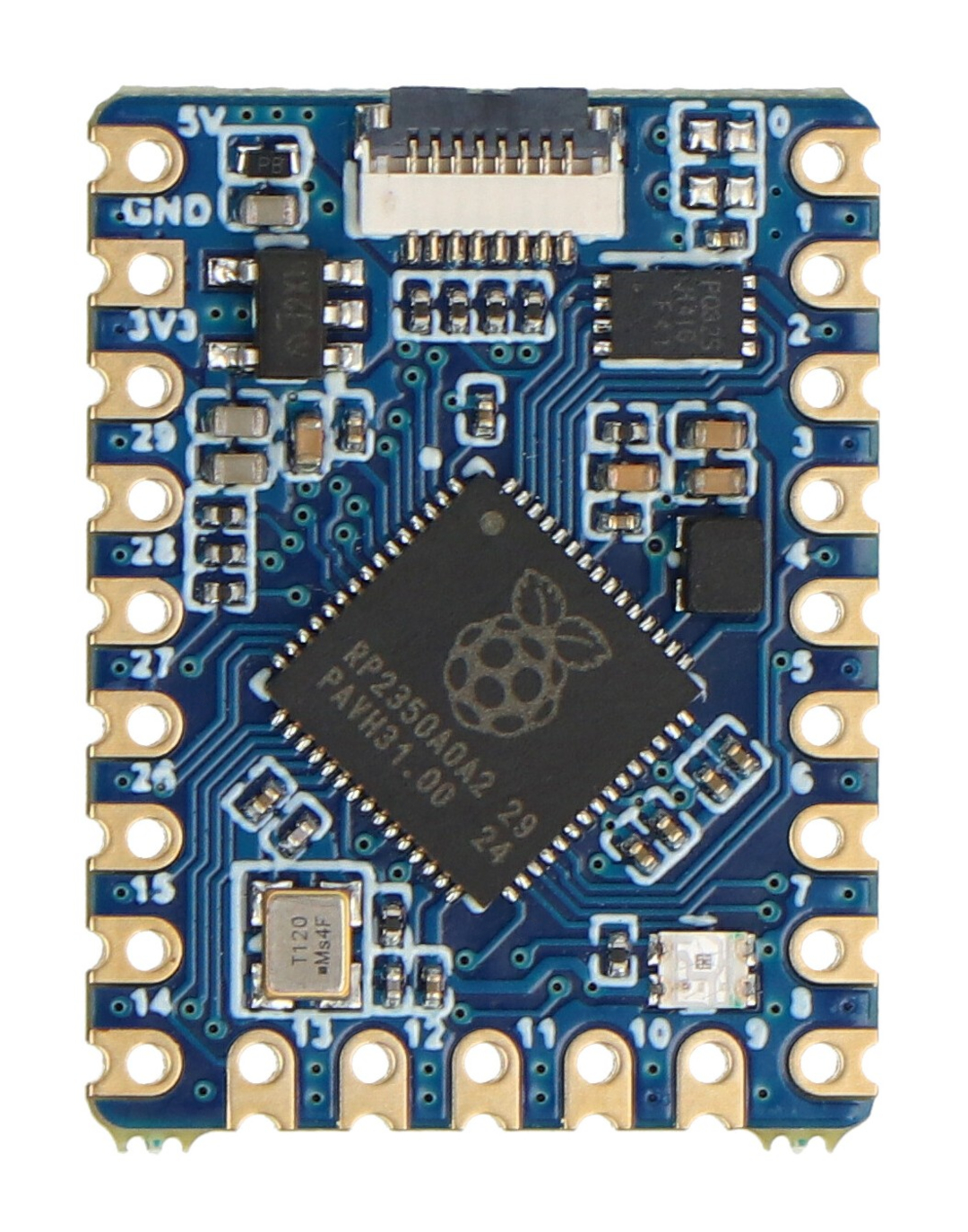

Arrangement of components on the board
- FPC connector
- ME6217C33M5G stabilizer
- Memory 4 MB
- RP2350A microcontroller
- RGB LED indicator
Arrangement of components on the board.
Technical specifications of the board
- Microcontroller: RP2350A
- Processor: dual-core Arm Cortex-M33 + dual-core Hazard 3 RISC-V
- Clock speed: up to 150 MHz
- Flash memory: 4 MB
- SRAM memory: 520 kB
- GPIO: 28 multi-function pins
- Programmable PIOs: 12
- Interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- Power supply: USB Type-C
- LED: WS2812 RGB
- Dimensions: 18 x 18 mm
- Weight: 3 g

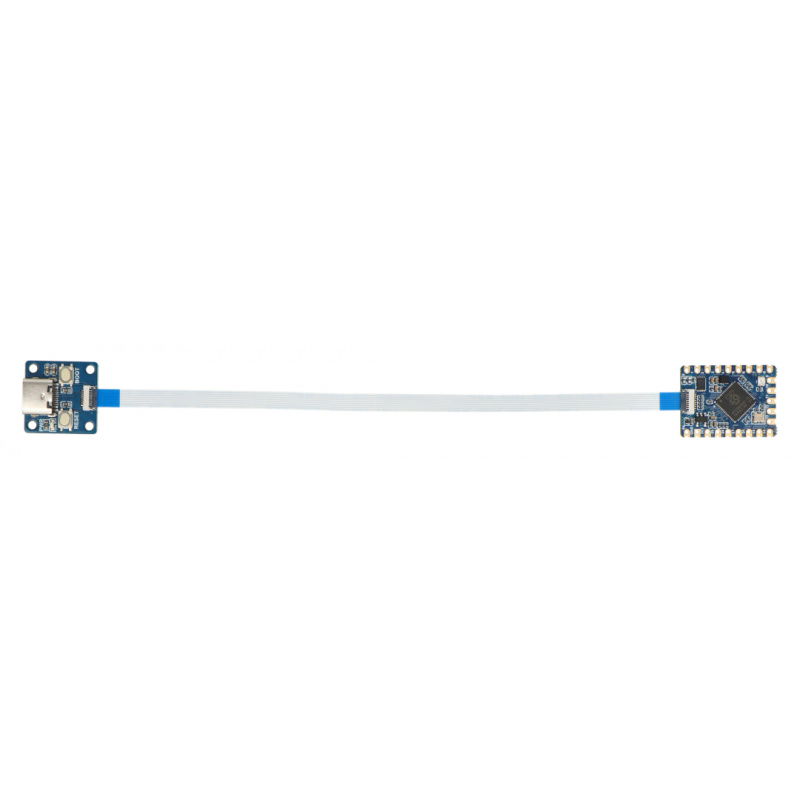

Contents of the set
- 1x RP2350-Tiny
- 1x USB Type-C Adapter
- 1x FPC 8-pin cable (~15 cm)
