Pico Jumbo - module with soldered Raspberry Pi Pico 2 - PiMoroni PIM747
The Pico Jumbo module from PiMoroni is a 3.5x enlarged version of the Raspberry Pi Pico 2 board with a standard size Raspberry pi Pico 2 board soldered on. It has a built-in RP2350 microcontroller with a dual-core ARM Cortex M33 -based system clocked at 150 MHz. The module has 520 kB of SRAM memory and 4 MB of QSPI Flash memory . Pico Jumbo supports Arm TrustZone and OTP , which offers advanced security options. Raspberry Pi Pico 2 is programmed in C / C++ and MicroPython, via a microUSB connector. Pico Jumbo has been improved with a reset button .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Pico Jumbo - module with soldered Raspberry Pi Pico 2 - PiMoroni PIM747
The Pico Jumbo module from PiMoroni is an enlarged (up to 3.5 times) and improved version of the Raspberry Pi Pico 2 board with a standard-sized Raspberry Pi Pico 2 board soldered on. It has a built-in RP2350 microcontroller and is intended for electronics enthusiasts and professionals. It allows you to create your own projects, and is also suitable for learning electronics at home or at school. The dual-core system based on the ARM Cortex M33 clocked at 150 MHz provides greater computing power and programming flexibility. The module has 520 kB of SRAM memory , which allows for faster data processing and greater application capabilities, and is equipped with 4 MB of QSPI Flash memory . Thanks to Arm TrustZone support and OTP security, Pico offers advanced security options. Raspberry Pi Pico 2 is programmed in C / C++ and MicroPython, via a microUSB connector. Pico Jumbo has been improved with a reset button , making using the module more convenient.
Pico Jumbo - module with soldered Raspberry Pi Pico 2 - PiMoroni PIM747.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
The large size of the board allows for convenient use of alligator clips.
Key Features of the Pico Jumbo Tile
- Large version of the Raspberry Pi Pico 2 - The Pico Jumbo board is a 3.5x enlarged and improved version of the Raspberry Pi Pico 2 board
- Convenient reset - Built-in Reset button allows you to safely reset the board
- Convenient connection - connection holes have been optimized for connections using alligator clips
- High performance - Dual-core ARM Cortex M33 clocked at 150 MHz offers improved performance over the previous model
- Increased memory - 520 kB SRAM and 4 MB QSPI Flash memory provide more data and code storage
- Security - Arm TrustZone and OTP support enable advanced application security
- PSRAM and XIP QSPI v2 support - enables memory expansion and efficient code execution from Flash memory
- Assembled board - the board is fully assembled, so no soldering is required
Microcontroller RP2350

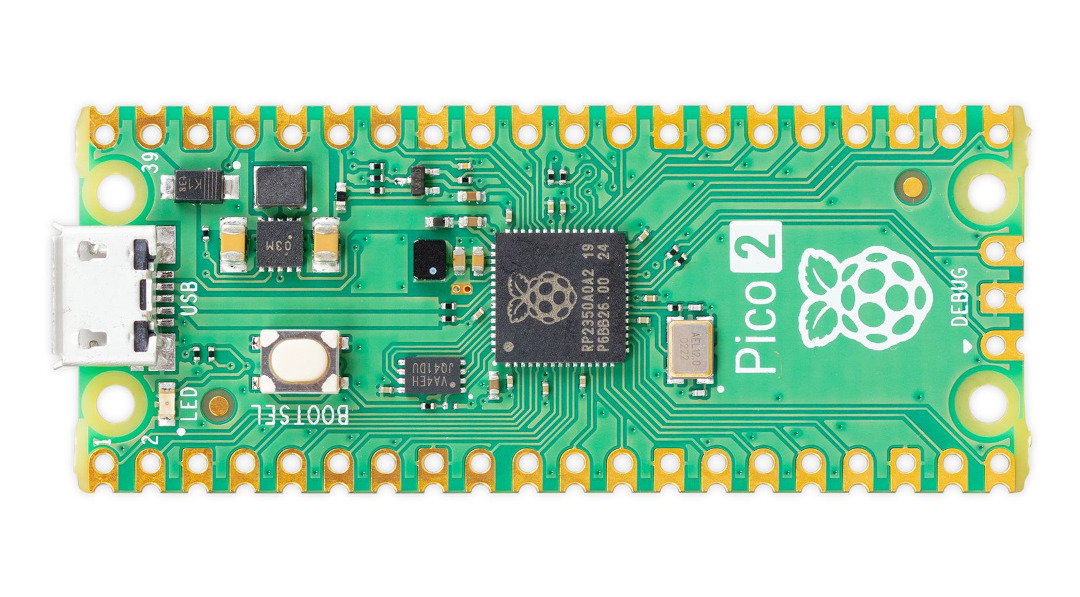

The Raspberry Pi RP2350 microcontroller is based on a dual-core Arm Cortex M33 operating at 150 MHz, which provides high performance while maintaining low power consumption. It comes in two versions - A (standard) and B with 48 usable GPIO pins. Compared to the RP2040, the RP2350 operates at a higher core clock speed and offers twice the SRAM memory. RP2350B supports ARM TrustZone for Cortex-M, OTP.
Built-in RP2350 microcontroller.

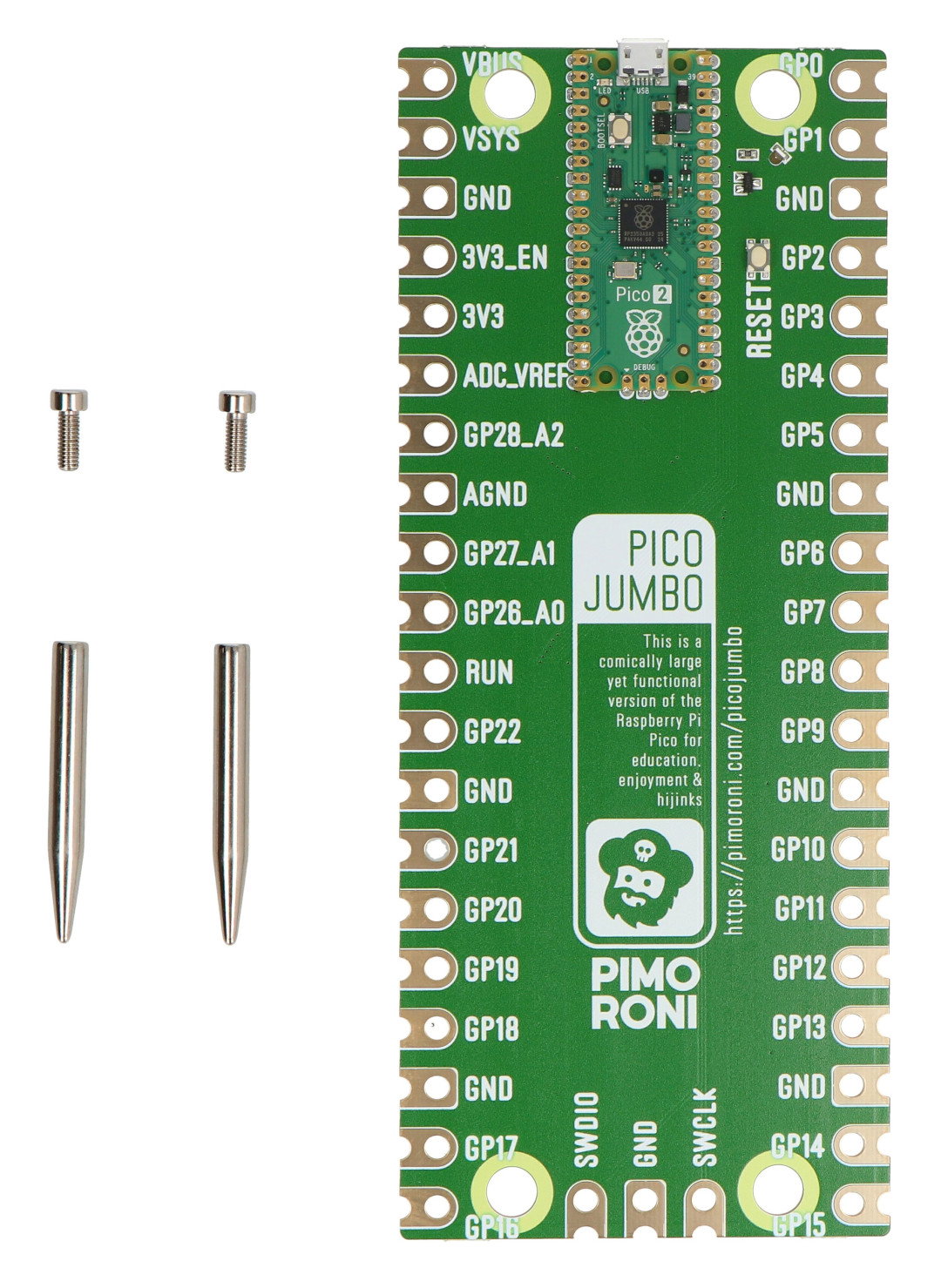

The set includes two metal legs that allow you to place Pico Jumbo stably on your desk and demonstrate your projects.
Pico Jumbo Board Specifications
- System: Raspberry Pi RP2350
- Core: Dual-core Arm Cortex M33 or Dual-core RISC-V Hazard3 (up to 150 MHz)
- RAM: 520 KB
- Flash Memory: 4MB QSPI
- Security: Arm TrustZone, 8kB OTP, Secure Boot
- Programming language: MicroPython, CircuitPython, C, C++
- GPIO:
- 26x digital input/output
- 4 x 12-bit ADC (analog pins)
- 2x UART, 2x I2C, 2x SPI, 24x PWM
- Reset button
- Supply voltage: 1.8 V to 5.5 V via microUSB or VSYS
- MCU: <10uA
- Dimensions: 180 x 73.5 x 5.5 mm
Contents of the set
- 1x Pico Jumbo - module with soldered Raspberry Pi Pico 2 - PiMoroni PIM747
- 2x metal legs
Useful links
| Name | Value |
|---|---|
| Voltage nominal | 5 V |
| UC - Microcontroller | RP2350 |
| UC - Core | Cortex M33 |
| UC - Flash | 4 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| Width | 18 cm |
| Height | 12 cm |
| Depth | 1 cm |
| Weight | 0.069 kg |
