D42V55F5 - step-down converter - 5V 6A - Pololu 5571
The efficient D42V55F5 step-down converter from Pololu enables 5V voltage stabilization at currents up to 6A . It features a wide input voltage range of 5V to 60V . With high efficiency of up to 95% , reverse polarity and overheating protection, and a compact size, it's ideal for powering electronics, robotics, and embedded systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: D42V55F5 - step-down converter - 5 V 6 A - Pololu 5571
The Pololu D42V55F5 converter is a switching buck ( step-down ) voltage regulator that efficiently reduces input voltage to a stable 5V . Unlike linear regulators, it offers significantly higher energy efficiency , which translates into lower heat loss and longer battery life. The system supports a wide input voltage range from 5V to 60V and features protection against overheating, overload, and reverse polarity. The maximum continuous current is 6A .
Our offer also includes a version with an output voltage of 5.3 V - check it out!

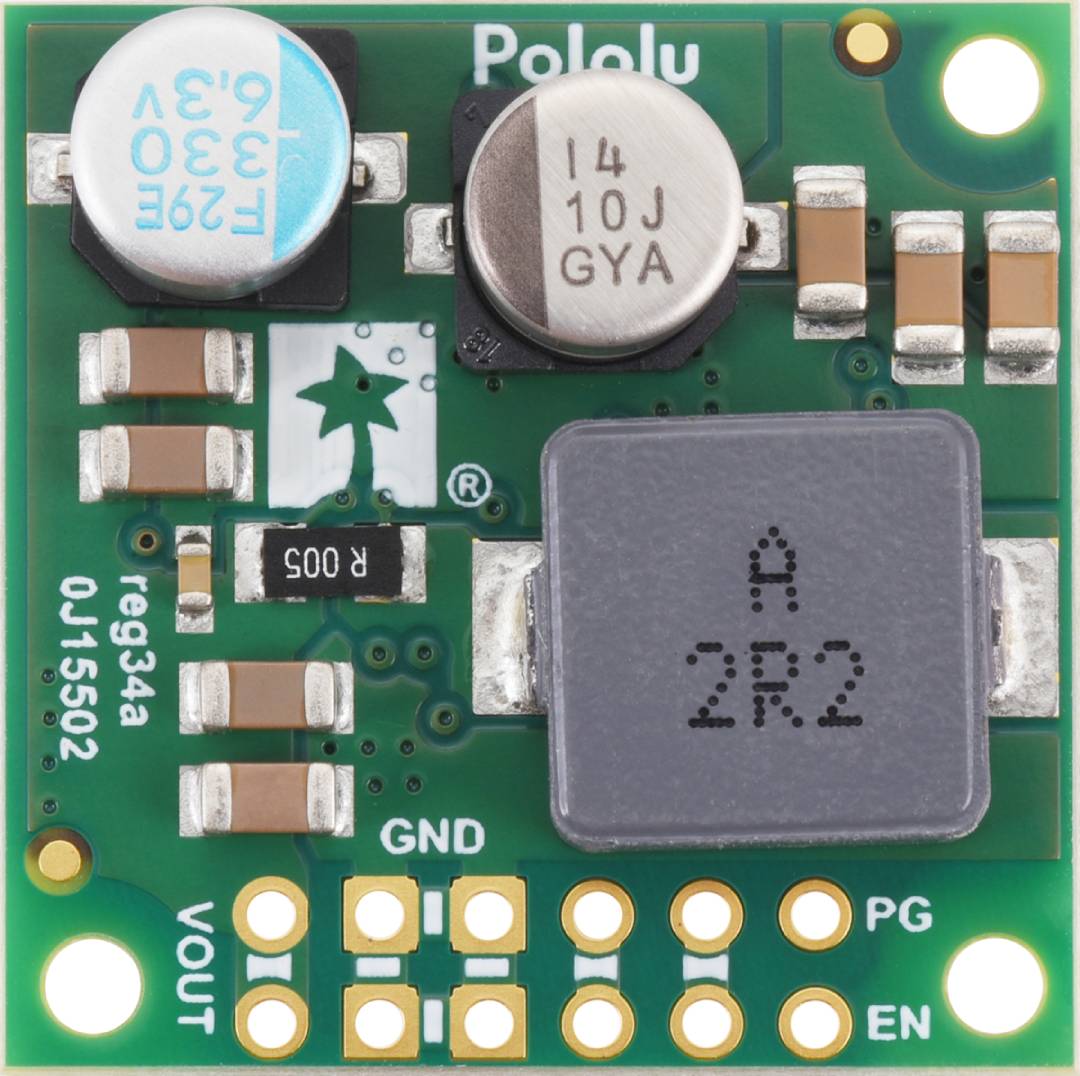

D42V55F5 - step-down converter - 5 V 6 A - Pololu 5571.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.

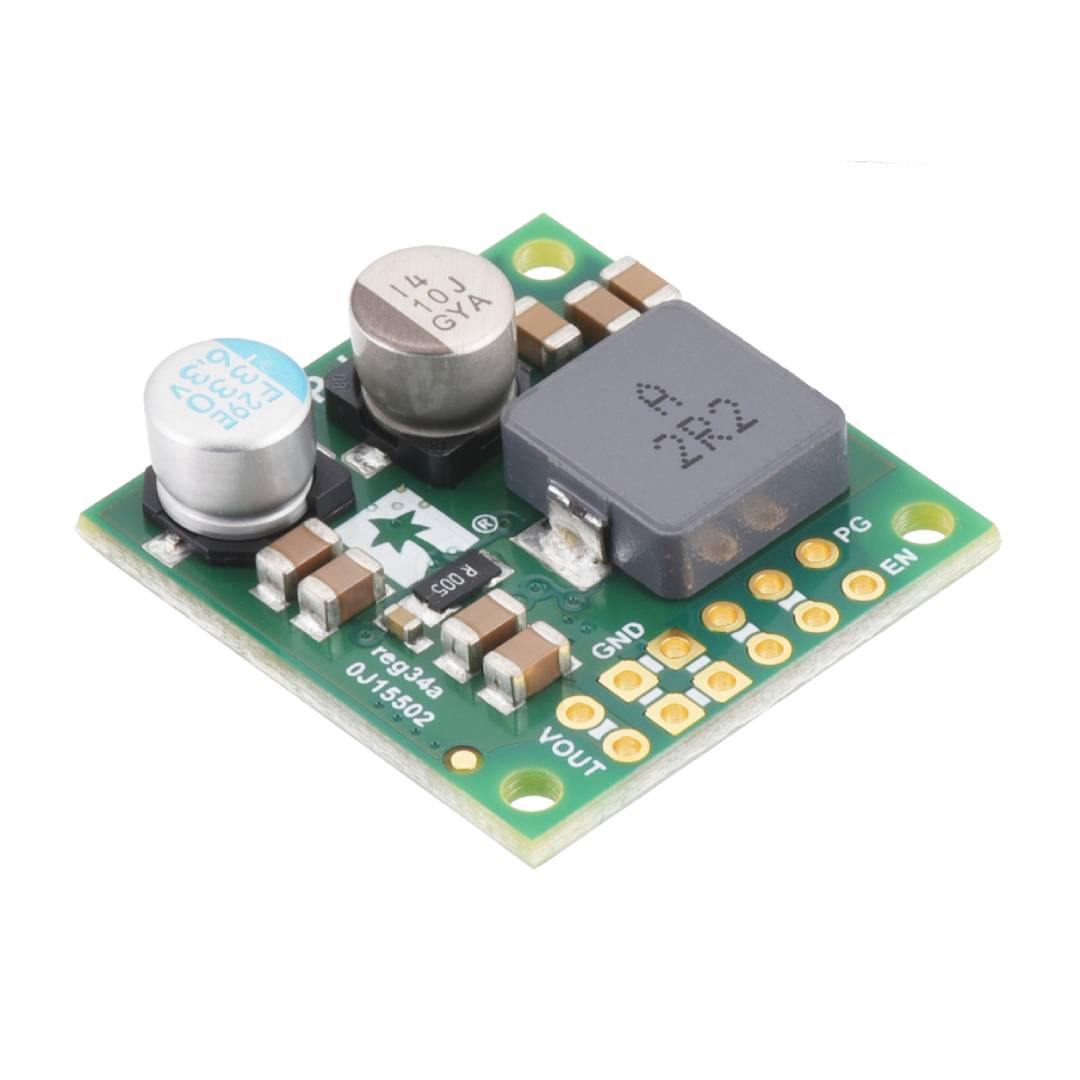

The converter provides a stable voltage of 5 V with a typical output current of up to 6 A.
Main features of the step-down converter
- Input voltage range : 5V to 60V - wide compatibility
- Output voltage : 5 V (constant) - stable power supply
- Output current : up to 6 A - high efficiency
- Efficiency : from 80% to 95% - low energy losses
- Operating frequency : approx. 400 kHz
- Quiescent current : < 0.4 mA
- Protection : thermal, overcurrent, reverse polarity
- Soft-start : gentle voltage start
- Compact dimensions : 25.4 x 25.4 x 9 mm
Pololu D42V55F5 step-down converter pinout
The module features a standard 2.54 mm pitch for easy integration with breadboards and PCBs . Basic pins include VIN (power input), VOUT (output), and GND (ground) , which are duplicated for increased current efficiency. Additional functional pins are available: EN ( for power on/off) and PG (Power Good) , which indicates the correct output voltage. The VRP pin provides access to the input voltage after reverse polarity protection. This solution allows for easy monitoring of the system's operation and integration with more advanced control and power systems.

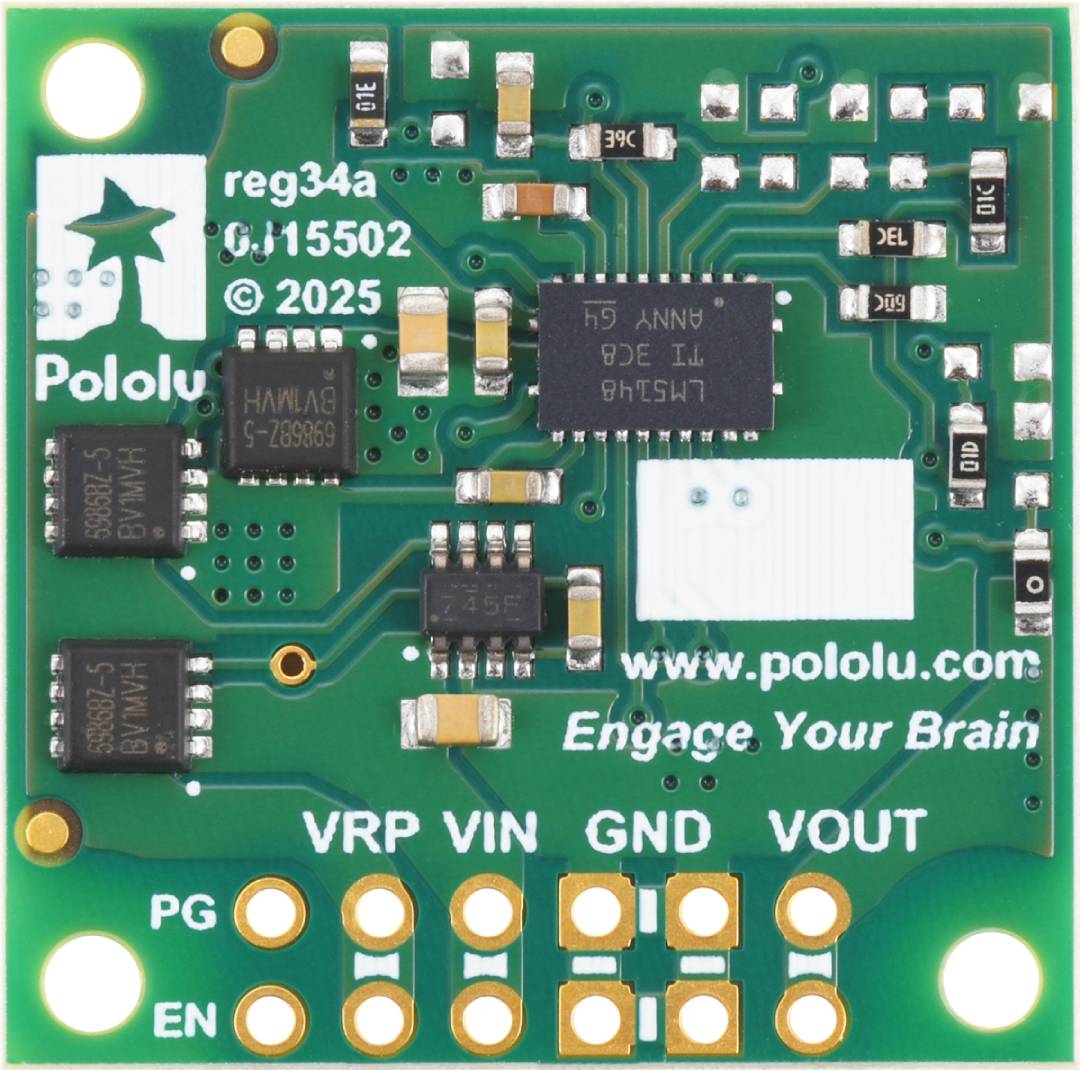

Module pins.

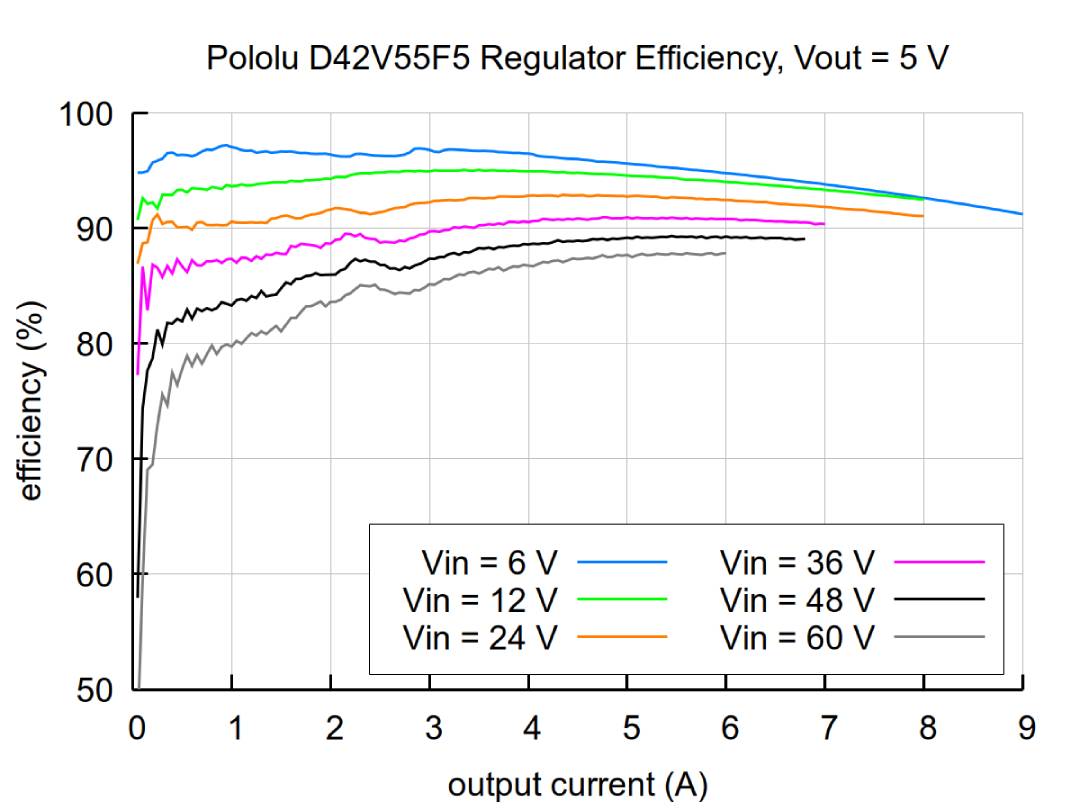

Typical converter efficiency.
Efficiency and current of the DC-DC converter 5 V 6 A
The converter offers high efficiency ranging from 80% to 95% , minimizing energy loss and heat generation. This is particularly important in mobile projects and battery systems. The maximum continuous output current is typically up to 6 A , but this value depends on the input voltage and cooling conditions. At higher input voltages, the available current may decrease due to thermal constraints. Thanks to the use of switching technology, the regulator ensures stable voltage even under variable load, ensuring reliable operation of the powered devices.
Technical specifications of the converter
- Type: step-down converter (buck)
- Input voltage: 5V to 60V
- Output voltage: 5V (±3%)
- Output current: up to 6 A
- Efficiency: 80% to 95%
- Quiescent current: less than 10 mA (reduced to 0.2 mA at high input voltage)
- Frequency: approx. 400 kHz
- Quiescent current: < 0.4 mA
- EN input: yes
- PG output: yes
- Pin pitch: 2.54 mm
- Mounting holes: 3 x M2
- Dimensions: 25.4 x 25.4 x 9 mm
- Weight: 6.5 g
Contents of the set
- 1x D42V55F5 - step-down converter - 5 V 6 A - Pololu 5571
Popular goldpin strips can be soldered into the holes, the pinout pitch is 2.54 mm.
Useful links
| Name | Value |
|---|---|
| Voltage to | 5.0 V |
| Voltage from | 60 V |
| Voltage output from | 5.0 V |
| Output voltage to | 5.0 V |
| Nominal output voltage | 5.0 V |
| Current | 6 A |
| Stabilizer - Type2 | switching |
| Stabilizer - Type | step-down |
| Width | 10 cm |
| Height | 6 cm |
| Depth | 1 cm |
| Weight | 0.007 kg |
