Efficient, digital distance sensor made in the Time of Flight technology. Equipped with the VL53L4CD system, it measures distances in the range from 1 mm to 1300 mm with precision at the level of LIDAR sensors. The module communicates via the I2C interface. It has STEMMA QT / Qwiic connectors and standard solder pads. Works with a voltage from 3 V to 5 V.
VL53L4CD Time-of-Flight - Distance sensor - 1-1300mm - I2C - STEMMA QT/Qwiic - Adafruit 5396
€20.90
€16.99 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino Raspberry Pi

Product description: VL53L4CD Time-of-Flight - Distance sensor - 1-1300mm - I2C - STEMMA QT / Qwiic - Adafruit 5396

Efficient, digital distance sensor made in the Time of Flight technology. Equipped with the VL53L4CD system, it measures distances in the range from 1 mm to 1300 mm with precision at the level of LIDAR sensors. The module communicates via the I2C interface. It has STEMMA QT / Qwiic connectors and standard solder pads. Works with a voltage from 3 V to 5 V.

The product is compatible with Raspberry Pi and Arduino

On the manufacturer's website you will find a detailed user guide that contains instructions for connecting with individual modules. Check!

VL53L4CD Time-of-Flight - czujnik odległości - 1-1300mm - I2C - STEMMA QT/Qwiic - Adafruit 5396
VL53L4CD Time-of-Flight - Distance Sensor - 1-1300mm - I2C - STEMMA QT / Qwiic - Adafruit 5396.

ToF method - laser distance measurement

The Time-of-Flight method consists in determining the distance based on the duration of time from the emission of a pulse from the infrared laser to its return to the detector. It is independent of the reflection of light from the object. Compared to IR sensors, it is much more precise, there are no linearity problems or double imaging phenomenon.

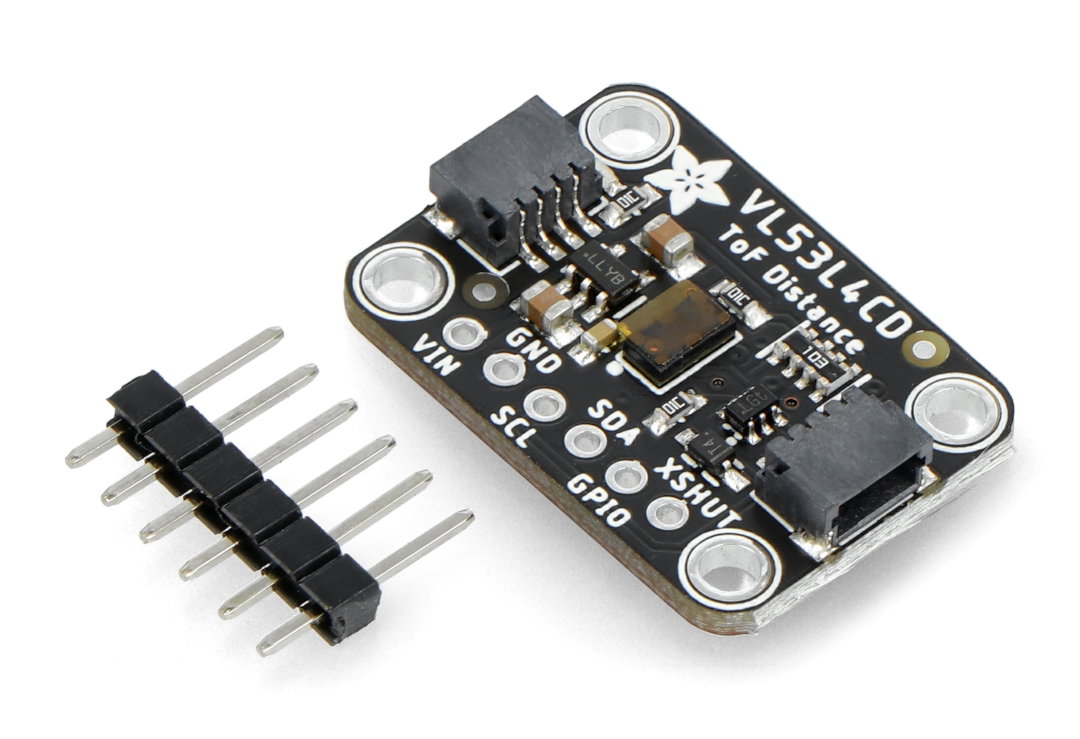

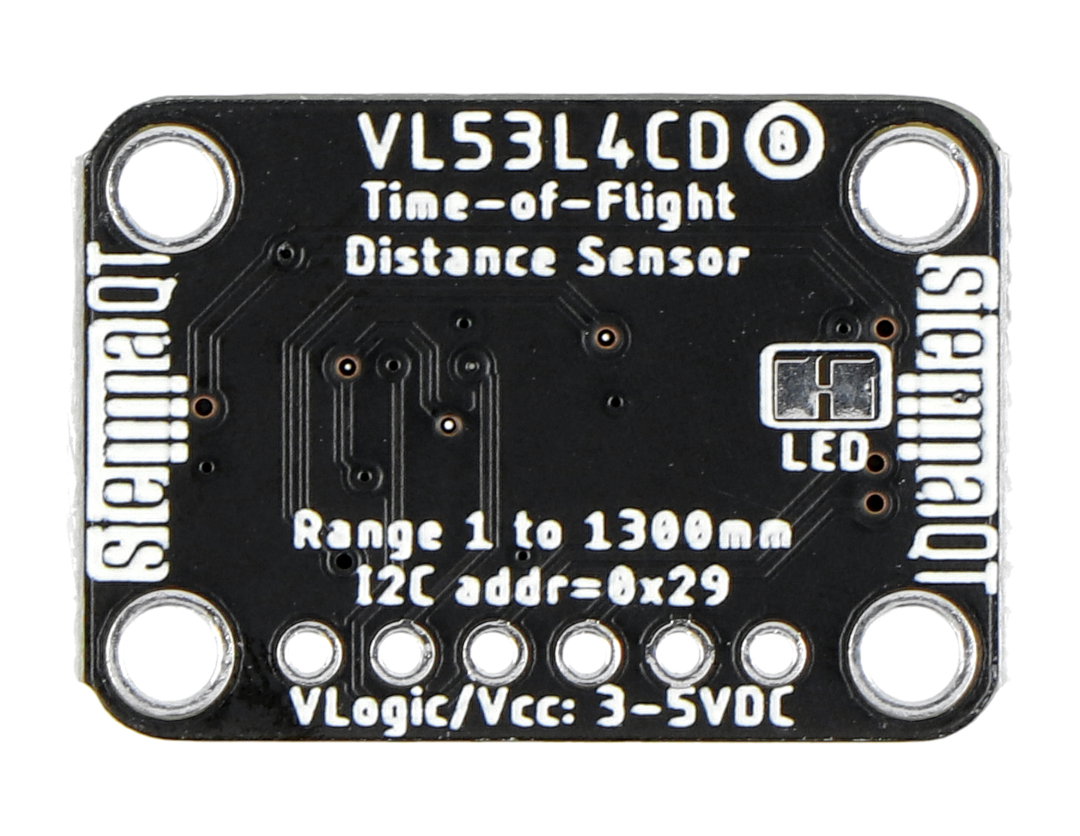

Pins of the module with the distance sensor VL53L4CD

The module with the VL53L4CD sensor communicates with the microcontroller via the I2C interface. The board is equipped with two Qwiic / STEMMA QT connectors for easy connection with a module with a connector of this type. The outputs of the board are:

  • VIN - module power pin from 3 V to 5 V.
  • GND - the ground of the system.
  • SCL - clock line of the I2C interface.
  • SDA - data line of the I2C interface.
  • GPIO - interrupt pin with 2.8 V output, can be read by 3.3 V and 5 V microcontrollers.
  • XSHUT - disable pin, activated by low state, can be used with 3V and 5V logic.

Time-of-Flight module specification

  • Chip: VL53L4CD
  • Receiving circuit - SPAD (Single Photon Avalanche Diode) matrix with an integrated lens
  • Measurement technology: ToF - Time of Flight
  • Measuring range: from 1 mm to 1300 mm
  • Measurement resolution: up to 1 mm
  • Dead zone: none
  • Diagonal field of view: 18 °
  • Measurement frequency: up to 100 Hz
  • Communication interface: I2C bus
  • Default I2C address: 0x29
  • Connectors: STEMMA QT / Qwiic / solder pads
  • Dimensions: 25.5 x 17.7 x 4.6 mm
  • Weight: 1.8 g

Kit contents

  • VL53L4CD Time-of-Flight - Distance Sensor - 1-1300mm - I2C - STEMMA QT / Qwiic - Adafruit 5396
  • 1x6 goldpin strip - 2.54 mm raster - for self-assembly

VL53L4CD Time-of-Flight - Abstandssensor von Adadfruit im Set mit Goldpin-Stecker.
VL53L4CD Time-of-Flight - distance sensor from Adadfruit in a set with a goldpin connector.

Interface I2C
Sensor - type distance
Sensor - distance to 130 cm
Package width 4 cm
Package height 1 cm
Package depth 3.5 cm
Package weight 0.004 kg
