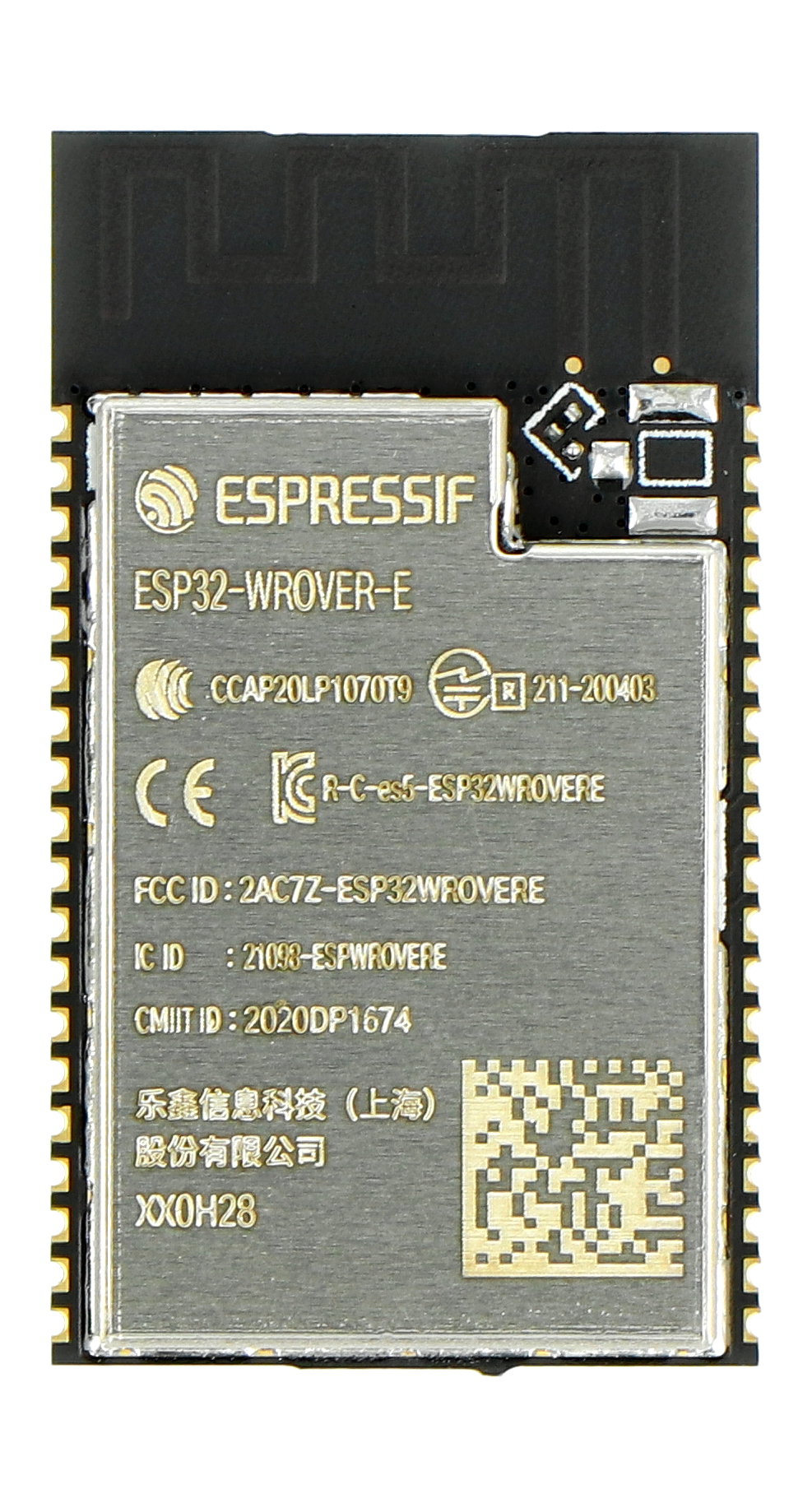

WiFi + Bluetooth BLE ESP-WROVER-E v1.3 - SMD 128 Mb
A chip from the ESP32 family based on the Espressif ESP32 chipset for communication in a WiFi network in the 2. 4 GHz band and in the Bluetooth BLE / v4.2 standard. The chip has 32 GPIO leads along with popular interfaces, including: UART, SPI, I2C, PWM. Espressif ESP32-WROVER-E-N16R8
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: ESP-WROVER-E v1.3 WiFi + Bluetooth BLE chip - SMD 128 Mb
Wireless communication chip ESP-WROVER-E.
Main features
- Supply voltage: 3,3 V
- Dual Core Tensilica LX6 240 MHz microcontroller
- 520 KB SRAM
- Flash memory: 16 MB
- PSRAM: 8 MB
- Built-in WiFi 802.11BGN chip
- WiFi Security: WEP, WPA/WPA2, PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
- Built-in Bluetooth BLE module
- Built-in PCB antenna
- Integrated Hall sensor and touch screen interface
- 32 GPIO pinouts including:
- 3x UART
- 3x SPI
- 2x I2C (2x I2S)
- 12 channel ADC
- 2-channel DAC
- PWM outputs
- SD card interface
- Dimensions: 31 x 18 x 3 mm
- Mounting: SMD
Pinout available in the documentation. |
Technical specification of the module
- ESP32-WROVER-E v1.3 chip
- Supply voltage: 3,3 V
- Minimum supply current: 500 mA
- WiFi standard: 802.11 b/g/n
- Bluetooth standard: Bluetooth v4.2 / Bluetooth BLE
- Wi-Fi Security: WEP, WPA/WPA2, PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
- Bandwidth: 2.4 GHz to 2.5 GHz
- Operating temperature: from -40 °C to +65 °C
- Mounting: SMD
- Dimensions: 31 x 18 x 3 mm
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller |
|
| UC - Core | Tensilica Xtensa LX6 |
| UC - Flash | 16 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 32 |
| UC - freq | 240 MHz |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
| Width | 5 cm |
| Height | 0.3 cm |
| Depth | 7 cm |
| Weight | 0.003 kg |
