Gravity: fiber optic transceiver module - UART - DFRobot TEL0153
The module is designed for signal transmission. Thanks to complete electrical isolation to prevent electromagnetic interference, it operates at 2,000,000 baud at a distance of up to 10 km . The product is equipped with a lightning protection. It can be used with an optical splitter in the implementation of networks with a star topology (one-to-many star networking). The module is equipped with a Gravity connector. It uses UART communication.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Gravity - fiber optic transceiver module - UART - DFRobot TEL0153
The module is designed for signal transmission. Thanks to complete electrical isolation to prevent electromagnetic interference, it operates at 2,000,000 baud at a distance of up to 10 km . The product is equipped with a lightning protection. It can be used with an optical splitter in the implementation of networks with a star topology (one-to-many star networking). The module is equipped with a Gravity connector. It uses UART communication.
Gravity - fiber optic transceiver module - UART .
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

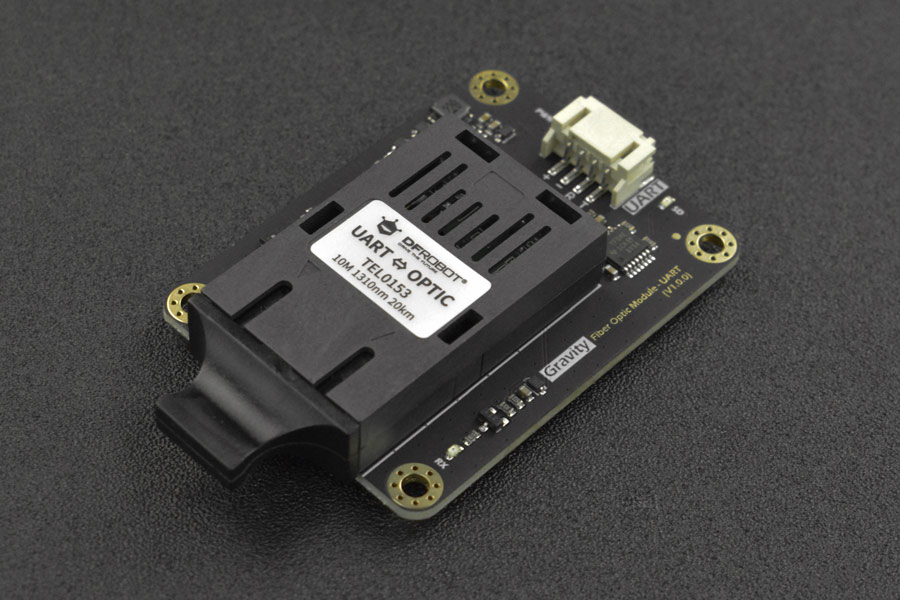

Elements placed on the DFRobot TEL0153 module .
Elements on the module board
- Gravity Connector: Uses UART interface.
- PWR LED: power indicator. Lit when the module is powered.
- SD LED : Fiber disconnect indicator. It lights up when the optical fiber is disconnected.
- TX LED : Fiber optic transmission indicator. Flashes while transmitting a signal.
- RX LED : Receiving indicator. Flashes when receiving a signal.
- SC fiber interface.
Module specification
- Supply voltage: 3.3 to 5 V
- Signal voltage: 3.3 to 5V
- Maximum baud rate: 2,000,000 baud
- Communication distance: up to 10 km
- Working Wavelength: 1310 nm
- Fiber type: single mode
- Fiber interface: SC
- Working temperature: 0 ° C to 70 ° C
- Dimensions: 57 x 42 mm
Kit contents
- Gravity - fiber optic transceiver module - UART - DFRobot TEL0153: 1 pc.
- Gravity cable: 1 pc.
Items included in the kit .
Useful links
| Name | Value |
|---|---|
| UC - UART | yes |
| Width | 7 cm |
| Height | 8 cm |
| Depth | 2.5 cm |
| Weight | 0.033 kg |
