Extruder Driven Gear for Prusa Mini / Prusa Mini+

Index: PSA-18653 EAN: 5904422328504

Gear that is part of the extruder of the Original Prusa Mini and Original Prusa Mini+ printers. It is a driven (pressure) wheel. High quality material from which the product was made ensures high accuracy of work, which directly translates into precise movement of the filament. The manufacturer of the wheel is Prusa. Using original spare parts of 3D printers allows to maintain optimal printing parameters.

Extruder Driven Gear for Prusa Mini / Prusa Mini+
€6.50
€5.28 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Prusa

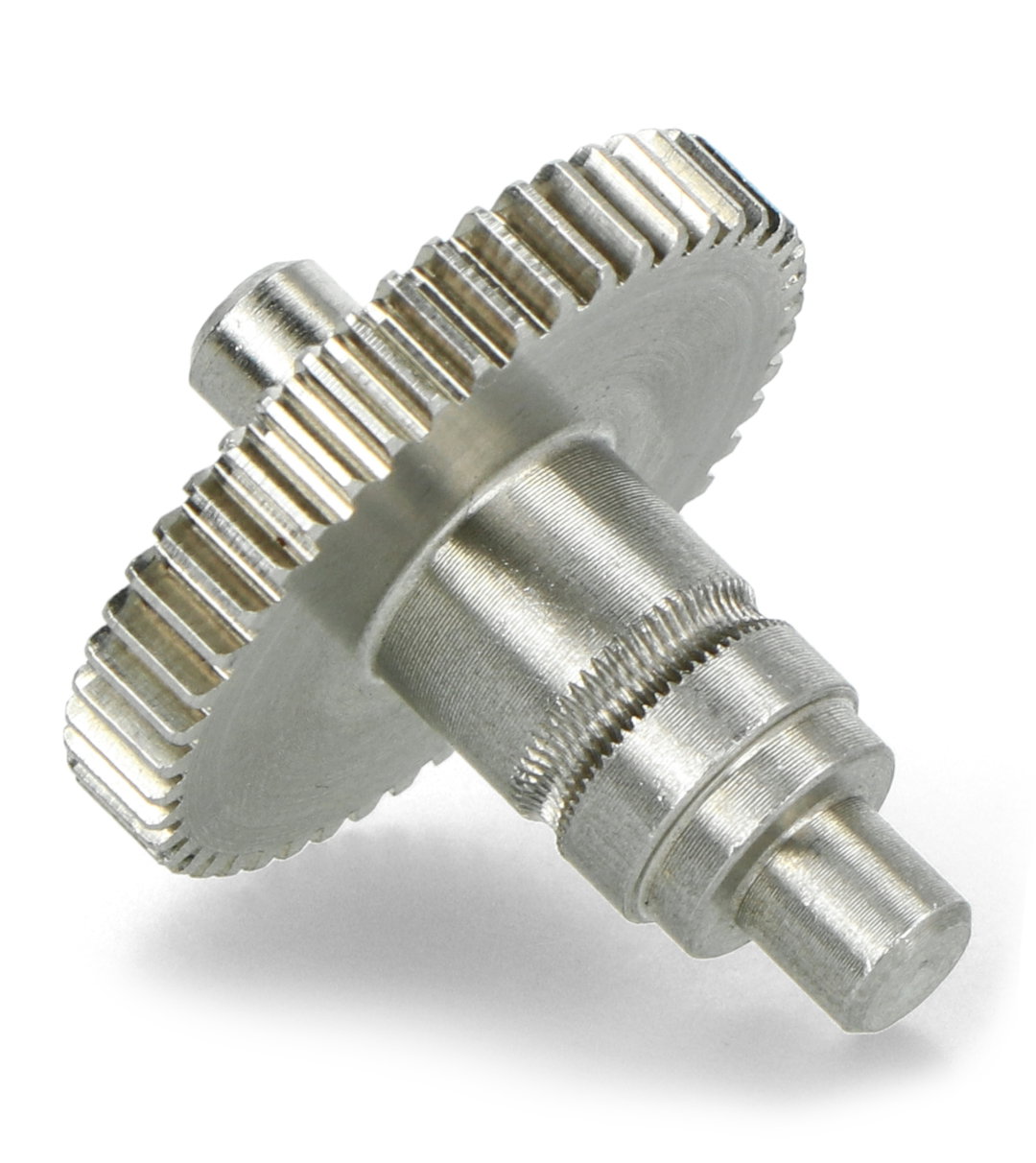

Product description: Gear driven wheel for Prusa Mini / Prusa Mini+ extruder

Gearwheel that is part of the extruder of the Original Prusa Mini andOriginal Prusa Mini+3D printers. It is a driven (pressure) wheel. High quality material from which the product was made ensures high accuracy of work, which directly translates into precise movement of thefilament. The manufacturer of the wheel is Prusa. The use of original spare parts of 3D printers allows to maintain optimal printing parameters.

In the offer of our shop there is available Original Prusa Mini+ printerin the version for self-assemblyandfor simplifiedassembly.

Zębate koło napędzane do ekstrudera Prusa Mini / Prusa Mini+

Gearwheel for Prusa Mini / Prusa Mini+ extruder.

Montaż koła zębatego w ekstruderze


Assembly of the gear wheel in the extruder.

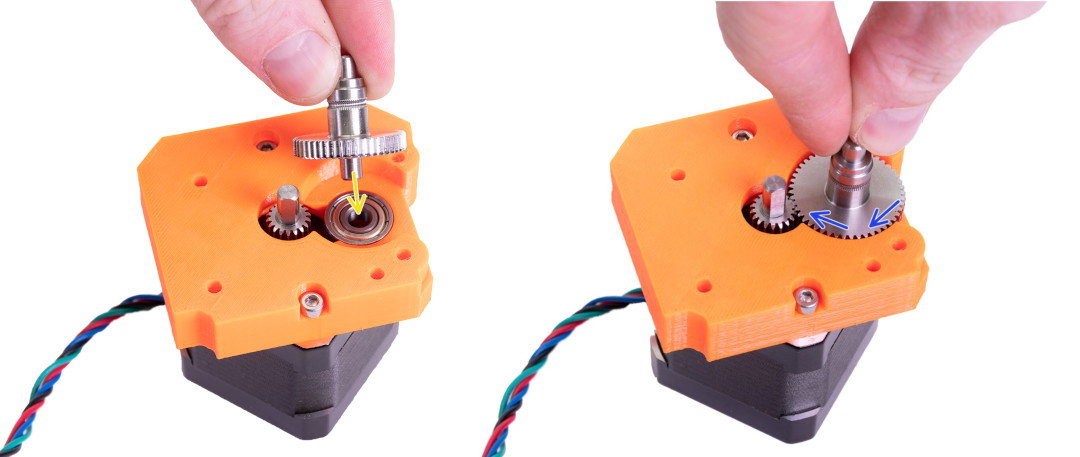

Installation of the idler gear of the extruder Prusa Mini / Mini+

  • The wheel should be installed in the bearing by placing the shorter part of the shaft in the bearing. The longer part should be facing up.
  • Make sure that the cogs of the driven and driven wheels mesh properly.
  • After installation, make a trial rotation of one wheel and verify that the other wheel also moves.

Complete instructions for installing the extruder are provided in aguideprovided by the manufacturer. The description of the driven wheel installation includes steps 41 and 42.

Package width 6 cm
Package height 2.6 cm
Package depth 9.5 cm
Package weight 0.022 kg
