Product Description: Mintion V1 3D Printable Air Purification Filter Kit

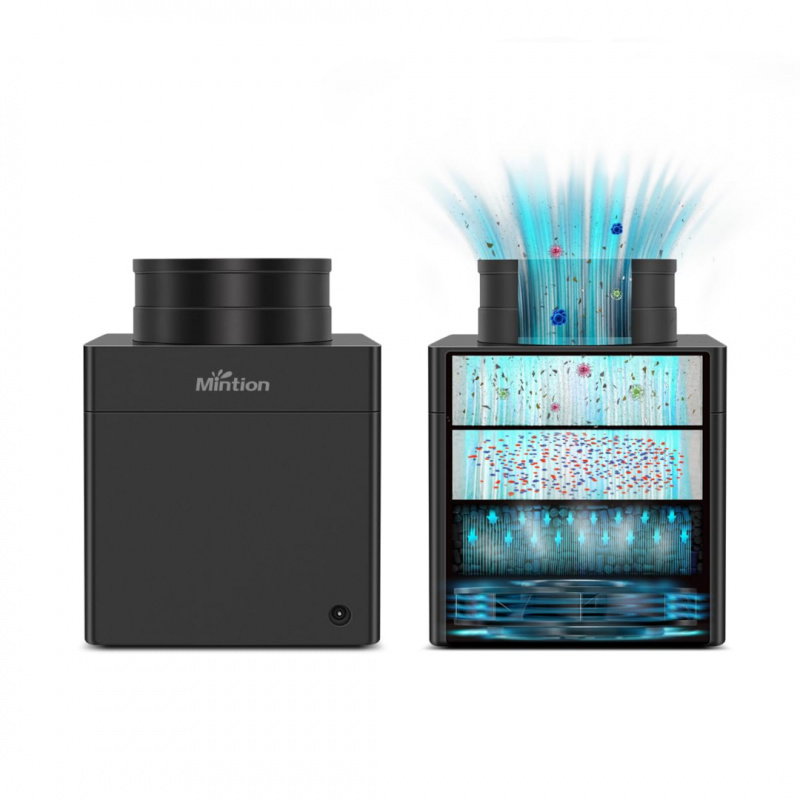

A set of replacement filter cartridges for the Mintion V1 system , designed to purify the air during 3D printing. The system utilizes three stages of filtration. The pre-filter traps larger contaminants and fine filament debris, protecting subsequent layers. HEPA H13 captures ultrafine particles generated during printing, while activated carbon helps reduce volatile organic compounds (VOCs) and unpleasant odors. The carbon cartridge is designed, among other things, to adsorb substances generated when working with ABS, ASA, PA, PLA, and PETG filaments. The manufacturer recommends replacing the kit approximately every three months based on printing for approximately eight hours per day , with actual service life depending on operating conditions.
Main features of the Mintion V1 air purifier filters
- Three-stage filtration : the combination of a pre-filter, a HEPA H13 filter and activated carbon helps reduce various types of pollutants generated during 3D printing
- HEPA H13 filter : declared efficiency is at least 99.95% at MPPS, making the filter effective in capturing very fine particles
- Ultrafine particle filtration : The HEPA H13 filter is designed to capture ultrafine UFP particles below 100 nm in size
- Protective pre-filter : retains larger particles, dust and filament residues, limiting the load on subsequent filter layers
- High iodine value activated carbon : granular insert helps adsorb volatile organic compounds and reduce odors
- Support when printing with ABS and ASA : Carbon filter helps reduce styrene emissions when working with these materials
- Filtration of compounds associated with various filaments : the carbon insert is intended, among others, to adsorb caprolactam associated with PA and selected compounds formed during printing with PLA and PETG
- Possibility to change the filter configuration : the layer layout can be adjusted to the type of filament used and the expected level of VOC reduction
- Dedicated compatibility : cartridges designed specifically for the Mintion V1 system
Technical specifications of the filter set
- Compatibility: Mintion V1 3D Printer Air Purifier
- Number of filtration stages: 3
- First stage: pre-filter
- Second stage: HEPA H13
- Third step: activated carbon
- HEPA H13 filter efficiency: at least 99.95% at MPPS
- Filtered particles: including ultrafine UFP particles below 100 nm
- Type of carbon insert: granulated activated carbon with high iodine value
- Filtered substances: VOCs and odor-causing compounds
- Examples of compounds adsorbed by the carbon filter: styrene, caprolactam, acetaldehyde and lactide
- Recommended configuration for PLA/PETG: prefilter - HEPA H13 - activated carbon
- Alternative configuration for ABS / ASA: HEPA H13 - Activated Carbon - Activated Carbon
- Approximate replacement period when working approximately 8 hours a day: approximately 3 months

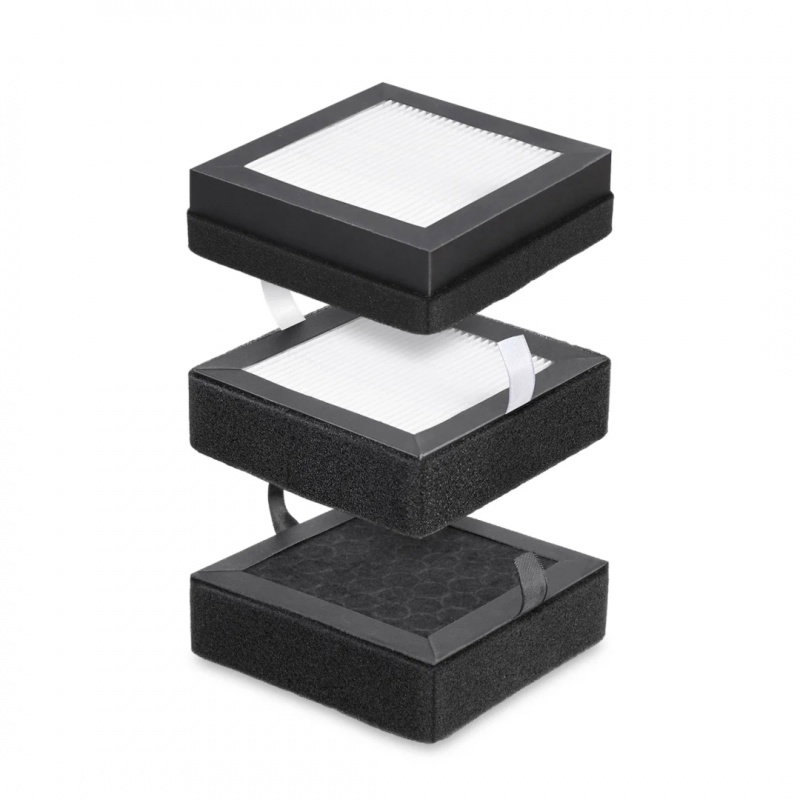

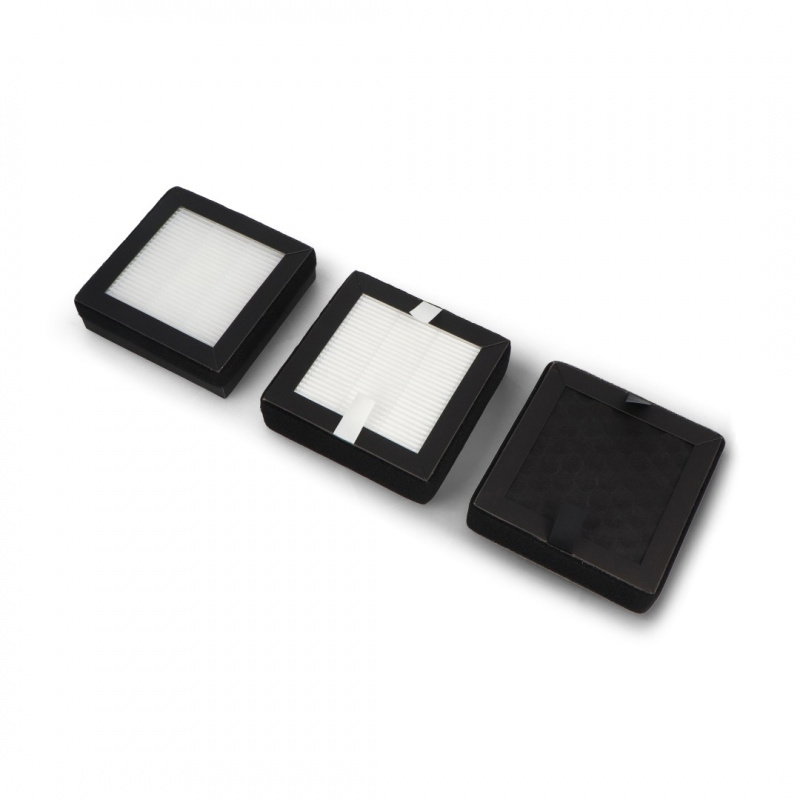

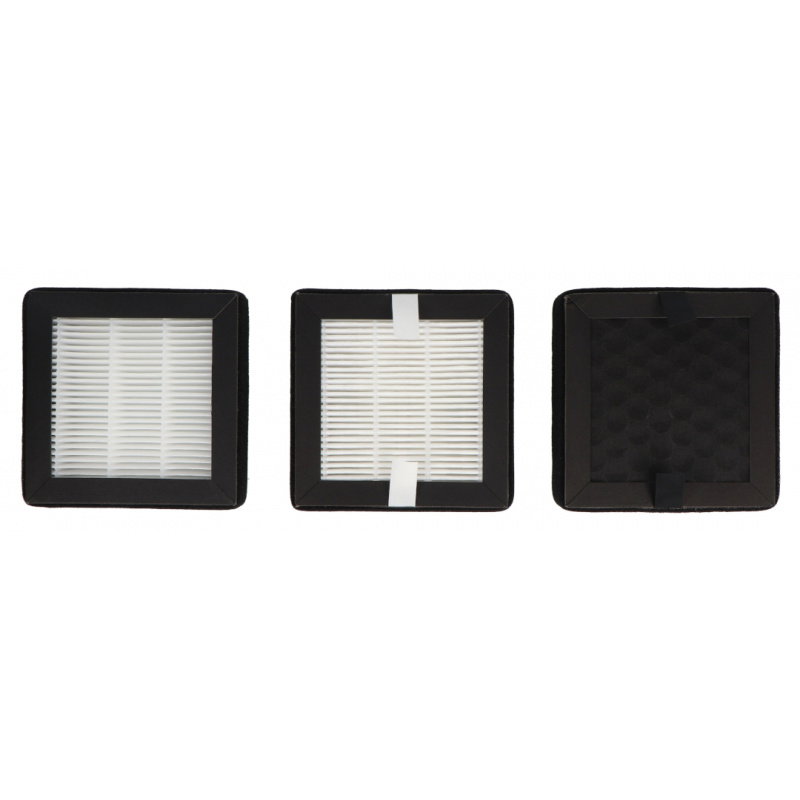

Contents of the Mintion Filter Set
- Prefilter
- HEPA H13 filter
- Activated carbon cartridge
