Product description: reComputer AI R2140-12 - Raspberry Pi 5 16 GB - Seeedstudio 114993627

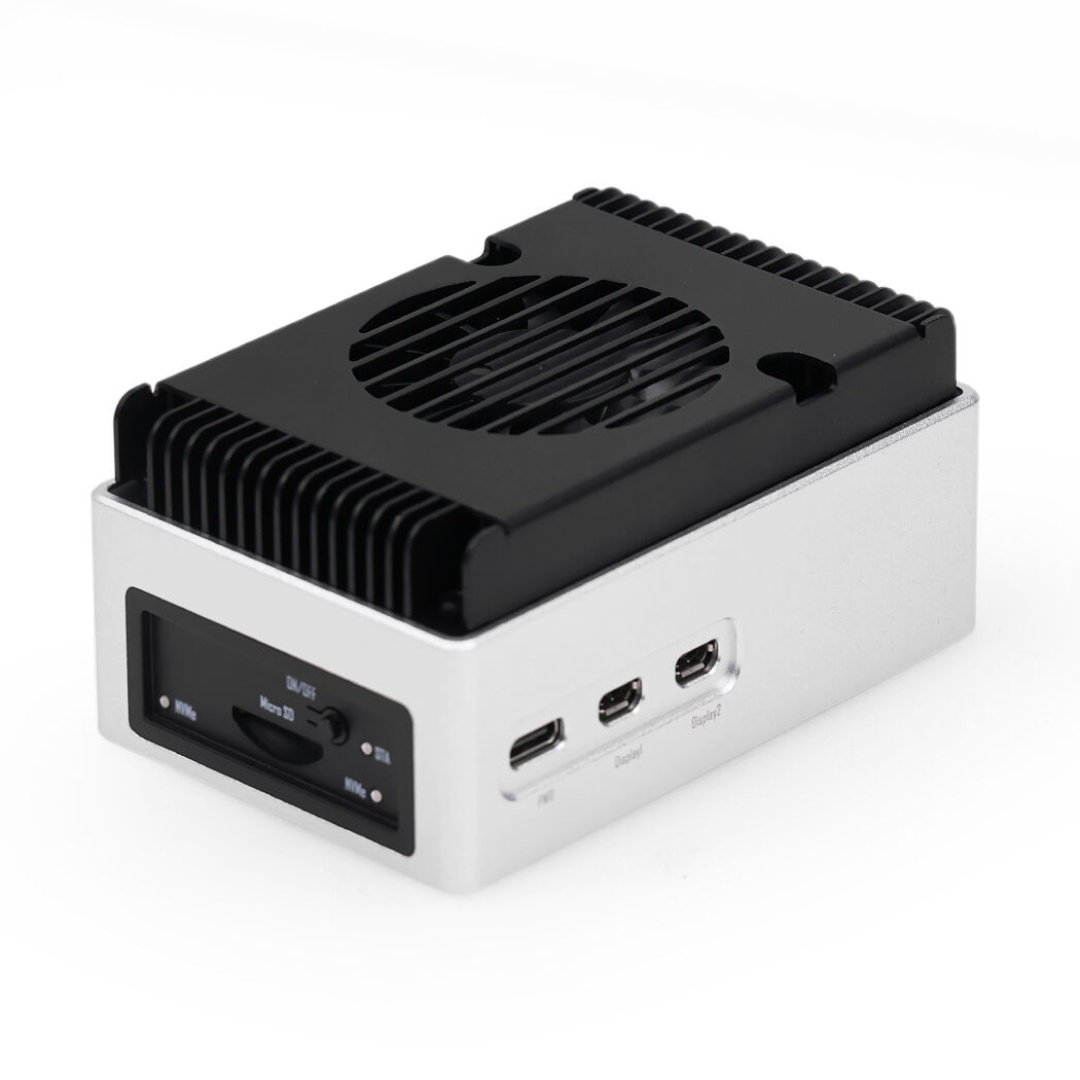

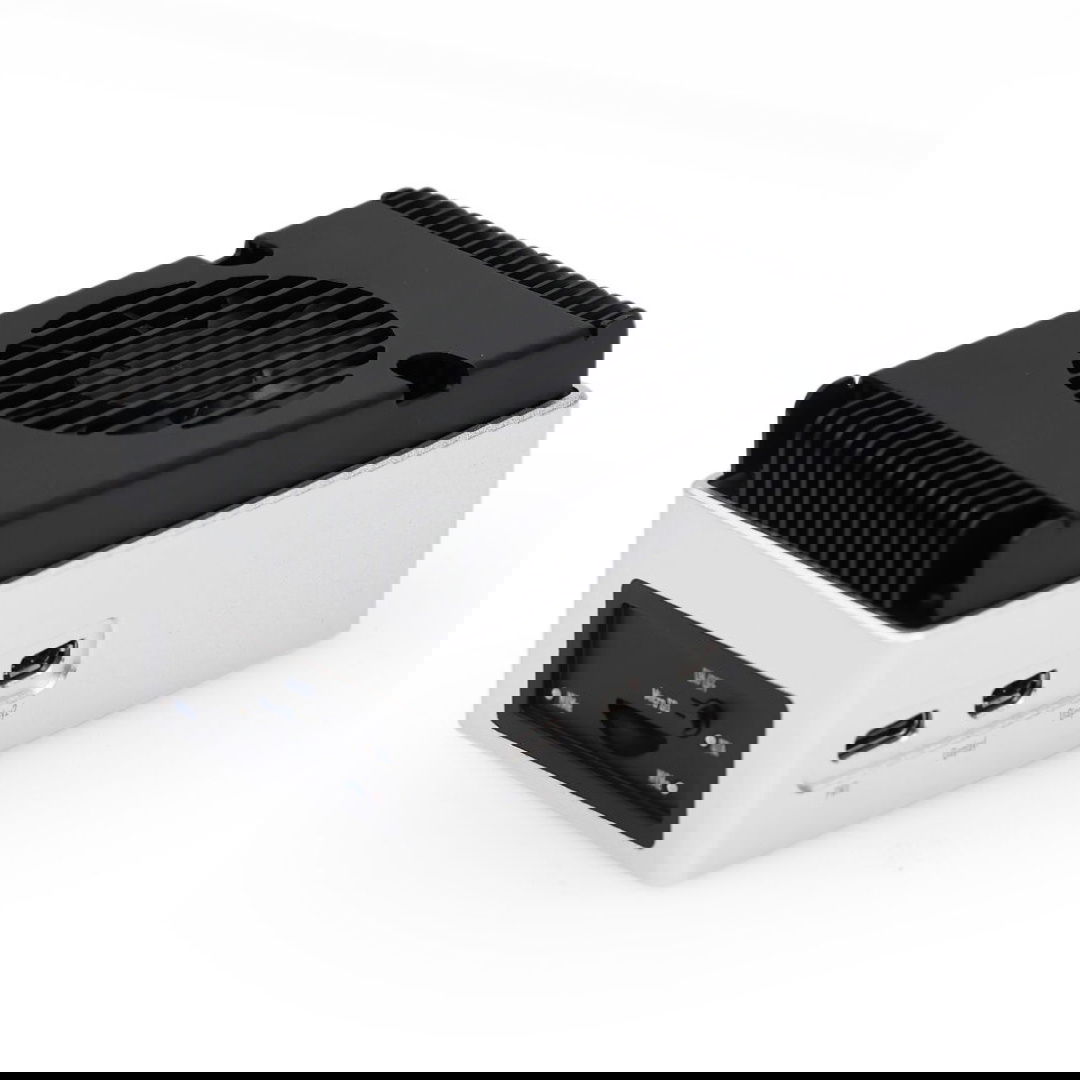

The reComputer AI R2140-12 is an advanced edge computer for artificial intelligence applications, based on the Raspberry Pi 5 with up to 16 GB of RAM and supported by the Hailo-8 accelerator , offering performance up to 26 TOPS . This combination provides exceptional computing power while maintaining a compact size and energy efficiency. Thanks to active cooling and a robust design , this model is ideal for industrial, educational, and commercial environments.
reComputer AI R2140-12 - Raspberry Pi 5 16 GB - Seeedstudio 114993627 .
reComputer AI R2140-12 is an advanced edge computer for artificial intelligence applications.Special features
- Raspberry Pi 5 Processor: 4-core Cortex A76 2.4 GHz, 64-bit
- RAM: 16 GB LPDDR4
- AI Accelerator: Hailo-8 M.2, up to 26 TOPS performance
- Two M.2 PCIe 3.0 slots: for NVMe drives and AI accelerators
- Wireless connectivity: WiFi dual-band 802.11ac and Bluetooth 5.0 / BLE
- Video Outputs: 2x micro HDMI supporting 4Kp60
- Active cooling system: radiator with fan
- Power supply via USB Type-C: 5V/5A with Power Delivery support
- Operating system: Raspberry Pi OS or Ubuntu
Application in practice
reComputer AI R2140-12 is ideal for:
- Video monitoring: image analysis, threat detection
- Smart retail: customer analysis, personalization of advertising content
- Intelligent transport: license plate recognition, traffic analysis
- Digital signage: dynamic content tailored to your audience
- Building management: optimizing energy consumption, comfort and safety
AI Performance - Hailo-8
The Hailo-8's built-in accelerator allows for processing speeds of up to 26 TOPS, enabling models like the YOLOv8s to run at over 200 FPS. Ideal for tasks such as:
- Object recognition and tracking
- Real-time image analysis
- OCR and event detection
Thanks to ONNX compatibility and support by HailoRT, it is possible to quickly integrate your own AI models.
Operating system and startup
The device supports Raspberry Pi OS and Ubuntu. The system can be booted from a microSD card or directly from an NVMe drive. Raspberry Pi Imager makes system installation quick and easy on any operating system.
Thanks to active cooling and solid construction, the model is perfect for industrial, educational and commercial environments.

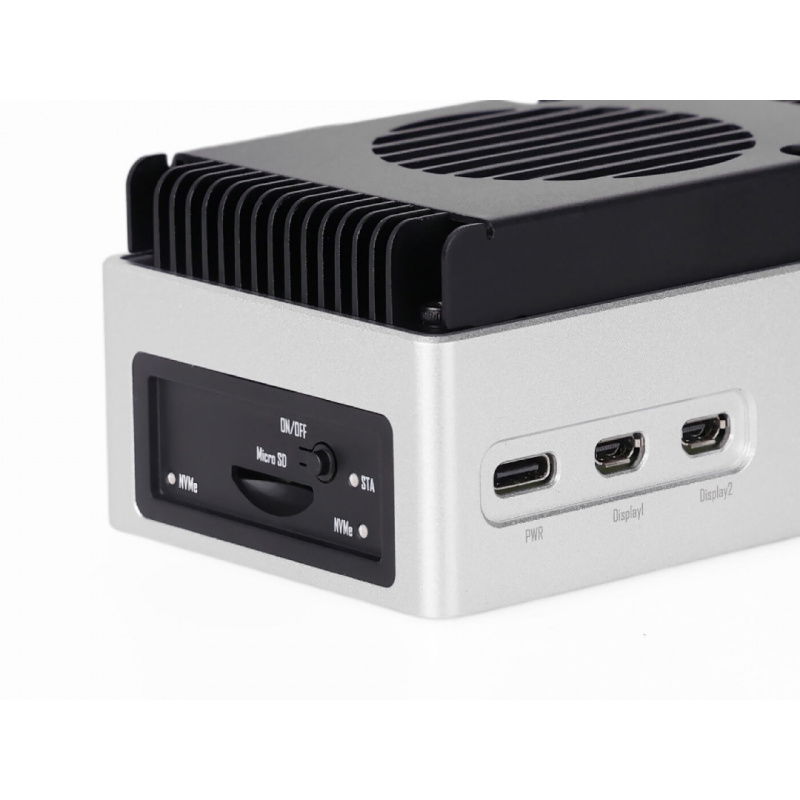

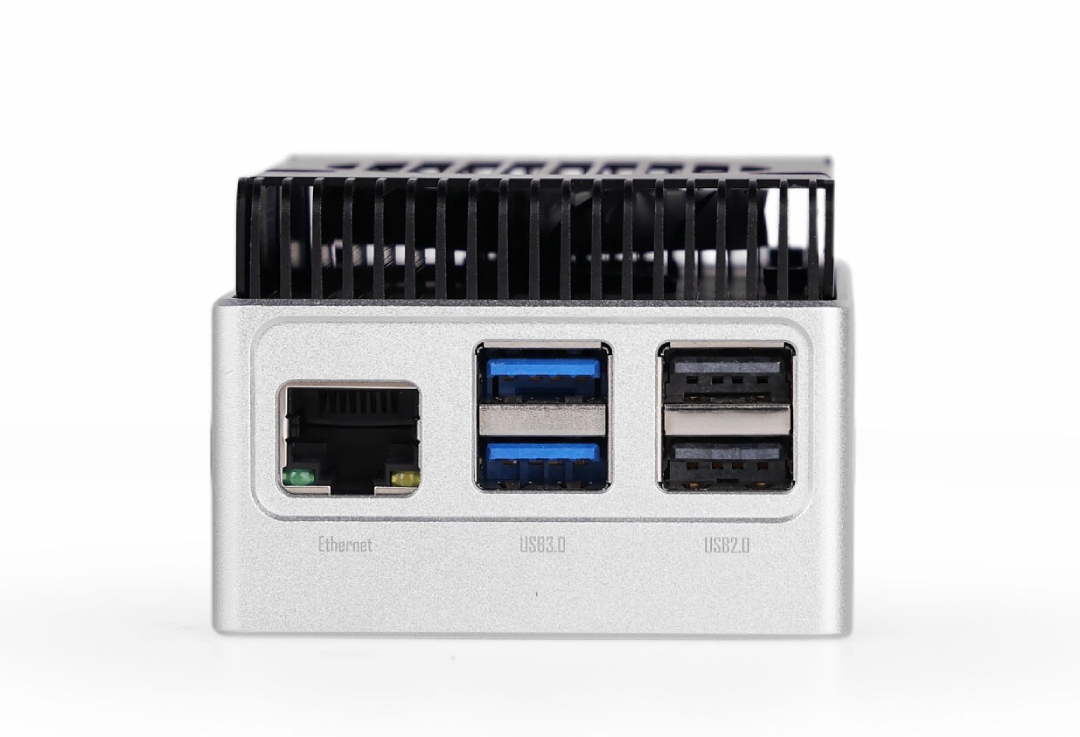

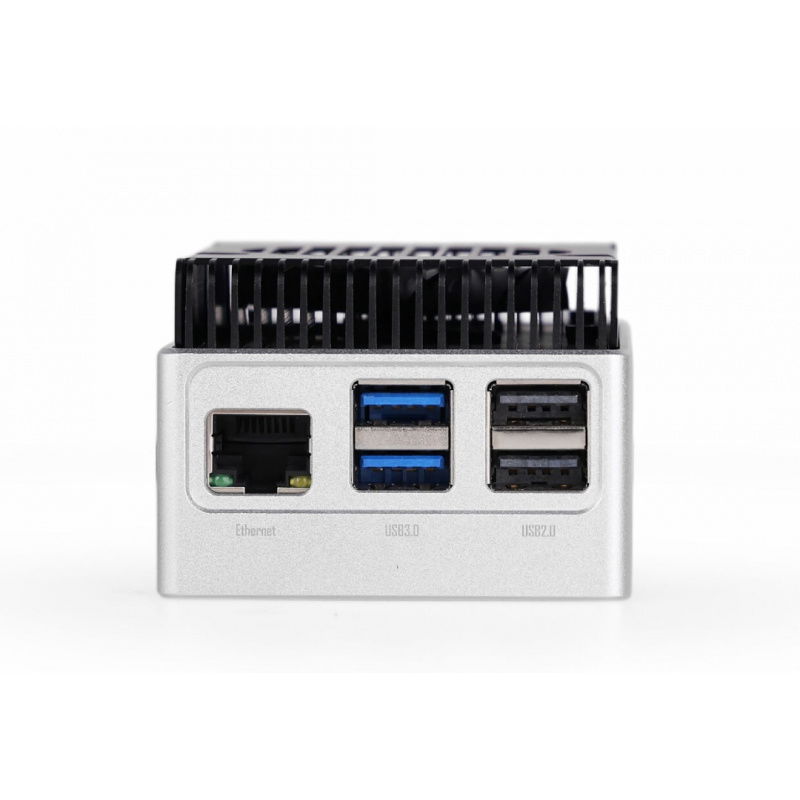

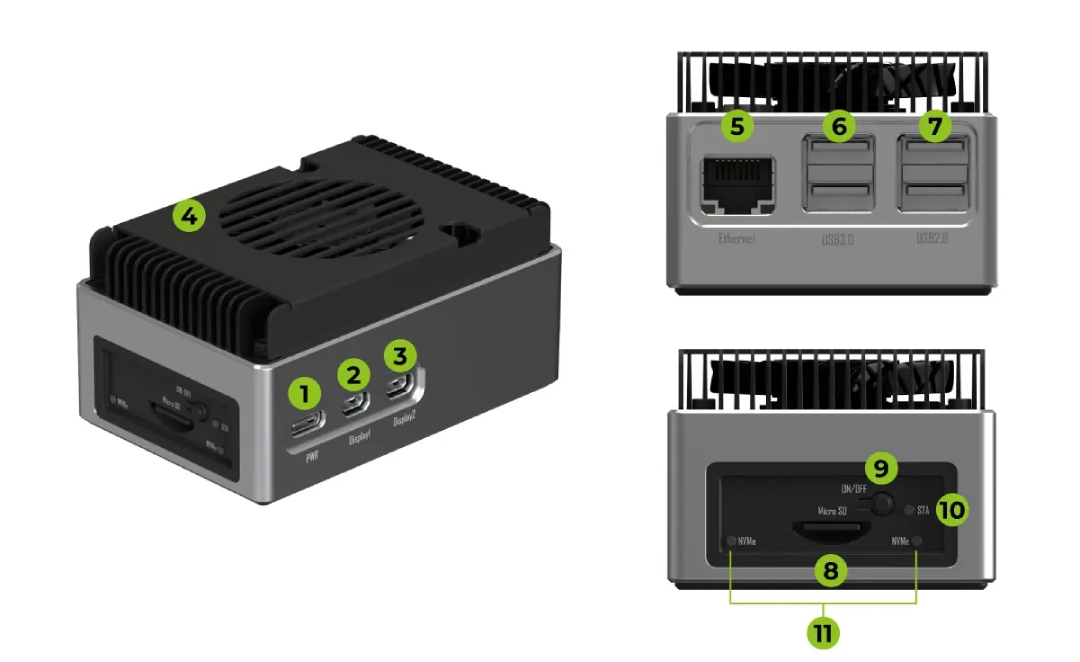

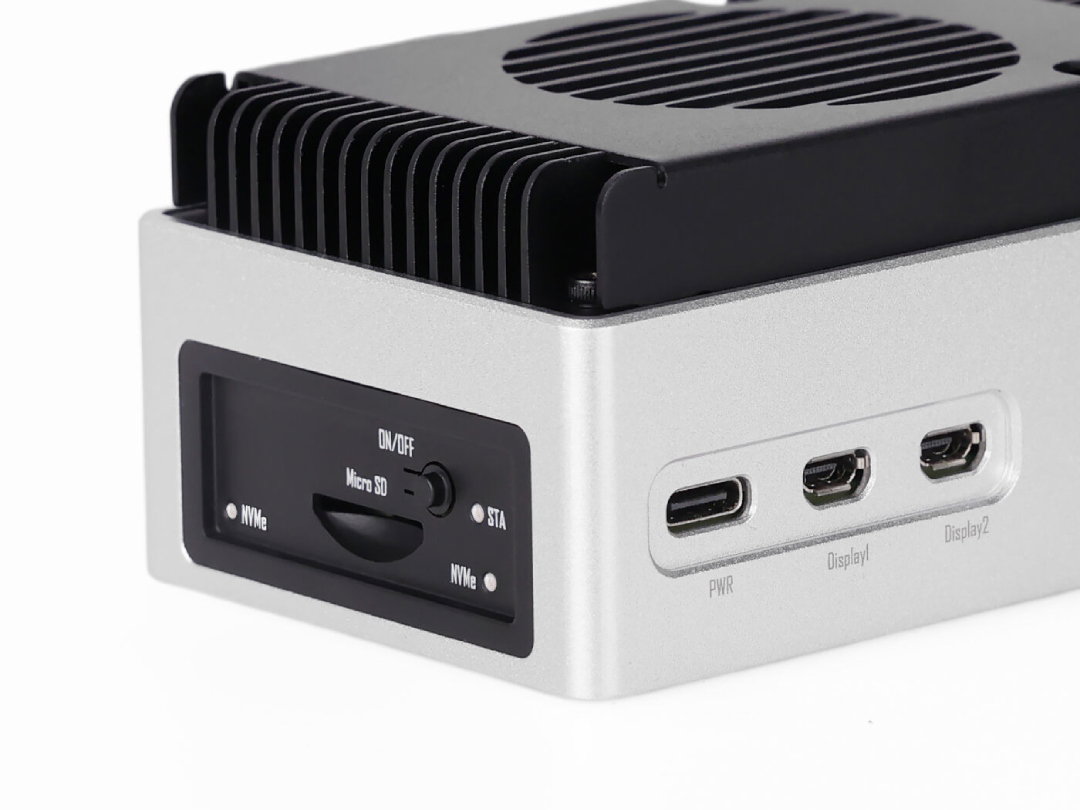

Connectivity and interfaces reComputer AI R2140-12.Connectivity and interfaces
- Power - USB Type-C port (5V/5A) with Power Delivery support
- MicroHDMI 1 video output - supports resolutions up to 4Kp60
- MicroHDMI 2 video output - second independent 4Kp60 output

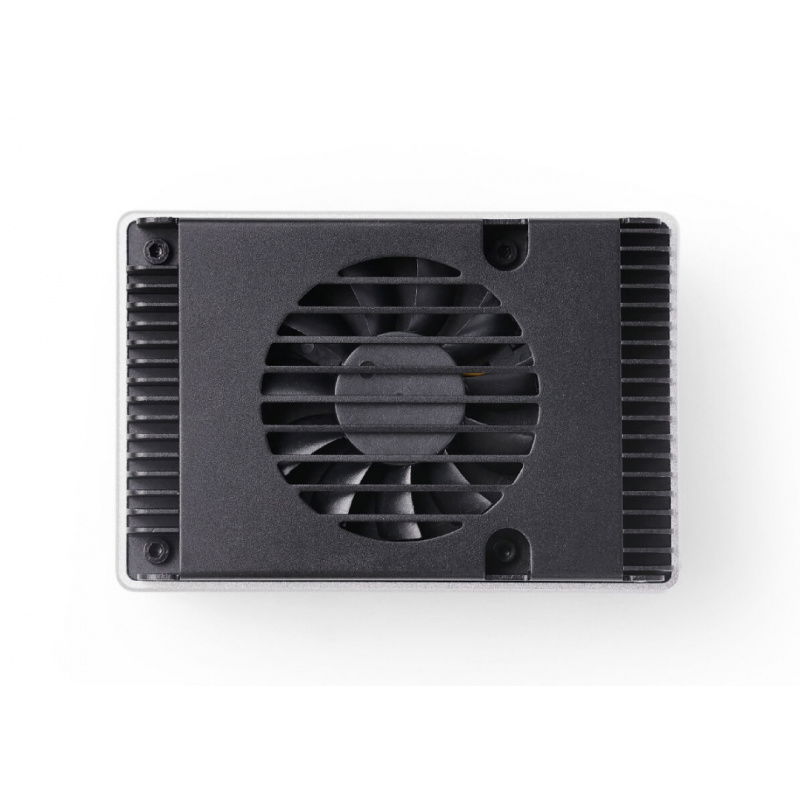

- Active cooling - integrated radiator with fan
- Ethernet port - 1x Gigabit Ethernet (1000 Mb/s)
- USB 3.0 ports - 2x USB Type-A for high-speed peripherals
- USB 2.0 ports - 2x USB Type-A for devices with lower data requirements
- MicroSD card slot - for installing the operating system or storing data
- Power button - allows you to easily turn the device on and off
- Device status LEDs - device operation indication
- NVMe activity LED - information about the M.2 SSD drive activity
| Technical specifications of the reComputer AI R2140-12 | |
|---|---|
| CPU Model | Raspberry Pi 5 - 2.4 GHz, 4-core Cortex-A76, 64-bit |
| GPU | VideoCore VII |
| AI Accelerator | Hailo-8 M.2, 26 TOPS |
| RAM | 16 GB |
| Operating system | Raspberry Pi OS, Ubuntu |
| Wireless connectivity | Wi-Fi 802.11ac (dual-band), Bluetooth 5.0 / BLE |
| Ethernet port | 1 x 10 / 100 / 1000 Mbps (Gigabit Ethernet) |
| USB ports | 2 x USB 3.0, 2 x USB 2.0 (USB type A) |
| Video outputs | 2 x microHDMI (4Kp60) |
| microSD slot | 1 x microSD with SDR104 support |
| M.2 slots | 2 x M.2 PCIe 3.0 (NVMe SSD / Hailo-8) |
| Power button | Built-in (ON/OFF) |
| Video decoder | 4Kp60 HEVC |
| Cooling system | Radiator + fan |
| Power supply | 5V/5A via USB Type-C (Power Delivery) |
| Degree of protection | IP40 |
| Operating temperature | from 0°C to 45°C |
| Dimensions | 95 x 63 x 45 mm |
