Raspberry Pi CM4S Compute Module 4 SODIMM - 2GB RAM + 32GB eMMC - CM4S02032

Index: RPI-24902
Raspberry Pi Compute Module 4S is a compact SoM module based on the Raspberry Pi 4B architecture . Equipped with a quad-core Cortex A72 processor, 2 GB of RAM and 32 GB of eMMC memory . Thanks to the use of a SODIMM connector and 46 GPIO pins, the module provides wide integration possibilities in industrial applications. It is an excellent solution for users migrating from Compute Module 3 and 3+, providing better performance, more RAM and a rich set of multimedia interfaces.
Raspberry Pi CM4S Compute Module 4 SODIMM - 2GB RAM + 32GB eMMC - CM4S02032
€54.90
€44.63 tax excl.
The minimum purchase order quantity for the product is 200.
Waiting time approx. 2-4 weeks.
Waiting for delivery
PayPal payment
Manufacturer: Raspberry Pi

Product description: Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM + 32 GB eMMC - CM4S02032

Raspberry Pi CM4S is a compact SoM module based on the Raspberry Pi 4B platform , designed for demanding industrial applications. Equipped with a quad-core Cortex A72 processor (1.5 GHz), 2 GB of LPDDR4-3200 SDRAM with ECC and 32 GB of eMMC memory , it provides high performance in advanced applications. The module supports a variety of interfaces, including USB 2.0 , HDMI 2.0 (up to 4K at 60 fps), MIPI DSI and CSI , as well as composite TV output . It allows for 4K video decoding in H.265 (HEVC) and H.264 standards. Additionally, it has 46 GPIO pins , which significantly expand the expansion possibilities. Compatibility with Raspberry Pi OS makes it an ideal solution for systems requiring non-standard formats and individual configurations.

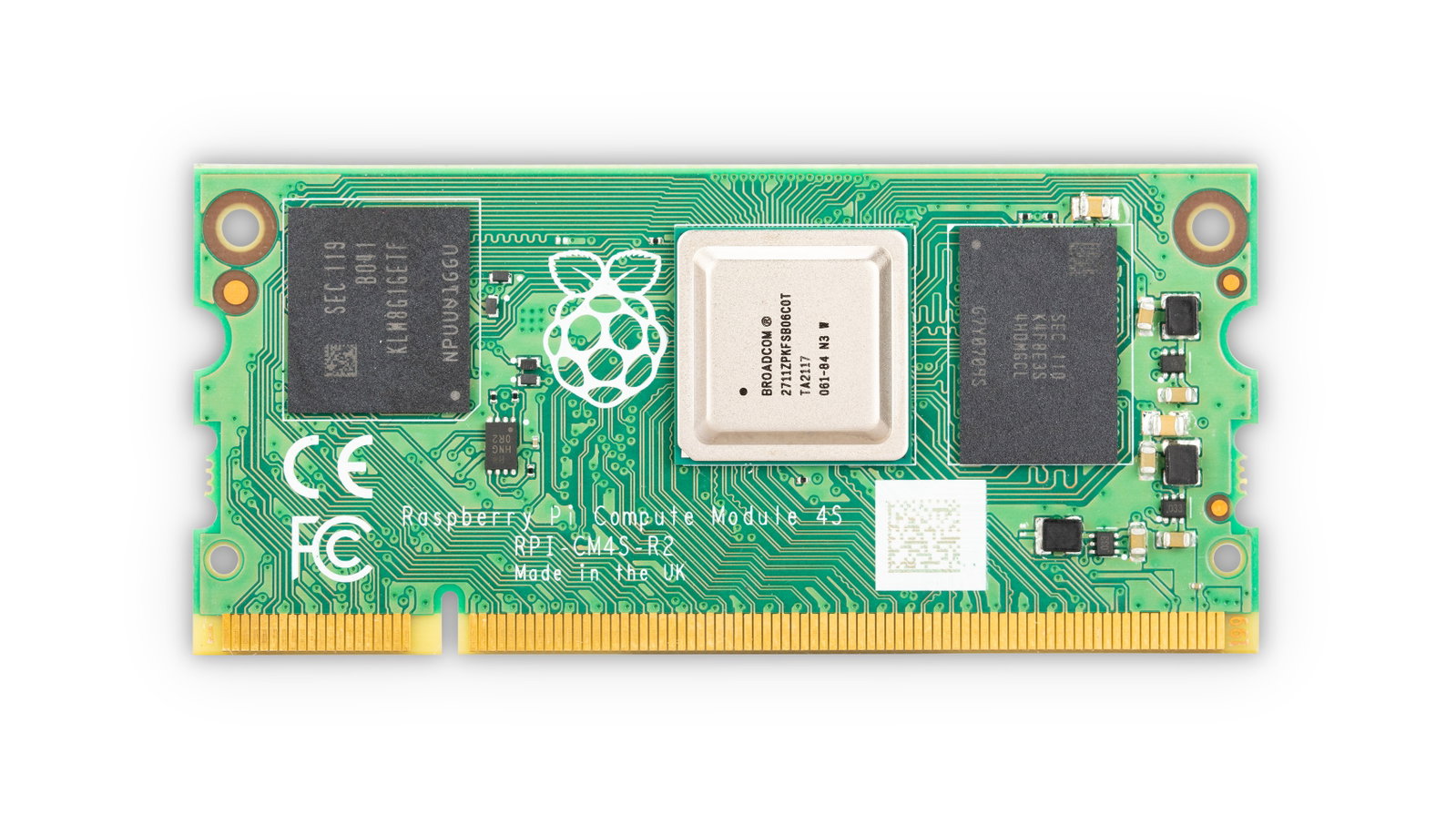

Raspberry Pi CM4S Compute Module 4 SODIMM

Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM + 32 GB eMMC - CM4S02032.

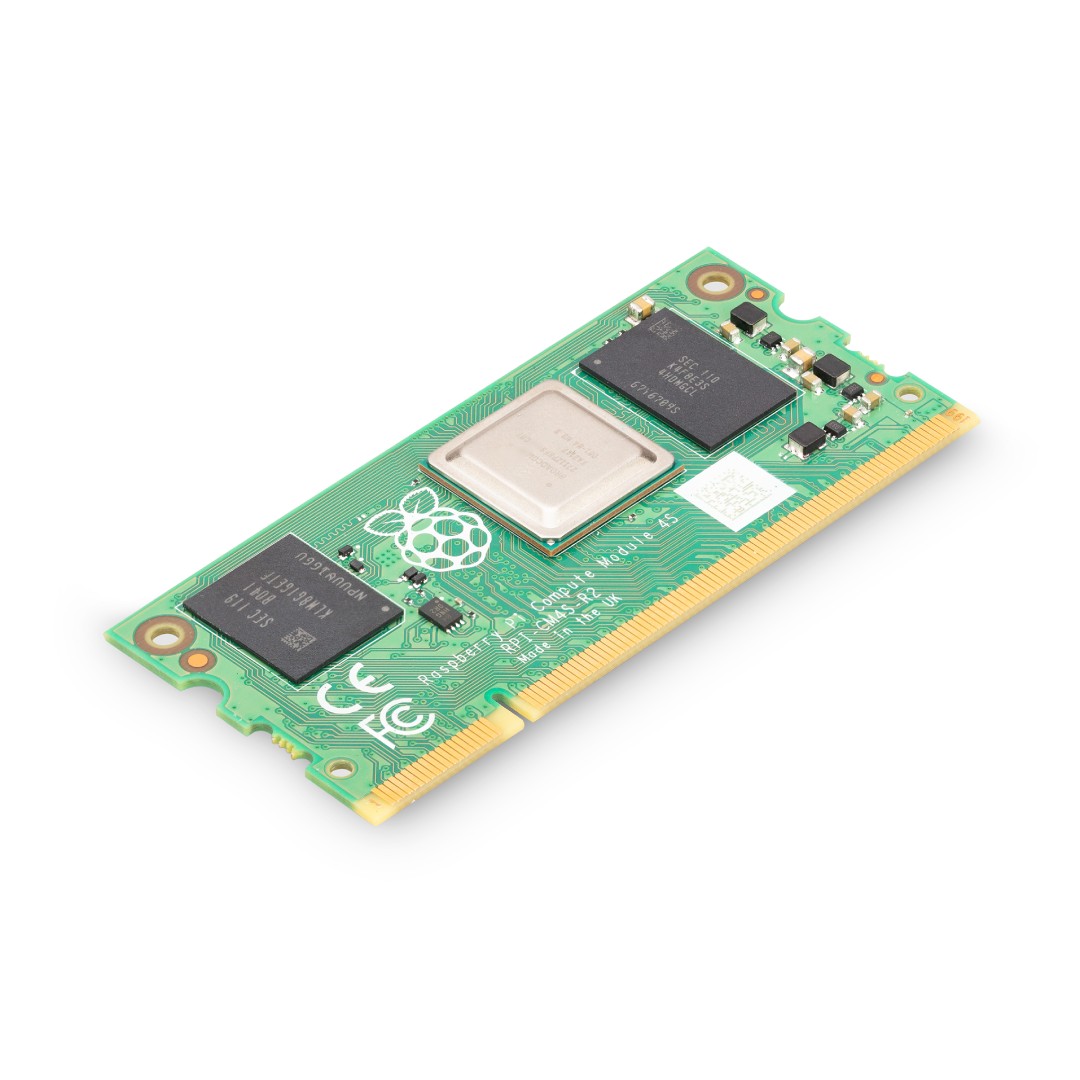

Raspberry Pi CM4S Compute Module 4 SODIMM

The Raspberry Pi CM4S has a Broadcom BCM2711 processor.

Key Features of the Raspberry Pi Compute Module 4S

  • Processor : Quad-core Broadcom BCM2711 Cortex A72 (1.5 GHz) for high performance
  • Memory : 2 GB LPDDR4-3200 SDRAM with ECC and 32 GB eMMC memory, ensuring reliability and stability, especially in demanding applications
  • Connectivity : High-speed USB 2.0 port for connecting a variety of peripherals
  • Video interfaces : HDMI 2.0 port supporting 4K resolution at 60 fps, compatible with H.265 (4K/60 fps) and H.264, enabling smooth decoding and encoding up to 1080p at 30 fps
  • Inputs/Outputs : 46 GPIO pins, which provide wide possibilities for customization to the needs of industrial applications
  • Camera and display interfaces : MIPI DSI (2 channels) and CSI (4 channels) support makes it ideal for display and vision applications
  • System support : compatible with Raspberry Pi OS and embedded systems for easy integration

Rich set of interfaces and industrial functions

The Raspberry Pi Compute Module 4S offers a rich set of interfaces and features that make it ideal for a wide range of applications. The module is equipped with:

  • 46 GPIO pins that enable flexible communication and integration with other devices
  • USB 2.0 port , allowing you to connect various peripherals such as keyboards, mass storage devices and other accessories
  • HDMI 2.0 port that supports 4K resolution at 60 fps, perfect for multimedia applications
  • MIPI DSI and CSI interfaces , offering two ports for displays and two for high-bandwidth cameras
  • Composite TV output , which is particularly useful in installations with analog video formats (PAL/NTSC)
  • support for OpenGL ES 3.0 , which allows you to run applications that require advanced 3D graphics, such as vision systems or data visualizations
Raspberry Pi CM4S Compute Module 4 SODIMM Raspberry Pi CM4S Compute Module.
Raspberry Pi CM4S Compute Module 4 SODIMM

The plate has dimensions of 67.6 x 31 mm.

Raspberry Pi CM4S Applications

The Raspberry Pi CM4S is ideal for engineers and designers who develop custom industrial devices, IoT systems, automation, smart devices , and other projects that require high performance, reliability, and flexibility. The module finds application in areas such as industrial cameras, monitoring systems, video analysis devices , or projects requiring advanced interface configuration.

Our offer also includes other versions of the Raspberry Pi CM4S, available with different RAM configurations: 1 GB, 2 GB, 4 GB and 8 GB. These modules are available in versions with eMMC memory (8 GB, 16 GB or 32 GB) and without eMMC.

Raspberry Pi CM4S Technical Specification
Processor Broadcom BCM2711 64-bit
Core Quad-Core ARM Cortex A72
Clocking 1.5GHz
Architecture ARMv8
RAM memory 2GB LPDDR4-3200 SDRAM with ECC
eMMC memory 32GB
Wireless connectivity Lack
Power supply 3.3V / 2.5V to 5V
Interfaces
  • 1x USB2.0
  • 46x GPIO
  • 1xHDMI
  • 2xUSB3.0
  • 2x DSI - 2/4-track
  • 2x CSI - 2/4-track
  • 1x Composite TV output
Dimensions 67.6x31mm

UC - Microcontroller BCM2711
UC - Core Cortex A72
UC - RAM 2 GB
UC - core 4. Quad Core
UC - Digital pins 46
UC - External memory eMMC 32GB
UC - freq 1.5 GHz
UC - USB 1x USB
UC - HDMI yes
UC - I2C yes
UC - UART yes
UC - SPI interface yes
UC - Camera interface yes
