Rotary potentiometer 50kΩ linear 1/8W with switch
A rotary potentiometer with a resistance of 50 kΩ with a built-in switch ensures precise and smooth regulation and supports current up to 1 A and voltage up to 24 V. It is used to adjust the volume in audio equipment, control lighting and set parameters of electronic devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 50 kΩ linear 1/8 W rotary potentiometer with switch
The WH9011 rotary potentiometer with a resistance value of 50 kΩ with a built-in switch is a component intended for installation on a printed circuit board . It is characterized by linear characteristics, ensuring precise and smooth resistance regulation. It has a rotating axis 15 mm long and 6 mm in diameter with a rotation angle of 300° . The switch built into the potentiometer supports current up to 1 A at 24 V and is resistant to operating temperatures ranging from -10°C to 70°C. It can be used to adjust the volume in various types of audio equipment , e.g. radios, amplifiers or stereo systems. It will also be useful when adjusting the brightness of lighting in lamps and setting appropriate parameters of electronic devices .
Our offer also includes other rotary potentiometers . Check!

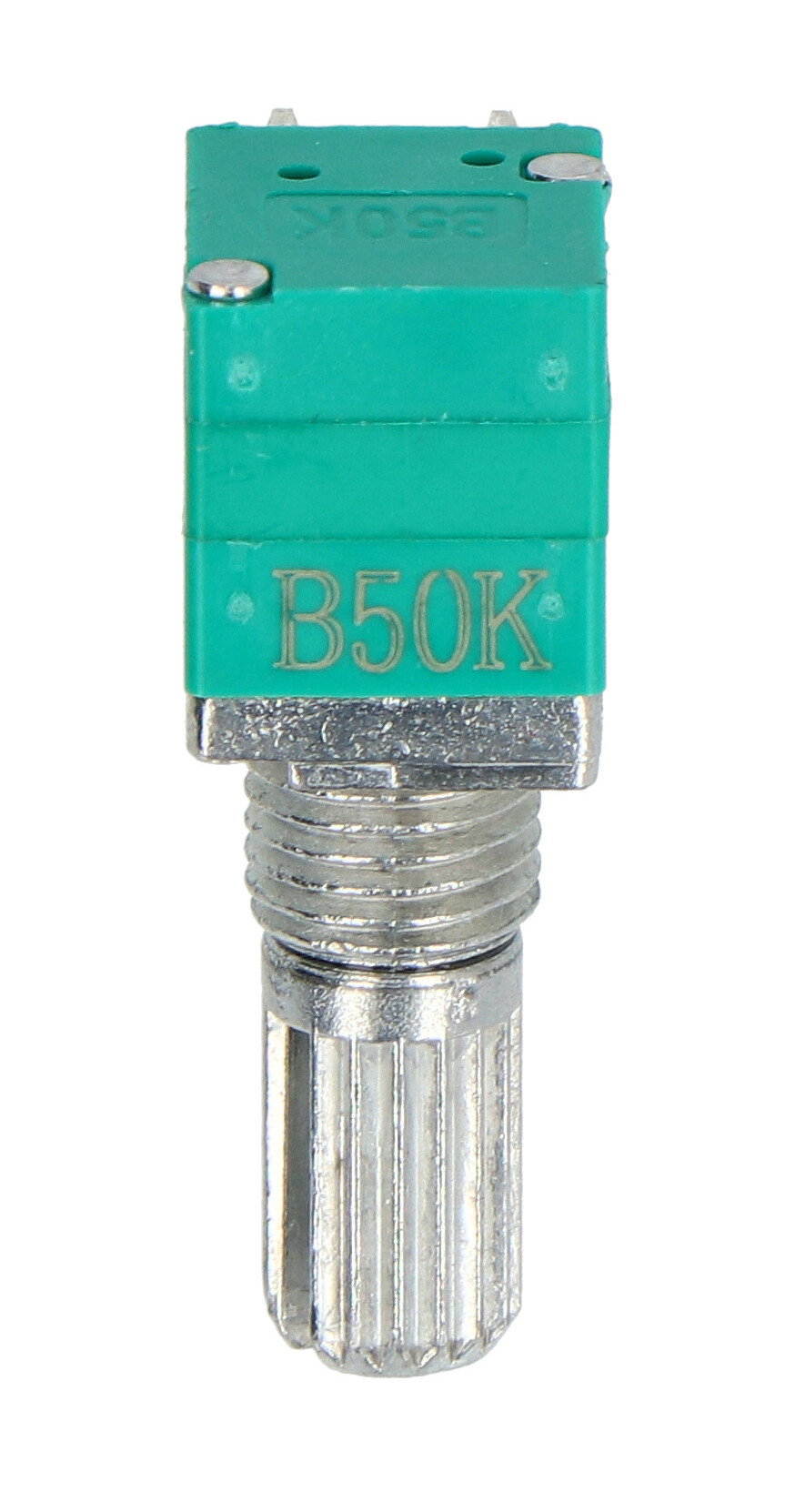

50 kΩ linear 1/8 W rotary potentiometer with switch.

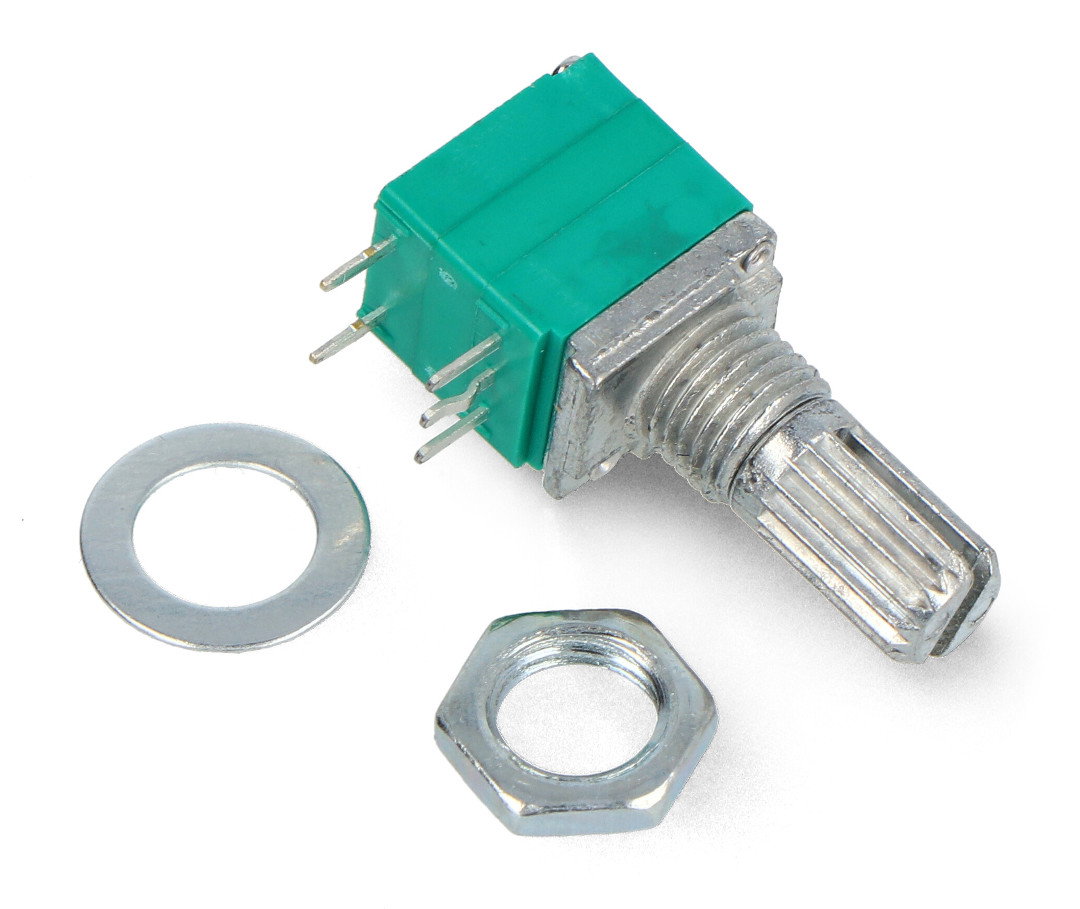

The potentiometer has a built-in switch.
Rotary potentiometer specifications
- Model: WH9011
- Resistance: 50 kΩ
- Power: 0.125 W
- Characteristics: linear
- Switch current: 1 A
- Switch voltage: 24 V
- Rotation angle: 300°
- Axis length: 15 mm
- Axle diameter: 6 mm
- Pinouts: 5 pin
- Pin pitch: 2.54 mm
- Linearity Tolerance: ±20%
- Operating temperature: from -10°C to 70°C
- Dimensions: 9 x 11 x 22 mm
- Weight: 5 g
| Name | Value |
|---|---|
| Width | 5 cm |
| Height | 7 cm |
| Depth | 1 cm |
| Weight | 0.006 kg |
