Description

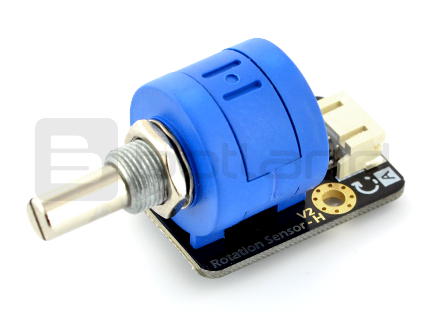

The DFRobot module with 10-turn potentiometer with the resistance of 10 kΩ. The kit also includes a cable with a female connector, pitch of 2.54 mm.
Connection

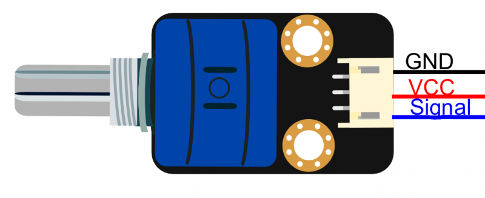

The device has three output pins, an appropriate cable with a female end is included in the set. The distribution of the pins is as shown below:
- GND- ground of the system
- VCC- supply voltage, e.g. 5 V
- Signal- analog output signal
Example with Arduino
The figure below shows the example of connecting the module toArduino. To run the system, it is sufficient enough to indicate the power and to read an analog output signal from the Signal pin through the built-in into Arduino of the A/D converters (pins marked with the letter A, for example, A0).
|
The product is compatible with Arduino Sample code can be found inthe user guide. |
Specification
- Resistance: 10 kΩ
- Number of turns: 10
- Length of axis: 13 mm
- Tolerance of linearity: ±0.25 %
- Axis diameter: 6.2 mm
- Board size: 34 x 22 mm
- Weight: 25 g
