Product description: Sonoff Pow Elite - 230 V WiFi relay with energy measurement
Sonoff Pow Elite is a universal intelligent relay with the function of monitoring electricity consumption. It allows wireless control of connected devices via WiFi . The maximum current is 20 A for a resistive load. It allows you to set a work schedule, turn it off when the energy consumption limit is reached, or trigger other home automation devices. Energy consumption and current power consumption are displayed on a clear display . You can use the dedicated eWeLink application for Android and iOS systems. Installation takes place on a DIN rail , using the holder included in the set.
Sonoff Pow Elite - 230 V WiFi relay with energy measurement
Our offer also includes other Sonoff devices compatible with the POW Elite relay.

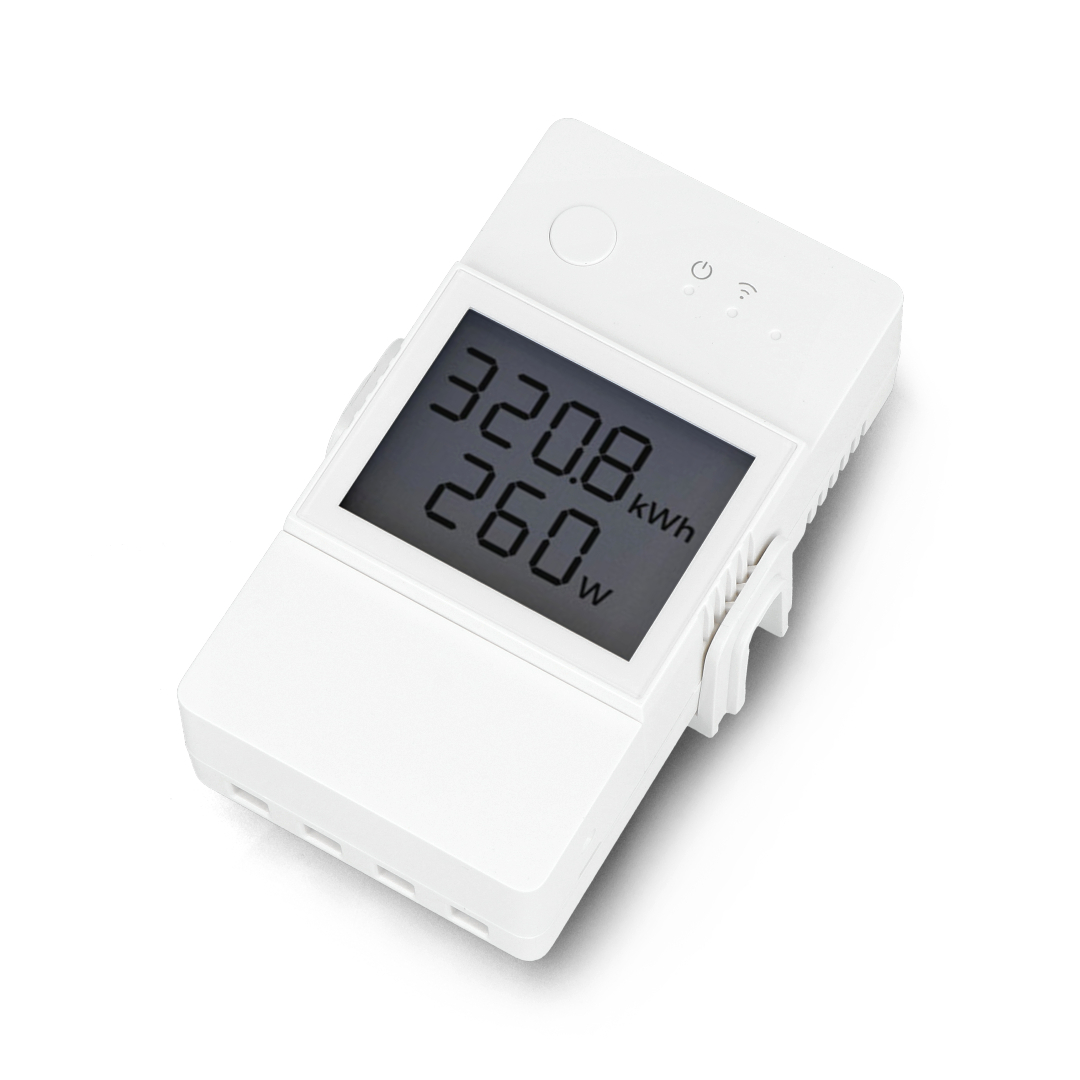

The WiFi transmitter is equipped with a clear display.
Main features of the relay
- It allows you to remotely control devices from anywhere
- Connects directly to the WiFi network - does not require an additional gateway
- Control via LAN
- Maximum current: 20 A
- Measurement of electricity consumption
- Possibility to set work schedule and energy consumption limits
- Energy consumption report up to 6 months ago
- Compatible with Amazon Alexa, Google Home and IFTTT
- Simple connection and configuration
- DIN rail mounting
- Certificates: SRRC, CE, FCC
WiFi relay capabilities
The intelligent Sonoff Pow Elite transmitter allows control via a WiFi network, including a LAN, without a connection to the server. From the dedicated eWeLink application, it is possible to set time schedules or energy consumption limits. Additional options for detecting too high current, voltage or power consumption will allow you to better protect connected devices.
The user can also remotely analyze electricity consumption, using data from up to 6 months ago. A dedicated application, also available for Android and iOS, can inform you about exceeding certain limits in the form of clear notifications, or export them to a spreadsheet.
The relay enables measurement and analysis of energy consumption.

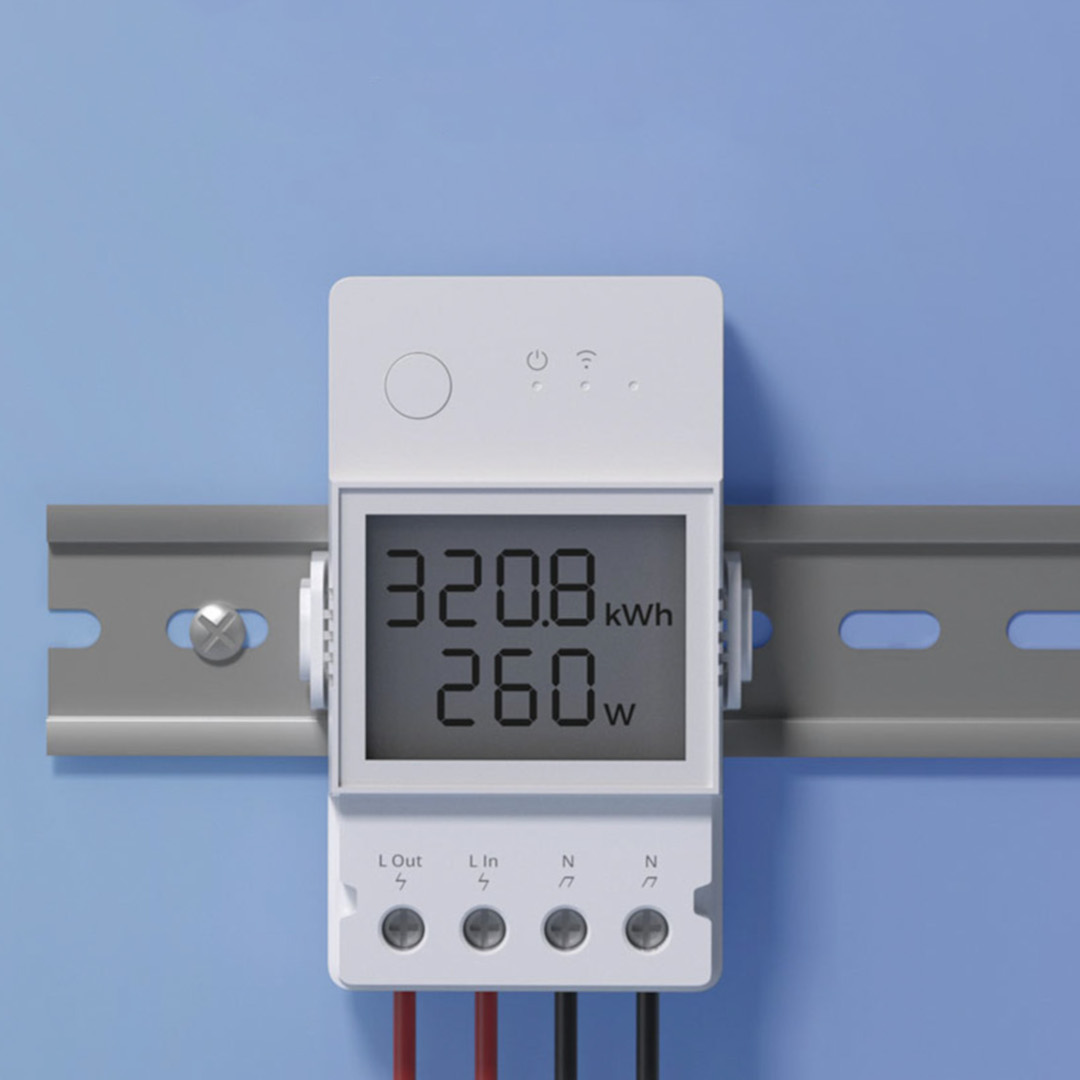

The device can be mounted on a DIN rail.
Technical specifications of Pow Elite
- Power supply: 100V to 240V AC (50/60Hz)
- Maximum current: 20 A
- Number of channels: 1
- Built-in chip: ESP32
- WiFi communication: IEEE 802.11 b/g/n 2.4 GHz / LAN
- Measurement of current consumption and electricity consumption (A, V, kWh, W)
- LCD display on the front panel
- Overload protection
- Control: eWeLink application
- Operating systems: Android, iOS
- Supported systems: Amazon Alexa, Google Home, IFTTT
- Material: PC V0 (fireproof polycarbonate)
- Dimensions: 98 mm x 54 mm x 31 mm
- Certificates: SRRC, CE, FCC
