RF Explorer - 3G Combo + case
Portable, digital spectrum analyzer. Works in the frequency band from 15 MHz up to 2700 MHz. It has an integrated frequency synthesizer and double mixer which offers high performance. Includes a handy case.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Portable, digital spectrum analyzer. Works in the frequency band from 15 MHz up to 2700 MHz. It has an integrated frequency synthesizer and double mixer. It can be connected to the computer via the miniUSB port that allows you to use additional functions.
The device is based on two modules: WSUB1G and RFEMWSUB3G that provides high sensitivity and fast response time. The system has two connectors to SMA antennas. The kit has also two antennas:
- broadband, telescopic Nagoya NA-773 for high frequencies
- helical for the 2.4 GHz band.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
For lower frequencies, the device may need specialized for the given range of the antennas.

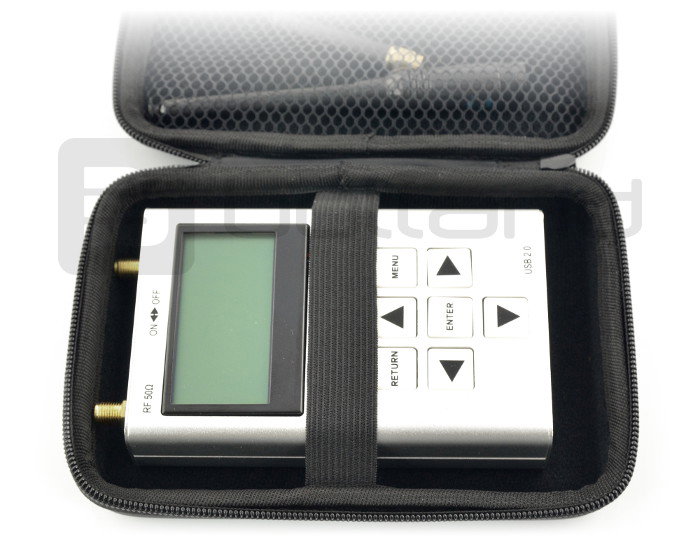

The set also includesa handy case.
Specification
- Frequency band: 15 MHz to 2700 MHz
- Frequency range: from 112 kHz to 600 MHz
- LCD display 128 x 64 px with backlight and good visibility on the outside
- The lipol battery provides over 16 hours of continuous operation, charged by mini USB connector
- Software for Windows on the manufacturer's website
- Two antenna connectors: SMA 50 Ω
- Two antennas:
- broadband, telescopic Nagoya NA-773
- helical 2.4 GHz
- Amplitude of resolution: 0.5 dBm
- Dynamic range:
- Left SMA connector (WSUB1G): -115 dBm to 0 dBm
- The right SMA connector (WSUB3G): -110 dBm to -10 dBm
- Maximum input power:
- Left SMA connector (WSUB1G): + 5 dBm
- The right SMA connector (WSUB3G): + 30 dBm
- Average noise level: -110dBm
- Stability and accuracy of frequency: ± 10 ppm
- The stability and accuracy of amplitude: ± 6 dBm
- Frequency resolution: 1 kHz
- The resolution of band (RBW): automatic 3kHz to 600khz
- Durable, aluminum housing
- Weight: 185 g
- Dimensions: 113 x 70 x 25 mm
Useful links
| Name | Value |
|---|---|
| Channels | 1 |
| Frequency from | 15 MHz |
| Frequency to | 2.7 GHz |
| Width | 17 cm |
| Height | 11.5 cm |
| Depth | 7.5 cm |
| Weight | 0.37 kg |
