Product description: Devil Design HIPS 1.75 mm 0.8 kg - Black
HIPS filament used as a 3D printer insert . The insert diameter is 1.75 mm. The kit contains 0.8 kg net of black filament. Requires a heated bed . Due to similar properties, ABS supports the model. After printing , immerse the model in a HIPS dissolving solution to ensure the ABS remains intact. The dissolving process takes 8 to 24 hours. Store away from moisture.
Our range of filaments also includes other materials and colors.
Filament Devil Design HIPS 1.75 mm 0.8 kg - Black.

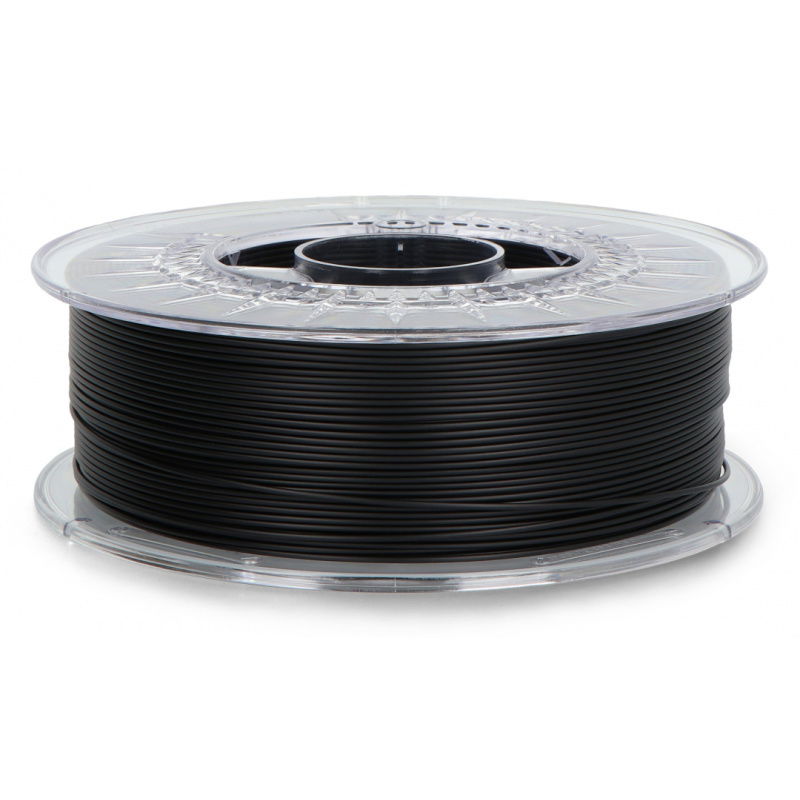

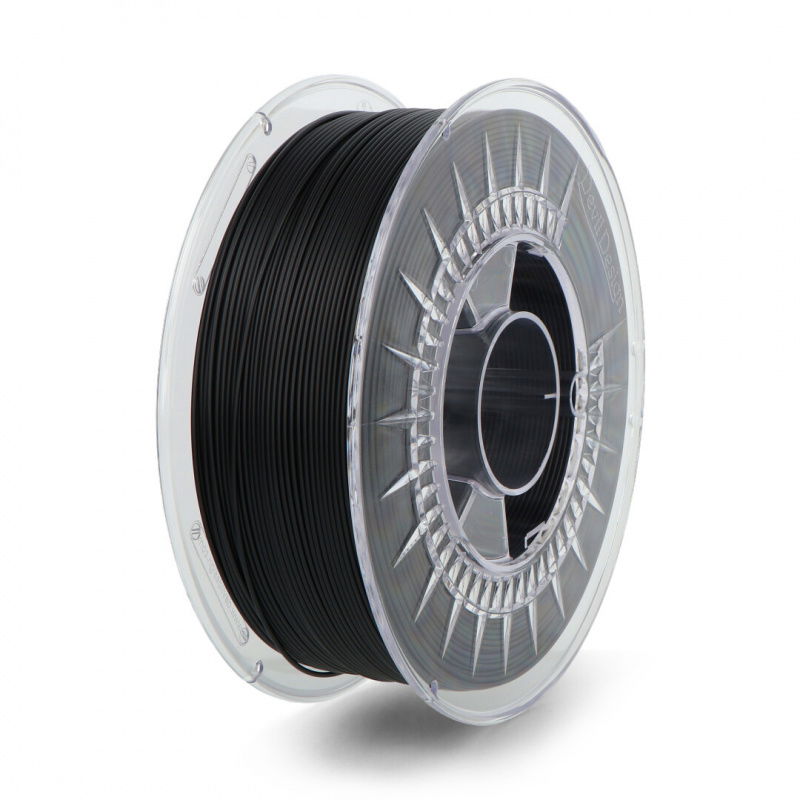

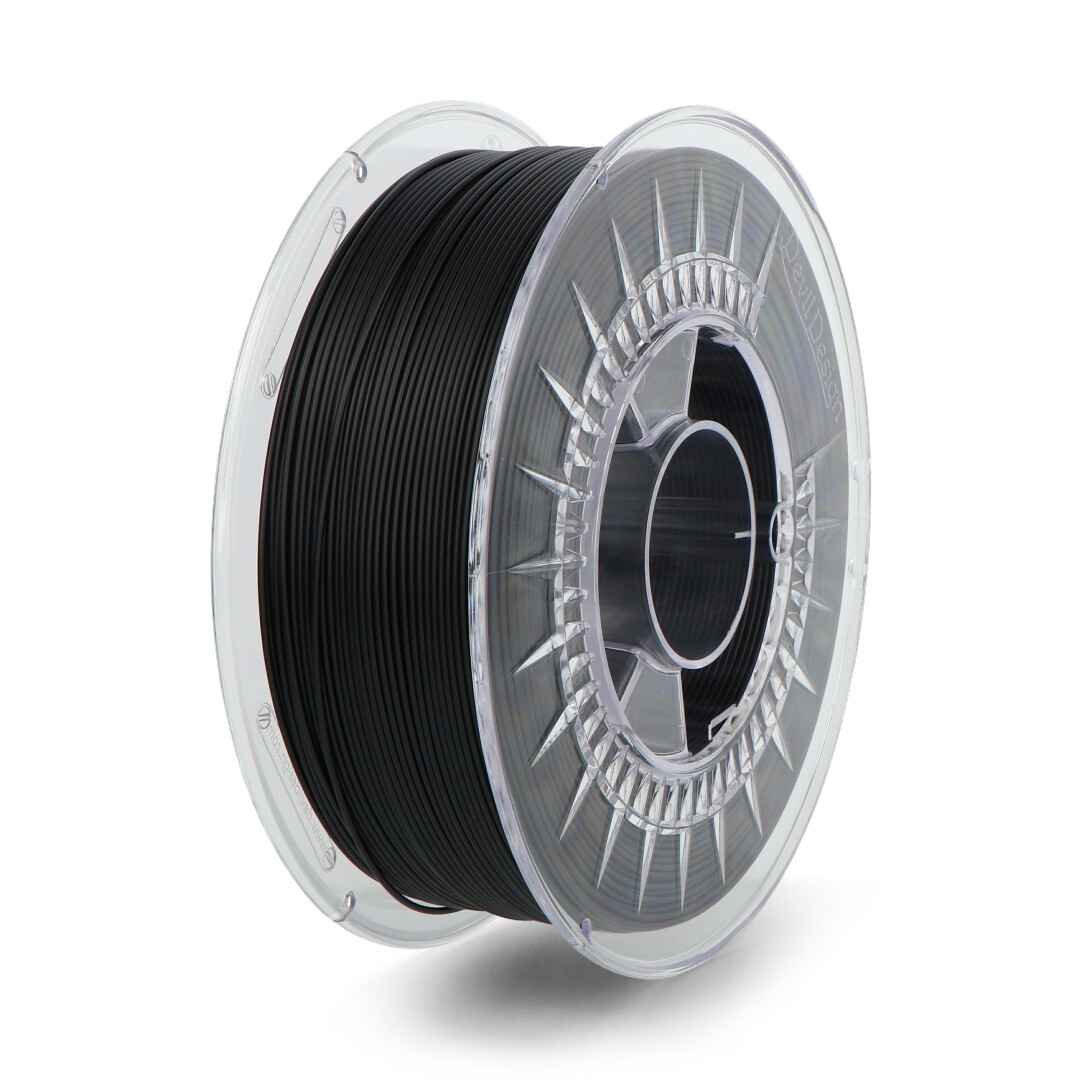

The filament is wound on a spool, vacuum-sealed with a moisture absorber. The spool contains a net weight of 0.8 kg . It can be used in all FFF printers not protected against the use of material from a third-party supplier or open-source designs. HIPS filament can be used as a base or support material, including for ABS in dual-head printers. HIPS is easily machined, such as by grinding or drilling, and is soluble in D-limonene solution.
Properties of HIPS filament
- Biodegradable
- Support material for ABS
- It dissolves in the solution intended for this material.
Suggested filament printing parameters
| Head temperature | From 230°C to 240°C |
| Table temperature | From 90°C to 100°C |
| Print cooling | Not recommended |
| Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |
Technical specifications and physical properties of Devil Design HIPS filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75 mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Filament roundness | +/- 0.02 mm |
| Material surface | Satin |
| Material shrinkage | Big |
| Product weight | 0.8 kg |
| Material | HIPS |
| Weight of empty spool | ~ 250 g |
| Spool diameter | 200 mm |
| Spool width | ~ 70 mm |
| Mounting hole diameter | 52 mm |
| Packaging | Cardboard with print |
| Package dimensions | ~ 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
Filaments are hygroscopic, meaning they absorb moisture. Therefore, breaking the airtight vacuum packaging permanently reduces the quality and value of the product. For this reason, if an unpacked item is returned, the refund amount will be proportionally reduced. This does not apply to returns resulting from manufacturing defects in the material, such as damaged or cut filament. Please carefully check the color and material type on the label before opening the foil packaging.
