Product description: On-Off Switch RS-101-7C (T-120) - 250V/6A - black
On-offtypeswitch. Total height: 25 mm. The terminals are screw connectors.
On-Off switch.
Specification of the switch
- Type: single ON-OFF
- Number of leads: 2
- Number of positions: 2
- Leads: screw connectors
- Working parameters: 125V/13A or 250V/6.5A
- Insulation resistance: 500 VDC 100 mΩ
- Life: 10000 cycles
- Contact resistance: max. 35 mΩ
- Operating temperature range: -25 °C to + 85 °C
- Dielectric strength: 1500 VAC / 1 minute
- Height: 25 mm
ON-OFF switch RS-101-7C (T120)
Micro ON-OFF switches, momentary switches and through switches are useful in many applications. You can use them to create your own automatic and electronic projects, as well as to repair broken home appliances.
The presented ON-OFF switch RS-101-7C (T120) has been equipped with a simple two-position rocker button with one mark (dot). The round shape of the button is its great advantage. It takes up little space, which makes the whole thing very easy to operate.

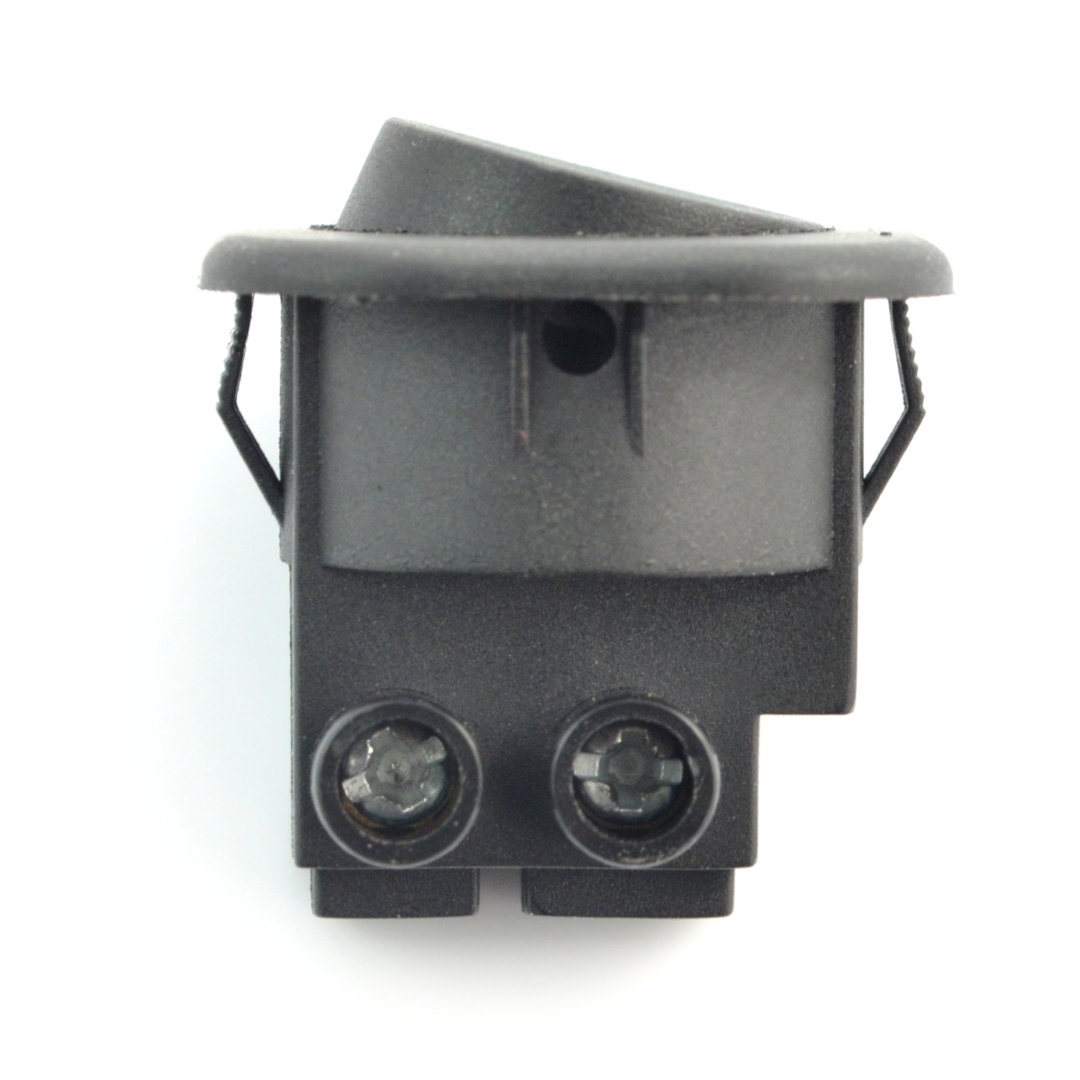

Black microswitch ON-OFF with screw connector
A characteristic feature of the presented product is the type of lead - a screw connector. It allows for a convenient assembly with screws and a precise configuration in terms of embedding the product in a dedicated terminal element.
Moreover, the offered black ON-OFF microswitch has excellent current parameters. The contact resistance is max. 35 mΩ, supply values - 250 V / 6.5 A or 125 V / 13 A. Surely, this element will be useful in many of your projects!
