Product description: NeoKey Socket - with mechanical key slot - NeoPixel - Adafruit 4978
NeoKey Socket from Adafruit - with Cherry MX compatible mechanical switch socket. The NeoKey Socket board also has a built-in RGB NeoPixel diode , which illuminates the mounted button in any declared color ( buttons and overlays must be purchased separately ).
In our offer you will also find Kailh mechanical switches in different colors - check!

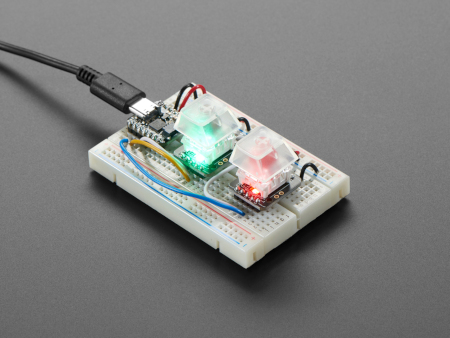

Application of NeoKey Socket from Adafruit.
The subject of the sale is only the board - buttons and overlays must be purchased separately.

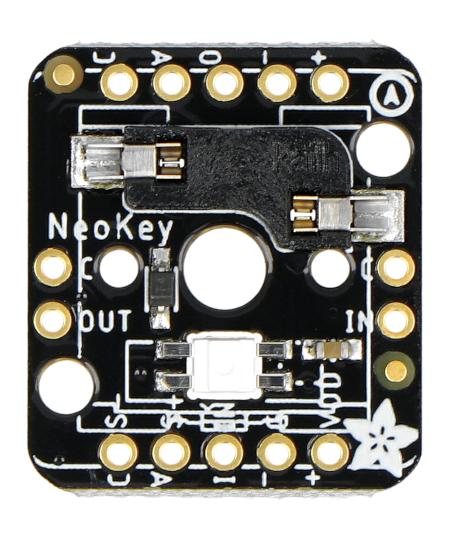

NeoKey Socket - with mechanical key slot - NeoPixel - Adafruit 4978.
Special features of the NeoKey Socket
- Built-in RGB NeoPixel LED
- Possibility of implementing individual switch designs with unusual lighting effects
- Cherry MX compatible switch socket for connecting a wide range of mechanical switches
- Leads in the form of solder pads
- Easy switch assembly that requires no soldering
Leads
- VDD (+) - power pin for NeoPixel, voltage range from 3 V to 5 V DC
- GND (- ) - mass of the system for NeoPixel
- INT (I) and OUT (O) - input and output to/from NeoPixel
Technical specification of the board
- Series: NeoKey
- Number of supported buttons: 1
- Built-in backlight: yes
- Backlight source: LEDs
- LED type: NeoPixels
- Lighting color: individually programmable
- Button socket type: Kailh, Gateron standard
- Compatible buttons: Cherry MX series and similar
- Supply voltage: 3 V to 5 V DC
- Pins: 2.54 mm solder pads (goldpin strip included in the set)
- Development environment: Arduino, CircuitPython
- Dimensions: 21.8 x 19 x 3.4mm
- Weight: 1.4g
Kit contents
- NeoKey Socket - with a slot for a mechanical key - NeoPixel - 1 piece
- Godpin strip 1x16 - raster 2.54 mm - 1 piece

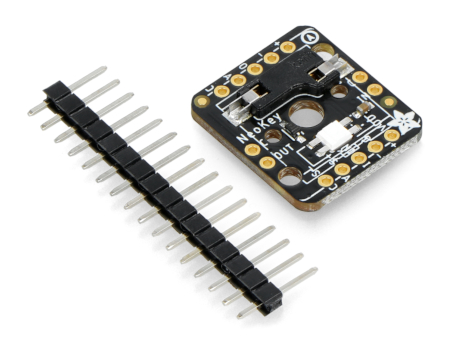

Components included in the set.
